Cable Drum Trailer -Drum Drive/Power Lift Unit

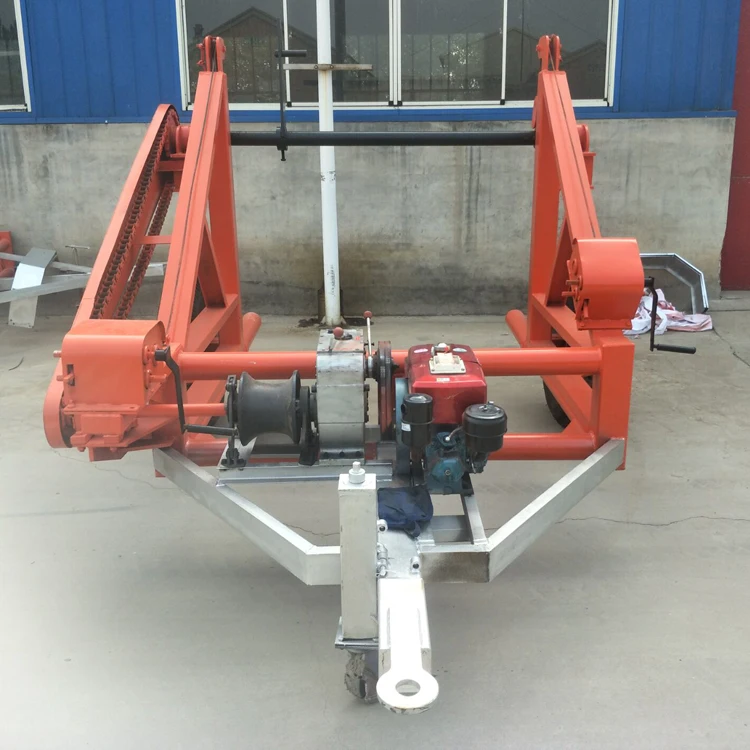

Diesel or Petrol engine powered cable drum drive unit to assist in paying our or taking up the cable. This unit also provides powered lift of the drum.

It is loaded with standard equipment with optional accessories include hydraulic lifting and lowering of cable drum. It has a NATO coupling and hydraulic drum drive. It is for unreeling and reeling of drum drive with the help of an independent petrol engine. A supply of additional lifting and drive systems is also provided.

Type	Max Drum Mass	Max Drum Diameter	Max Drum Width	Spindle Shaft Diameter
DPSTC30D	3T	2400mm	1300mm	60mm
DPSTC50D	5T	2800mm	1500mm	75mm
DPSTC80D	8T	3400mm	1700mm	90mm
DPSTC100D	10T	3600mm	1900mm	110mm
DPSTC120D	12T	3800mm	2100mm	120mm
DPSTC150D	15T	4200mm	2300mm	150mm
