BR20 BR20P Sprag тип подшипника обгонная

Technical Datas

 .

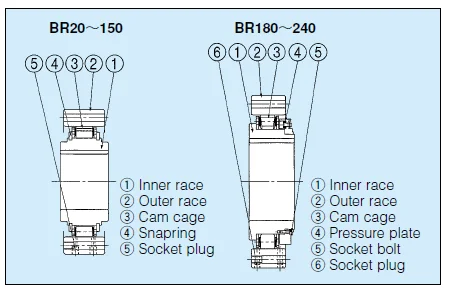

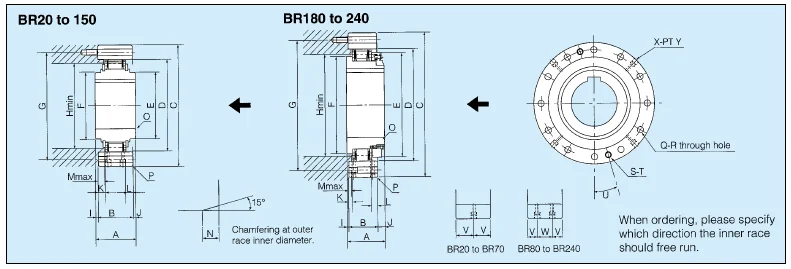

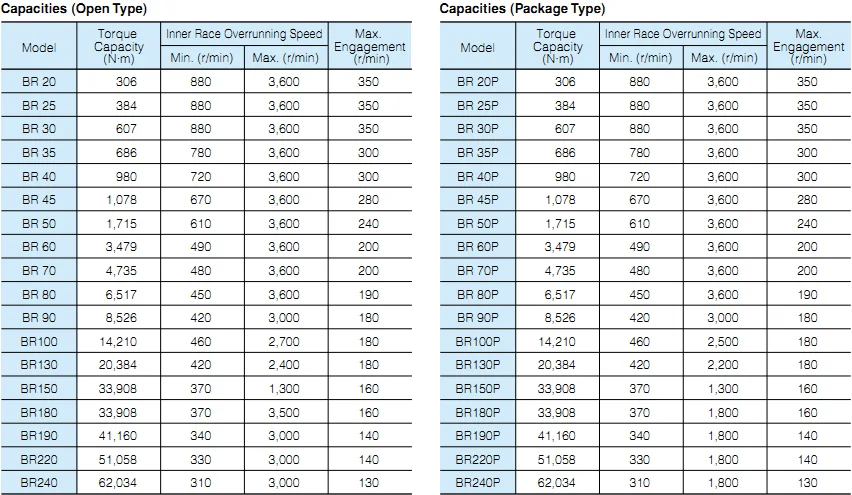

 Dimensions and Capacities

Mounting

1. We recommend using shaft tolerances of h6 or h7 for Cam Clutch installation.

2. Use a ISO R773 (DIN 6885.1) parallel key make sure that the key does not move in the keyway. A loose key

will damage the Cam Clutch.

3. When installing the Cam Clutch over a shaft, please follow the procedure outlined below. Never strike the clutch

with a steel hammer or apply unnecessary impact loads.

1) Verify Cam Clutch direction of rotation. The arrow on the inner race shows the free running (cam disengaged) direction.

Make sure that the direction of cam engagement matches the intended application.

2) Tap the inner race lightly with a soft hammer moving around the race circumference so the Cam Clutch moves slowly

and uniformly onto the end of the shaft. Make sure that the outer race does not become dislodged.

3) Place an end plate over the inner race and use the mounting bolts to pull the Cam Clutch onto the shaft.

4) Tighten the end plate securely.

4. If you are installing the outer race first, check the precision of the fit. The tolerances for outer race mounting are shown

in the tables at right. Verify that the correct tolerances can be obtained. Out of spec installation could damage the Cam

Clutch.

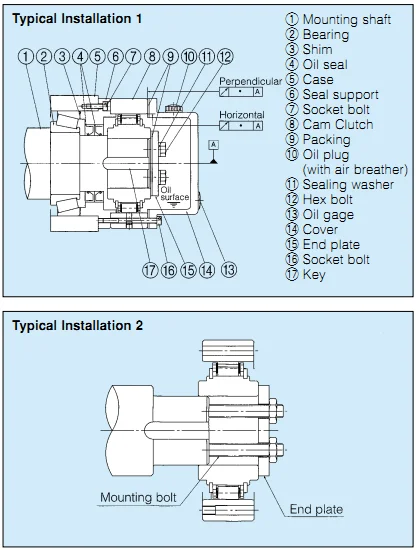

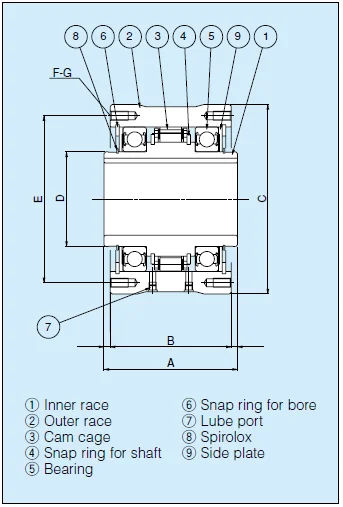

5. To lubricate the Cam Clutch, apply lubricant at the outer circumference of the inner race (see installation diagram).

Avoid over lubrication, as it will cause the

Cam Clutch to generate excessive heat.

6. When using the Cam Clutch at a reduction gearbox, make sure that oil from the gearbox cannot enter the Cam Clutch.

Service life can be significantly shortened if the Cam Clutch comes in contact with gear oils that contain viscosity enhancing

additives. Refer to page 80

for lubrication guidelines.

7. When installing a cover or seal support over the outer race, use bolts with a tensile rating of 10.9 or greater. Use a sealing

agent or packing material between the mating services to prevent leakage.
