Indoor Usage HVAC System Room

Relay Wiring

1(NC),2(COM),3(NO)

Heating: connect the two connection wires of the device to be controlled to terminals No. 3 (NO) and No. 2 (COM), i.e. to the normally open terminals of the relay

Cooling: the two connection wires of the cooling equipment should be connected to terminals No. 2 (COM) and No. 1 (NC), i.e. to the normally closed terminals of the relay.

•  To prevent electric shock, replace the inner cover removed for the connection of wires after the assembling process has been completed.

The device must be installed and connected by a qualified professional. Always follow the manufacturer's instructions when connecting the thermostat to any heating or cooling appliance.

The voltage appearing at terminal No. 1, No. 2 or No. 3 depends only on the system being controlled, therefore the dimensions of the wire are determined by the type of the device to be controlled. The length of the wire is of no significance.

Running Mode

Hold the dial button for 5 seconds to access the system running mode switch, then turn the dial to choose different mode between:

HEAT (Heating): adjust the temperature by turn the dial

COOL (Cooling): adjust the temperature by turn the dial

OFF (Frost Protection): it will start heating when the room temperature is under 7°C

Then press the dial again to confirm the running mode or wait for 10 seconds to confirm the setting automatically.

Calibrate the temperature

Temperature calibration and SWING settings): Hold the dial for 5 seconds to access to the mode switch setting and select HEAT or COOL mode, then press the dial to access the interface of temperature calibration “CAL” (in -3.0~+3.0, in 0.5°C increments); turn the dial to set the desired value, then press the dial again to set the Swing value between 0.2~2°C.

Restoring thermostat to factory default

Remove the batteries then put it back, hold the dial until display the full screen then release, the defaul running mode is HEAT, it means the thermostat has been restored to factory default settings.

About Payment

T/T is the common payment way.

If you need, Paypal, Western Union, and MoneyGram is also available. If you have payment method requirement, please contact with Wendy Lynn, she will serve you.

About Shippment

For samples/trail order less than 100pcs, we suggest you choose EXPRESS delivery. DHL, FEDEX, TNT, UPS, EMS, ePacket are available.

For large order, we suggest you choose shippment by sea, or by air.

If you have shippment requirements, we can arrange delivery according to your need.

Q1. Can I get any discount?
A1:Yes.The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, We offer you wholesale price. We also have promotions several times a year.
Q2. How much are the shipping costs?
A2:Shipping cost is charged by the package's weight and related to the shipping methods you choose and your destination.
Q3. Do you offer samples?
A3:Yes.You can buy 1pcs in first order to check the quality. then we send some other designs small cutting as samples with your order.
Q4. How many styles for my select?
A4:Many types for your choose or as per customized.
Q5. I am a designer, Can you help me to produce the sample which we designed?
A5:Yes.We have a professional team to cooperate with you.
Q6. Can you make OEM or ODM service?
A6:Yes. We can accept OEM service. Also we have our own designer team. So it's also welcome to choose our ODM products.
Q7. Tell me your company's strength, because I want to place order to you.

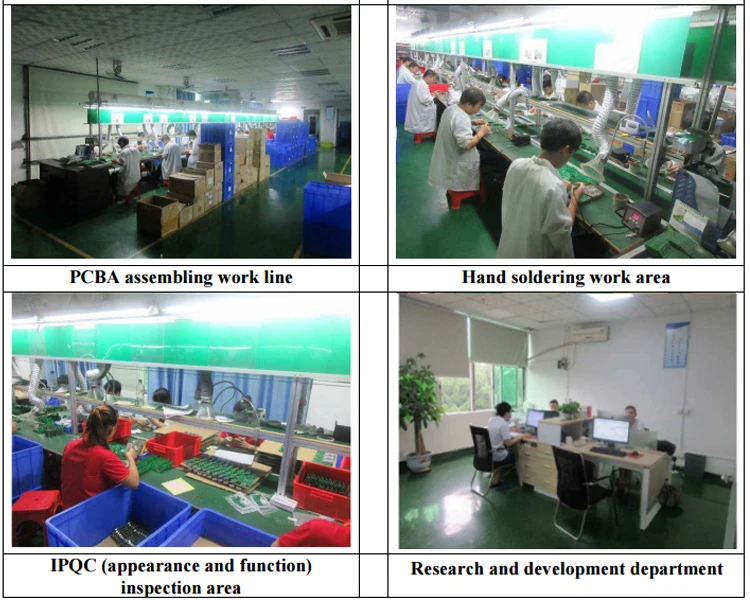

A7: Our company has a long-time experience in thermostats, also we have R&D team in thermostats,we have many famous clients around the world.
Q8. Do you have some special policies for Brand company?
A8:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year, so that we could support you the products in your market.
