DN50-600 Rubber Seated Ductile iron Flange type Gate valve conform to DIN3202 F4 Manual

Material of Different Parts:

1. Body: HT200

2.Disc:HT200

3.Shaft:Q235

4.Seat:ZQAI 9-4

Pressure:

PN10/PN16

Actuator:

Electric actuatro(China brand ,on/off type, IP67)

Other choices of cast iron gate valve

Product Photos

Packed as followed:

Flange ductile cast stell rubber bellows expansion flexible joint for pipe

Rubber bellow expansion joints are the best solution to isolate vibration, dampen noise and pressure surge coming from for example engines, pumps or turbines. Additionally, these expansion joints are suitable to compensate thermal elongation or even misalignments.

The addition of the rubber properties and Nylon-cord reinforcement provides a flexible pipe joint that is easy to install, efficient and a long service life. These compensators allow angular and lateral movement as well as axial compression and expansion.

Main materials

  CE  ISO  WARS  has been approved. Our aim is "All for customers and all from innovation"

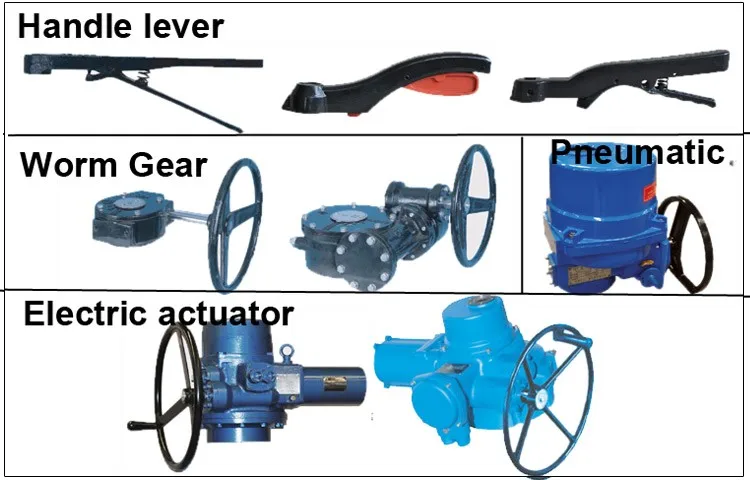

-----------------------------------Actuator--------------------------------------------

1. Handle lever   2. Worm Gear    3. Pneumatic   4. Electric Autuator
