- The fifth stepper motor output port can be customized as a Z-axis motor or a second extruder. - Can be extended to control other accessories. Three field effect transistors, three heater / fan output ports, three thermistor circuits. - Heated bed control, extra 11A fuse. - Pololu board foot socket, can be easily replaced or removed.
Feature
1
It has Cartesian robots and regulations of the extruder .
2
Extended to control other accessories.
3
Heater / MOSFET outputs and three fan thermistor circuit.
4
Integration of additional security 5A and component protection.
5
Control of additional heating bed 11A fuse.
6
Suitable for 5 Pololu stepper driver board.
7
Pololu board pin socket, so they can be easily replaced or removed for future designs.
8
I2C and SPI pins left for future expansion.
9
Hooked into all MOSFET PWM pin versatility.
10
Servo type connector is used to connect to the end stop , the motor and the light-emitting diodes. These connectors are gold-plated , rated current of 3A, very compact.
11
On the SD card to add - is now available from the Kliment - Sdramps.
12
LED indicate when the heater output.
13
Option 2 motors connected to Z Prusa Mendel.

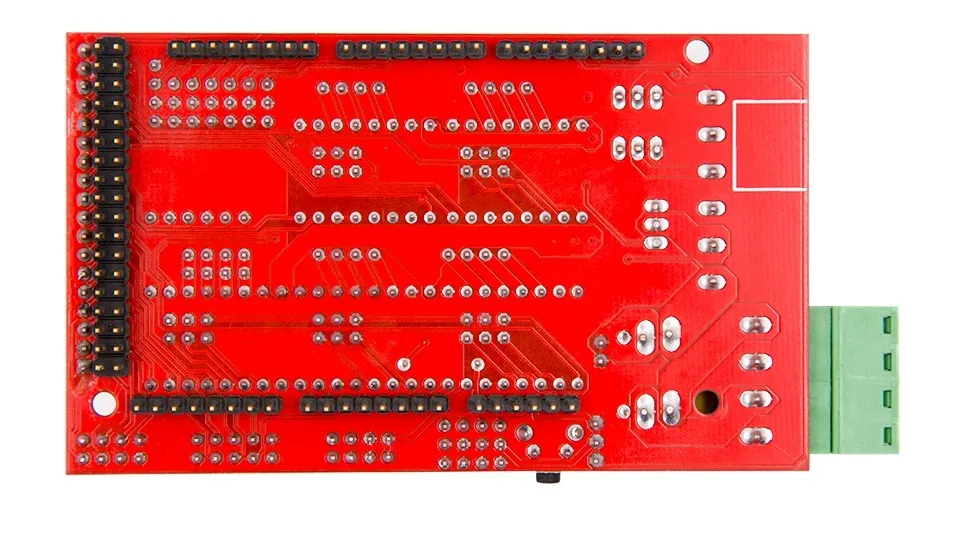

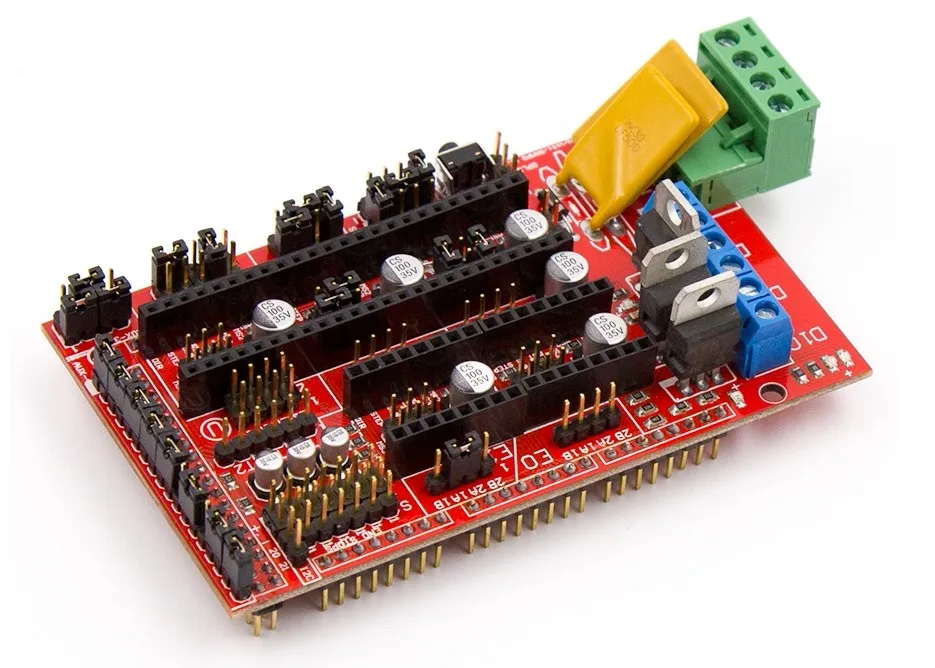

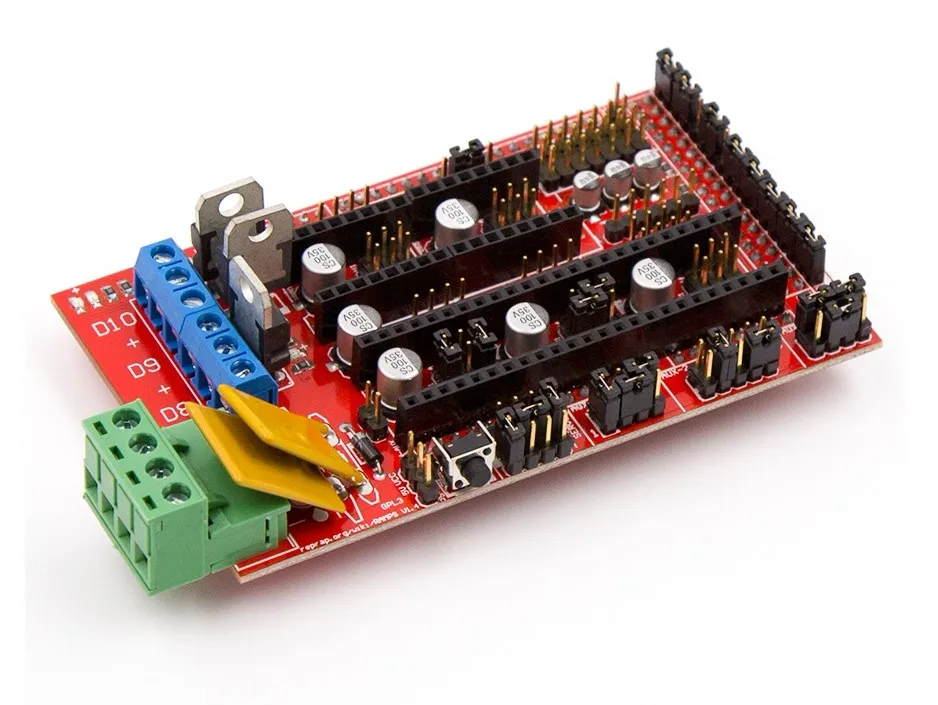

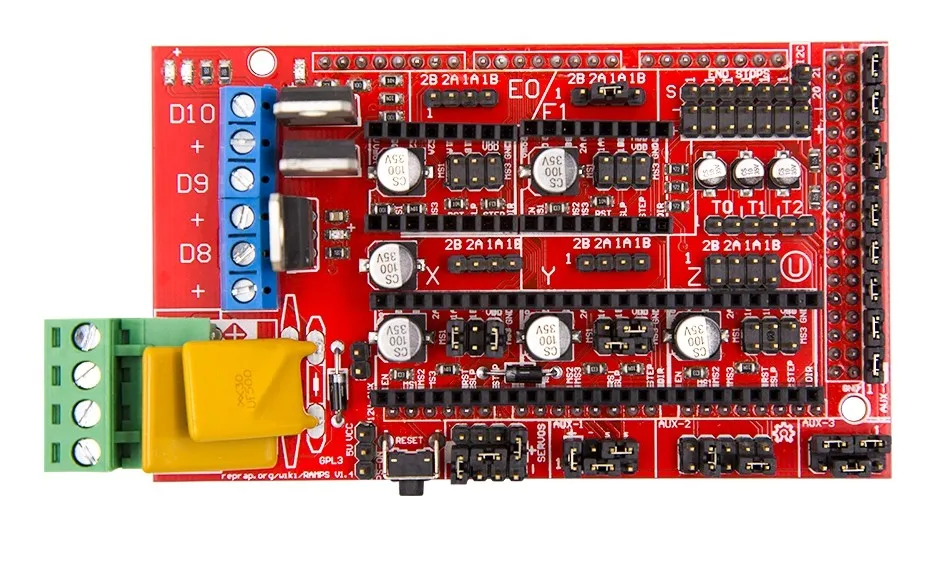

Detailed Image
Company Profile
Certifications

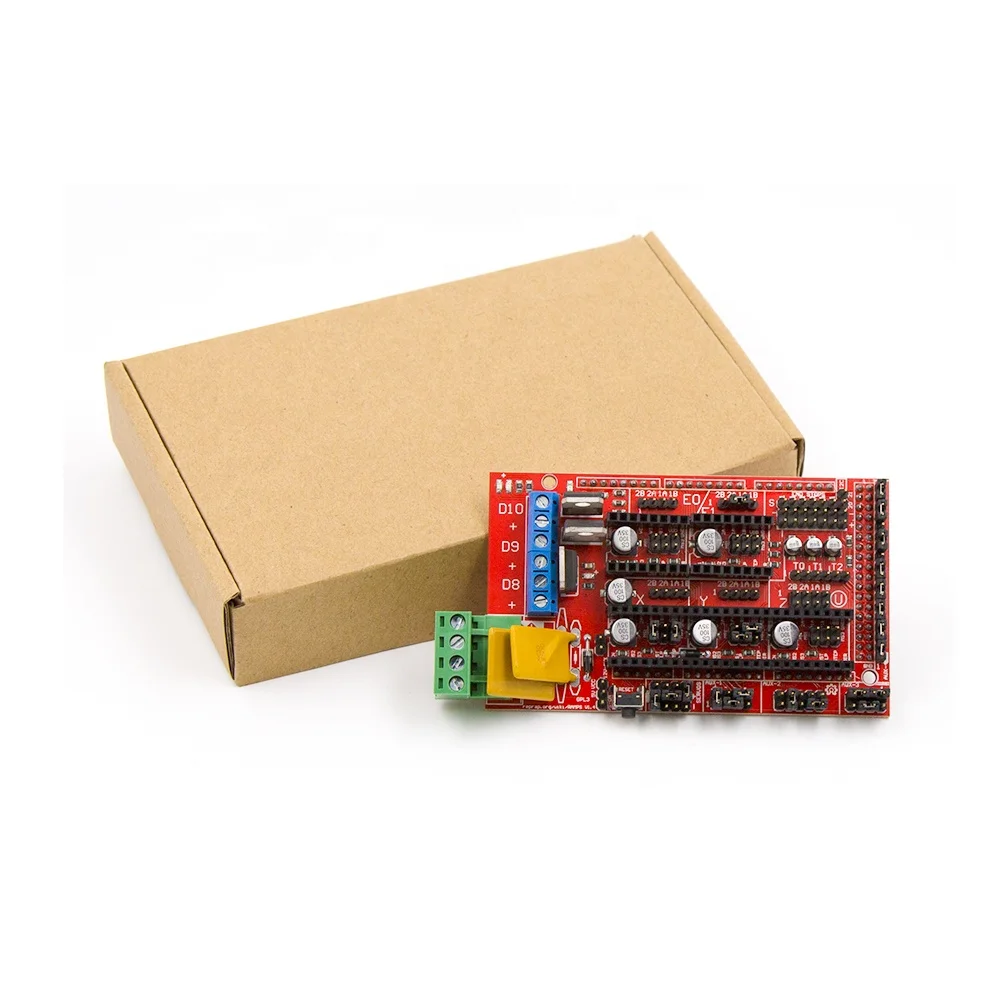

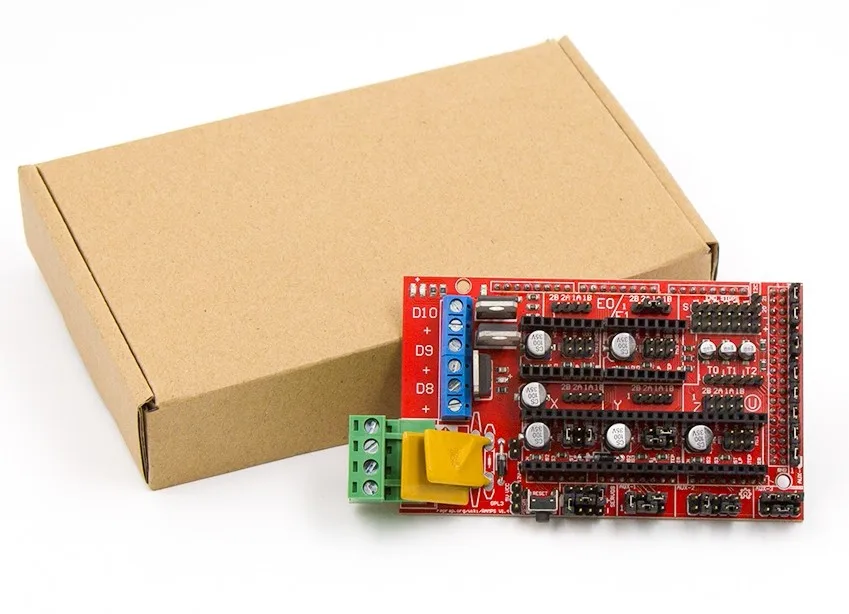

Product packaging
