Product Description

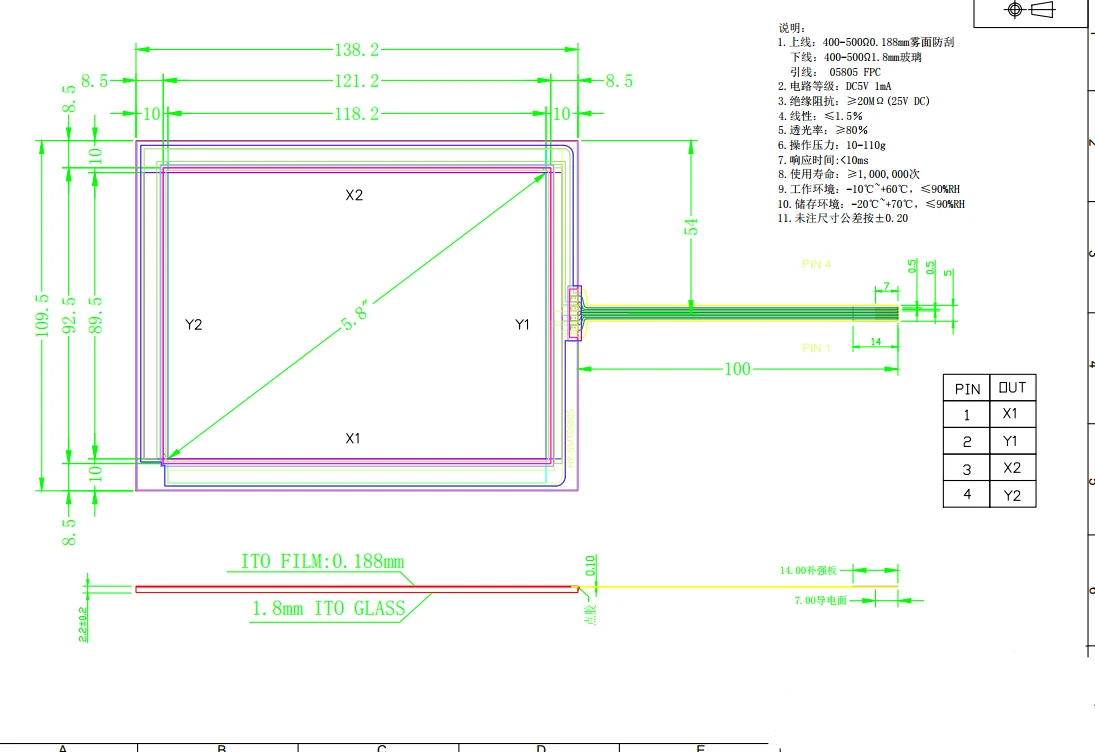

Main Specifications: | Made in China industrial touch panel SMT-05805 |
Thickness | 1.8mm |
Conductive Glass | ITO 0.7, 1.1, 1.8 |
Conductive Film | 188 μm |
Structure | Conductive film, ITO film |
Key Sheet or Glue | Conductive glass, ITO glass |
Insulation Distance | 3 * 3mm |
Connector | FPC flexible printed circuit |
Electrical Performance | |
Loop Resistance | 50~300Ω |
Linearity | ≤±1.5% |
Insulation Resistance | ≥10MΩ, @25V (DC) |
Maximum Operation Voltage | 5V (DC), 1mA |
Chattering Time | ≤15ms |
Response Time | ≤30ms (from the touch moment to response) |
Mechanical Behavior | |
Input Method | Pen or finger |
Operation Force | OD 2mm pen within 60g~150g pressure |
Surface Hardness | 3H |
Transparency | 80 ± 3% @550nm wave length |
Environmental | |
Operation Temp | -10~60°C |
Storage Temp | -20~70°C |
Writing life | More than 1000,000 times |
Stamping life | More than 1000,000times |
Touch life | >350,000,000 Times according to different touch screen |
Packaging & Shipping
Our Services
| Service |
- OEM and ODM service are provided
- Protection of your sales area, ideas of design and all your private information
- Tested one by one before delivery to ensure 100% working perfect
- Packed in Anti-static bags & caton box to ensure safety in transportation
- In stock for fast delivery, best after-sales service
- Warranty is one year
- Factory Price
| Application |
- Light industrial
- Home appliances
- Portable sport devices
- Access control terminals
- Portable medical devices
- Personal and office computer
| Feature |
- Low cost solution, low power consumption
- Consistently accurate, fast touch response
- Pressure sensitive, works with any stylus, finger, gloved hand and stylus activation
- Not affected by dirt, dust, water, or light
- Affordable touch screen technology
- Antiglare surface treatment
- Available in 2"~ 72" models (customer size welcome)
Company Information
FAQ
| FAQ |
1. How is the price?
---We are a factory in Guangzhou, China. All the products have factory price, the more your quantity,
the lower the price will be.
2. What's the Delivery Time ?
---Within 3 days in stock , within 15 days out of stock .
3. Have you ever exported to foreign countries?
---We have exported to North America, South America, Eastern Europe, Southeast Asia, Africa,
Mid East, Eastern Asia, Western Europe, South Asia, ect.
4. When will you delivery after confirmation ?
---We will delivery within 3 days in stock , within 15 days out of stock .
5. Can i order Sample Order ?
--- Yeah , of course , if we have in stock . We will delivery within 3 days .
6. How long is the warranty period?
---Generally the warranty period is one year. It depends on different products.
7. How do you know the touch screen are good and delivery ?
---We have testing machine , we will test one by one before pass, package and delivery .
8. Could we place an order as OEM to produce under our own brand?
---Yes, our company accepts OEM and ODM ONLY .
9. Who will follow the after-sale service ?
---Jenny is alway here for you .
