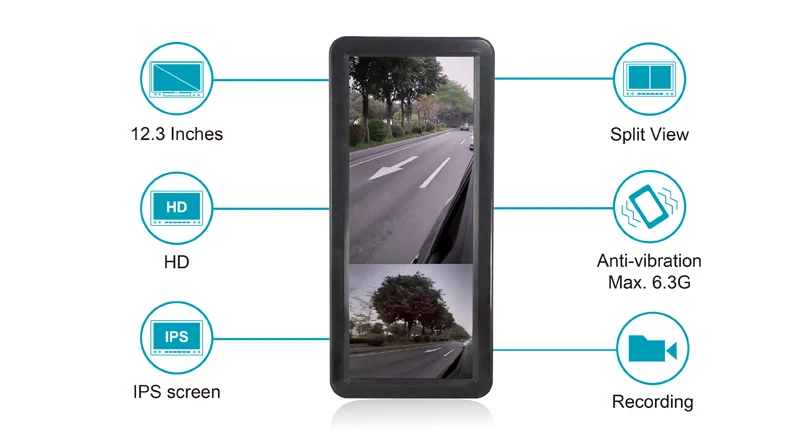

12.3 inch HD car rearview mirror monitor with IPS screen
Features of 12.3 inch HD car rearview mirror monitor with IPS screen:
Support 2CH x 1080P camera inputs
Resolution: 1920 x 3(RGB) x 720, IPS screen
Brightness: 1000cd/m2
Contrast: 1000:1
DC: 10-32V
Anti-vibration: ISO 16750-3 (Max. 6.3G)
Working temperature: -30ºC ~ +70ºC
Specification of 12.3 inch HD car rearview mirror monitor with IPS screen:
Resolution
720x 3(RGB) x 1920
Maximum Number of Cameras
2 (Max. 1080P / 30fps)
Audio Input
2
Trigger
3
Max. Brightness
1000cd/m2
Contrast
1000:1
Minimum Operating Temperature
-30ºC, RH90%
Maximum Operating Temperature
+70ºC, RH90%
Viewing Angle Monitor
U: 85°/D: 85°, R/L: 85°/85°
Split Screen
Yes
Mirror Function
No
Record Support
No
Anti-vibration
ISO 16750-3
Volts
10-32V
Application of 12.3 inch HD car rearview mirror monitor with IPS screen:
