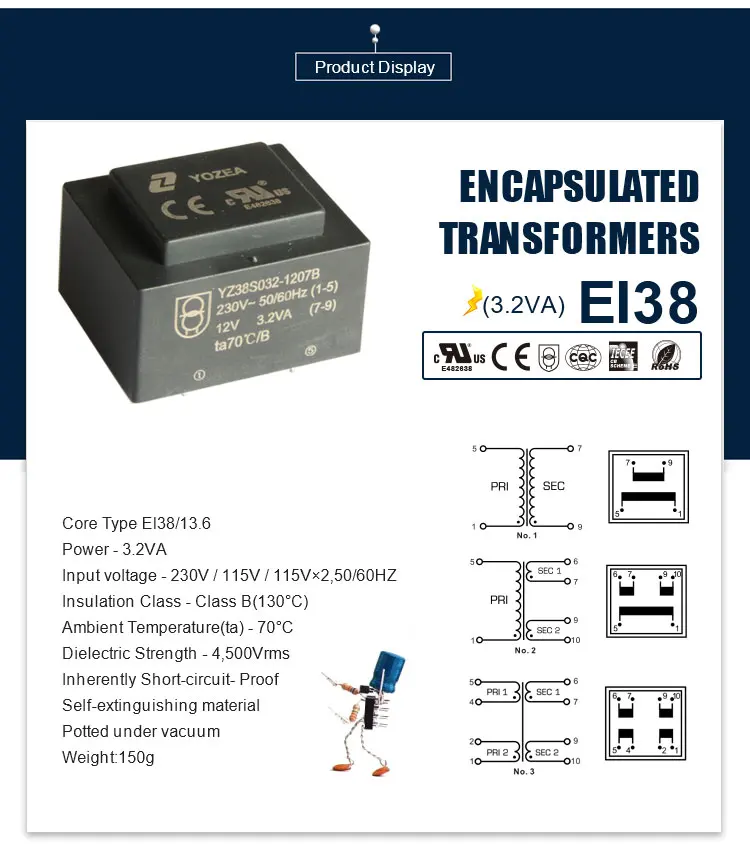

EI38/13 6 3.2VA инкапсулированные монтажные трансформаторы PCB
- Категории: Трансформаторы >>>
- Поставщик: Hangzhou,Yozea,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
We have encapsulated PCB mounting transformer with VDE CE APPROVAL, Here is VDE approval list
| VDE certificate No. 40049029_300 | ||||
| Item No. | Part No. | Output power(va) | Output Voltage | Core Size |
| 1 | YZ20S35-ZZZ7B | 0.35 | 4v to 24v | ee20/6 |
| 2 | YZ20S50-ZZZ7B | 0.50 | 4v to 24v | ee20/10.5 |
| 3 | YZ20D35-ZZZ7B | 0.35 | 2×6V to 2×15V | ee20/6 |
| 4 | YZ20D50-ZZZ7B | 0.50 | 2×6V to 2×15V | ee20/10.5 |
| 5 | YZ30S15R-ZZZ7B | 1.50 | 6V to 24v | ei30/10.5 |
| 6 | YZ30D15R-ZZZ7B | 1.50 | 2×6V to 2×15V | ei30/10.5 |
| 7 | YZ30S28-ZZZ7B | 2.80 | 6V to 24v | ei30/23 |
| 8 | YZ30D28-ZZZ7B | 2.80 | 2×6V to 2×15V | ei30/23 |
| 9 | YZ20S60-ZZZ7B | 0.60 | 4v to 24v | ee20/10.5 |
| 10 | YZ20D60-ZZZ7B | 0.60 | 2×4V to 2×15V | ee20/10.5 |
| 11 | YZ30S18X-ZZZ7B | 1.80 | 6V to 24v | ei30/12.5 |
| 12 | YZ30D18X-ZZZ7B | 1.80 | 2×6V to 2×15V | ei30/12.5 |
| VDE certificate No. 40046799 | ||||
| Item No. | Part No. | Output power(va) | Output V | Core Size |
| 2 | YZ30S06-ZZZ7B | 0.60 | 6v to 24v | ei30/5 |
| 3 | YZ30D06-ZZZ7B | 0.60 | 2×6V to 2×15V | ei30/5 |
| 4 | YZ30S10-ZZZ7B | 1.00 | 6v to 24v | ei30/10.5 |
| 5 | YZ30D10-ZZZ7B | 1.00 | 2×6V to 2×15V | ei30/10.5 |
| 6 | YZ30S15-ZZZ7B | 1.50 | 6v to 24v | ei30/12.5 |
| 7 | YZ30D15-ZZZ7B | 1.50 | 2×6V to 2×15V | ei30/12.5 |
| 8 | YZ30S20-ZZZ7B | 2.00 | 6v to 24v | ei30/15.5 |
| 9 | YZ30D20-ZZZ7B | 2.00 | 2×6V to 2×15V | ei30/15.5 |
| 10 | YZ30S23-ZZZ7B | 2.30 | 6v to 24v | ei30/18 |
| 11 | YZ30D23-ZZZ7B | 2.30 | 2×6V to 2×15V | ei30/18 |
