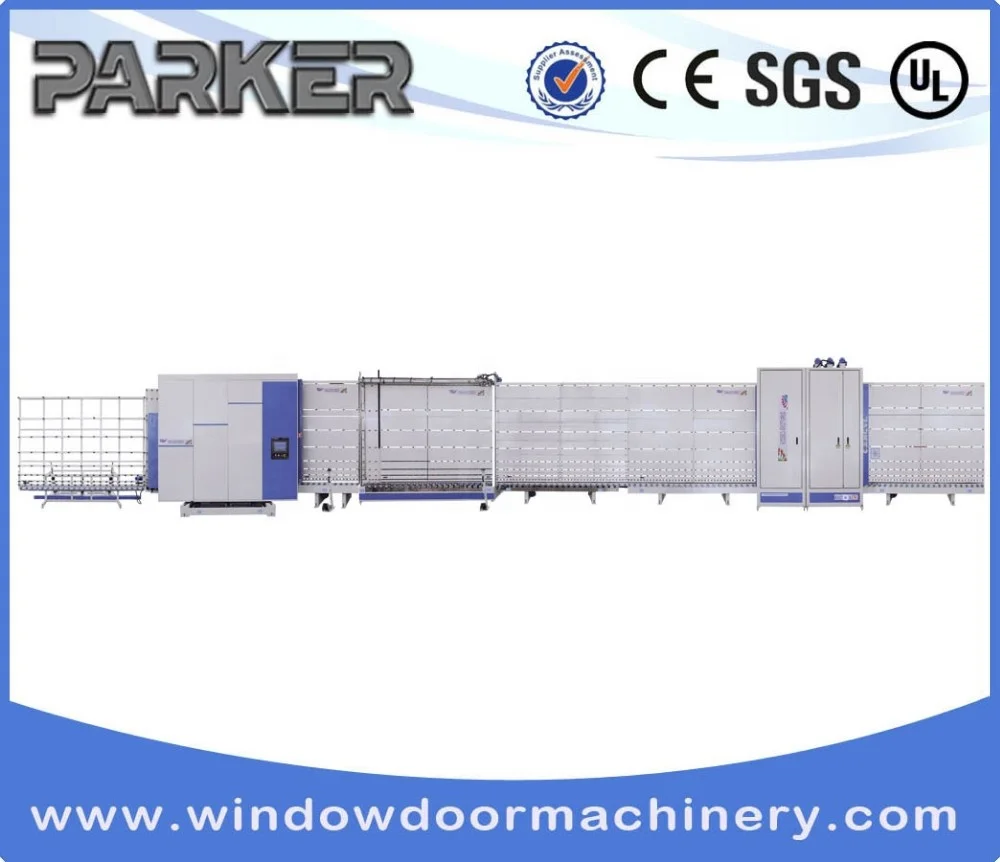

Суперинтеллектуальная Линия Производства Изоляционного Стекла Parker
Суперинтеллектуальная Линия Производства Изоляционного Стекла Parker
Суперинтеллектуальная Линия Производства Изоляционного Стекла Parker
Суперинтеллектуальная Линия Производства Изоляционного Стекла Parker

Суперинтеллектуальная Линия Производства Изоляционного Стекла Parker


Поделиться:

Цена:21 300,00 $ - 89 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Product Description

Product Application

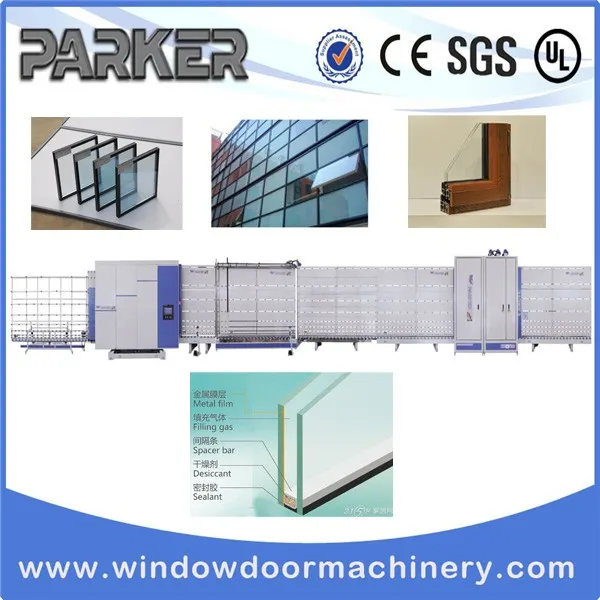

The whole line adopts German Technology,main components using imported international famous brand,it's stable,convenient to maintain, and easy to handle,can produce insulating glass like standard glass,overlength glass,coated glass,LOW-E glass,steped glass,varity glass,special-shaped glass,triple glass and so on.

\t
SPECIFICATIONS FOR SUPER INTELLIGENT INSULATING GLASS PRODUCE LINE
\t

Technique Parameter
\t
Voltage
\t
V
\t
380
\t
Air pressure
\t
Mpa
\t
0.5~0.8
\t
Power
\t
KW
\t
27.5
\t

Glass Processing Dimension
\t
Max
\t
mm
\t
2700x3500
\t
Min
\t
mm
\t
250x480
\t
Second assembling
\t
mm
\t
2700x5400(max)
\t

Overall dimension
\t
Length
\t
mm
\t
26000
\t
Width
\t
mm
\t
2800
\t
Hight
\t
mm
\t
3500

Main Features

1.\tGermany Technology. CE approval.


2.\tIt can produce insulating glass with the maximum of 2700*3500 mm, with the minimum of 250*380 mm.

3.\tIt can also process tri-glass insulating glass (Optional)

4.\tSelf-diagnose system, easy to check the malfunction.

5.\tAutomatic distinguishing of Low-E glass and coating glass. Then the hard brush will step back lest film scratching.

6.\tSchneider France adopted in the PLC and proximity switch adopt.

7.\tServo control system, screw tracked flat press ensures high precision in combination and steady work.

8.\tFrequency converter adopted to freely slow down or speed up for higher working efficiency.

9.\tThe cleaning part adopts Germany Industrial Plastic Bearing.

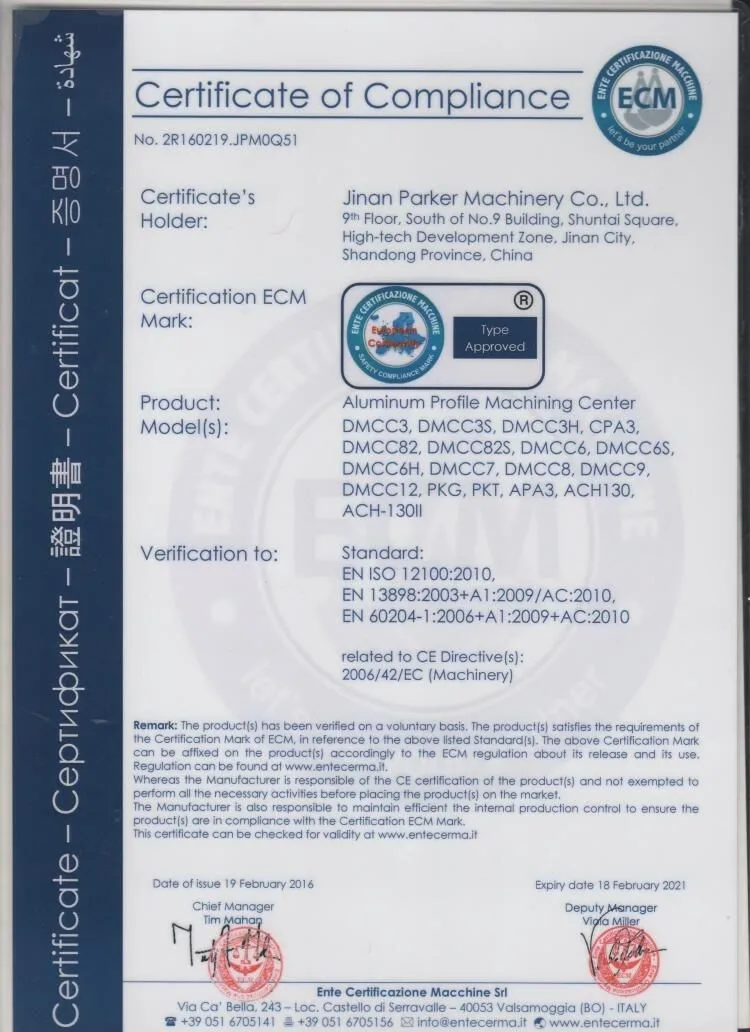

Certifications

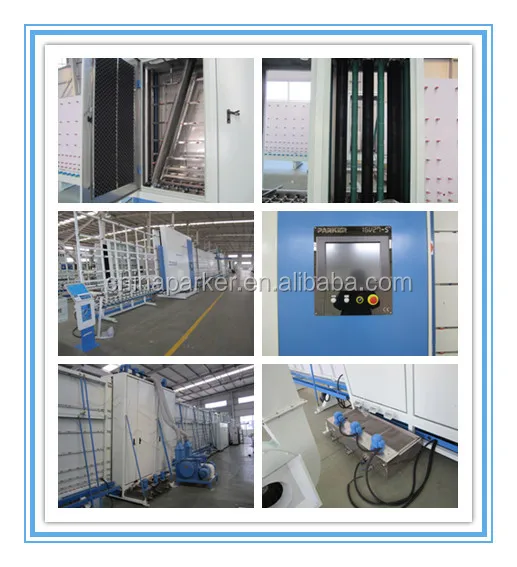

Detailed Images

Machine Parts

Name: High pressure fan

Original: Germany

The high pressure fan is equipped special blower,and it impoves drying effect.

Main Features

Name: Cleaning box
Original: Germany
Cleaning sections all adopt Germany industrial plastic bearing,there is no need to maintain daily,also can avoid bearing rust.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

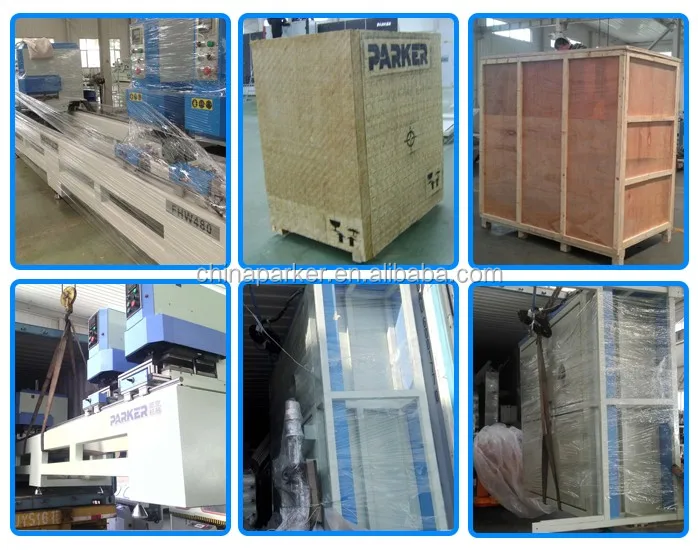

Packing & Delivery
\t
Packaging
\t
Size
\t
26000mm (L) * 2800mm(W) * 3500mm (D)
\t
Weight
\t
5.8T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
