Newest Model Digital Weight Indicator --- Guide Rail Weighing / Force Measuring Control Module With CANBUS BST106-M60S(L)



     Main Features:

• Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.


• EMC design with high anti-jamming capability, suitable for industrial environment.


• 32-bit ARM CPU with 48MHz clock & high arithmetic speed.


• 6+6 Red LED digital tubes for English character and digit display.


• 4-key English keypad for Menu&Shortcut mode operation.


• 24-bit High-precision and high-speed ∑A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.


• Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.


• Max. Connection Quantity: 8 Loadcells (350Ω).


• Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.


• Load Calibration, Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation available.


• Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.


• 3 Definable normally open switch inputs [DI] and 3 definable normally open transistor switch outputs [DO].


• 1 Optional&definable current signal output [AO: 0~20mA].


• 1 Optional&definable voltage signal output [VO: 0~10V].


• RS232, optional RS485 and CANBUS communication ports for connecting Host IPC/PLC and LED Remote Display.


• With the multitasking mode, the weighing/force measuring process, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.

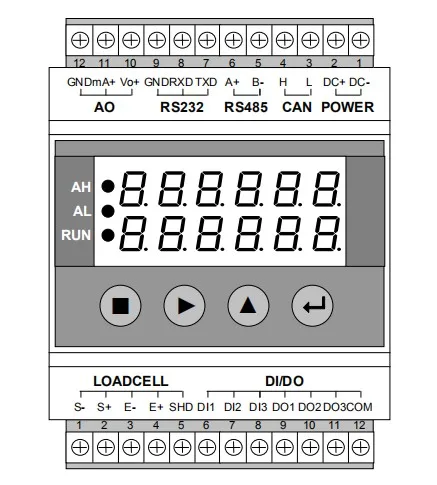

 User Interface Diagram

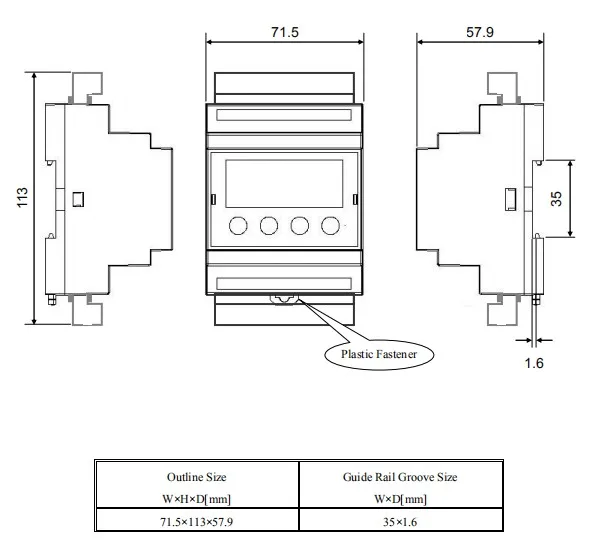

 Installation





         Main Menu



Main Menu		Second Menu
Sign	Function	Sign	Description
F1.SEt	Parameter Setting	-SCAL	Scale parameters setting.
		-CALP-	Calibration parameters setting.
		-SEtP-	Setpoint parameters setting.
		-SErP-	Communication parameters setting.
		-dISP-	User interface parameters setting.
F2.CAL	System Calibration	-ZEro-	Zero Calibration without loading on the weigher to correct Zero Value.
		-dAtA-	Data Calibration: Input the specification parameter values of loadcell according to the actual configuration of the weighing system to correct Span Coefficient. If there is no access to get the specification parameter values for Data Calibration, then it’s necessary to do Load Calibration.
		-LoAd-	Load Calibration: After doing Data Calibration, if there are conditions for Load Calibration, do Load Calibration with loading standard weight on the weigher to correct Span Coefficient further for higher weighing accuracy.
		-SEgC-	Segmenting Span Correction: After doing Zero Calibration and Load Calibration [or Data Calibration], it’s allowed to do Segmenting Span Correction with loading standard weight on the weigher by 10 Correction Points to get Span Correction Ratio of 10 linearity segments for higher weighing accuracy.
F3.rEC			Unused.
F4.CLn			Clear Screen: Clear the display value of Peak Hold Value and Weight-checking Value.
F5.Loc	Key-locker	-oPEn-	Key-unlocking.
		-Locc-	Key-locking.
		-PASS-	Password Set. Exfactory Passwords: Operator Password: 000. Administrator Password: 001.
