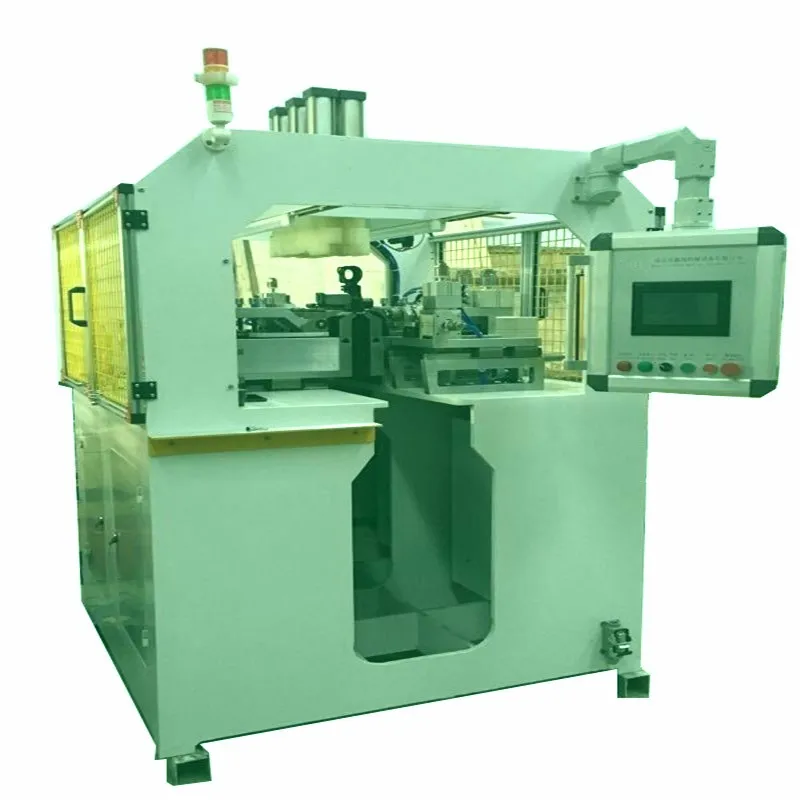

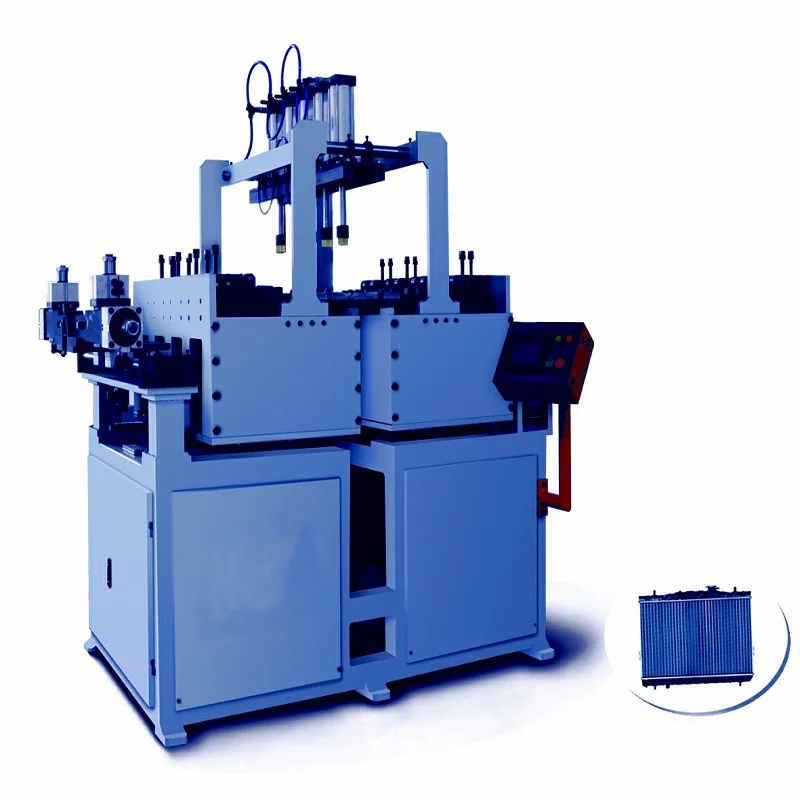

Stable Servo Plastic Tank Radiator Clinching Machine for Large Size Radiators


PRODUCTS DESCRIPTION






Product Application

The high quality plastic tank clinching machine for 4 Sides is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo type plastic tank clinching machine is used to handle products of various specifications. The crimping machine is divided into the long-side header crimping mechanism and end crimping mechanism. The radiator clinching machine is also called as aluminum radiator crimping machine.



Technical Parameters of Radiator Clinching Machine
Core height: 1400mm (header to header distance)

Core width: max 100mm;

Header length: max 1200mm;

Processing capacity:

Output: about 75S for one core;

Header deformation rate: ≤0.5mm

Crimping tooling replacement time: ≤10min

Overall dimension: 2700*2600*2200mm

Equipment weight: about 3000kg





Main Features

1) The radiator clinching machine  is PLC controlled, and the crimping program is set up through the touch screen.

2)  The touch screen of the clinching machine can indicate the working status, and the control system stores radiator crimping parameters.

3) The long side header clinching mechanism is moved by the hydraulic power.

3) The machine can crimp the header at 4 sides by one cycle.   The hydraulic power is much more stable.

4) The equipment can have dodge moves and step-forward moves.

5) The equipment is equipped with a 3-color alarm lamp.

6) The equipment is also equipped with a photoelectric switch to ensure operation safety.

5) The radiator clinching machine is also called as aluminum radiator crimping machine.








RELATED PRODUCTS






COMPANY PROFILE




WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.






CUSTOMER PRAISE




CERTIFICATION




PRODUCT PACKAGING




FAQ




1. What is the power supply of the heat exchanger making machines?
The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 30-60 days after receipt of down payment.
