This machine is used to hold coil, and uncoil it, and feed into roll forming machine. This machine can rotated clockwise and anti clockwith. Also the speed is adjustable. With the help of limit switch box, this uncoiler can work with roll forming machine synchronized. It greatly save the labours and improved the working efficiency.
Main parameter:
1. Install size: 2700mm*1750mm*1700mm
2. The coil width: ≤ 1250 mm
3. Coil inside diameter: 480-510mm
4. Productivity: 0-35m/min
5. Main motor power: 3 KW
6. Hydraulic unit power: 3 KW
7. Electric control system: PLC vector inverter
8. Capacity: 5tons, 8 tons, 10tons
We also can design and manufacture as per your request.
Advantage of our decoiling machines |
High quality |
Lower cost |
Durableness |
High efficiency |
Reliable working |
Low failure rate |
Low energy consumption |
Trouble free after sales service |

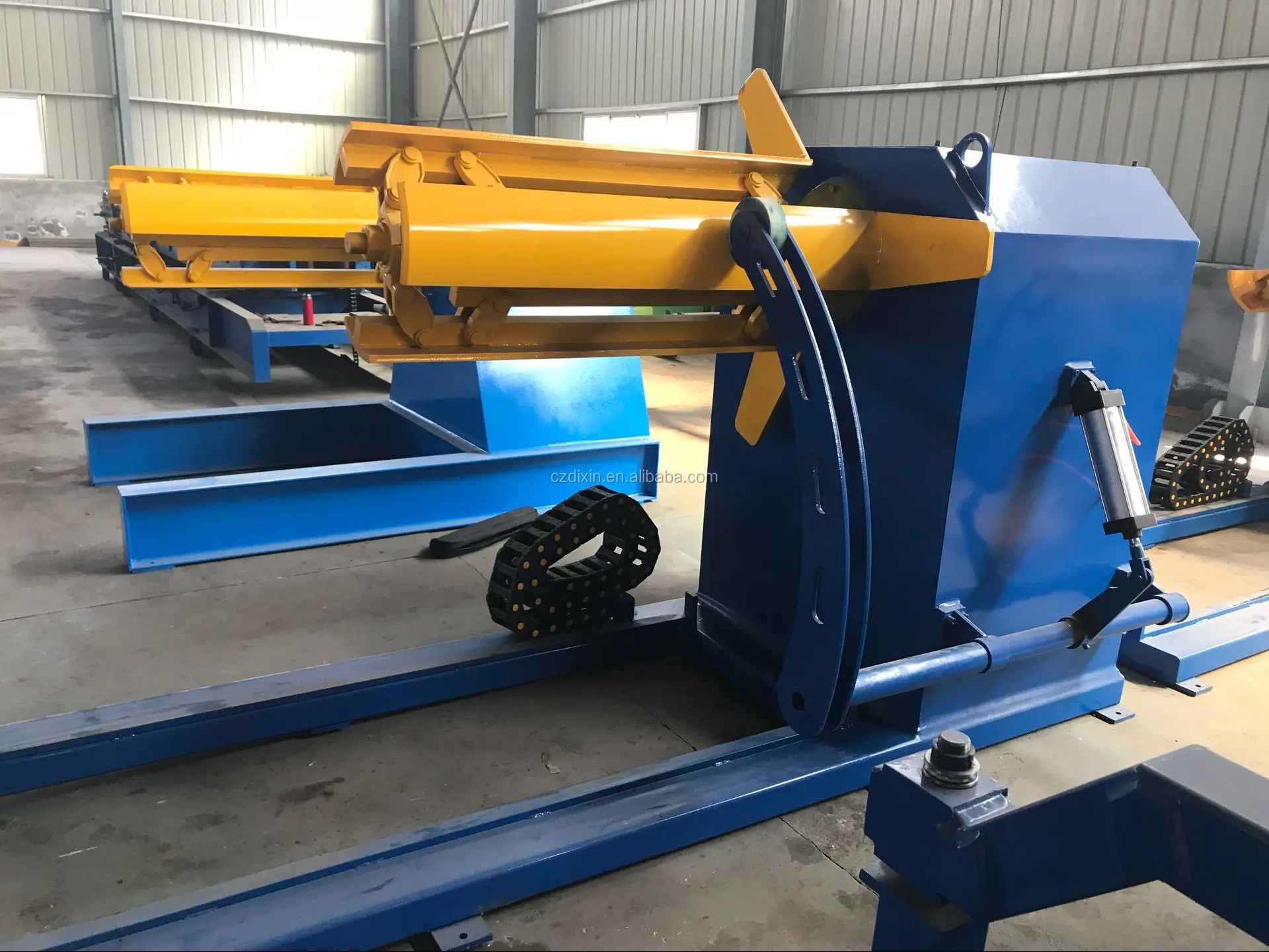

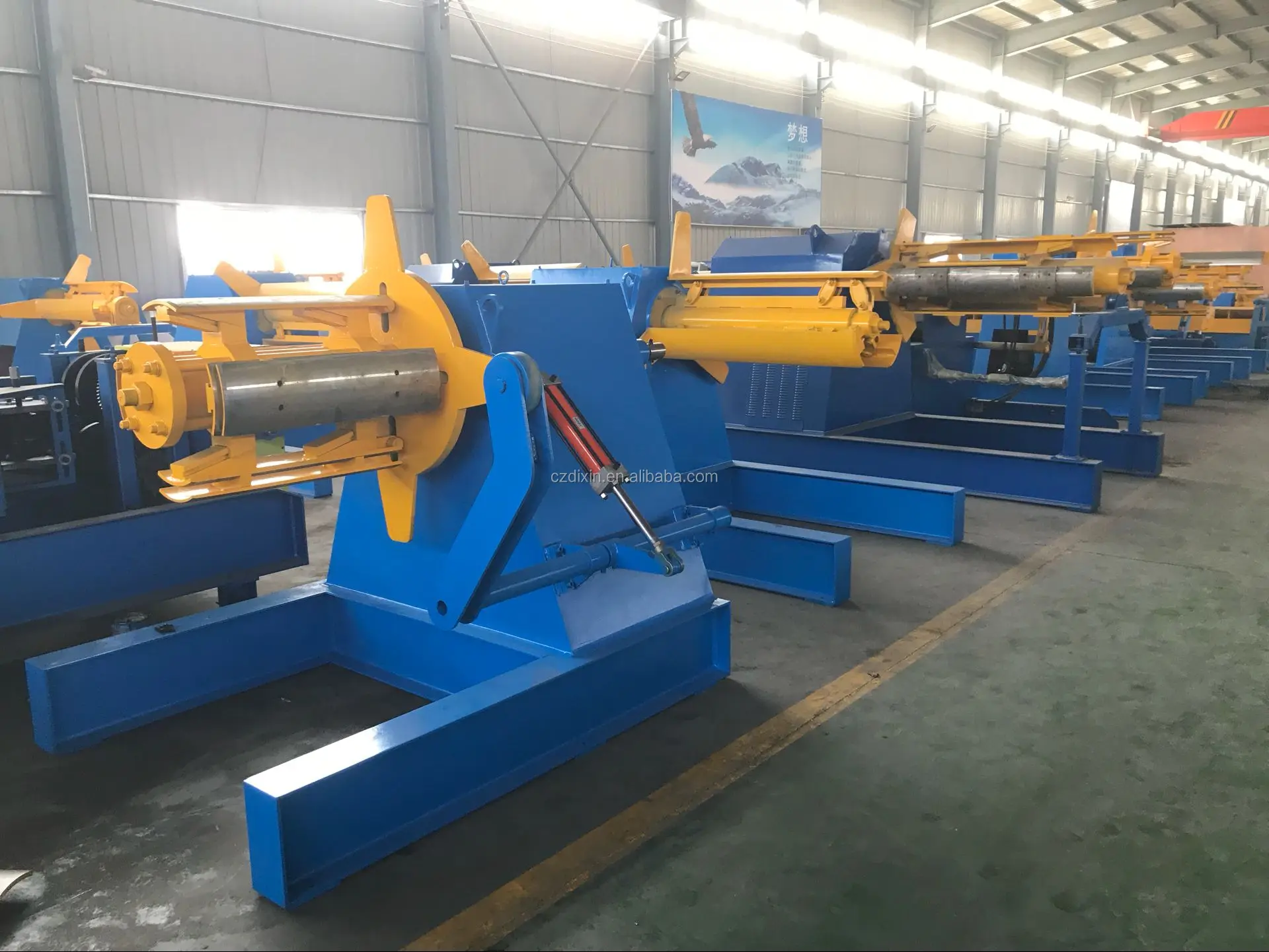

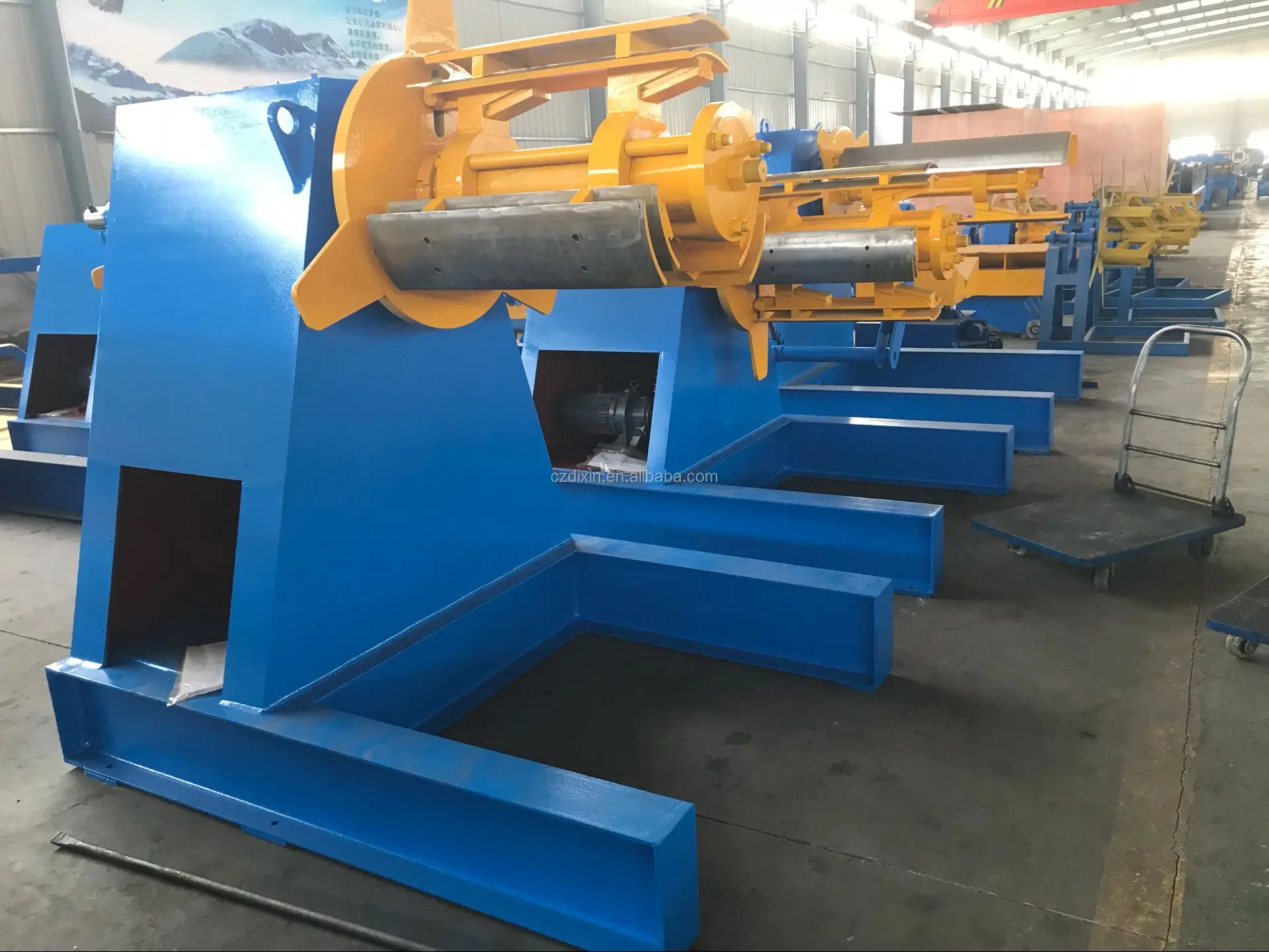

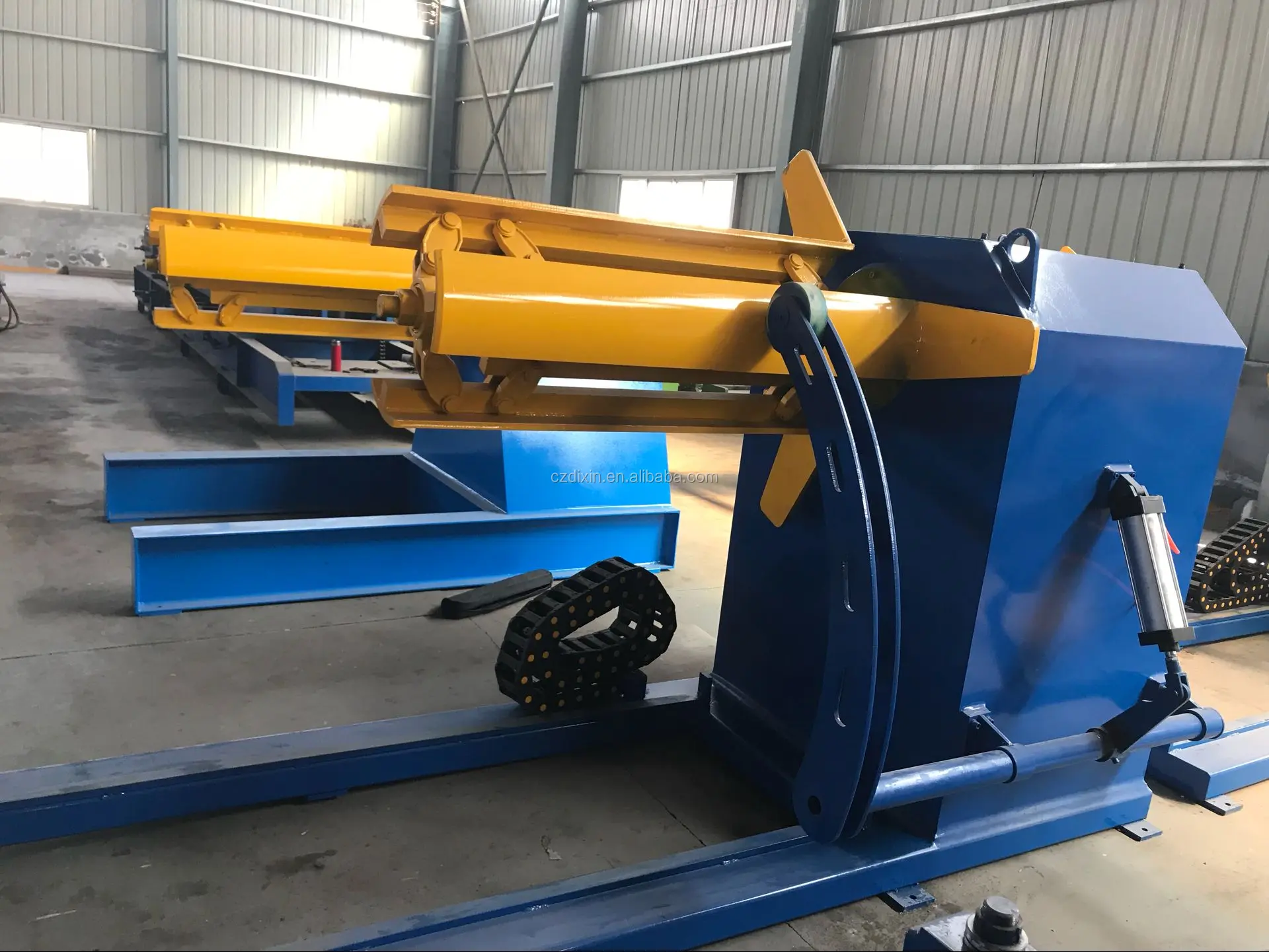

Machine pictures for your reference.
Cangzhou Dixin roll forming machineCo., Ltd is a professional manufacturer and exporter which has
our own factory concerning with the design, development and production too many types cold roll forming machines,material of building. It islocated in Botou city ,Hebei province ,which as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatlyappreciated in variety of different markets throughout the world, such as As-ia, Africa, Europe,South America, and Australia and so on. .
Our machine exported all over the world,so our customers are also from all over the word.Sometimes some customers visit our factory before placing orders, some customers when theirs machines finished ,the come to check test machine, we also have some customers come to our factory to learn how to operate the machine, we welcome you at any time.
