Circular Fence Concrete Sawing Wall Cutter Machine



Product Description

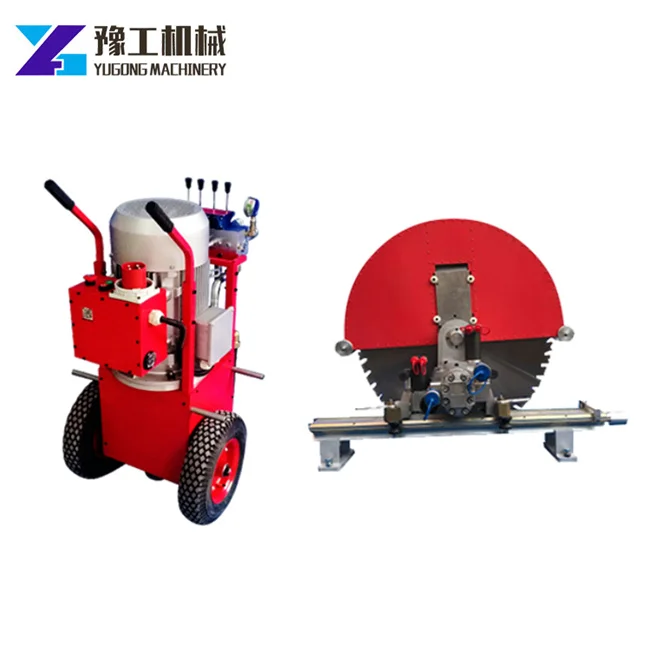

introduction.png Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.


.jpg




Product Parameters



 Hydraulic oil pump:


















































Model600TM700TM
Max.power25KW30KW
Motor cooling methodAir coolingwater cooling
Rated voltatge380V 50HZ380V-420V 50HZ-60HZ
Pressure stages33
Max.operating pressure200bar/20Mpa210bar/21Mpa
Oil flow rate30-80L/min40-100L/min
Dimensions600mm*650mm*1050mm500mm*520mm*1100mm
Weight220kg140kg

Wall saw:


















































Model600TM700TM
Saw blade diamteter range800-1400mm800-1600mm
Cutting depth620mm730mm
Max.working pressure180bar/18Mpa200bar/20Mpa
Max.oil flow rate100l/min100l/min
GearingGearGear
Rotation speed450/950/1300Rpm450/850/1200Rpm
Dimension400mm*420mm*400mm400mm*420mm*400mm
Weight38kg39kg

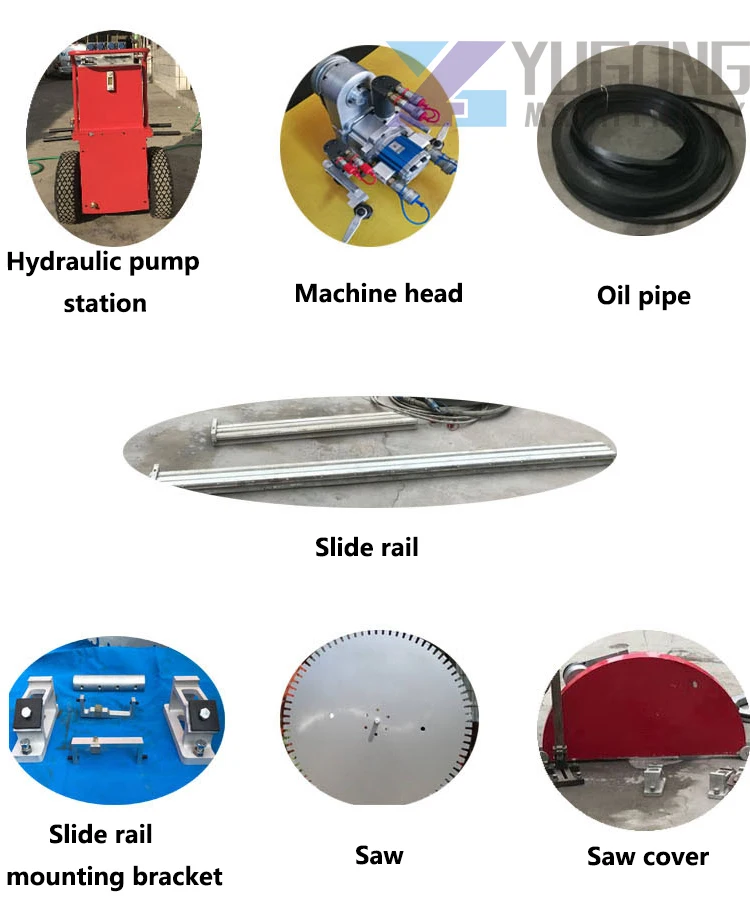

 Machine configuration

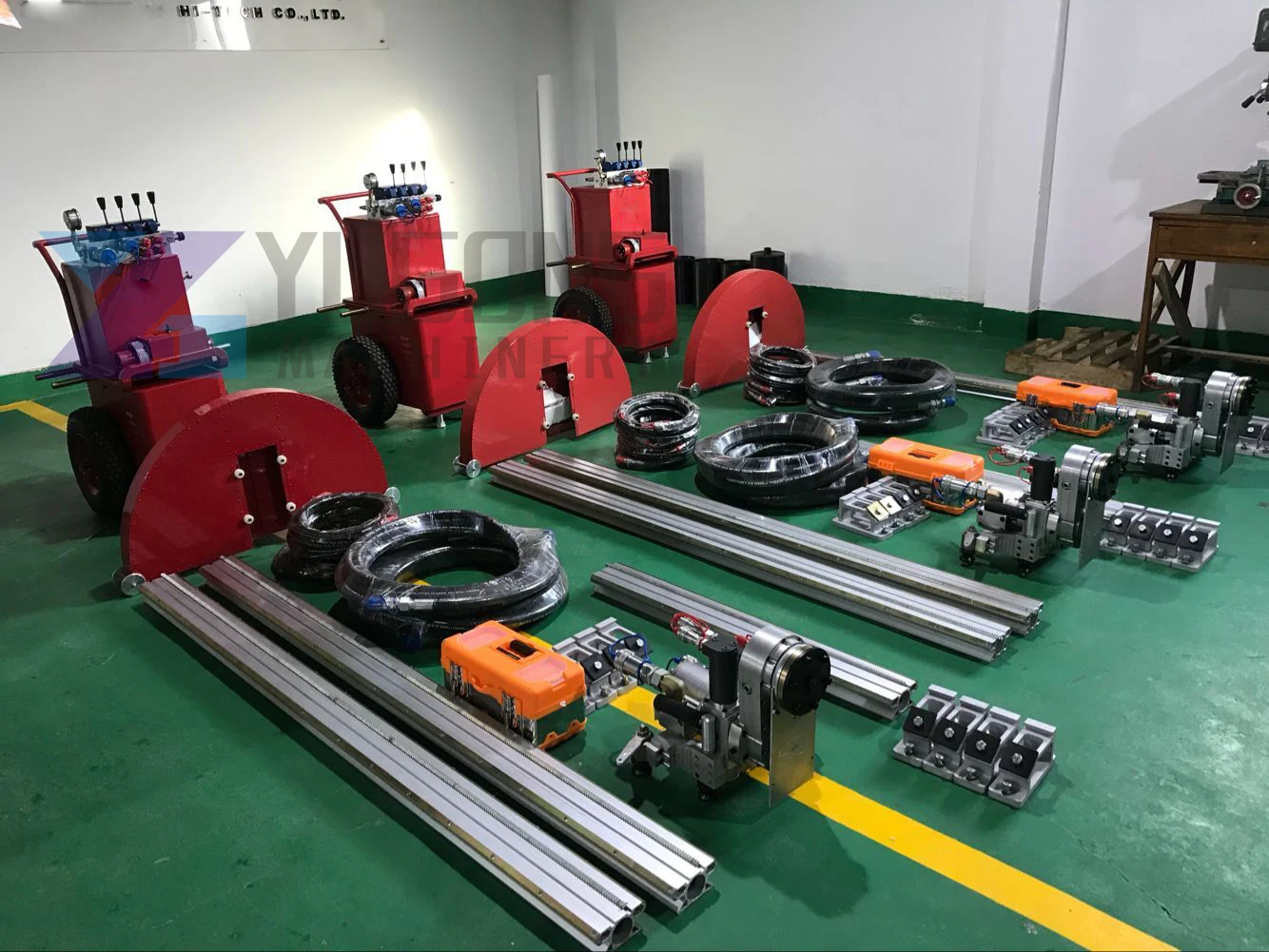

The whole sets of machine consists of hydraulic pump,machine head ,oil pipe,slide rail ,slide rail mounting bracket, saw, saw cover







1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage, to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.

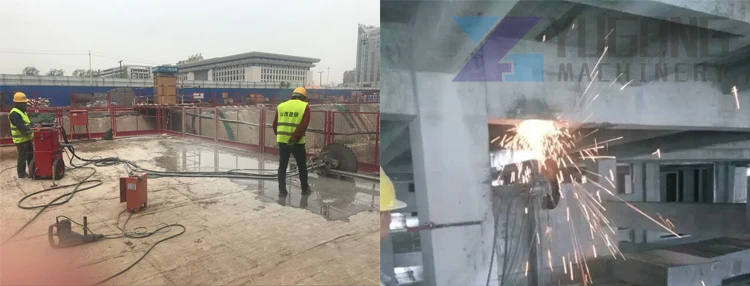

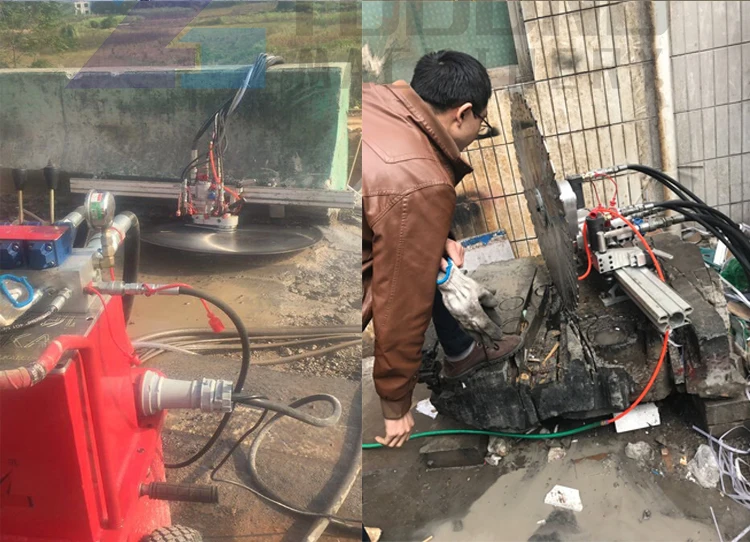

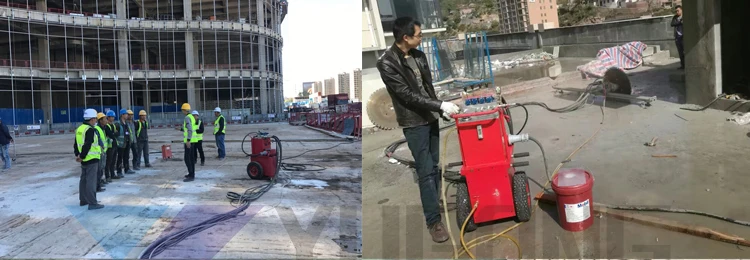

Working show




-2 (2).jpg



Packaging & Shipping





1532686712237019525


Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7 working days after deposit.

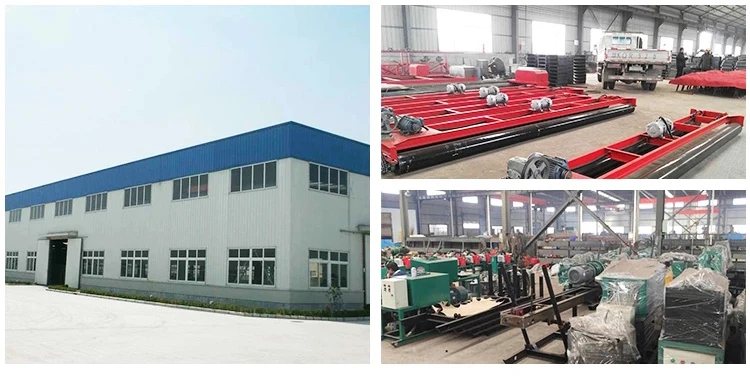

Company Information


 _01_02





Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.


We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.


All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
