Hydraulic Automatic Steel Door Frame Roll Forming Machine

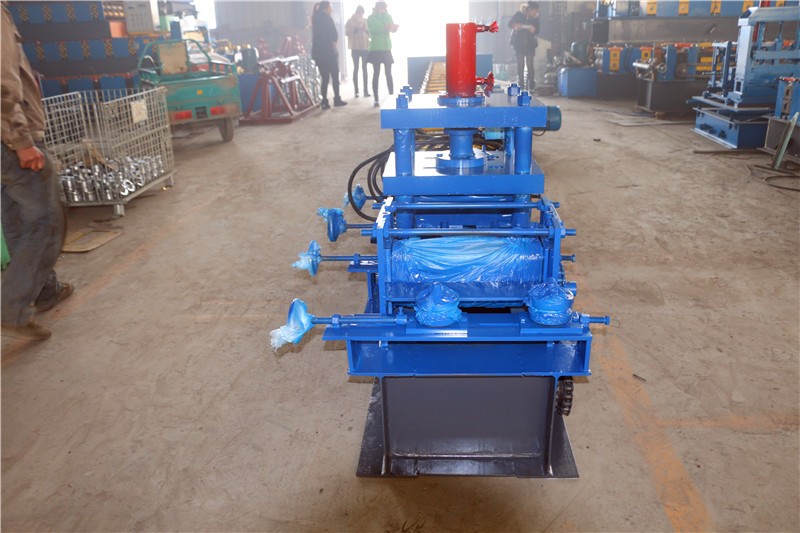

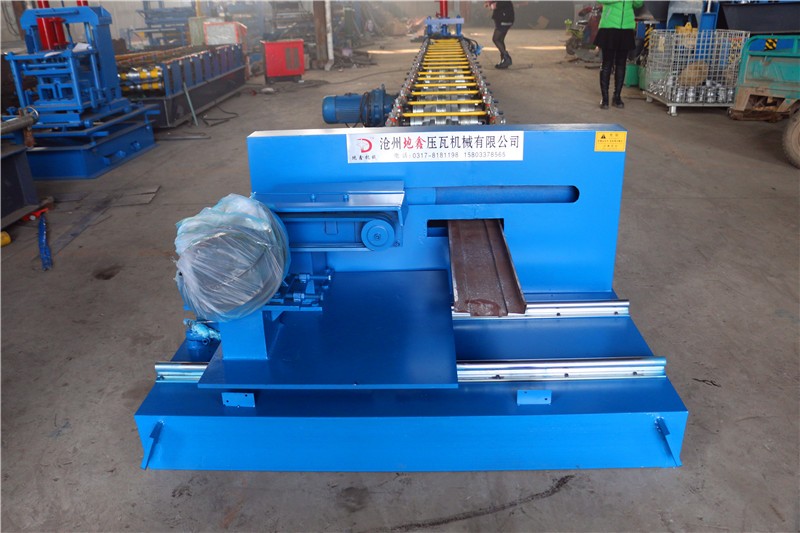

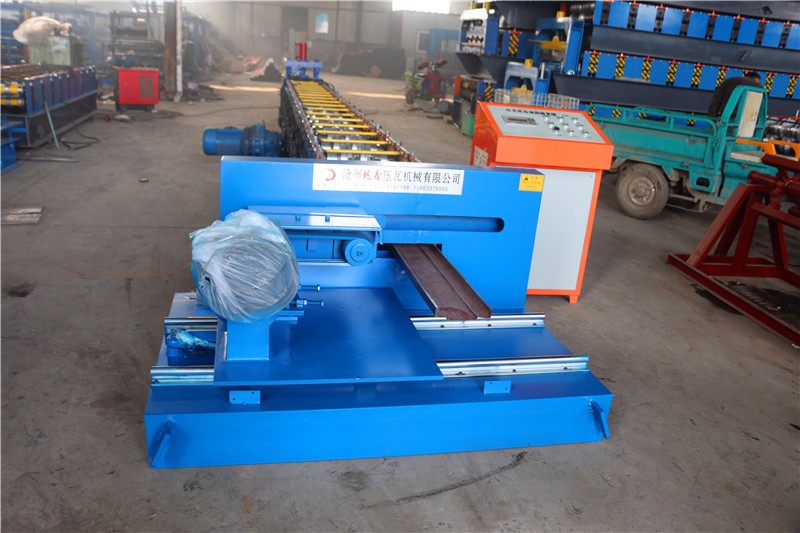

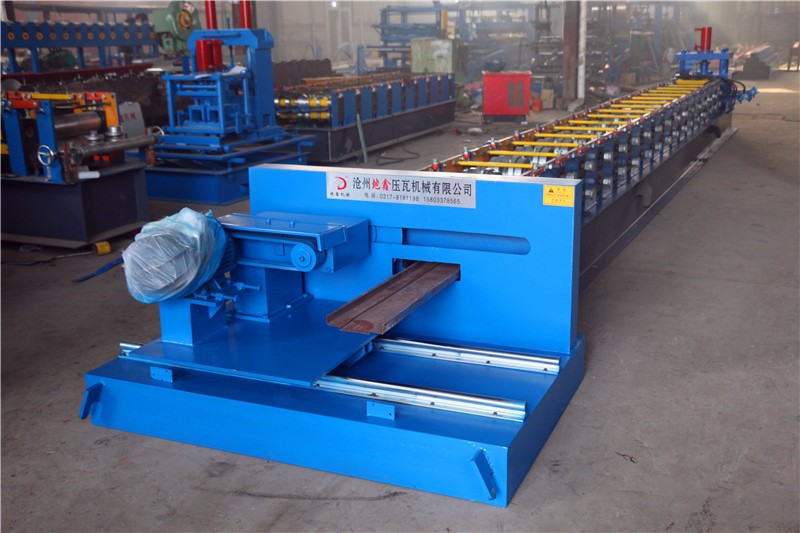

Detailed Images
Main Accessories of metal roofing door frame roll forming machine
|
1 |
Decoiler(manual or hydraulic for options) |
1 set |
|
2 |
Feeding device |
1 set |
|
3 |

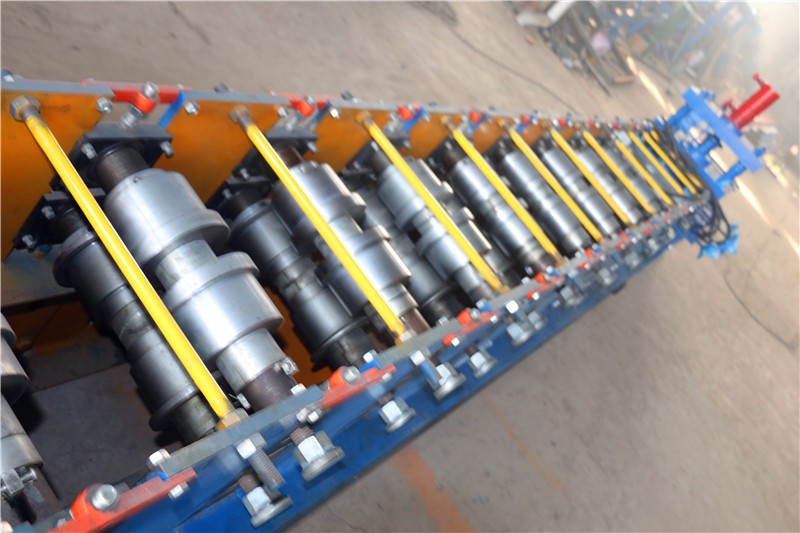

Main Forming Machine |
1 set |
|
4 |
Hydraulic step press device |
without |
|
5 |
Hydraulic cutting device |
1 set |
|
6 |
Hydraulic Station |
1 set |
|
7 |
PLC computer control system |
1 set |
|
8 |
4m Run Out Table |
1 set |
specification of metal roofing door frame roll forming machine
| No. | Iron Door Frame Roll Forming Machine | |
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1250mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Working speed | 8-12m/min, can be 20m/min |
| 5 | Main motor power | 5.5kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 4kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 70mm |

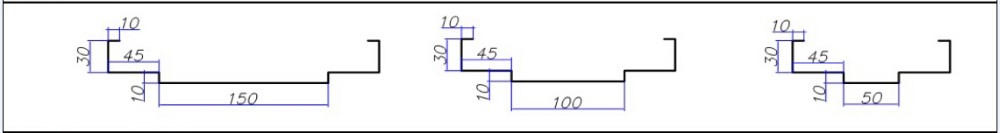

| 9 | Roller station | 16 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 4.5T |
| 16 | Dimension | 685mm*15mm*15mm |
Company introduce
Certifications
Shipping
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Contact way
