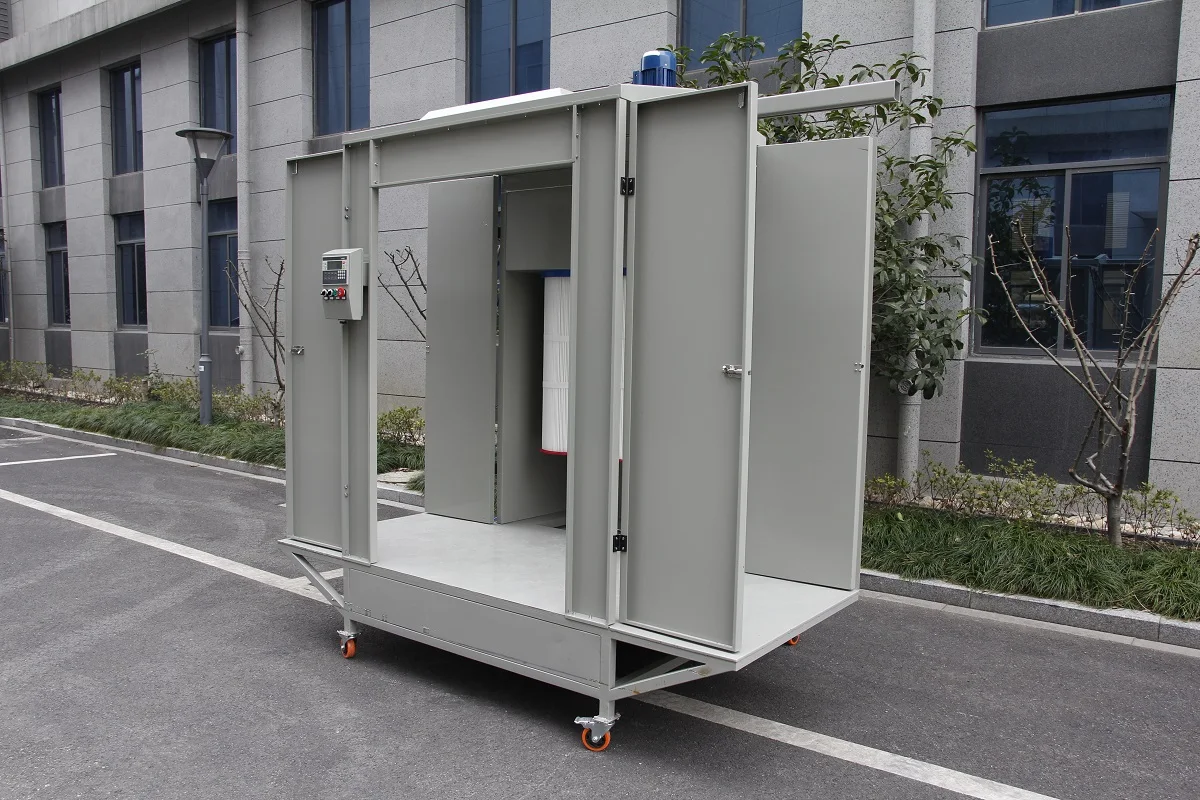

Batch Powder Paint Spray Booths



1.Powder coating booth design

2.Booth With Recovery System : automatic powder collecton Bin.It's work with Air pump.
3.Produced by the customer's request.



Aluminum profiles paint spray booth ,powder coating booth system. For metallic workpiece powder coating.



Benefits of our Powder Booths

Longer lasting, more durable, quieter.

The powder booth is one of the most critical components of the product finishing process.







Specification

Booth Type	Closed-drive-thru
Operator dimensions	1400width x 1800 height x 1000 depth
Overall dimensions	2500width x 2300 height x 1500 depth
Weight	750kgs
Power supply	Electric
Nominal power	3.5kw
Voltage	380V
Frequency	50-60Hz

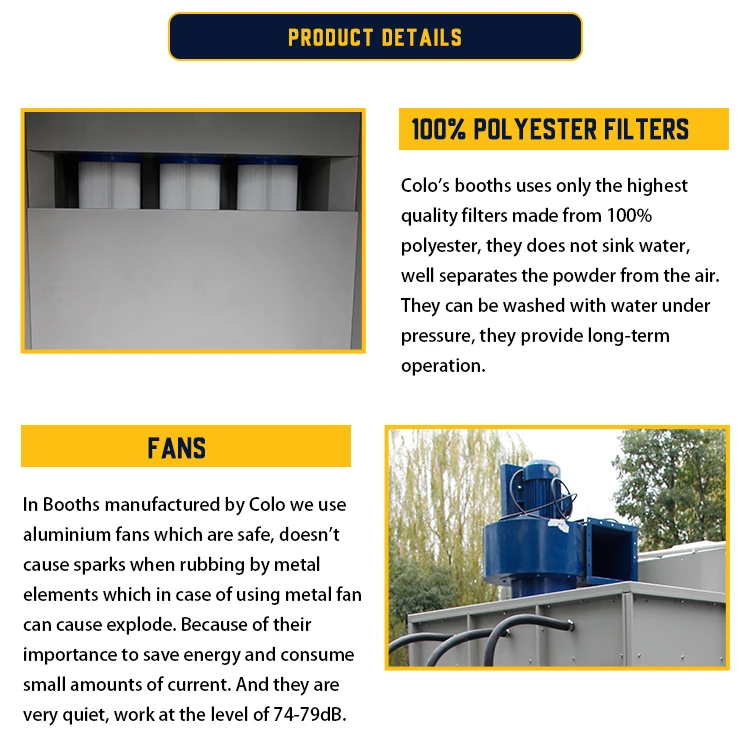

Filters	Polyester
Filters count	2
Filters hang type	Easy for change
Filter cleaning system	Pneumatic
Air consumption	10,200m3/h
Warranty	12 months

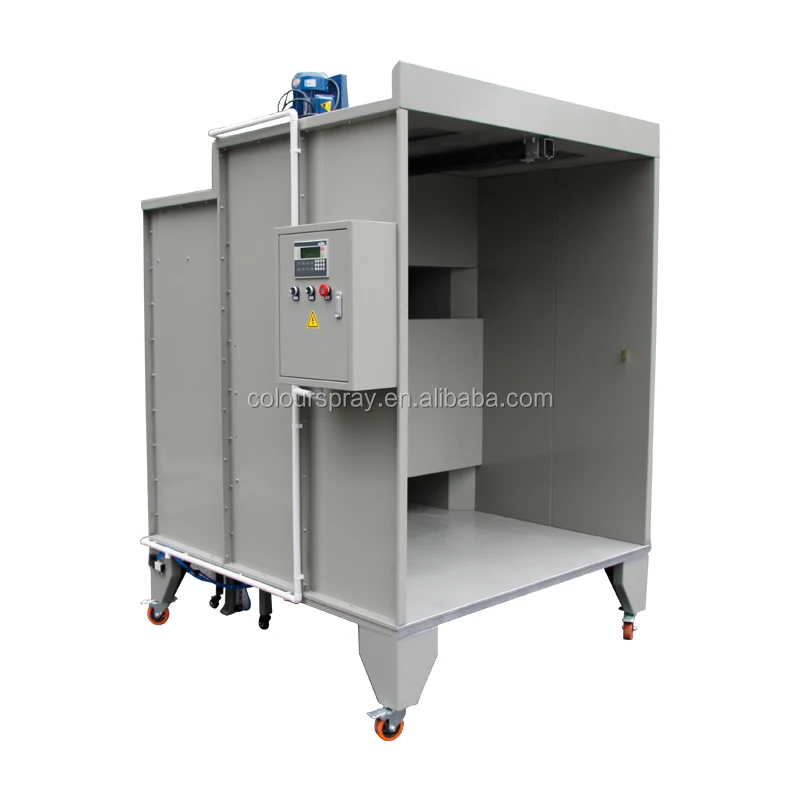

Electrostatic powder spraying booth

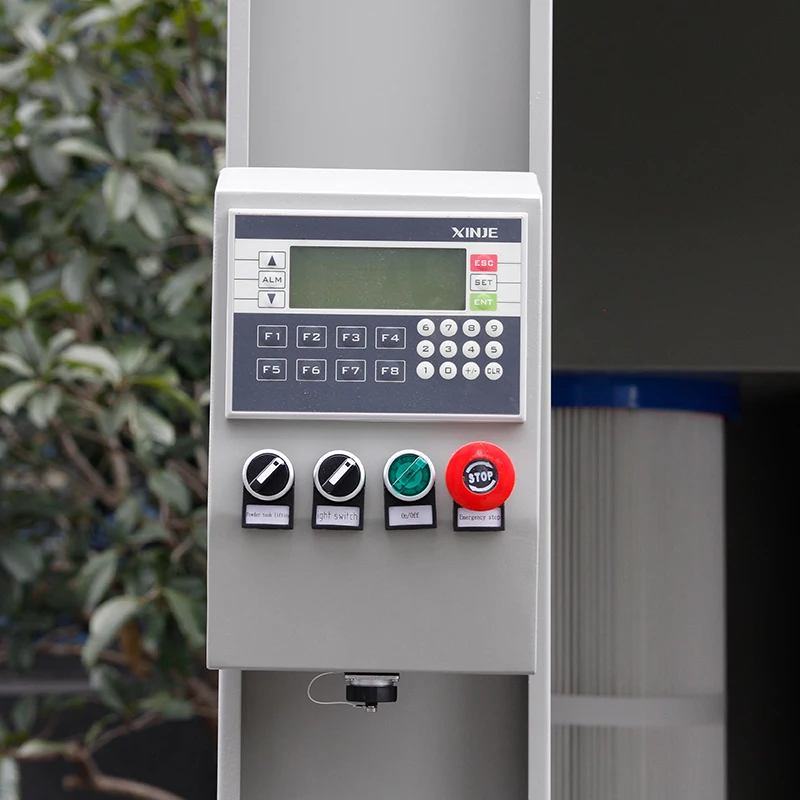

1.Full automatic control
2.Small area occupation
3.Low energy consumption
4.Size is customize

5.Pulse valves and solenoids

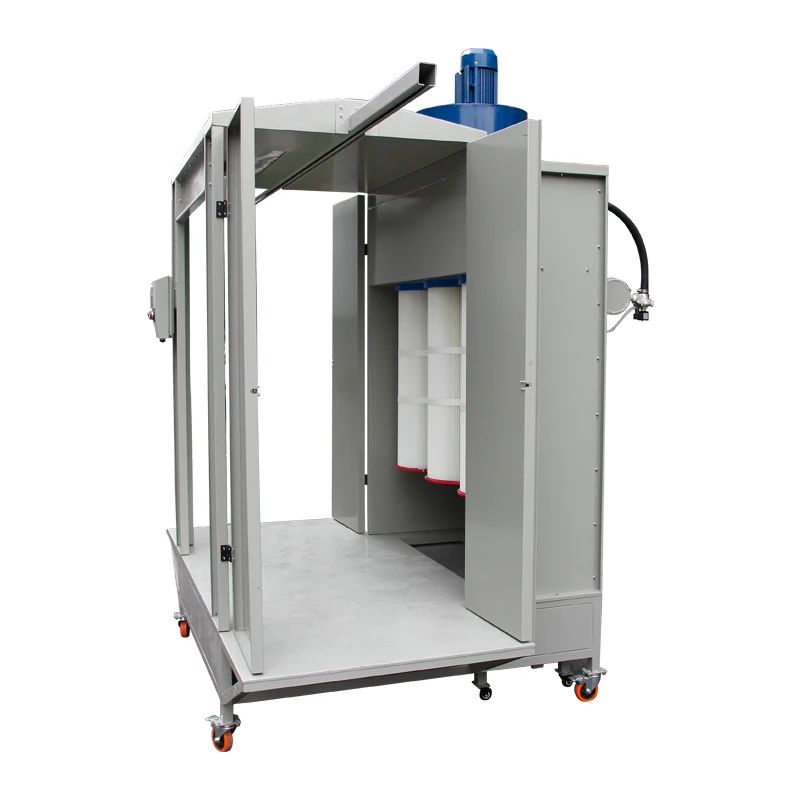

6.Primary filter module: cartridge type

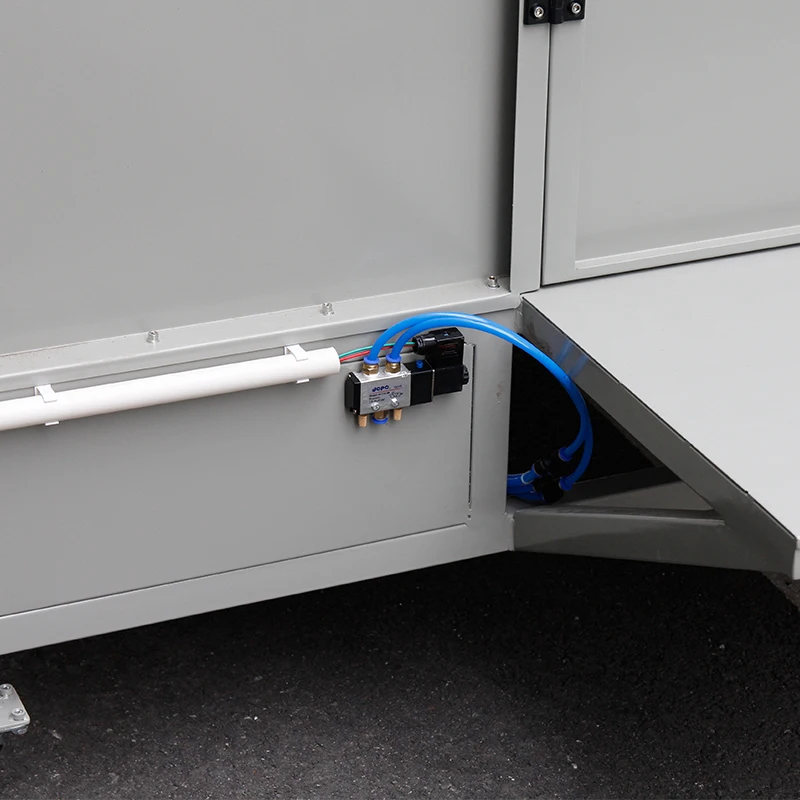

This Model has automatic powder collection bin. It's arbeit with cylinder. Like the photo as follow:

Include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.







Powder spray booth is an economical solution for basic powder coating operations requiring reclaim capability in continuous production situations.



For job shops, first-time powder coaters and to suppliment large in-house powder coating operations,this powder spray booths offer a variety of configuration options.



Booths size could Custom designed,Manual and automatic spray stations are also available.  Other features include:



Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor



Low-profile booth base eliminates operator platforms



Requires only quick, easy conncet electrical and pneumatics to start production .



Fan motor is 1.5KW-5.5KW.

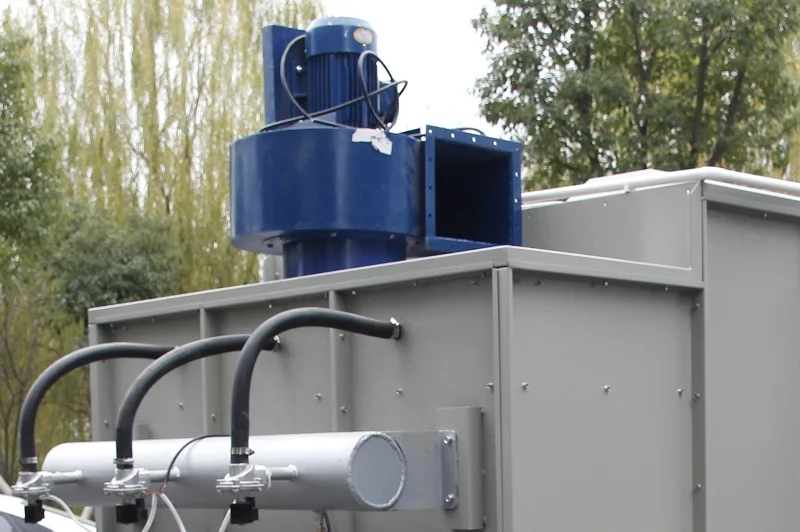

During operation overspray powder accumulates on the cartridge filters. As the cartridge filters load, airflow decreases and the negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure maximum flitter life.







COLO are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens, cartridge type and cyclone recovery systems, spray booth, conveyor systems,  Also we are supplier of powder coating, powder filters, powder coating machine,powder coating equipment,powder coatting gun,,Reciprocator, painting guns, pumps and their equipments.
