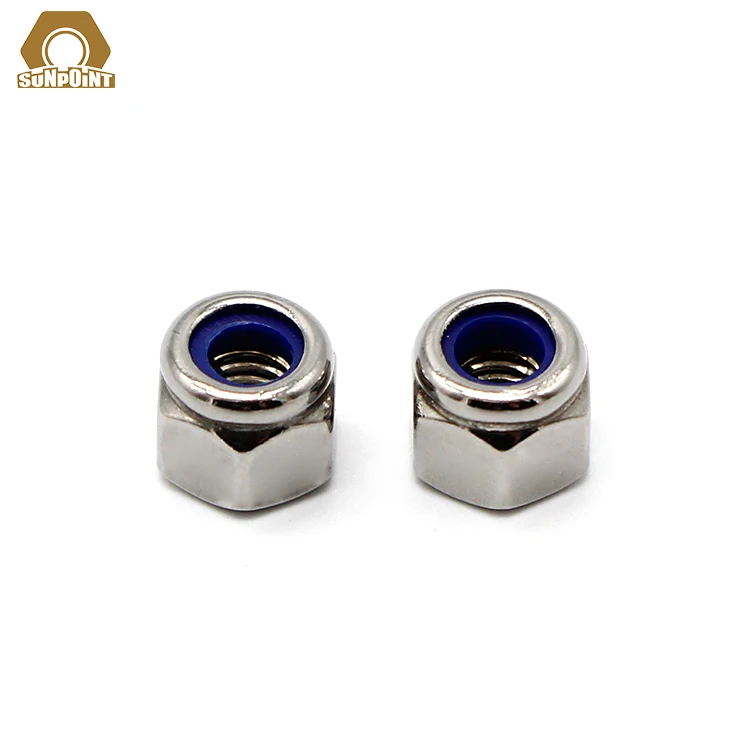

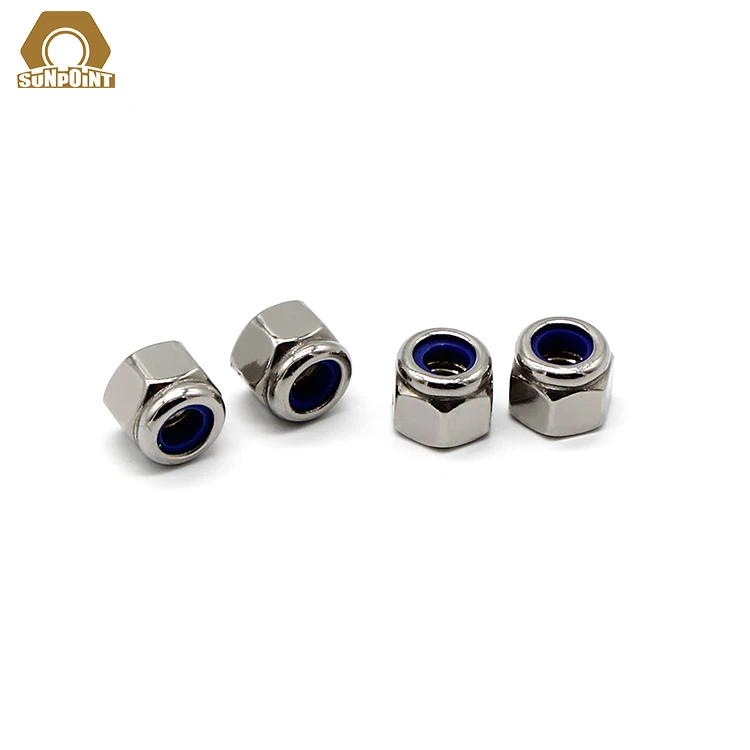

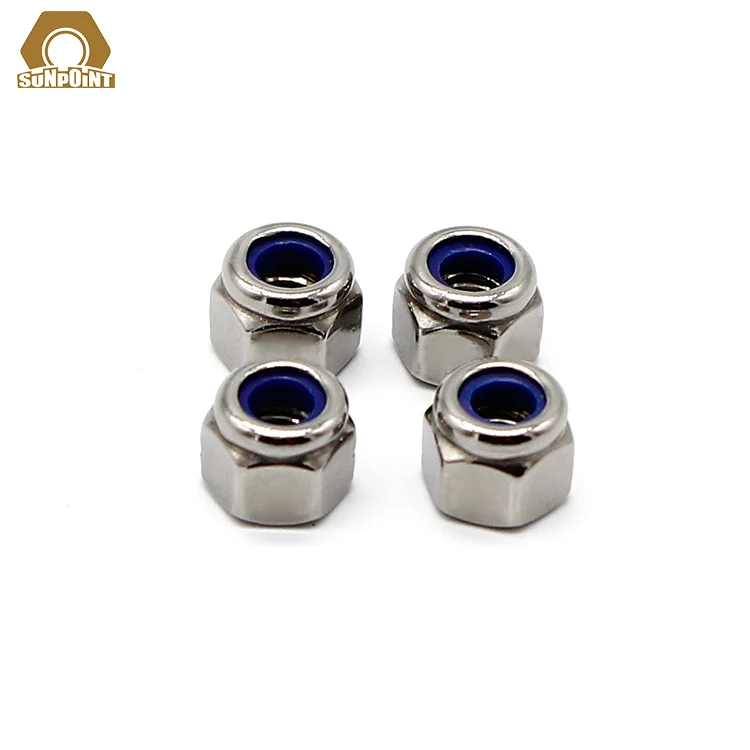

DIN982/889 anti - lock self-locking nylon Stainless steel 304 hex
- Категории: Nuts >>>
- Поставщик: Suzhou,Sunpoint,Hardware,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Fasteners Top Grade Useful Nylock Nut Wheel Locking Self-locking Nuts
Diameter d | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | |
P
| UNC | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| UNF | - | - | - | - | - | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 2 | |
| UNF | - | - | - | - | - | - | 1 | 1.25 | - | - | 1.5 | |
H
| MAX | 4 | 5 | 5 | 6 | 7.5 | 8 | 10 | 12 | 14 | 16 | 18.5 |
| MIN | 3.7 | 4.7 | 4.7 | 5.7 | 7.14 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 17.66 | |
M | MIN | 2.4 | 2.9 | 3.2 | 4 | 4.7 | 5.5 | 6.5 | 8 | 9.5 | 10.5 | 13 |
S
| MAX | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 |
MIN | 5.32 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | |
Diameter d | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |
P
| UNC | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 |
| UNF | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |
| UNF | 1.5 | 1.5 | - | - | - | - | - | - | - | - | - | |
H
| MAX | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 |
| MIN | 18.7 | 20.7 | 22.7 | 25.7 | 28.7 | 31.4 | 34.4 | 37.4 | 40.4 | 43.4 | 46.4 | |
M | MIN | 14 | 15 | 15 | 17 | 19 | 22 | 25 | 27 | 29 | 32 | 36 |
S
| MAX | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 |
MIN | 65 | 75 | 100 | 162 | 212 | 317 | 415 | 499 | 628 | 771 | 998 | |
All our products have undergone rigorous testing before leaving the factory, 100% meet the relevant standards, let the world fall in love with China
Related Products
Product Application
Company Information
Packaging & Shipping
FAQ
Q1: What do you need to provide a quote?
A1: Please kindly send us the drawing of your product. Details below should be included,
A. Materials B. Surface Finish C.Specifications D.Quantity
Q2: How does the payment process work?
A2: Payment terms are flexible for us in accordance with specific conditions. Generally we advise 50%TT deposit, balance be paid before shipment.
Q3: What will you do for after sales?
A3: When our metal parts apply to your products, we will follow up and await you feedback. Any question related to our metal parts, our experienced engineers are ready to help.
*Drawings, photos and samples are welcomed.
*We can according to your requirement or samples to do the product.
*Any questions or need more information, please feel free to conact with us.
*We are looking forward to have a good cooperation with you.
*welcome to visit our factory!
