Наружный водонепроницаемый светодиодный дисплей Chengwen P3.91 P4 P5 HD полноцветный рекламный
- Категории: >>>
- Поставщик: Guangzhou,Cheng,Wen,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Module Parameter
Item | Parameter |
Model number | P4-16S |
Module size | 254x128mm |
Pixel pitch | 4mm |
Pixel density | 62500dots/m2 |
Pixel configuration | 1R 1G 1B |
Package mode | SMD3528 |
Pixel resolution | 64x32 dots |
Max Power | 23W |
Module thickness | 12-14mm |
Weight | 0.4kg |
Drive type | constant drive |
scan mode | 1/8scan |
Port type | hub75 |
Brightness of white balance | ≥7500cd/m2 |
Cabinet Parameter
Dimension | 512mm*512mm |
Monomer Module Number | 8 |
Power supply | 5V/60A*1pc |
Thermal discharge | Anto |
Pixel per cabinet | 128*128dots |
Best viewing distance | 8M~10M |
Best viewing angle | 160°(W)120°(H) |
Temperature | storage:-35°C~+85°C working:-20°C~+50°C |
Relative humidity | 10%~95% |
Thickness | 80mm |
QTY/m2 | about 19.5pcs |
Product Description
Led Module
size : 256x 128mm
Led screen Cabinet
size : 512 x 512 mm
Cabinet detail
1 、Lock
2、 Pulling hand
3 、Locating pin
4 、Pushing handle
5、 power connector
6 、signal connector
Main parts of LED Screen
1、 Main Power Cable
2、Power cable between the cabinet
3、Main Signal Cable
4、Signal Cable the Cabinet
5、 Receiving Card
6、Connection Pad
7、 Hanging Beam

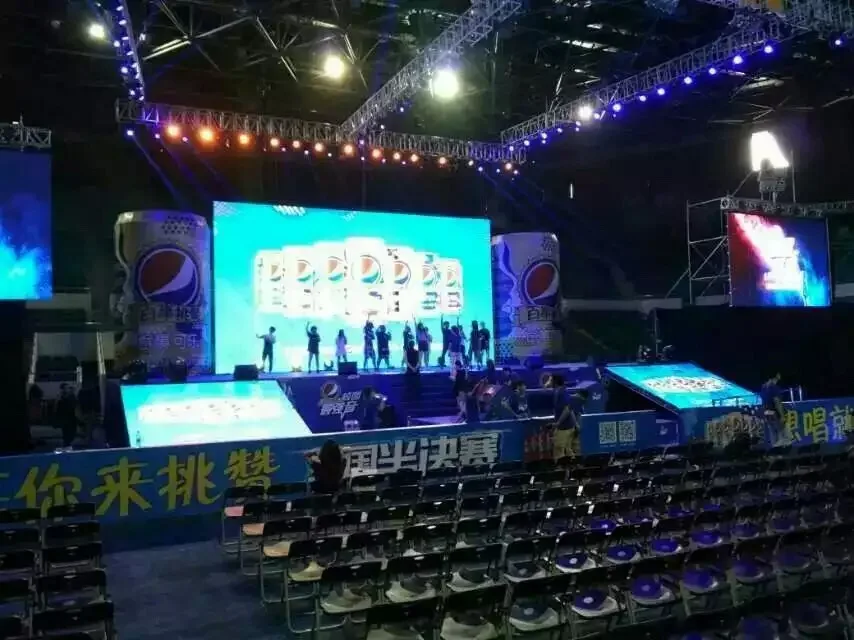

Applications
Certifications
Our Company
Guangzhou Cheng Wen Photoeletric Technology Co., Ltd. is a independent research and development, specializing in the production stage lighting equipment and sales of high-tech enterprises. The company was built in 2012, it has already been widely applied in each domestic domain and has obtained consistent high praise from people of all walks of life both homw and abroad by replying on its advanced technology. Company products are exported mainly sell like hot cakes in: South Korea, Russia, India, Thailand, Cambodia, Burma, Vitenam, Pakistan, Malaysia, Singpaore,USA, Mexico and many other countries. We also have agent distributions in many foreign countries. From the radio system, theaters, to rented performance the brand Cheng Wen, have already been regarded as the first choice to many important activities, large scale cultural parties, dance theaters, television stations, clubs and many other entertainment palces. Simultaneously, we also continue the OEM service for the world-known brand.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
