Product Description

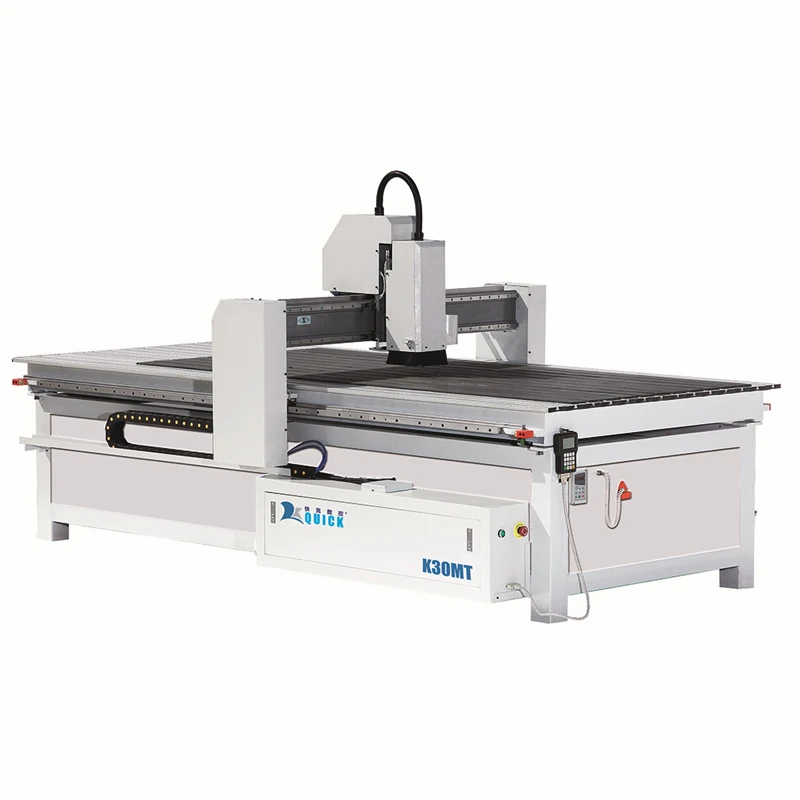

K30MT CNC router is an entrance level heavy duty designed machine.
A distinguishing feature of this machine is the racks on the X and Y axis, which provide an impressive travel speed for a table of this size. Performance, affordable prices and high-quality products are no opportunities for competitors.It is popular for prototyping, small batch production or even home workshops, it is a space-saving professional design at an affordable price with great features.The working size can be designed to1200x1800mm /1200x1800mm/1200x2400mm .The 4th axis and the auto tool changers is also available .
A distinguishing feature of this machine is the racks on the X and Y axis, which provide an impressive travel speed for a table of this size. Performance, affordable prices and high-quality products are no opportunities for competitors.It is popular for prototyping, small batch production or even home workshops, it is a space-saving professional design at an affordable price with great features.The working size can be designed to1200x1800mm /1200x1800mm/1200x2400mm .The 4th axis and the auto tool changers is also available .
Configurations | ||||||
X-Y-Z axis working area | 1,200 x 2,400 x 200mm | |||||
Machine size | 1,900 x 3,100x1700mm | |||||
Repositioning resolution | 0.02mm | |||||
X-Y movement | rack and pinion, gear drive | |||||
Z movement | ball screw drive/Taiwan | |||||
Guide | y Linear ￠20 square/Taiwan | |||||
Max. speed | 35,000mm/min | |||||
Max. cutting speed | 25,000mm/min | |||||
Spindle power | 3KW water cooling | |||||
Spindle speed | 24000rpm | |||||
Inverter power | Inovance 3.7kw (Huichuan) | |||||
Drive motors | Stepper motor | |||||
Working voltage | AC380V/50-60Hz | |||||
Command code | G code | |||||
Computer interface | USB 2.0 | |||||
Table | T-slot | |||||
software free | Type 3 | |||||
controller | DSP A11 | |||||
Weight | 1200kgs | |||||

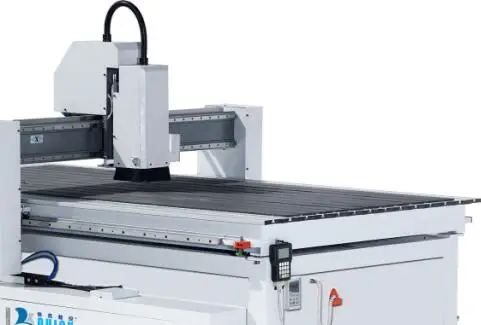

Detailed Images
※24000rpm\t
※Application: Milling,Engraving,Drilling\t
※Every spindle motor must be passed polishing process,Improve spindle concentricity to increase motor working life.\t\t\t\t\t
※The table has T-slot mounting devices incorporated into the tables to enable fixtures .

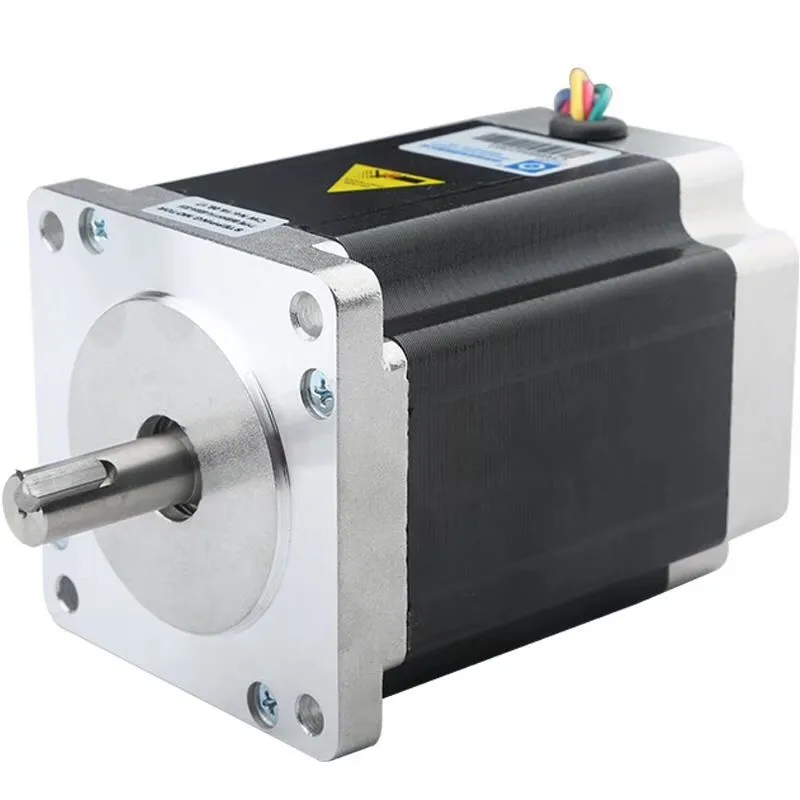

Stepper motor
※High torque
※low vibration
※low heat
※high reliability\t
DSPA11 Handheld controller
※.New three-axis linkage motion mode to achieve
comprehensive controlling
※.Support drive and spindle error alarm function
※Large storage space, perfect U disk compatibility,
fast reading speed, safe and reliable U disk-processing.
※.Support intelligent file checking function.
PRODUCT APPLICATION
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2)wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Customers and Team

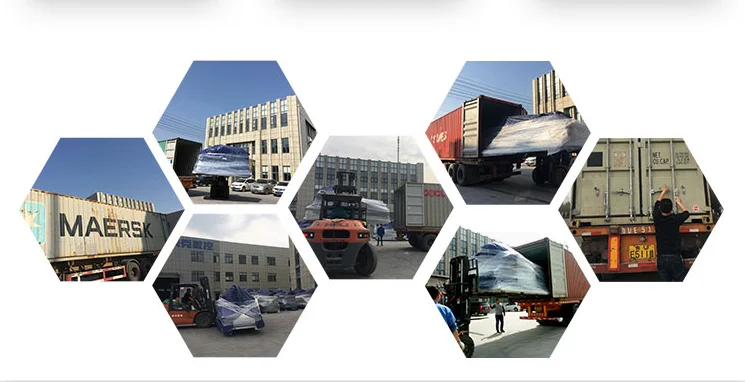

Packing & Delivery

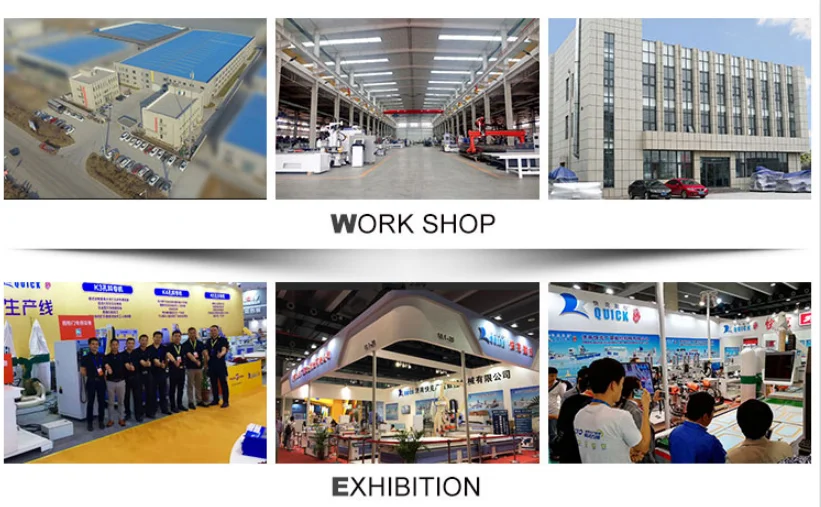

Our Company
Jinan Quick CNC Router Co., Ltd. was founded in 2006, “Quick-Fulltek” is our subsidiary brand which was built in 2012. We have been producing and exporting CNC machines since 2006. Our company locates in Lingang economic develepment zone in Gaoxin district in Jinan, factory floor space is more than 15,000 square meters. We have more than 280 workers including 25 professional designers, 35 experienced after sale service engineers and 20 sales persons.
