Мотоцикл диагностический инструмент MST-500 сканер для мотоцикл оригинальный мастер MST500 H-onda

Описание и отзывы

Характеристики

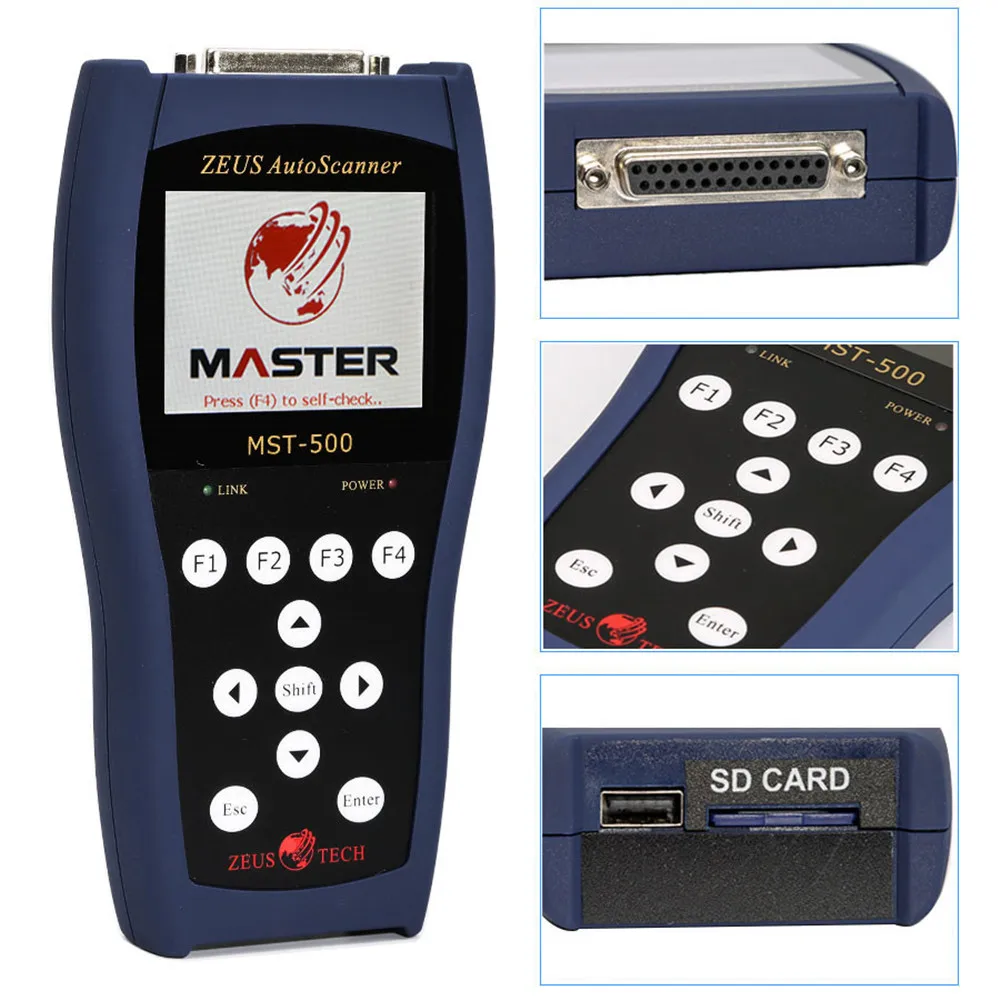

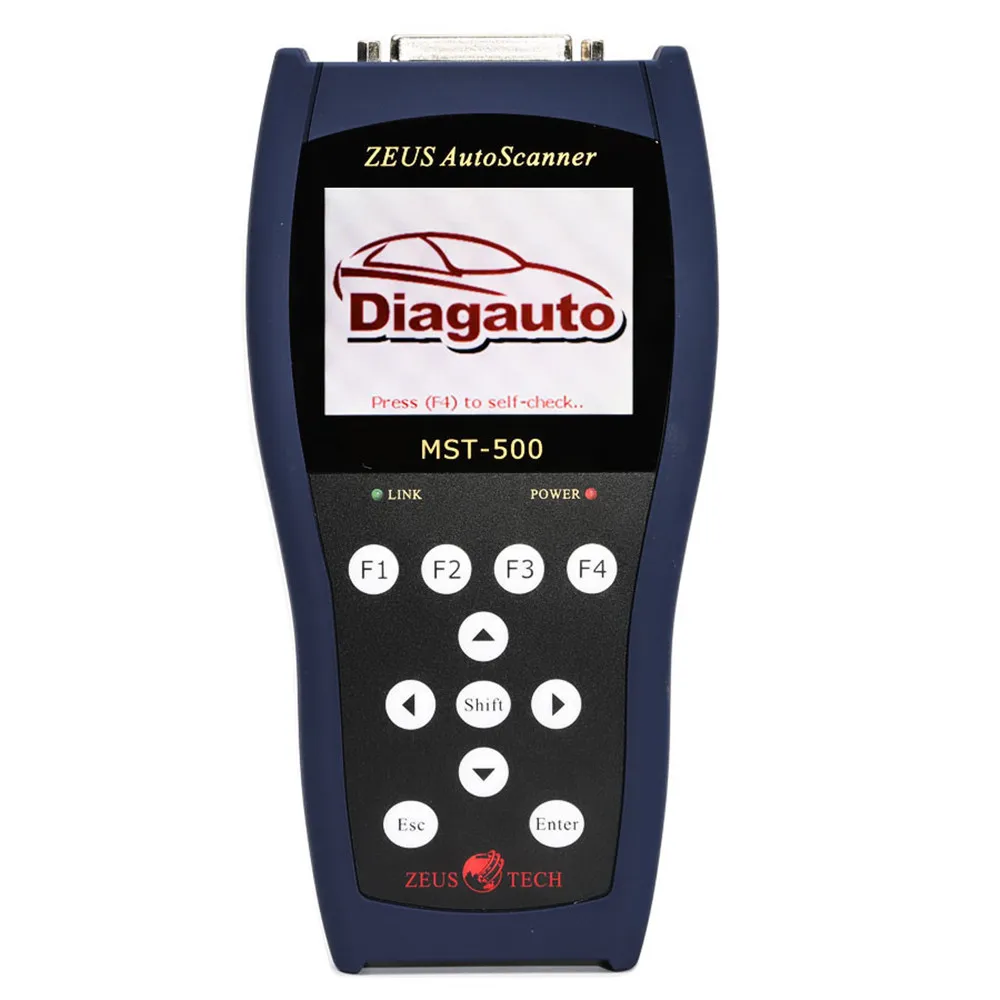

Motorcycle Diagnostic Tool MST-500 Scanner for Motorbike Original Master MST500 For H-onda Ya-maha Tool



Support Motorcycle:

Diagnosis for HONDA,SYM,KYMCO,YAMAHA,SUZUKI,AEON,PGO,HARTFORD,BENILLI,KAWASAKI,APRILIA,VESPA,PIAGGIO

Support Function



1. System Information (Read ECU version information)

2. Data stream (Read ECU various sensor parameter values)

3. Read DTCs (Read the fault code stored by the ECU and analyze it )

4. Clear DTCs (Clear the fault code stored by the ECU)

5. Freeze data ( Lock dynamic data for easy viewing)

6. CO Idle speed adjustment

Description:



1, Hand-held operation, convenient and flexible to use

2, Support for SD cards to store data and upgrades, more convenient and easier

3, Reserved CAN bus interface

4, 3.2-inch color screen, clear display

Features:



Power: DC10-15V

Operating Current: 250mA

Screen: 160 * 105 LCD

Keyboard: membrane keyboard

Storage temperature: -10 C to 85 C

Operating temperature: 0 C to 70 C

Humidity: <90%

Upgrade Ports: USB port

Communication ports: COM port

Update:



Easy update, only need to connect PC with U disk, Click "USB memory" in the manually, you can see PC find new U disk after you click OK. Then, you can copy the update file into U disk, then plug off U disk from PC side, then you can finish update according the notices. (When TF card could not reset ok, then please plug again, finish update as it said)

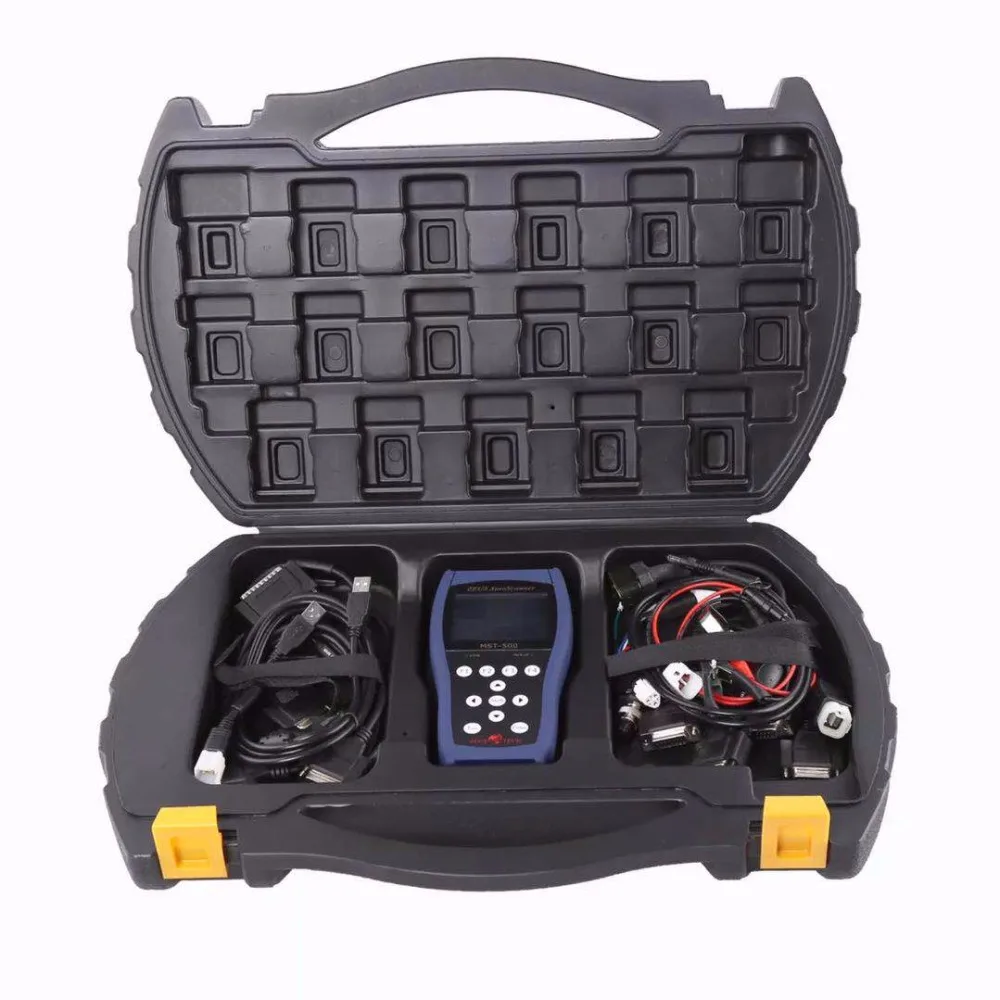

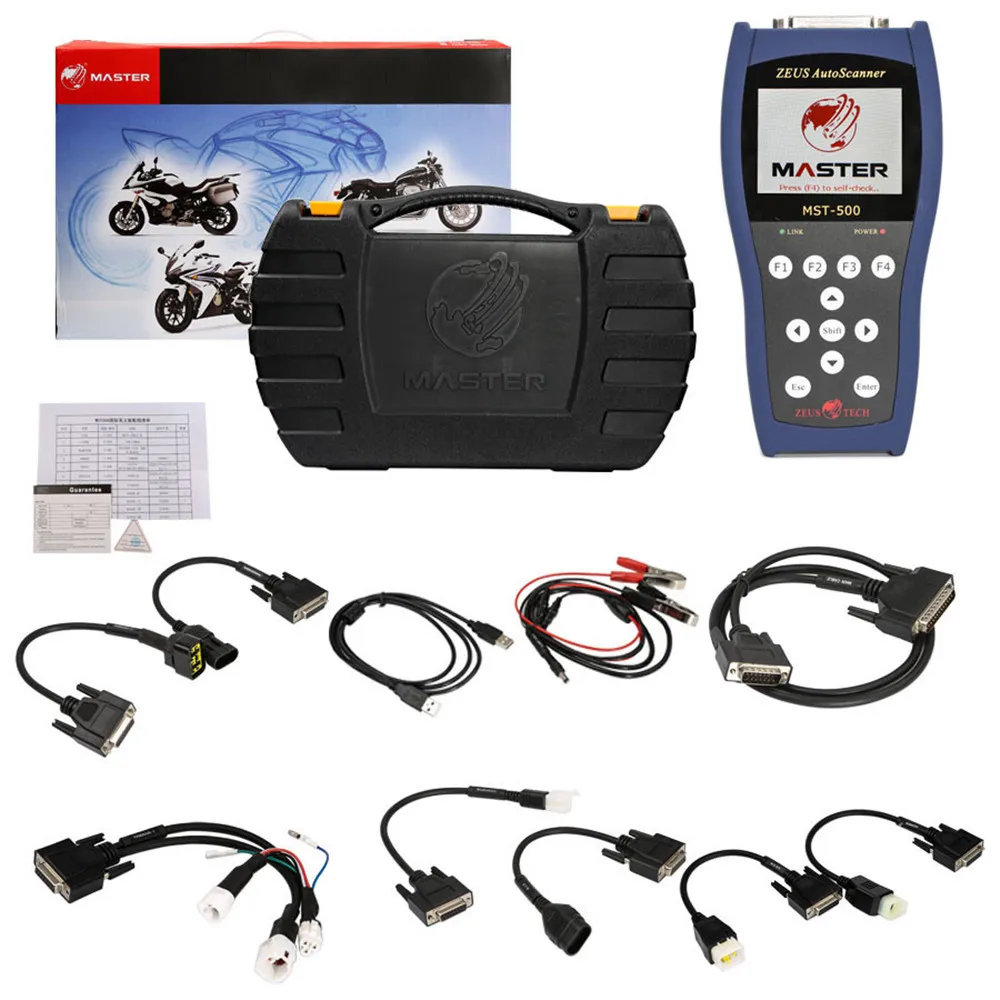

Package List:



1pc xHONDA

1pc x SYM

1pc xYAMAHA

1pc x AEON

1pc x SU-ZU-KI(1)

1pc x KAWASAKI-1

1pc x APRILIA

1pc x VESPA/PIAGGIO

1pc x POWER Cable

1pc x USB Cable

1pc x MAIN Cable

1pc x SD
