Медный телефонный провод CCS 0 71 мм 81 покрытый сталью твердый ПВХ PE HDPE CN;HEN Hongda черный 500

Описание и отзывы

Характеристики

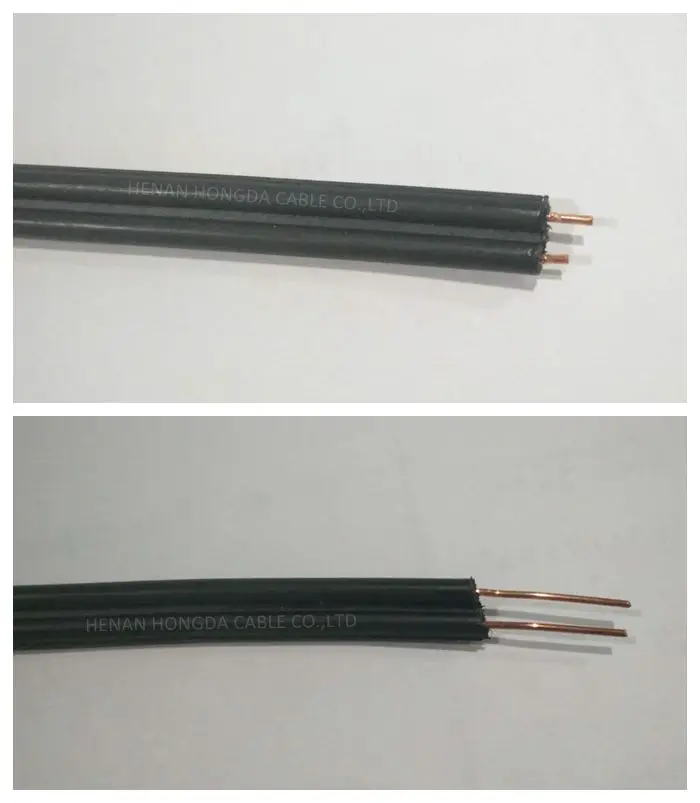

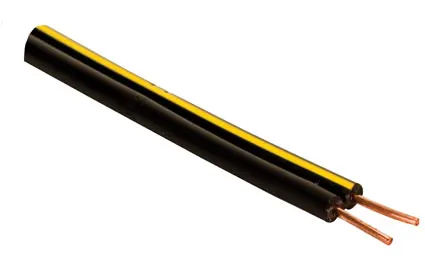

Solid copper covered steel CCS 0.71mm 0.81mm telephone copper drop wire

Telephone copper drop wire Applications

The drop wires are designed for extending an open wire line or distribution pairs from a pole or cable terminal to a building. The drop wires are to be installed between distribution point and telephone subscriber premises.

Telephone copper drop wire Standards

• CW 1166 (Drop Wires No. 1)


• CW 208 (Drop Wires No. 2)


• CW 1247 (Drop Wires No. 6)


• CW 1320A (Drop Wires No. 8)

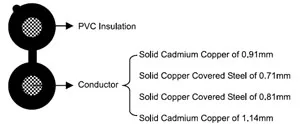

Construction of Telephone copper drop wire;

Conductors

Solid cadmium copper of 0.91mm to BS 4807 (Drop Wires No. 1)

Solid copper covered steel of 0.71mm to BS 4807 (Drop Wires No. 2)

Solid copper covered steel of 0.81mm to BS 4807 (Drop Wires No. 6)

Solid cadmium copper of 1.14mm to BS 4807 (Drop Wires No. 8)

Insulation

PVC to BS 6746 T1 (Drop Wires No. 1)

PVC to BS 6746 T2 (Drop Wires No. 2)

PVC to BS 7878 T1 (Drop Wires No. 6)

PVC to BS 6746 T1 (Drop Wires No. 8)

Cable Core Assembly: Two conductors are extruded parallel, figure-8 type.

Electrical properties

Nominal Conductor Diameter	mm	0.91	0.71	0.81	1.14
BT Drop Wire Reference		No. 1	No.2	No.6	No. 8
Conductor Size	mm2	0.65	0.4	0.52	1.02
Minimum Insulation Resistance @500V DC	MΩ.km	24	24	50	24
Minimum Insulation Thickness	mm	0.75	1.02	0.8	1.52
Nominal Insulated Conductor Diameter	mm	2.41	2.75	2.41	4.18

Mechanical and thermal properties

Temperature range during operation (fixed state) : -30°C – +70°C

Temperature range during installation (mobile state) : -20°C – +50°C

Minimum bending radius : 10 x Overall Diameter (unarmoured cables)

Dimensions and weight

Number of Cores	Minimum Insulation Thickness	Maximum Cable Dimensions Diameter X Height	Nominal Weight
mm	mm	kg/km
0.91mm Conductor, 2.41mm Insulated Wire
2	0.75	2.7x5.6	25
0.71mm Conductor, 2.75mm Insulated Wire
2	1.02	2.75x6.0	20
0.81mm Conductor, 2.41mm Insulated Wire
2	0.8	2.5x5.4	23
1.14mm Conductor, 4.18mm Insulated Wire
2	1.52	4.44x9.4	34
