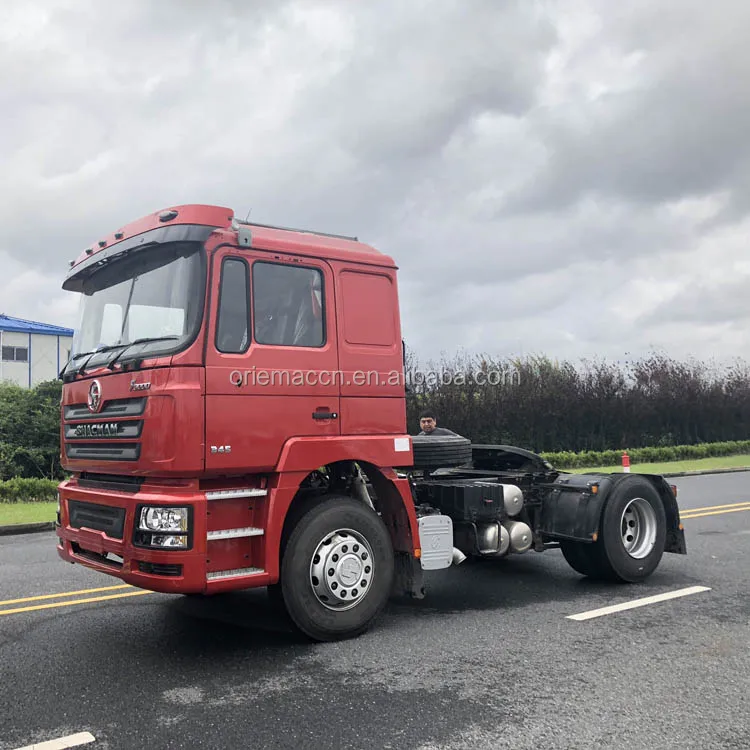

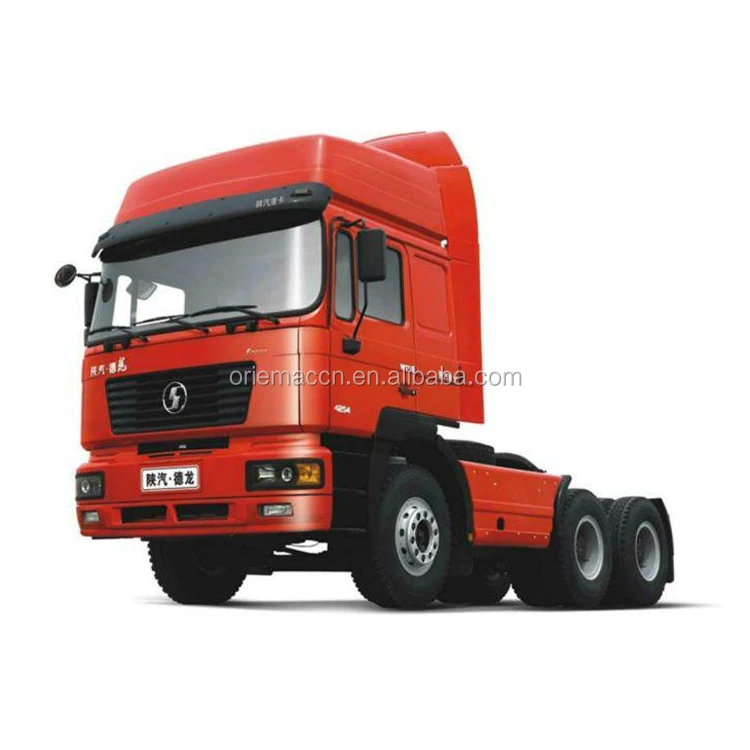

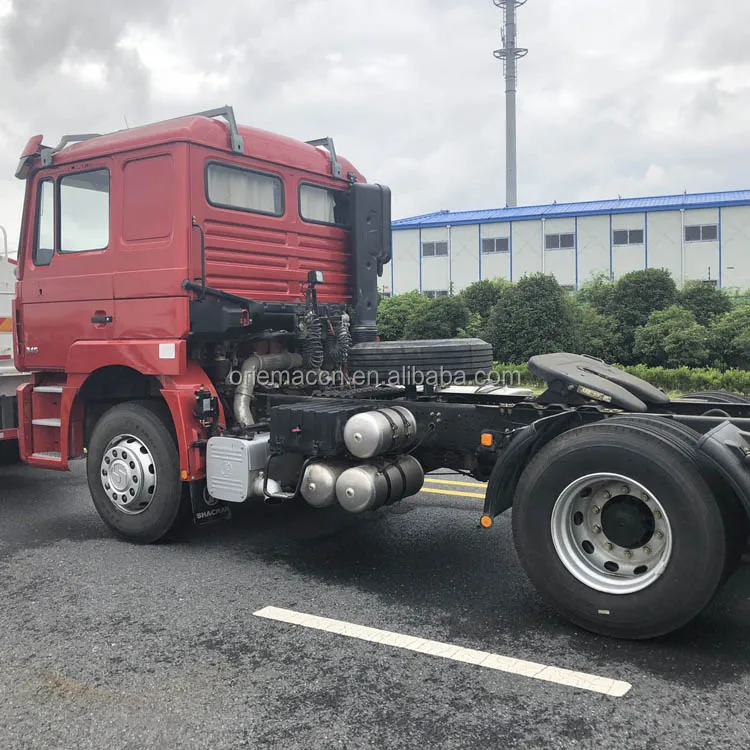

China Shacman 6X4 tractor head 365hp brand new trucks for sale

Specifications:

Model	SX4257NT324
Make	SHACMAN Truck
Drive type	6×4
Application	Tractor
Weight
Complete  kerb mass (kg)	9400
GVW (kg)	29400
GCW(kg)	60000
Dimensions
Max.length(mm)	6825
Max.width(mm)	2490
Max.heigh(mm)	3710
Front / Rear overhang (Chassis)	1525/725
Wheel base(mm)	3175+1400
Track width(mm)	2036/1800
Performance
Max.speed (km/h)	127
Min.turning circle(m)	15
Min.ground clearance(mm)	314
Approach / Departure angle (°)	22/30
Max.gradeability(%)	34
Engine
Make	WEI CHAI
Model	WP12.375N
Power(kw/HP)	276/375
Max.Torque (N.m )/rpm	1800/1000—1400
Displacement (L)	11.596
Bore/Stroke (mm)	126/155
Emission Standards	Euro Ⅲ
Transmission
Make	FAST
Model	12JS180TA
Control type	manual
Gear Shift	12-forward and 2 reverse speeds
Option	——
Clutch
Type	Single plate, diaphragm spring
Diameter (mm)	φ430
Action	mechanical pull type, self adjusting Air assisted clutch
Brakes
Type	Drum
Service brake	With dual-circuit   compressed air brake
Park brake	Power spring brake acting  on rear wheel
Auxiliary brake	WEVB
Option	ABS
Steering
Make	Shashi Jiulong
Type	Integral inner circulation  power steering
Option	ZF8098
Chassis
Type	Ladder structure, widened  and cross-section variable
Suspension
Front Suspension	semi-elliptic springs with shock absorbers
Rear Suspension	inverted leaf spring stabilizator  suspension
Axles
Make	SHAAN'XI HANDE
Front axle	7500kg
Rear axle	13000kg(each other)  Double reduction driving axle with inter-wheel differential and differential lock.
Ratio	3.866(option 4.266)
Option	11500kg(each other)single reduction or 16000kg(each other)double reduction rear axle
Tires
Type (Standard)	12.00-20
Option	12.00R20/11.00-20/11.00R20/12R22.5
Fuel tank
Tank capacity (L)	400
Material	Aluminum
Electrics
Type	24V
Starter	6.2kw(24V)
Generator	2.2kw(28V 80A)
Battery	2×135Ah
Cab
Type	MAN D'LONG F3000,  Lengthened high roof
Equipments	2 rear window, mechanical clerestory, 4 point air suspension, A/C, air suspension driver seat with handle and seatbelts, two sleeping bed, hydraulic reversal  cab, with USB can play radio with MP3 format
Option	electric windows, electricity heated,  GPS or CD, rear-view mirror, Tachograph, car Phone, electricity reversal cab
Other
The fifth wheel	2 inch
saddle ground clearance(mm)	1400
