Внутренний измеритель CO2 сертифицированный CE датчик NDIR качества воздуха монитор диоксида

Описание и отзывы

Характеристики





Poor indoor air quality is considered  unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex. Sick Building Syndrome). IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as offices, classrooms, factories, hospitals and hotels.



This  meter measures the CO2 level, Air  Temperature, and Humidity (RH) and is an ideal instrument for Indoor Air Quality(IAQ) diagnosis.



CE certificated  Indoor CO2 meter,  NDIR sensor  Air Quality CO2 Monitor Carbon Dioxide  Meter

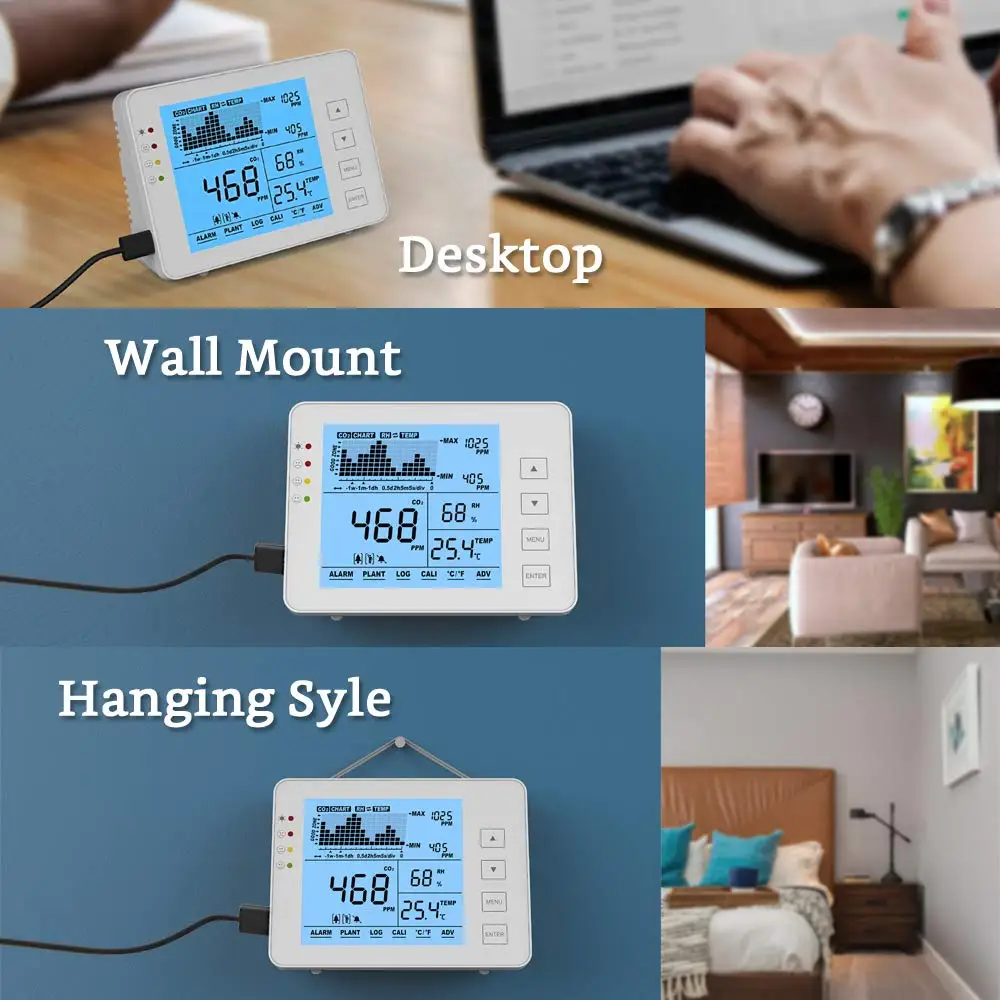

Desktop / Wall mounted CO2 monitor , carbon dioxide meter CO2 meter , indoor air quality co2 meter's usage methold :

 Technical Specification :

Typical parameter’s testing conditions: Ambient Temp: 23±3℃, RH=50%~70%, Height=0~100 meters for CO2, Temperature & Humidity :



Measurement	Specifications
Operating Temperature	32℉~122℉ (0℃~50℃)
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating & storage RH	0-95%(non-condensing)
CO2 Sensor
Measuringe range	(0-5000)ppm
Display resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Accuracy	(0~3000)ppm: ± 50ppm or ± 5% of reading (take the Maximum)
	(>3000)ppm:  ± 7% of reading
Repeatability	20ppm at 400ppm
Temp compensation	±0.1% of reading per ℃ or ±2 ppm per ℃, referenced to 25℃
Response time	2 min for 63% of step change or < 4.6 min for 90% step change
Warm-up time	<20 seconds
Temperature Measurement
Operating temperature	32°F ~ 195°F (0°C ~90°C)
Display resolution	0.1°F (0.1°C)
Response time	<20 minutes (63%)
RH Measurement
Measuring range	5~95%
Accuracy	±5%
Display resolution	1% Main interface display, 0.1% Max/Min display
Power consumption	160mA Peak, 40mA average at 5.0V
Dimension	120*90*33.5mm  (4.7*3.5*1.3 inch)
Weight	103g ( 3.6oz)  device only, not including AC adapter

Providing OEM & ODM service for indoor air quality CO2 monitor :

  1. Company Logo on Product
  2. Company Logo in boot video
  3. Branded Packaging
  4. Branded Manual
  5. Branded Terminal Label

 6.  Change product shape, change or add new function and programm

 7. Open to any Customization idea and Accecpted Co-operated Customization for new models.





Features :

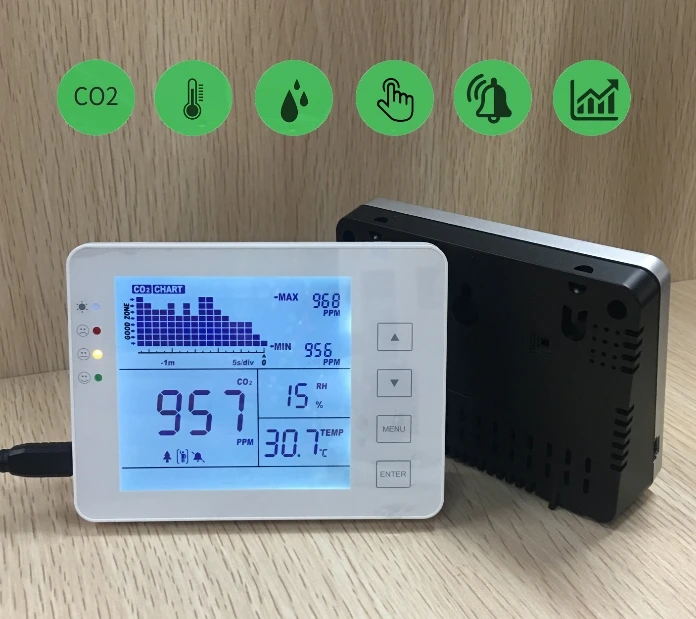

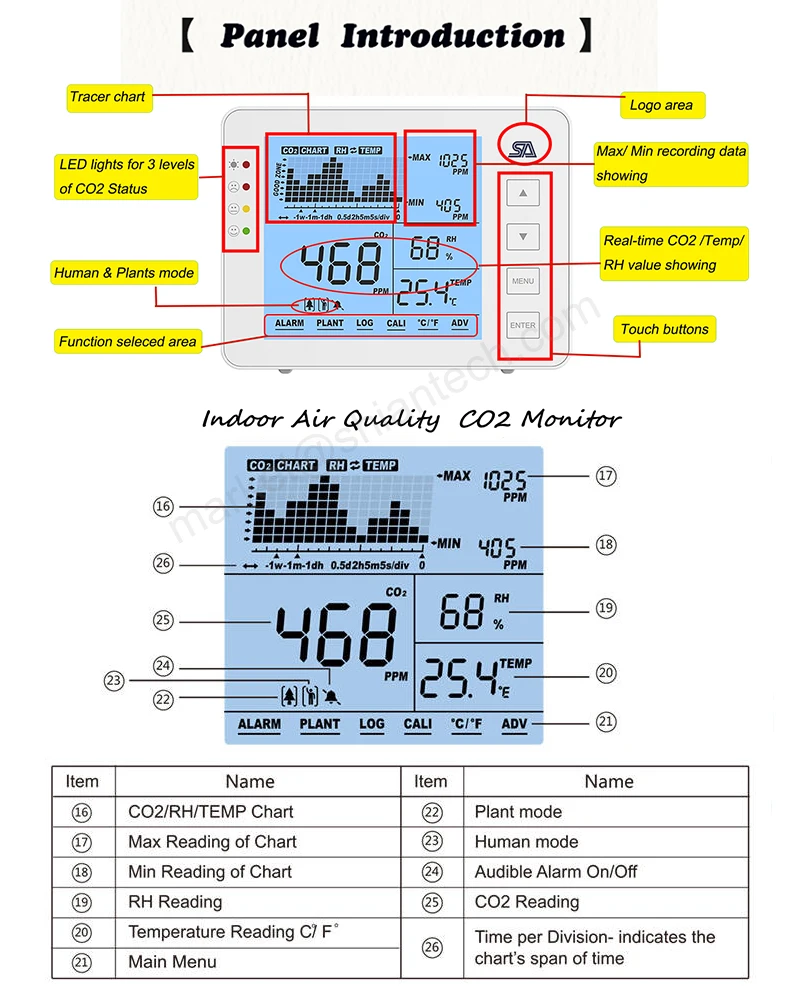

l  Super big LCD screen to monitor real-time CO2 concentration, temperature and relative humidity simultaneously

l  Easy to use – Just plug it into a USB port (Adapter is optional).  It can be used in anywhere.  High-end Touch buttons to operate easily.

l  Easy to view the display and operate—with 15 degree bevel design for indoor desktop application

l  Built-in data logger enables data review and analysis of CO2 concentration, temperature and humidity

l  Record the Max/Min levels for CO2 and display the records in a certain period of time

l  Three-level indoor quality indicating system Good, Normal, Poor

l  Self-calibrating—saves Money and time.  Manual Calibration is optional.

l  Stable NDIR CO2 sensor with long-lifetime.

l  Audible and visual alarms

l  Assistant function—Common family and plant CO2 monitoring.

l  OEM and ODM are welcomed

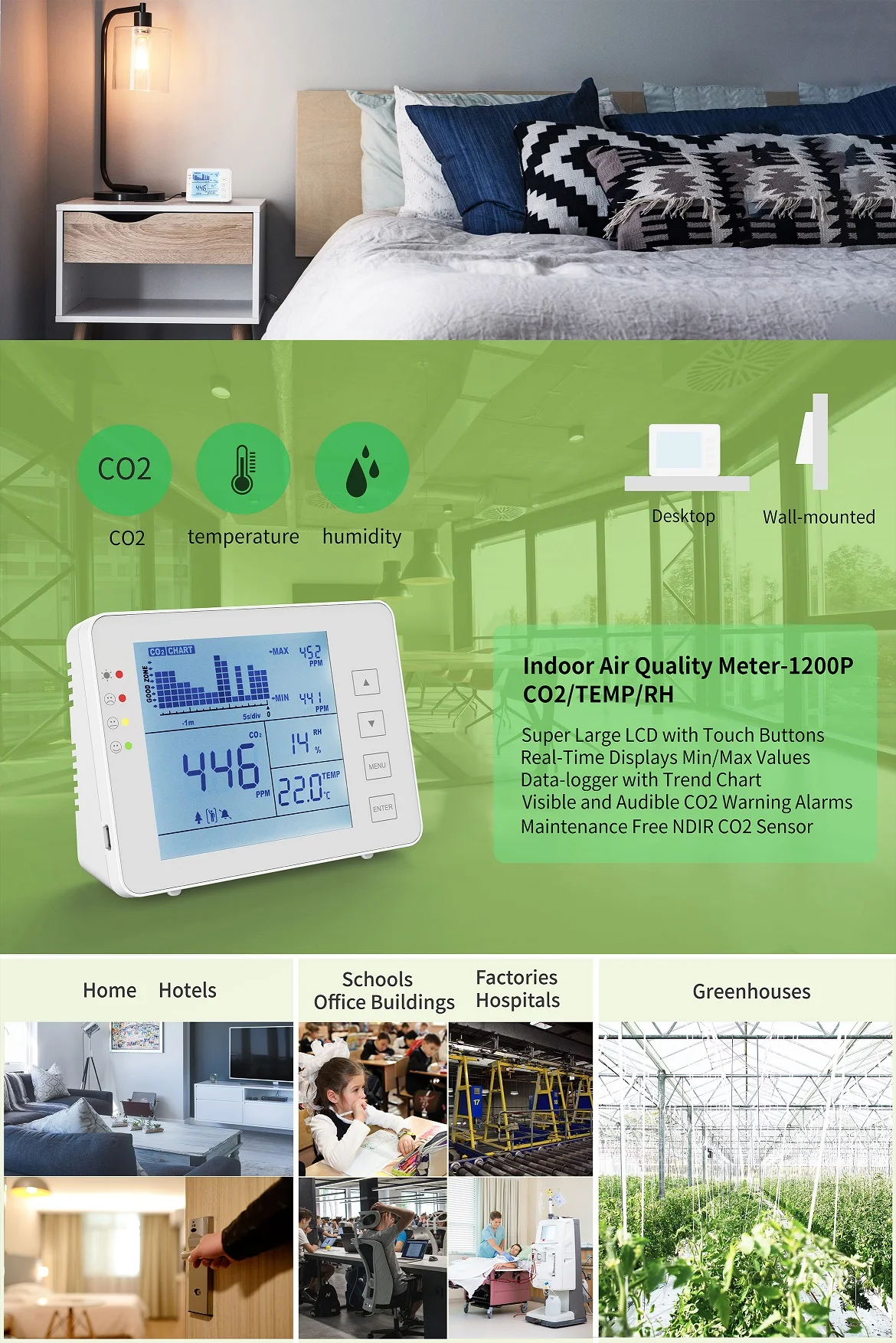

Application

• School


• Offices


• Meeting rooms


• Homes


• Hotels


• Hopstibal


• Other places where personal comfort and health is important.

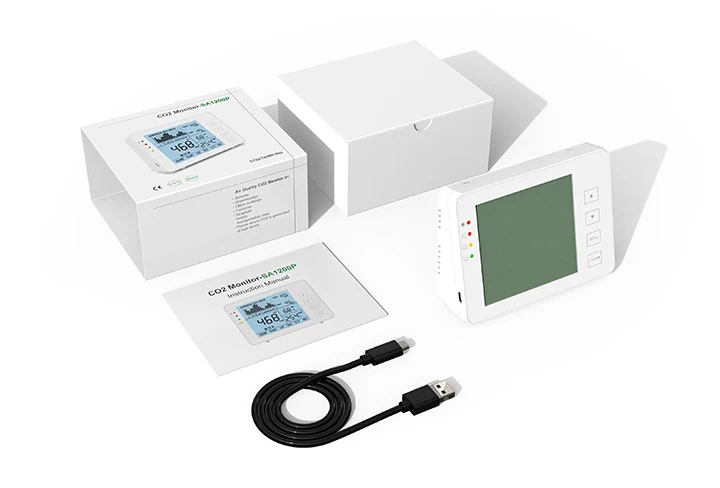

Accessories :

l  USB Cable for Power

l  User’s Manual

l  AC Adapter (Optional)





Warranty :  One year

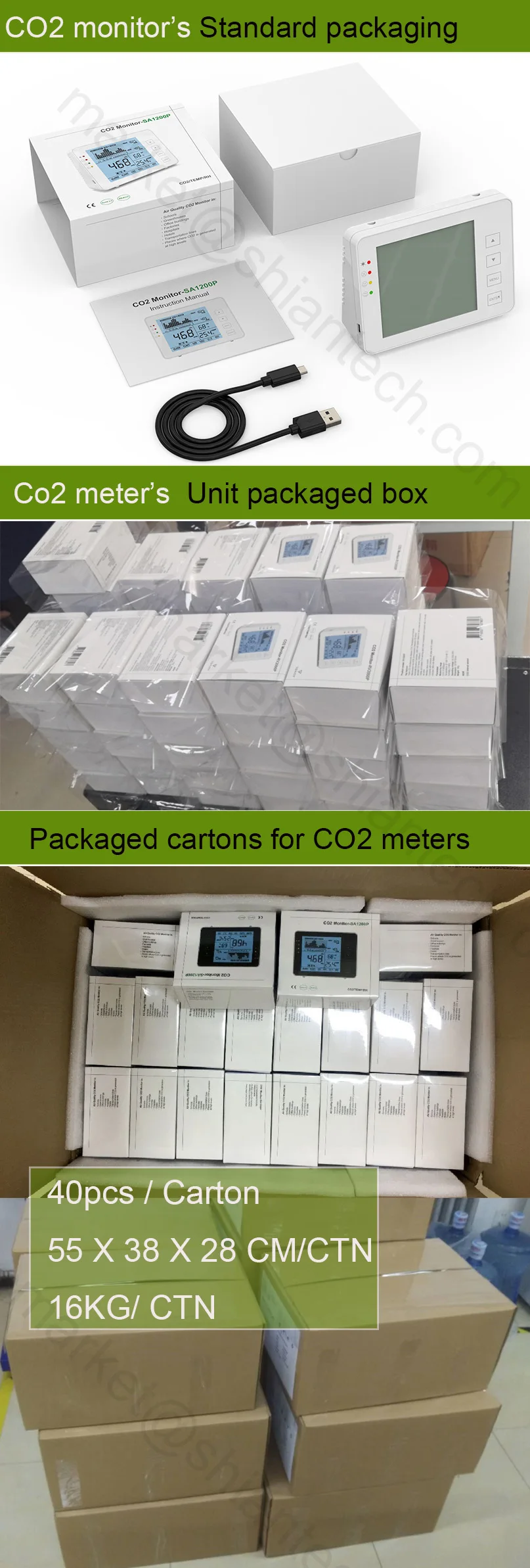

Packaging & Delivery time



1 box for unit device.

Delivery time for sample is 2-3 days after payment.

Large quantity orders will be discussed in advance.



Shipping  :



1. Sample item will be shipped within 2 working days by air express with tracking number after the payment is cleared

2.  Normal large order will be shipped within 15-20days , or keep the same with discussion requirement.

      The shipping way for big order quantity can be by air, by express or by sea.  Freight cost will be checked in advance to confirm with buyers before shipping.
