Product Description
UKO tungsten carbide indexable inserts with sharp cutting edge can reduce the vibration of machining process, which is beneficial to the insert surface with low roughness.
Optimized chipbreaker structure improve the cutting performance and chipping control, contributing to easy and fast cutting. The combination of specific substrate and coating, well balanced the different wear patterns of center inserts and surrounding inserts.
OPF-for steel finishing
OPM-for steel semi-finishing
OPR-for steel roughing
CNMG1204 series grade introduction
UC2125
Color: black
Hardness: 1480
Coating way: CVD(TICN+AL2O2)
Work piece:steel
Advantage:good wear-resistance
Feature: the first choice for steel finishing and semi-finishing.
Hardness: 1480
Coating way: CVD(TICN+AL2O2)
Work piece:steel
Advantage:good wear-resistance
Feature: the first choice for steel finishing and semi-finishing.
UC2115
Color: black
Hardness: 1530
Coating way: CVD(TICN+AL2O2)
Work piece:steel
Advantage:wonderful wear-resistance
Feature: the first choice for steel semi-finishing and roughing.
Hardness: 1530
Coating way: CVD(TICN+AL2O2)
Work piece:steel
Advantage:wonderful wear-resistance
Feature: the first choice for steel semi-finishing and roughing.
Recommended parameter
Recommended parameters for reference only, specific to the actual processing!
Vc=370m/min(210-470)
Fn:0.3mm/r(0.2-0.5)
ap=3.0mm(0.7-5.0)
Fn:0.3mm/r(0.2-0.5)
ap=3.0mm(0.7-5.0)

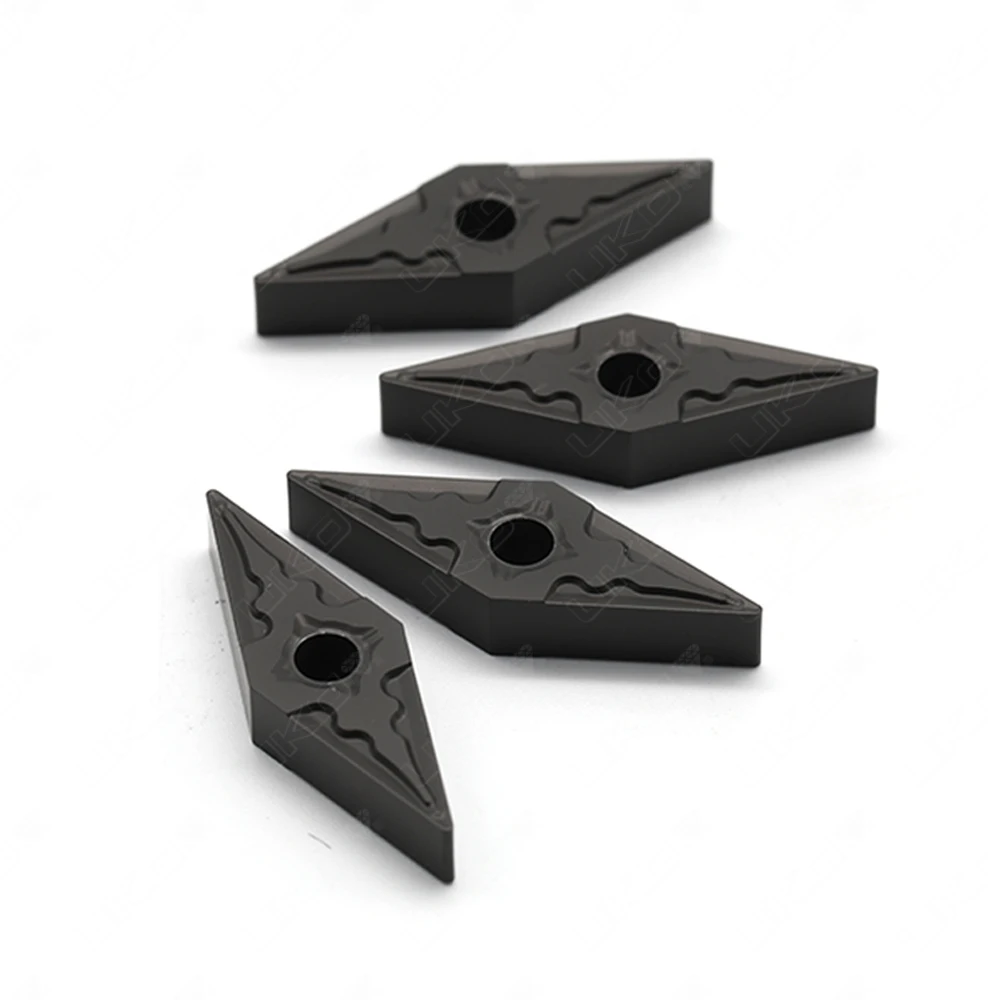

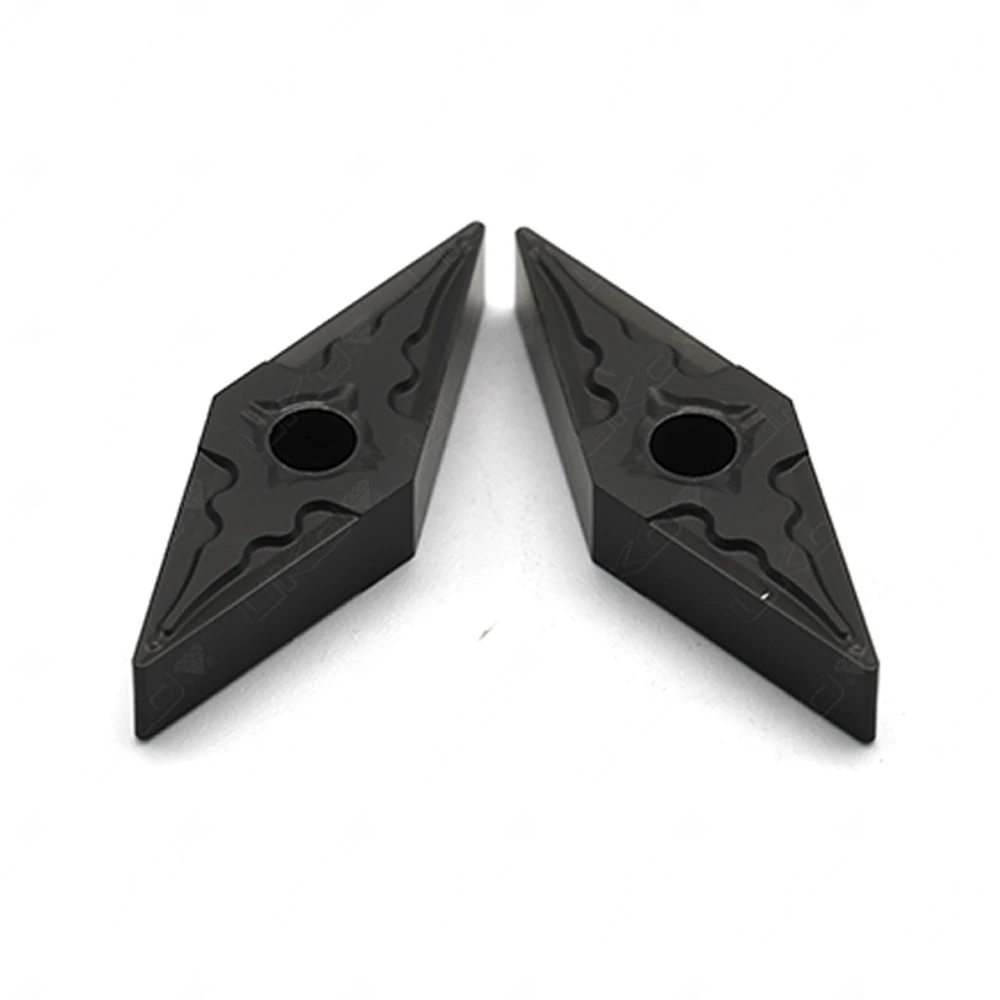

Specifications
Type | S | Ød | r |
VNMG160404 | 4.76 | 3.81 | 0.4 |
VNMG160408 | 4.76 | 3.81 | 0.8 |
VNMG1604012 | 4.76 | 3.81 | 1.2 |
Recommend Types
SNMG120408
RCMX1003
CCMT09T304
Customer Usage Scenarios
Top Equipment
Packing & Delivery
Packing Details : 10 PCS to a box
Delivery Details : For stocked items, we will deliver the products within 3-5 days after payment confirmed.
Our Company
Related Products

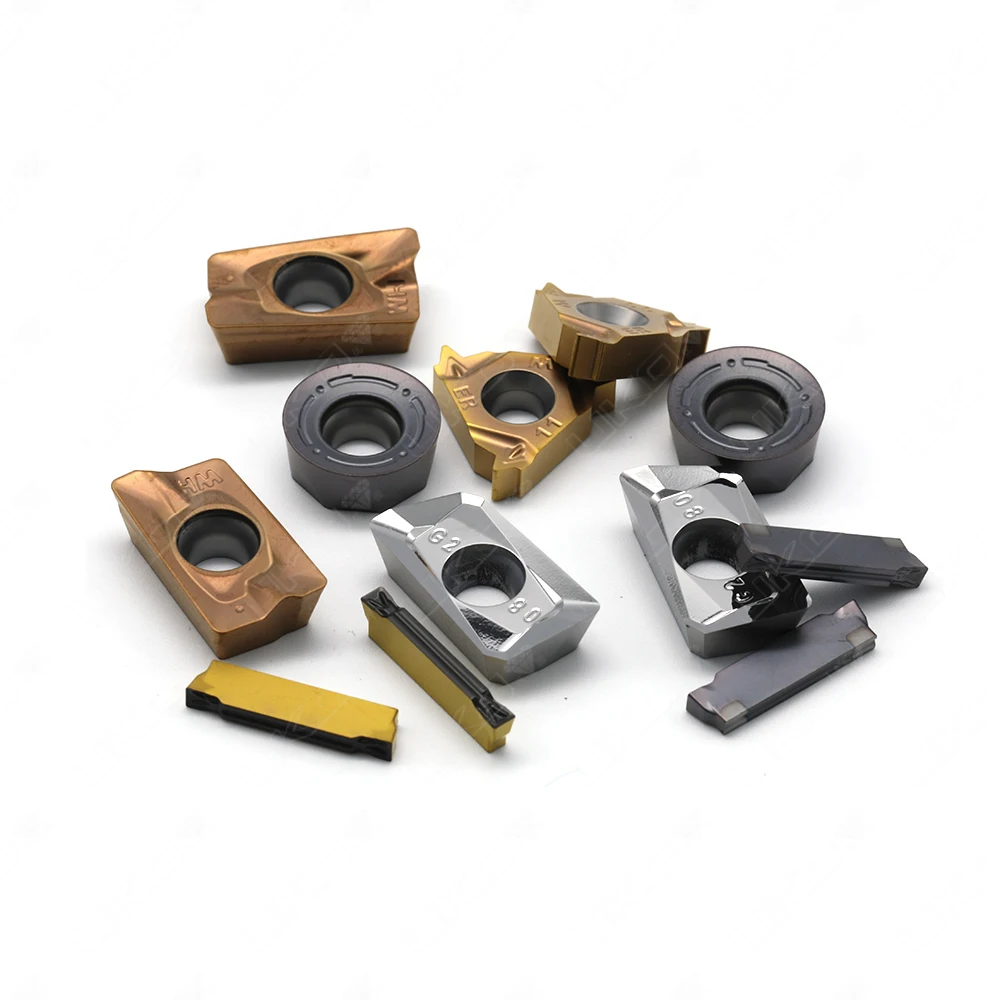

CNC milling inserts

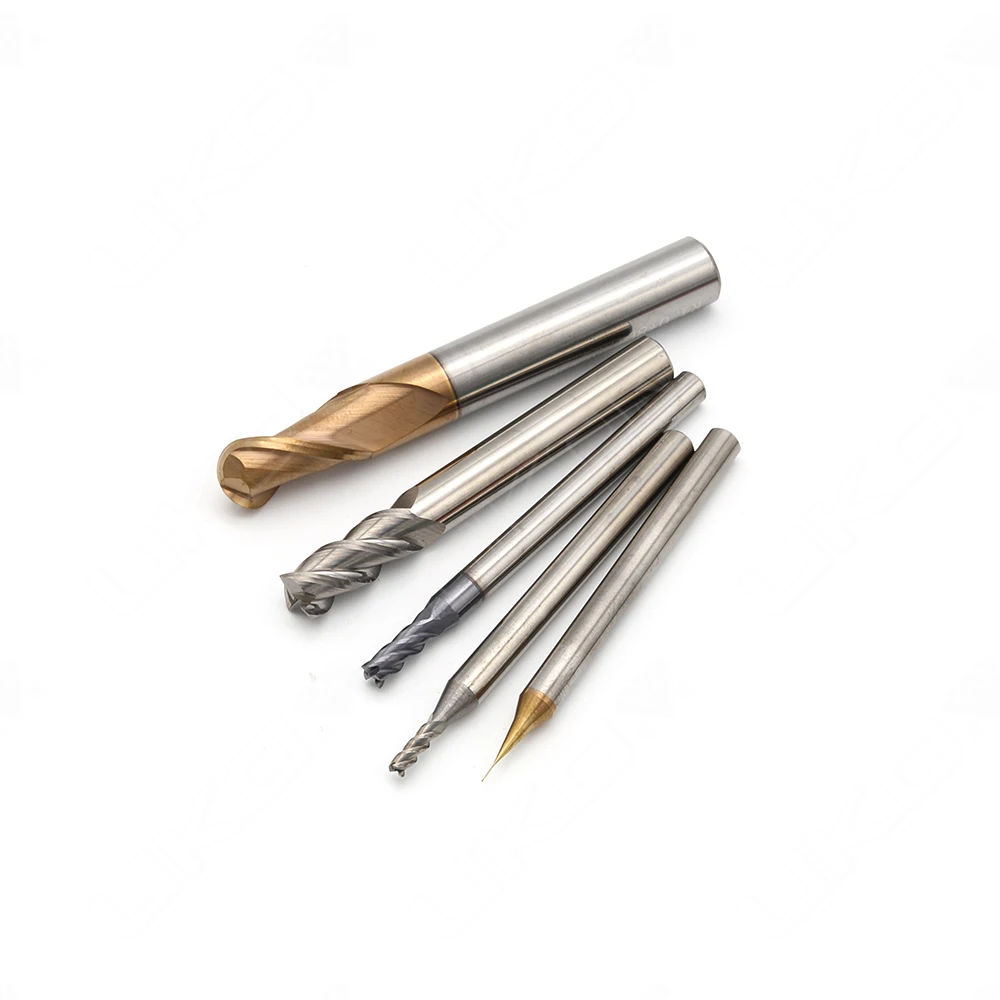

Tungsten carbide end mills

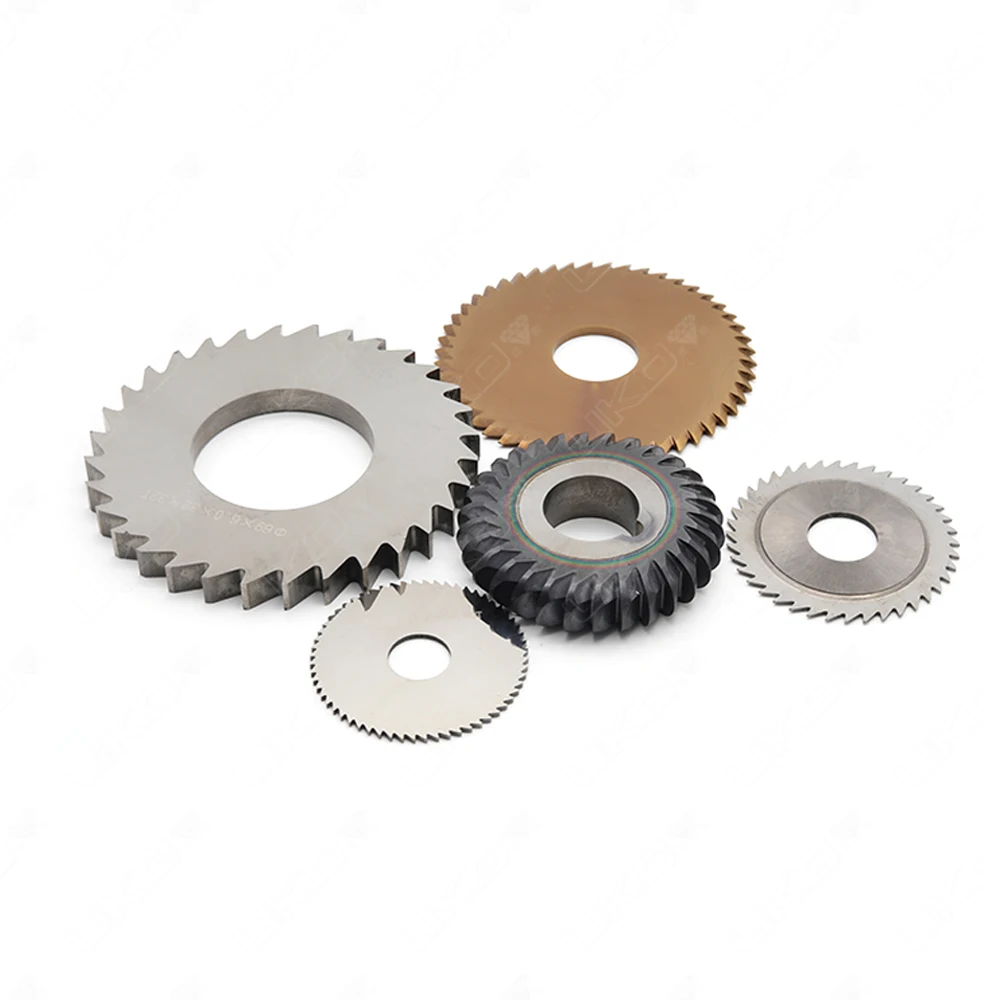

Solid carbide saw blade
