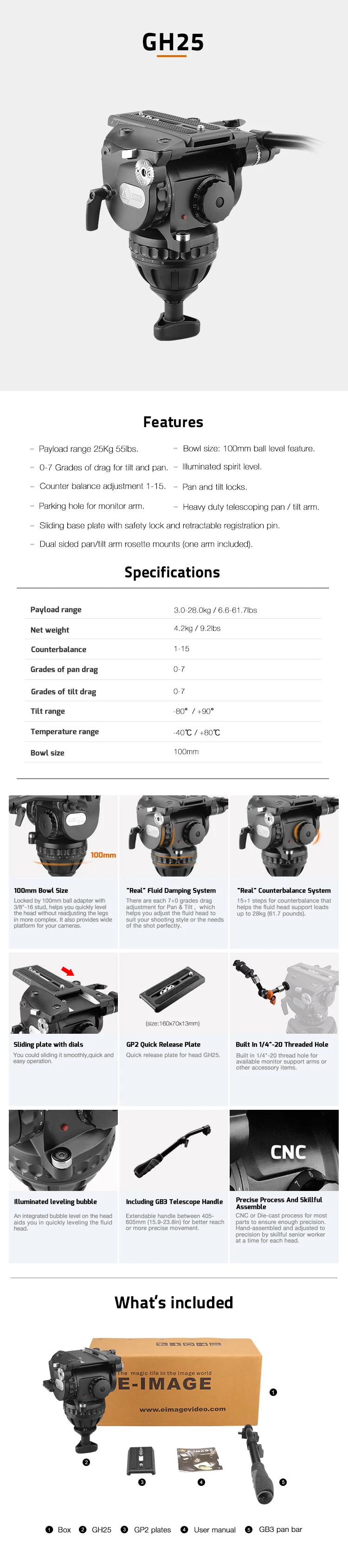

E-Image GH25 will fit a 100mm bowl tripod system. It has a 0-7 stepped Tilt drag system and a 1-15 counterbalance system providing maximum adjustability for differently configured payloads of up to 55 pounds. A professional fluid pan with stepped settings of 0-7 provides further adjustability to meet every shooting contingency. The head incorporates an illuminated bubble level, and a ¼”-20 threaded mounting point for a monitor arm or other accessories.
Features:
1.Payload Range 25Kg 55lbs
2.0-7 Grades of Drag for Tilt and Pan
3.Counter Balance Adjustment 1-15
4.Parking Hole for Monitor Arm
5.Bowl Size: 100mm Ball Level Feature
6.Sliding Base Plate with Safety Lock and Retractable Registration Pin
7.Illuminated Spirit Level
8.Dual Sided Pan/Tilt Arm Rosette Mounts (one arm included)
9.Pan and Tilt Locks
10.Heavy Duty Telescoping Pan/Tilt Arm
Specification:
Payload range | 3.0-28.0kg / 6.6-61.7lbs |
Net weight | 4.2kg / 9.3lbs |
Counterbalance | 1-15 |
Grades of pan drag | 0-7 |
Grades of tilt drag | 0-7 |
Tilt range | -80° / +90° |
Temperature range | -40ºC / +80ºC |
Bowl size | 100mm |
