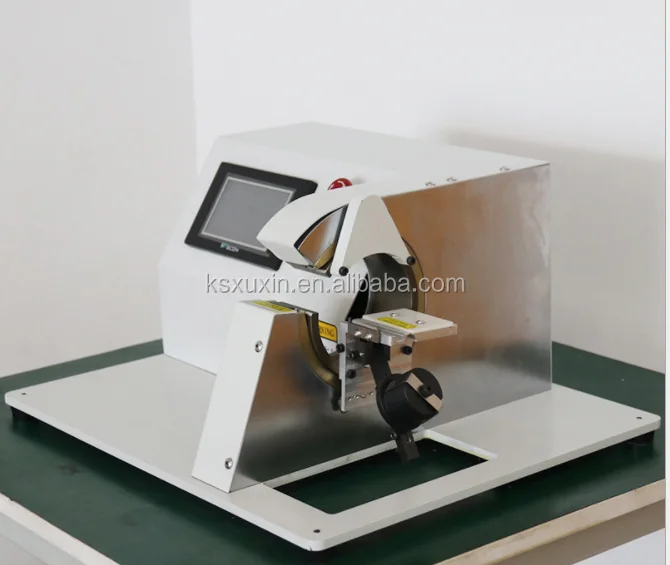

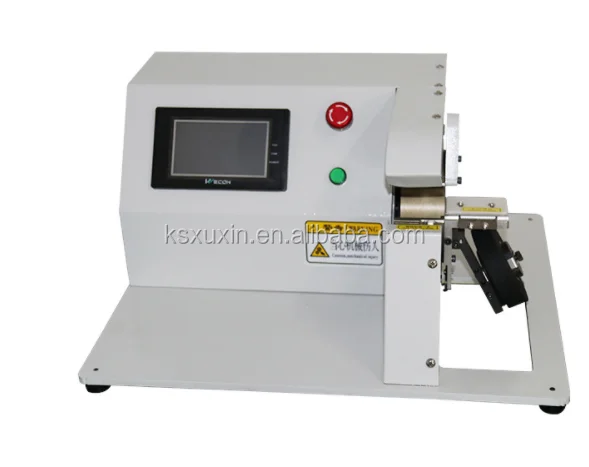

AT-101 elelctric tape wrapping machine for wire harness for  car







 Featutrs:



1.Tape width:  5-25mm( It can customized)

2. Tape roll diameter: 37mm or 32mm    ( It also can customized)

3. Winding length: 0-600mm/second

4. N.W  :20kg/26KG

5. Size : 400*370*320mm

6. Max tie wire diameter : 40mm

7. Motor power    : AC220V 50Hz 250W

8. It need worker handle move the wire.

9. Feature : It can point wrapping, and continuous wrapping.



Machine specification : and other model link (click blue model number)



Model Number	AT-101	AT-102	AT-201	AT-202
Tape width	5--25mm, it can customized	5--25mm, it can customized	25--50mm  ( max tape width can 67mm)	25--50mm
Wrapping diameter	Within 40mm	Within 40mm	base on requir	base on requir
Tape roll diameter	37mm or 32mm    ( It also can customized)		37mm or 32mm    ( It also can customized	37mm or 32mm    ( It also can customized)
Work type	electric  or manual feeder	all electric	Pneumatic	Pneumatic
Wrapping method	full wrapping & point wrapping & Distance wrap	full wrapping & point wrapping & Distance wrap	High speed Point wrapping	High speed Point wrapping
Weight	26kg	40kg/60KG	45kg/68KG	45kg/63KG









Installation:

1. Place the harness taping machine to the working area.

2. Make sure the machine is horizontal before fixed.

3. Conect the power cabel with foot switch.



Operation:

1. Put the tapes into the tape rack.

2. Turn on the machine with "ON/OFF" button.

3. Select an operation mode with "AUTO/MANU" button.

4. Set a required speed.

5. Rotational speed should be defined under AUTO mode.



Maintenance:

1. Daily cleaning;

2. Oiling once or twice a day.
