HX1UP лопастной Воздушный Двигатель алюминиевый корпус для стекловолоконного измельчителя Стекловолоконный
- Категории: Прочие моторы >>>
- Поставщик: Rudong,Hongxin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.
It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.
So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.
HX1UPL-NCC-92 | ||||||
Operation Date at Max. Power | Power | hp/kW | 0.45/0.33 | |||
Torque | Nm/Ib.in | 0.58/5.25 | ||||
Rotate Speed | rpm | 6000 | ||||
Air Consumption | m³/h | 47 | ||||
cfm | 27 | |||||
Maximum Torque | Rotate Speed | rpm | 500 | |||
Torque | Nm/Ib.in | 0.68/6.00 | ||||

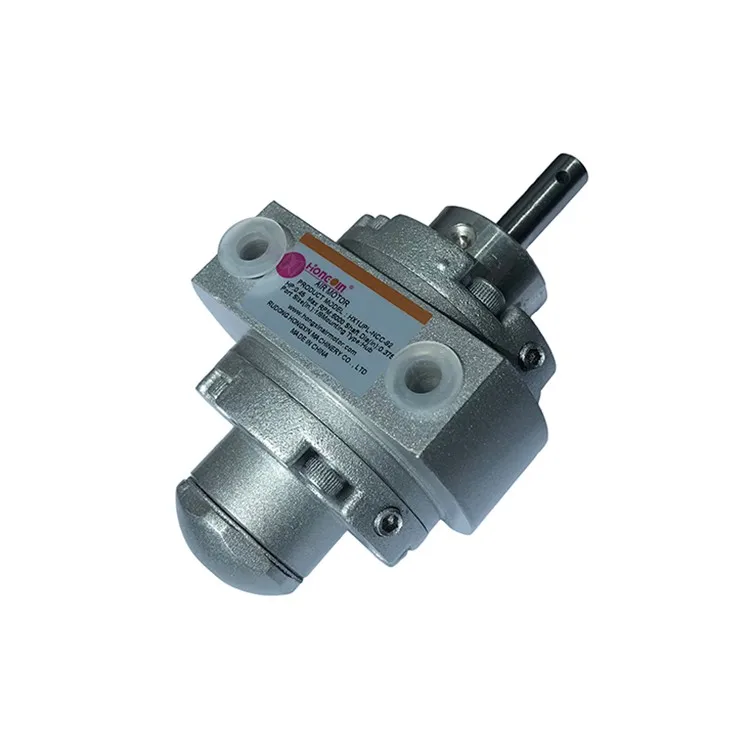

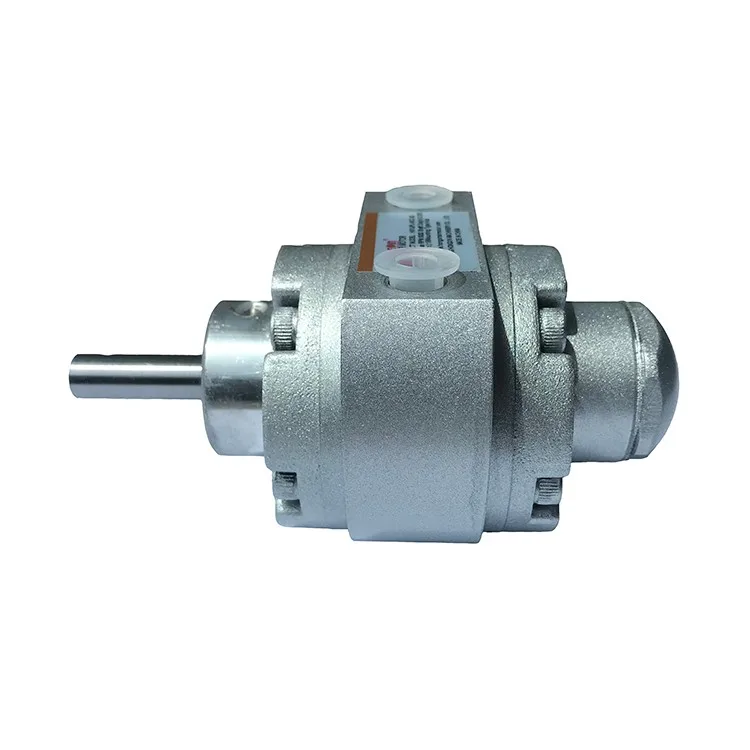

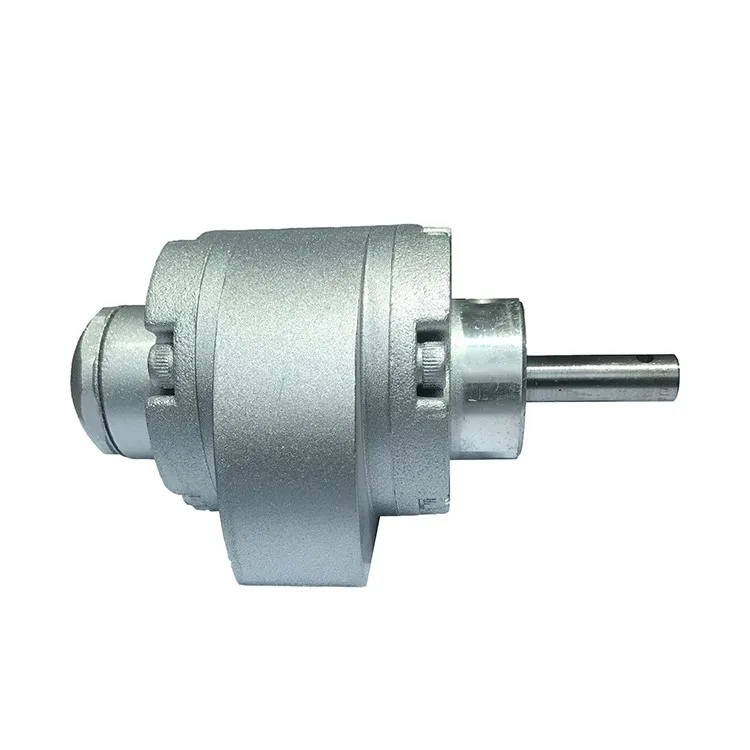

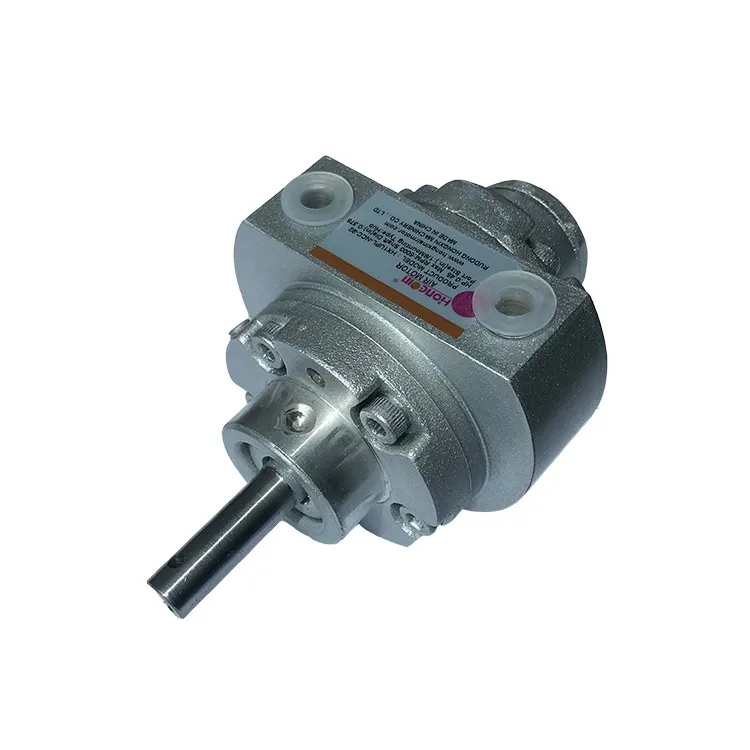

Detailed Images
Main Features
•Variable speed.
•Nonelectrical sparking.
•Instantly reversible.
•Cool running.
•Compact and portable.
•Minimum maintenance.
•Will not burn out.
•Low price.
•Operate in all positions.
•Low-shock starts.
•Self-sealing vanes.
•Long-life accessories.
•Wide range of applications
Packing & Delivery
Packaging | ||
Size | 200(L) * 150(W) *150(H)mm | |
Weight | 1kg | |
Packaging Details | Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard). | |
