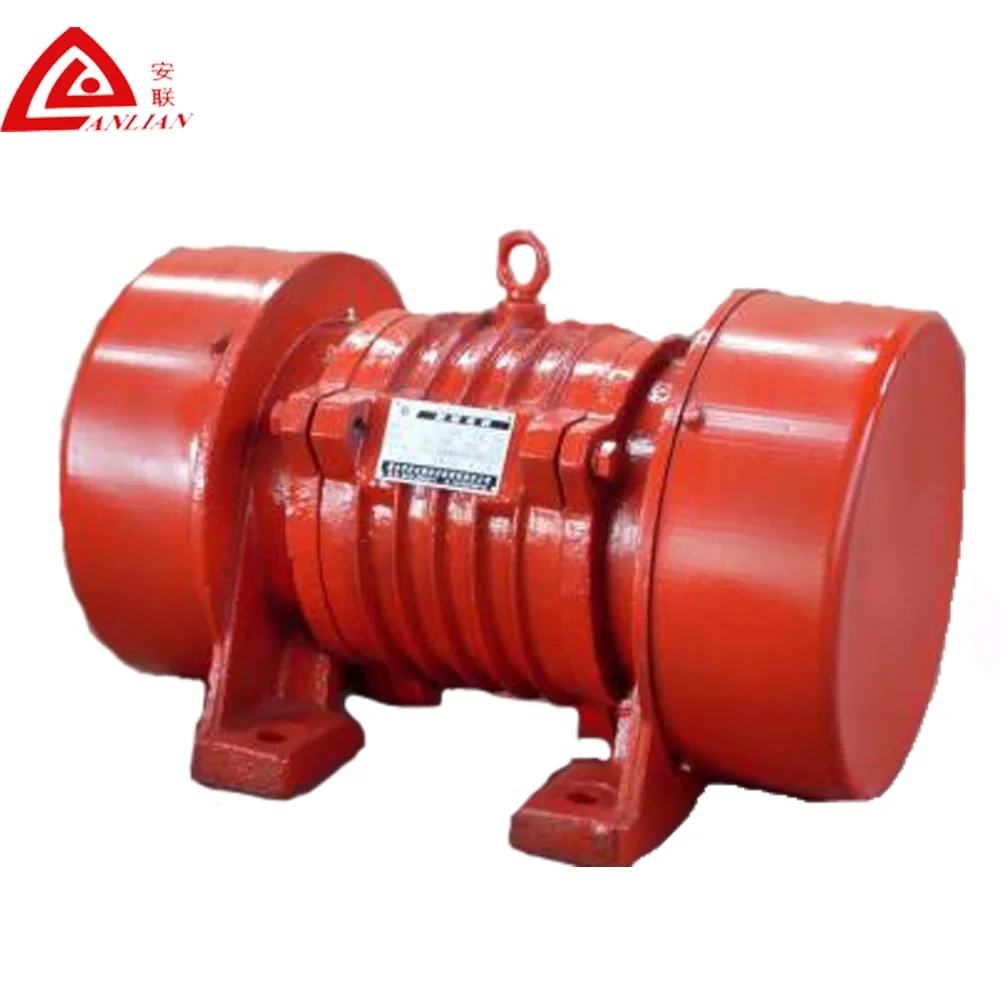

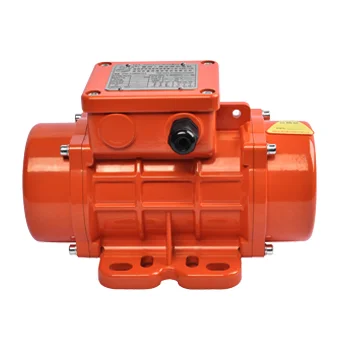

220 В Вибрационный двигатель для машины
US $22.00-$45.00
IP55 степень защиты Электрический 3 фазы Вибрационный
- Категории: Vibration Motor >>>
- Поставщик: Xinxiang,Anlian,Crane,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product description
1.The vibration motor is combined with the power source and vibration source is one of the excitation source.
2.Vibration motor with high vibration force, low energy consumption, low noise, long life. The exciting force of the vibrating motor can be adjusted, easy to use.
3.the type of JZO, YZU, YZO, YZS, YZD, and so on vibration motor is in general use type vibration motor.
4.Widely used in the construction of hydropower, hermal power, building, building materials, chemical, mining, coal, metallurgy, light industry and other industrial sectors.
Product detail
1. Motor base material:
aluminium alloy or stainless steel
Size 60-110: ductile iron
2. Insulation class: F
Protection: IP65
4. Working way: continuous
5. Adjustment scope for vibrating force: 0-tated force
6. Vibrating force: 0-25000 kg (three phase) 0-400 kg (single phase)
7. Operating temperature: -20℃to +40℃
aluminium alloy or stainless steel
Size 60-110: ductile iron
2. Insulation class: F
Protection: IP65
4. Working way: continuous
5. Adjustment scope for vibrating force: 0-tated force
6. Vibrating force: 0-25000 kg (three phase) 0-400 kg (single phase)
7. Operating temperature: -20℃to +40℃
Technical parameters
type | vibration force(KN) | power(KW) | current(A) | frequency(R/MIN) | weight（kg） |
MVE60/3 | 0.7 | 0.065 | 0.16 | 2900 | 4.2 |
MVE100/3 | 1 | 0.09 | 0.19 | 2900 | 4.6 |
MVE300/3 | 3 | 0.25 | 0.52 | 2900 | 9.8 |
MVE500/3 | 5 | 0.37 | 0.96 | 2900 | 15.8 |
MVE800/3 | 8 | 0.55 | 1.45 | 2900 | 20.6 |
MVE1200/3 | 12 | 0.75 | 1.85 | 2900 | 21.6 |
MVE1600/3 | 16 | 1.25 | 2.94 | 2900 | 51.6 |
MVE4000/3 | 40 | 2.7 | 5.3 | 2900 | 107 |
MVE9000/3 | 90 | 7.2 | 17.8 | 2900 | 240.3 |
MVE40/15 | 0.3 | 0.03 | 0.26 | 1400 | 4.6 |
MVE200/15 | 2 | 0.12 | 0.49 | 1400 | 11.8 |
MVE400/15 | 4 | 0.15 | 0.84 | 1400 | 19.5 |
MVE700/15 | 7 | 0.37 | 1.32 | 1400 | 27.4 |
MVE1100/15 | 11 | 0.4 | 1.4 | 1400 | 35.8 |
MVE2400/15 | 24 | 1 | 3.2 | 1400 | 68 |
MVE4300/15 | 43 | 1.94 | 4.5 | 1400 | 134.4 |
MVE7200/15 | 72 | 3 | 9.6 | 1400 | 253 |
MVE10000/15 | 100 | 6.3 | 14.4 | 1400 | 311.8 |

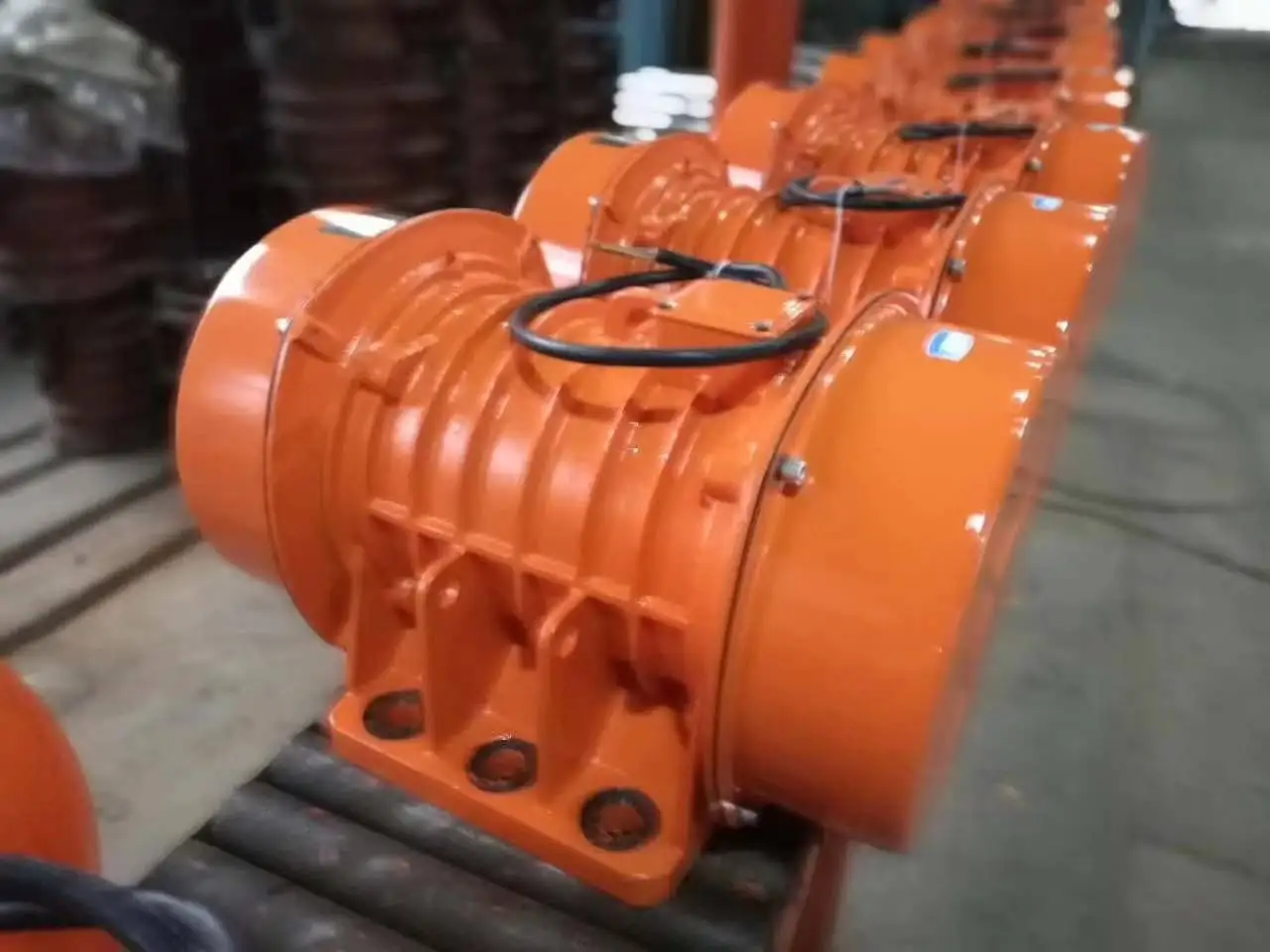

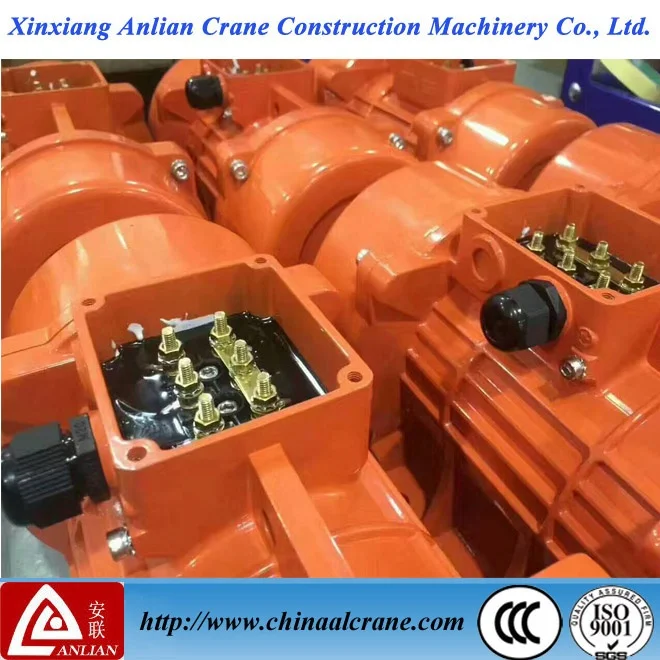

Product testing

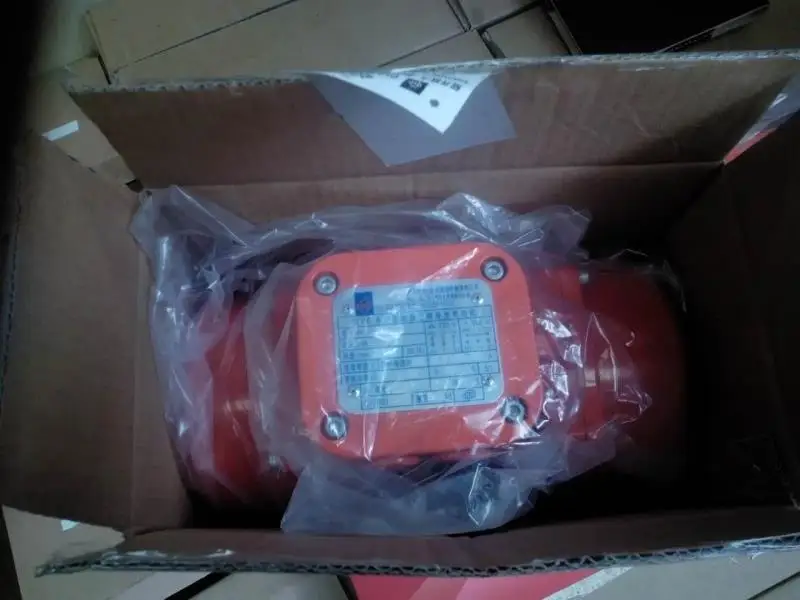

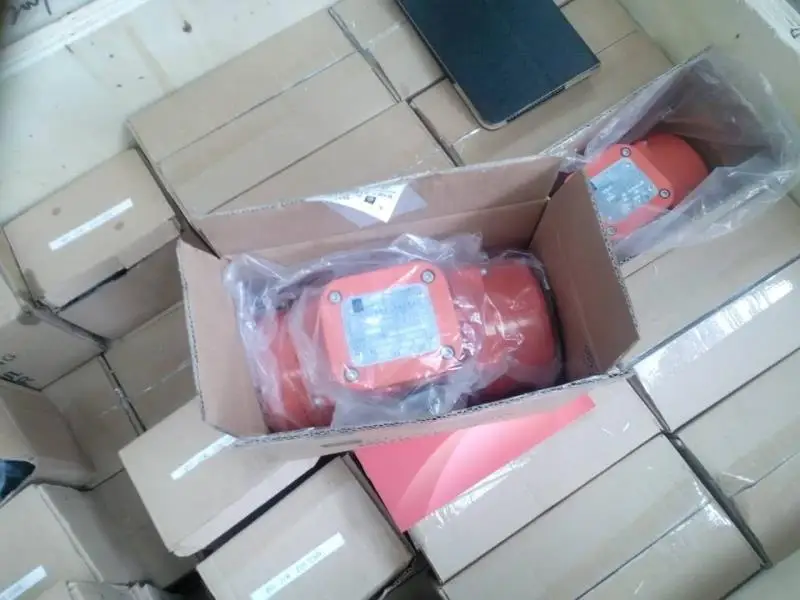

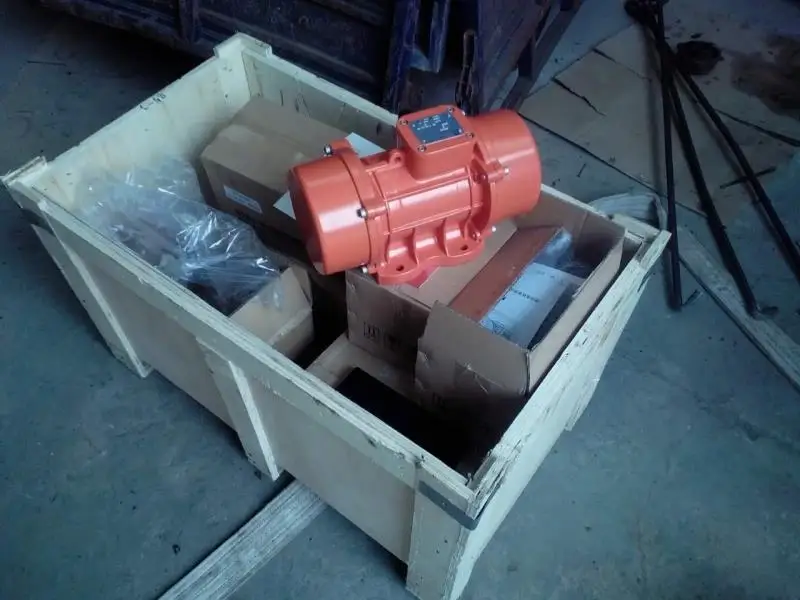

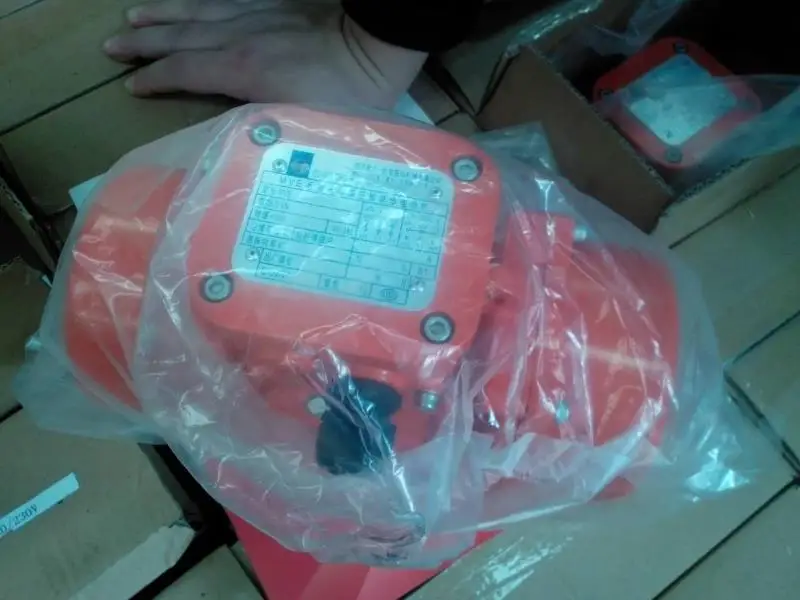

Packaging & Shipping
Similar products

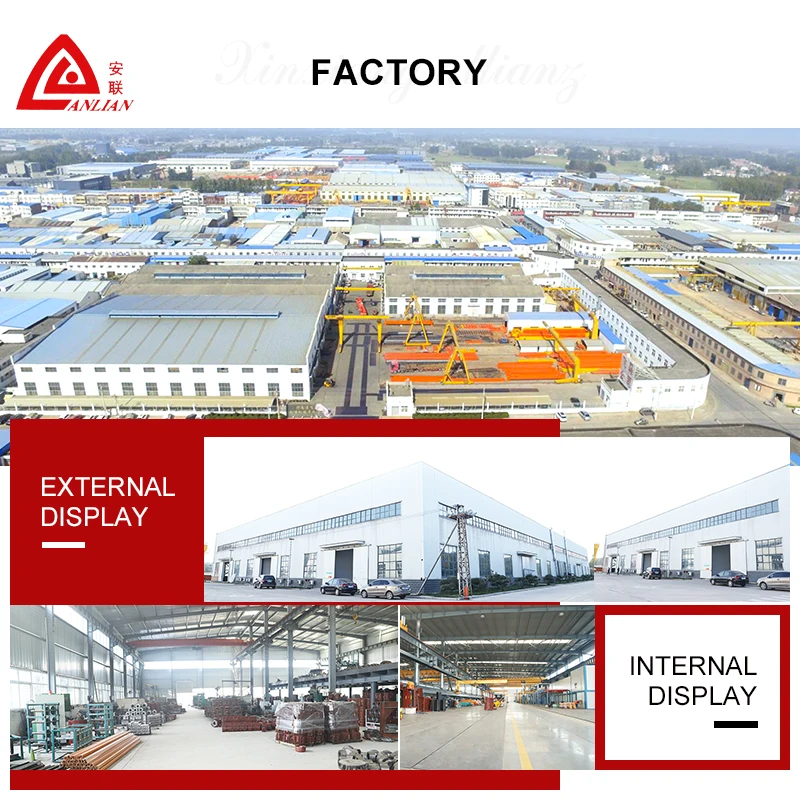

About us
1.Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories
2.It widely used in various fields of materials handling, such as machinery manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on.
3.Founded in 1993, after years of development, as a whole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing.
2.It widely used in various fields of materials handling, such as machinery manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on.
3.Founded in 1993, after years of development, as a whole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing.
Participate in activities
FAQ
1.Q: Why we choose your product?
A: Rich experience: We have more than 10 years experience in this industry. Which means, we can preview the problems for the orders and products.
B: Point to point service: There is one sale who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
C: Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided within door.
Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
2.Q:What’s your product range?
A: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist
accessories.etc
3.Q:What is the information should I provide when inquiry?
A: a. How many will I want to buy?
b. How much is the maximum lifting weight of the hoist?
c. How high of the lift height?
4.Q: What is the process for doing business with us ?
A: a. please provide details of the products you need and we will quote for you.
b. If price is acceptable and you need sample, we will provide Performa Invoice to arrange payment for sample and you should pay for the transportation freight and sample cost.
c. If you approve sample and require for bulk production for order, we will provide Performa Invoice for you, and we will arrange to produce at once when we get 30% deposit.
d. We will send photos of all goods, packing, details, and B/L copy for you after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.
A: Rich experience: We have more than 10 years experience in this industry. Which means, we can preview the problems for the orders and products.
B: Point to point service: There is one sale who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
C: Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided within door.
Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
2.Q:What’s your product range?
A: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist
accessories.etc
3.Q:What is the information should I provide when inquiry?
A: a. How many will I want to buy?
b. How much is the maximum lifting weight of the hoist?
c. How high of the lift height?
4.Q: What is the process for doing business with us ?
A: a. please provide details of the products you need and we will quote for you.
b. If price is acceptable and you need sample, we will provide Performa Invoice to arrange payment for sample and you should pay for the transportation freight and sample cost.
c. If you approve sample and require for bulk production for order, we will provide Performa Invoice for you, and we will arrange to produce at once when we get 30% deposit.
d. We will send photos of all goods, packing, details, and B/L copy for you after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.
