BSP (G резьба) 1/2 дюймов Латунное масляное стекло для воздушного компрессора винтовых насосов и

Описание и отзывы

Характеристики

PRODUCT INFORMATION:



Body material: aluminum, brass, PC, PPMA and steel

Glass:  Real glass 2 mm to 5 mm thickness.

O Ring:  Viton O rings

Size:  M10 to M42, 1/2 inch to 2 inch

Thread Type: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)

Operate Temperature: -20 cent degree to 120 cent degree

Operate Pressure: 5-10 Bar or 0.5MPa to 1 MPa.

MOQ: 2000 Pcs each size

Delivery time: 20 days.

Payment:  T/T

Usage:  Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

Different company have different requirements, OEM Service is welcome.

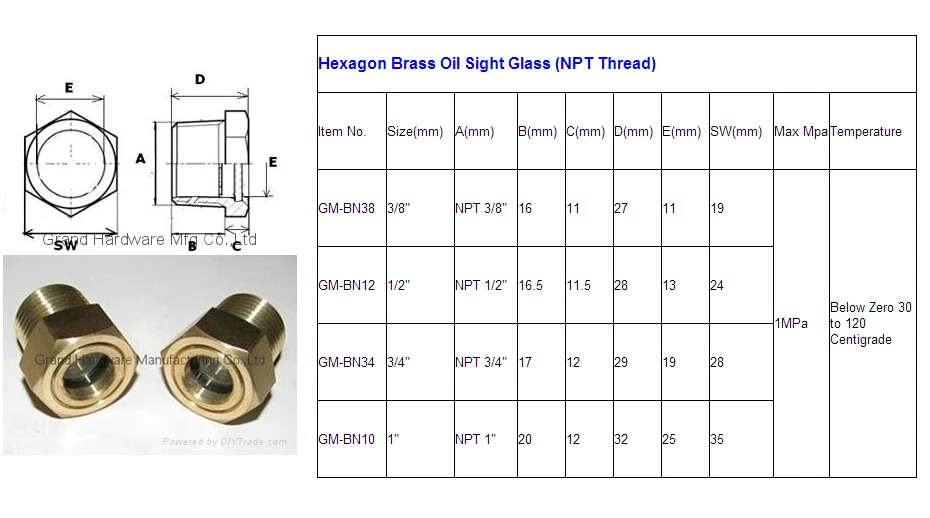

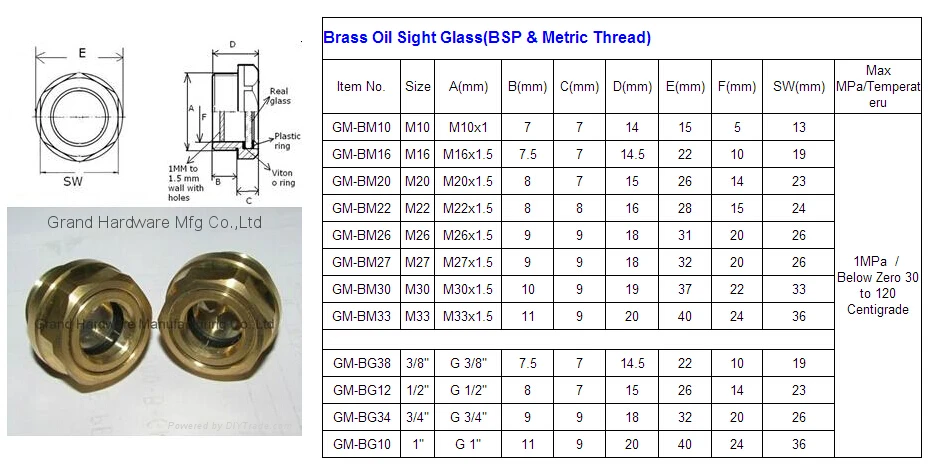

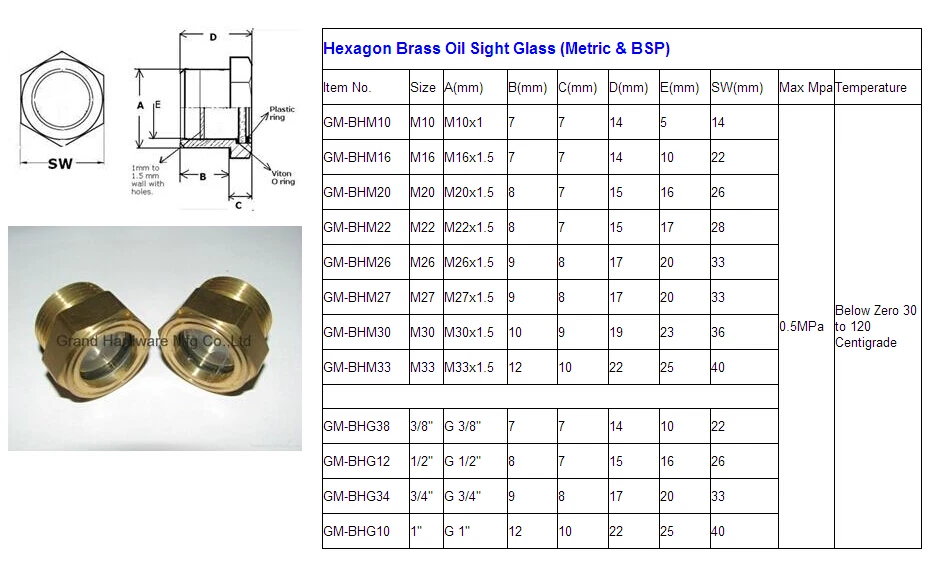

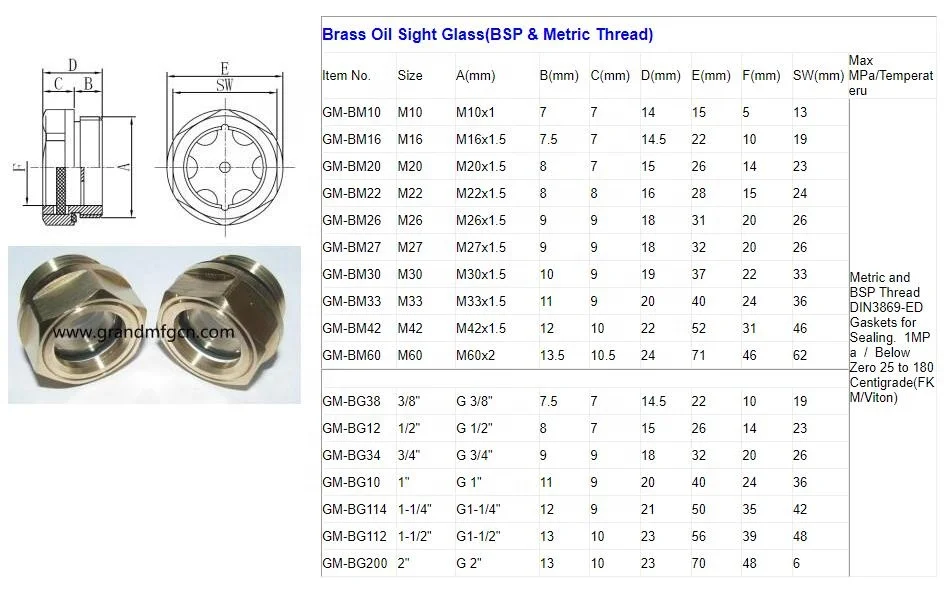

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



PACKAGING:
