China JNKEVO Metal Carbon Steel Sheet Plate Plasma Cutter CNC Cutting Machine 1325 1530 2030 2040 2060

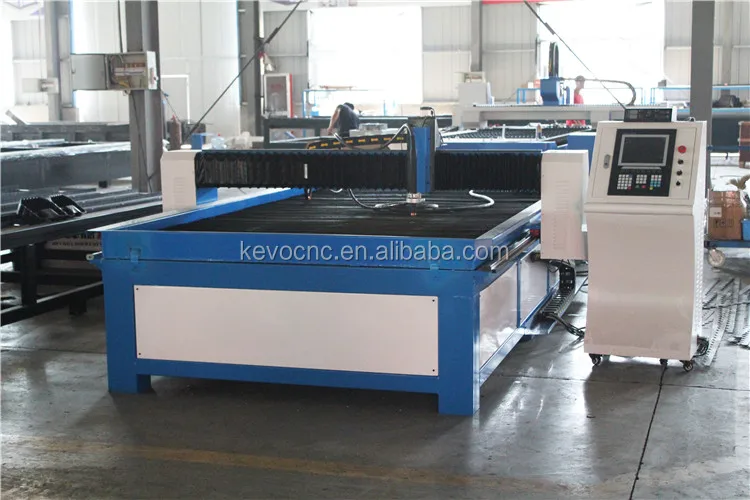

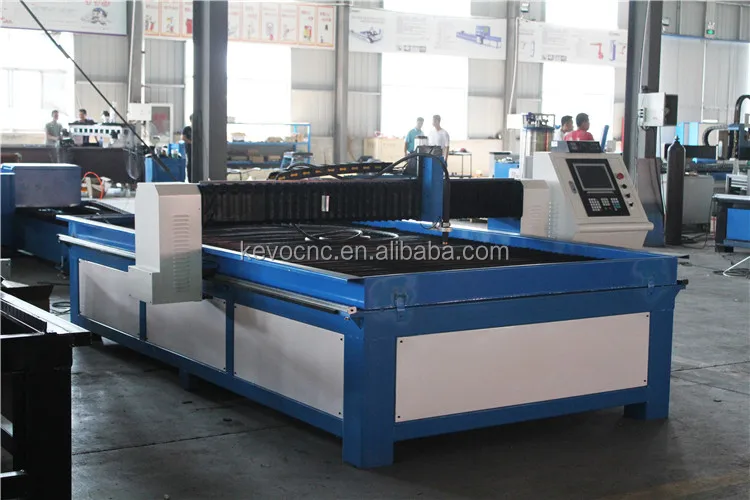

China JNKEVO Metal CNC Plasma Cutting Machine 1325 1530 2030 2040 2060
Product Features
Table Plasma Cutting MachineFeatures1.High accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement. 2.Starfire control system made in Sino-US joint venture and Germany design software FastCAM with auto material saving function. 3.Hypertherm plasma power supply is optional together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure high accuracy cutting ApplicationApplicable material: Cutting on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc. Applicable industries: Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries |
Product Description

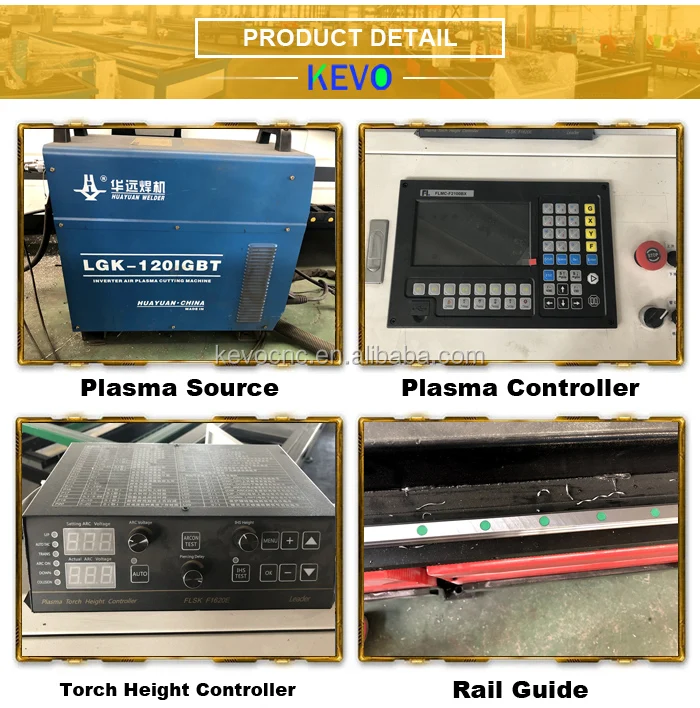

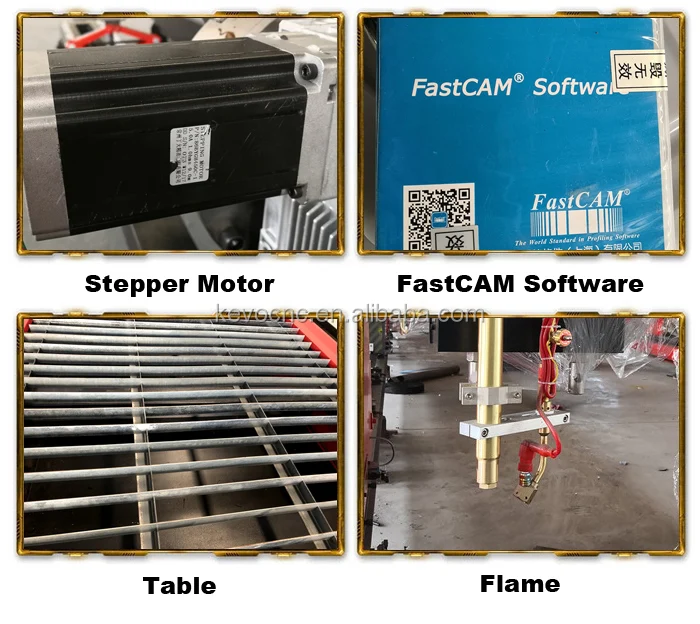

Main Configurations | |||
Working area | 1300*2500mm | Voltage | 380V 3 phase |
Plasma source | Chinese Huayuan / USA hypertherm | Plasma power | 63/100/120/160/200A 45/65/85/105/125/200A |
Control system | Shanghai Fangling control system | Torch height controller | THC |
Control software | FASTCAM software | Raid guide | Linear rail guide |
Motor and driver | Leadshine driver and stepper motor | Table | Blade table |
cutting nozzles | 20 sets | Cutting speed | 0-10000mm/min |
Parameters | |||
Effective cutting width ( X axis ) | 1300mm | Effective cutting length ( Y axis ) | 2500mm |
Drive mode | Leadshine stepper drive | Control system | Shanghai Fangling Controller |
Lifting body | 1 set | Plasma torch | 1 set |
File transmission | USB transmission | Cutting shape | Able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs |
Software | Fastcam software | Plasma power source | 63/100/120/160/200A 45/65/85/105/125/200A |
Cutting thickness | 0-30mm metal | Height regulating device | Arc voltage height |
Cutting speed | 0-10000mm/min | Cutting precision | ±0.3mm |
Support software | Fastcam / type3 / autocad / pro / CAXA etc | Working temperature | 0°C-60°C Relative humidity: 0-95% |
Power supply voltage | 380V ± 20% | Package size | 1540x2180x3330mm |

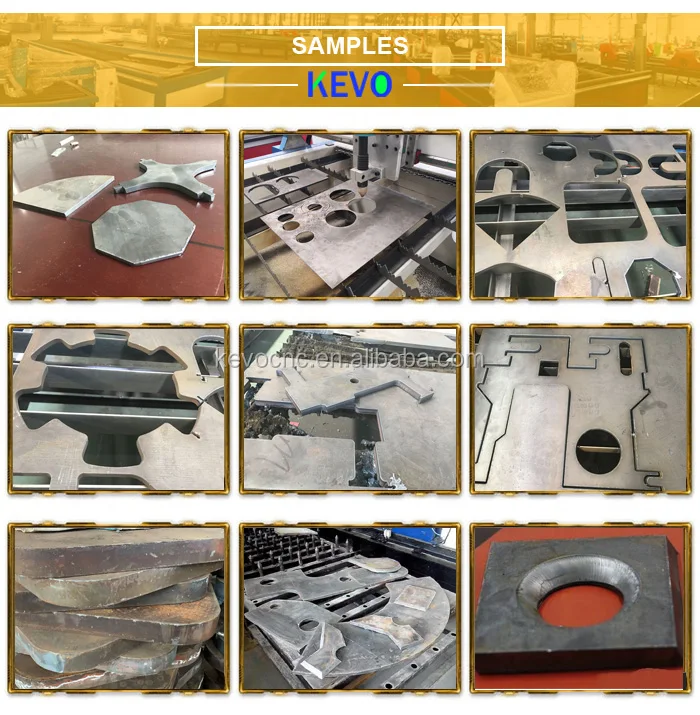

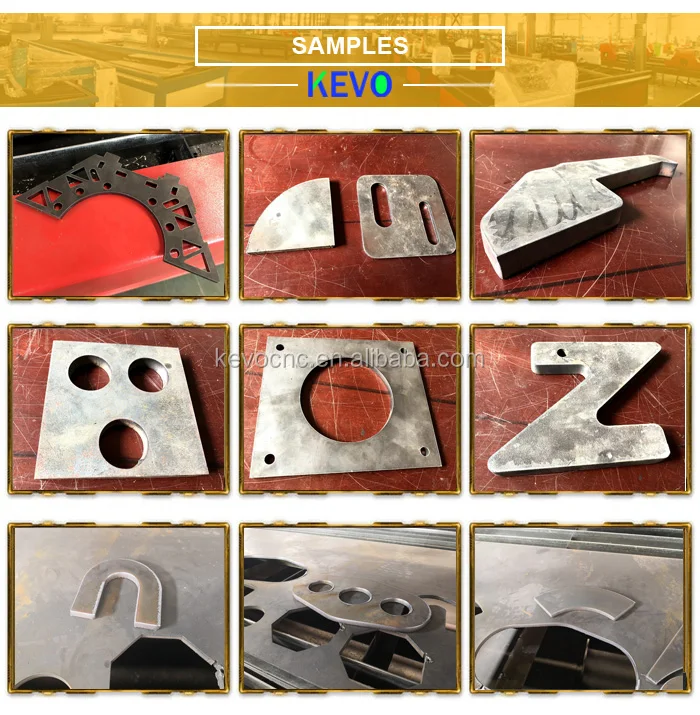

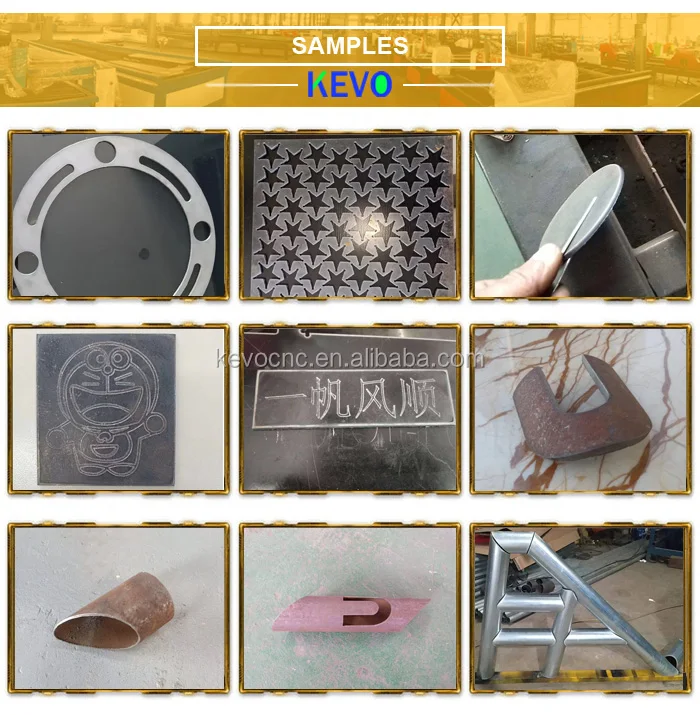

Product Samples

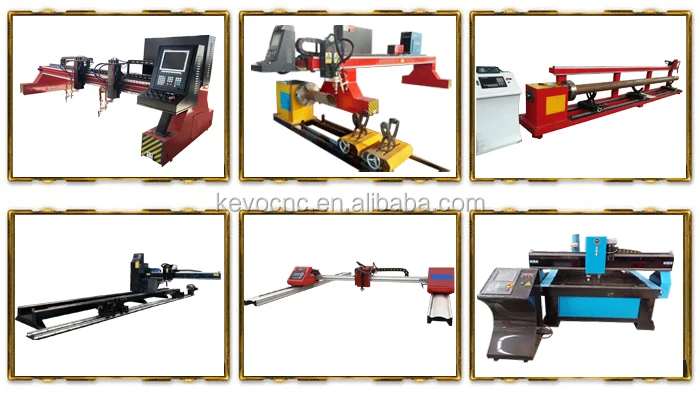

Hot Sale
Packaging & Shipping

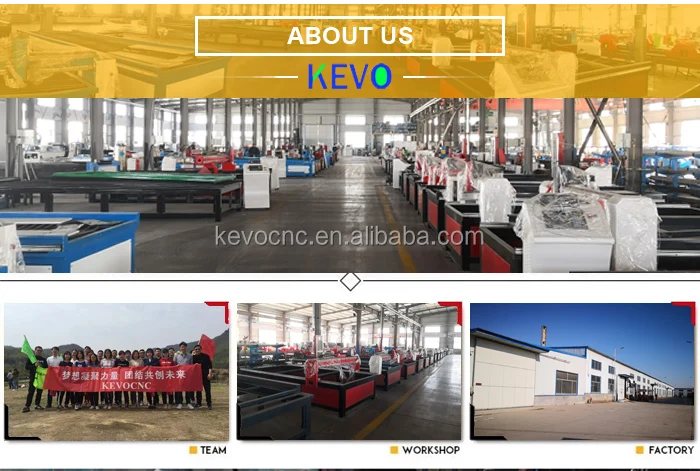

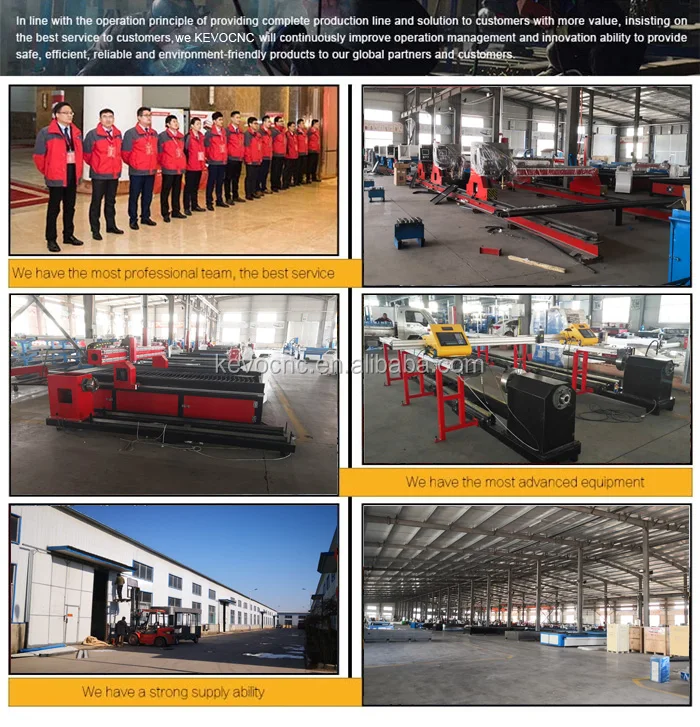

About Us
FAQ
List some questions below we think you may want to know, if you have more doubts, we are right here to help you.
1. Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides,We can pick you up at the airport or the train station
2.Personality requirement?
We could provide customized service, please contact with us if you have any requirement.
3.How about your after-sales service?
We offer you 24 hours service phone.
4.How about your guarantee period?
Two years and during the time,if you have any questions ,we will solve it for free.
5.Delivery time?
Usually within 15 days after deposit.
6. What's your payment term?
Two ways
By T/T, 30% deposit and 70% balance before shipment.
By Trade Assurance.
Certifications
