RIKA RK300-02 CE Certified Air PM2.5 PM10 Sensor Laser Sensor For Air Quality Monitoring
Product Description
RK300-02 Dust Sensor using laser scattering principle, detecting the existence of dust(PM2.5) particle concentration in the air, the minimum can detect 1.0 micron particles, has a good consistency and stability. According to different usage environment, there are indoor type and outdoor type to select.
FEATURES
- High Sensitivity
- Fast response
- Low power consumption
- Excellent stability
- Long service life
APPLICATION
- Air quality monitoring
- Smart home
- Warehousing
- Public place
- Workshop
- Clear room
SPECIFICATION
| Item | Technical Specification |
| Sampling object | PM1.0, PM2.5, PM10 Concentration |
| Range | 0-1000ug/m3 |
| Accuracy | ±3%FS@25℃ |
| Supply | 5VDCC, 12-24VDC |
| Output | 4-20mA, 0-5V, 0-10V, RS485 |
| Power Consumption | <50mA@24V(4-20mA) |
| Warm Up Time | 3min |
| Response Time | <90s |
| Temperature Drift | ≤0.2%FS/℃ |
| Stability | <±2%FS |
| Repeatability | <±1%FS |
| Operating Temperature | -20℃-+50℃@15-80%RH |
| Storage | -40-60℃@20%-90%RH |
| Indoor use | wall-mounted installation |

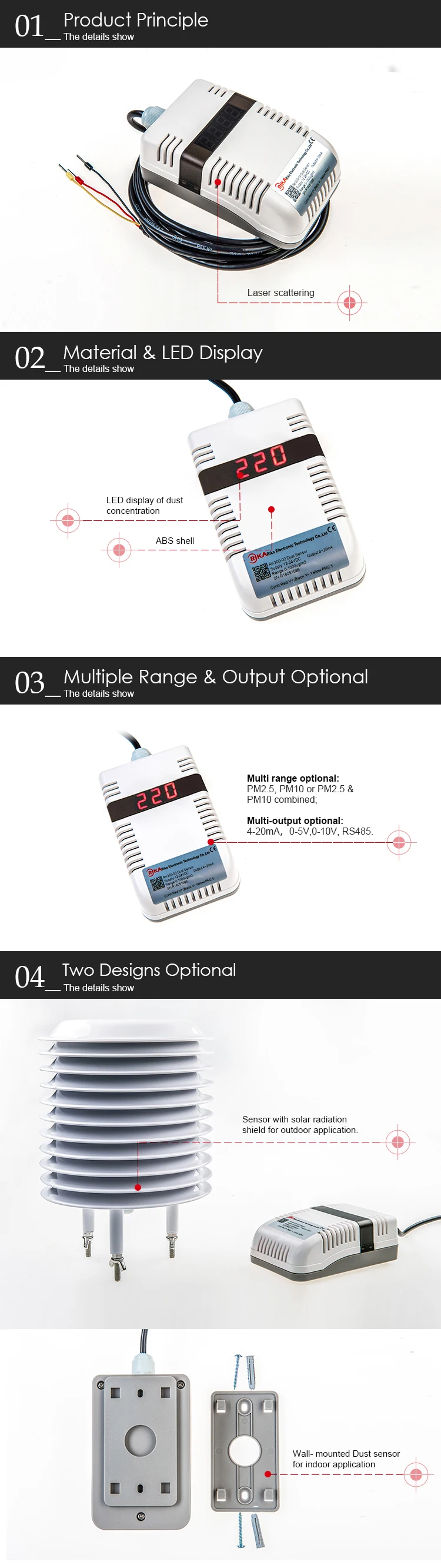

Details show
Testimonial
Relative Products
In order to send price to you, please tell me your information in details:
1. What’s your required application type ? -- outdoor or indoor
2. What’s your required output signal ? -- We have 4-20mA, 0-5V,0-10V, RS485 optional. Please specify.
3. What’s your required power supply ? -- We have 12-24V,5V optional. If you have other special demands, please specify.
4. What’s your required cable length ? - The standard is 2.5m. If you have special demands, please specify.
5. Do you need the optional solar radiation shield ? -- If yes, price will be different.
6. Quantity?
7. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
8. Your complete company name,address, post code,contact person, tel, fax etc.
