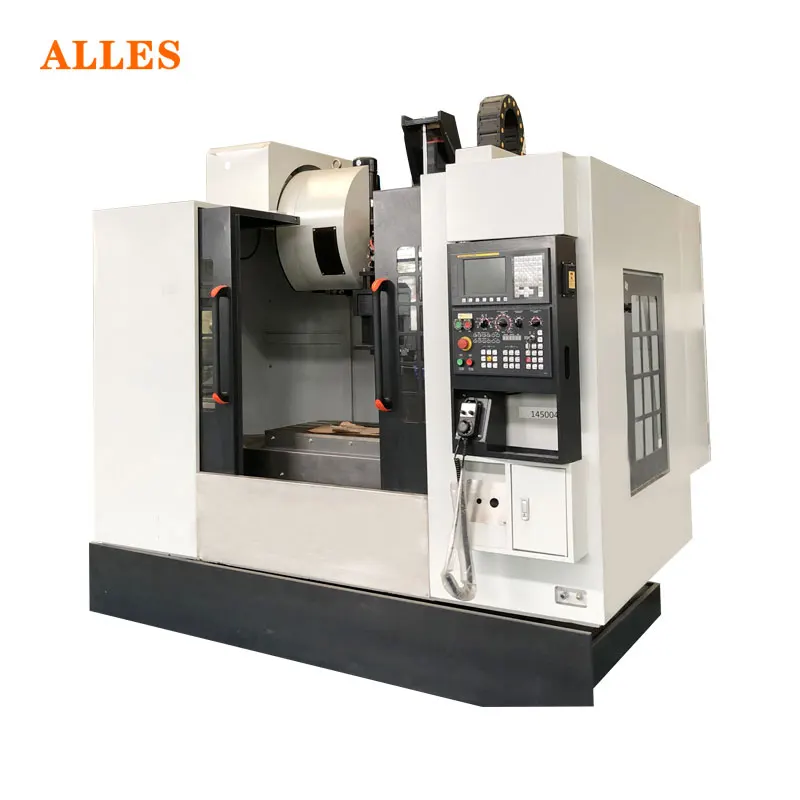

ALVMC1160 3 оси мини cnc вертикальный фрезерный станок с ЧПУ

Описание и отзывы

Характеристики

Machine Main Feature

1. The key parts such as the bed, column and headstock of the machine are made of Meehan castings, which are stable in structure and maintain quality forever. The castings are calculated and analyzed by the finite element analysis method. The reasonable structural strength and the matching of the ribs provide highrigidity of the machine. The casting structure adopts one-piece molding technology, the box structure, and the processing adopts a large five-face processing machine, and the machining is completed. The machine tool has high rigidity and high strength, and the geometric positioning precision is excellent. And can guarantee the long-term stability and high precision of the machine.

2. The base is wide, the column is box-shaped structure, the saddle is widened and lengthened, the heavy-duty full-support design, and the structure is solid, which can ensure the heavy load capacity during processing.

3. The rib reinforcement structure in the headstock box, the ratio of the contact length between the headstock and the column is appropriate, providing stable support of the spindle.

4. Three axis motor and precision high-speed ball screw drive directly to enhance rigidity and improve precision.

5. The three axis adopts linear guide rail, which has high rigidity, low noise and low friction. It can make rapid displacement and obtain the best rounding precision.

6. The cutting fluid has a large capacity and can quickly remove the cutting heat. The water tank is designed with U or L type and placed on both sides of the machine to save space.

7. Fast, simple, reliable and long-life tool changer for smooth and reliable tool change. The unique tool changer design, advanced cam-type drive mechanism, and the ability to select the tool at any position can be quickly achieved by PLC software control. The tool changer has undergone a million test conversion tests to meet the reliability requirements. The fast tool change mechanism saves cutting time and increases production efficiency. The cam-driven tool magazine ensures high-precision rotation and smooth operation with heavy-duty tools.

8. The standard speed of the spindle is 8000 rpm. The standard machine uses a high horsepower spindle motor. The connection between the main shaft and the motor belt greatly reduces transmission noise and heat generation. The spindle uses the G-TECH GT-5052A dynamic balance correction device to directly correct the spindle dynamic balance on the line, so that the spindle avoids resonance when rotating at high speed, ensuring the best machining accuracy.

9. Use high-strength and tough four-claw broach, large contact surface, strong gripping force, small loss of shank and long life. 10. The electrical box adopts the rear hanging design, which saves space and makes limited space for maximum use.

Item	Sub-item	Unit	ALVMC1160
Worktable	Worktable size	mm	1200x600
	T-slot	mm	18x5x90
	Max. load	kg	800
Travel	X axis travel	mm	1000
	Y axis travel	mm	600
	Z axis travel	mm	600
Spindle	Spindle nose to worktable	mm	120-720
	Spindle center to coumn face	mm	670
	Spindle taper	/	BT40
	Spindle speed	rpm	8000
	Spindle drive	/	Belt drive
	Spindle head casing diameter	mm	φ 150mm
ATC	ATC type	/	Arm type
	Tool capacity	pcs	24
	Max. tool dia	mm	Φ 80(Φ 130)
	Max. tool weight	kg	8
	Max. tool length	mm	300
	Tool holder	type	BT40
	Tool change time (T-T)	sec	1.8
	Rivet	type	P40-1( 45°)
	Tool selection	/	Random
Motor capacity	Controller	/	Mitsubishi M80b
	Spindle motor (continuous / 15 minutes)	kw	7.5/11
	Servo motor (X/Y/Z)	kw	3.0/3.0/3.0
	Automatic lubrication device	w	20
	Cutting fluid pump	w	840
	Battery capacity	kVA	25
Other	Air source pressure demand	kg/cm	6
	Cutting water tank capacity	L	200
	positioning accuracy	mm	0.01
	Re-positioning accuracy	mm	0.008
	Floor area and height	mm	3000*2500*2500
	Machine weight	kg	6500
