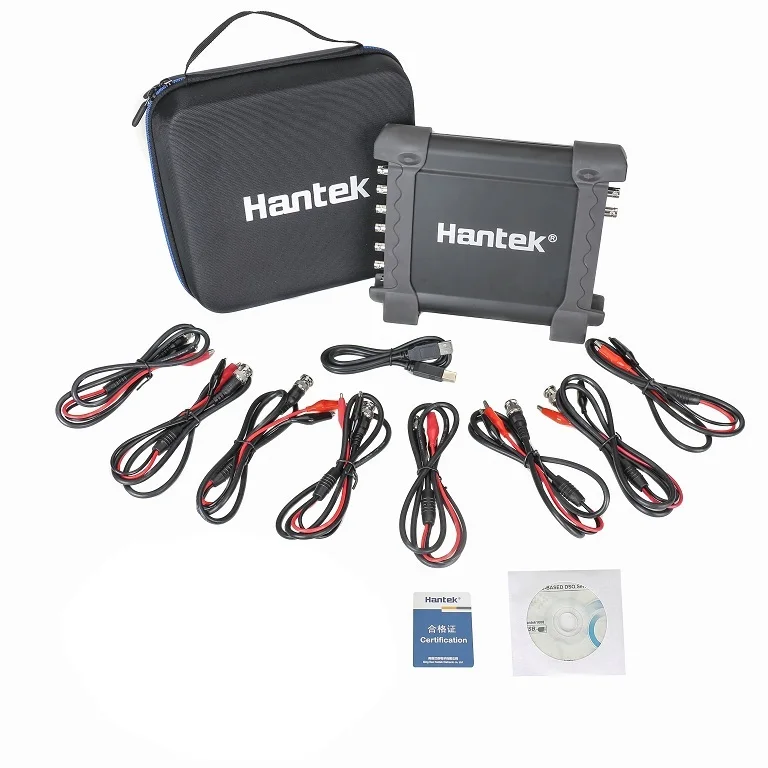

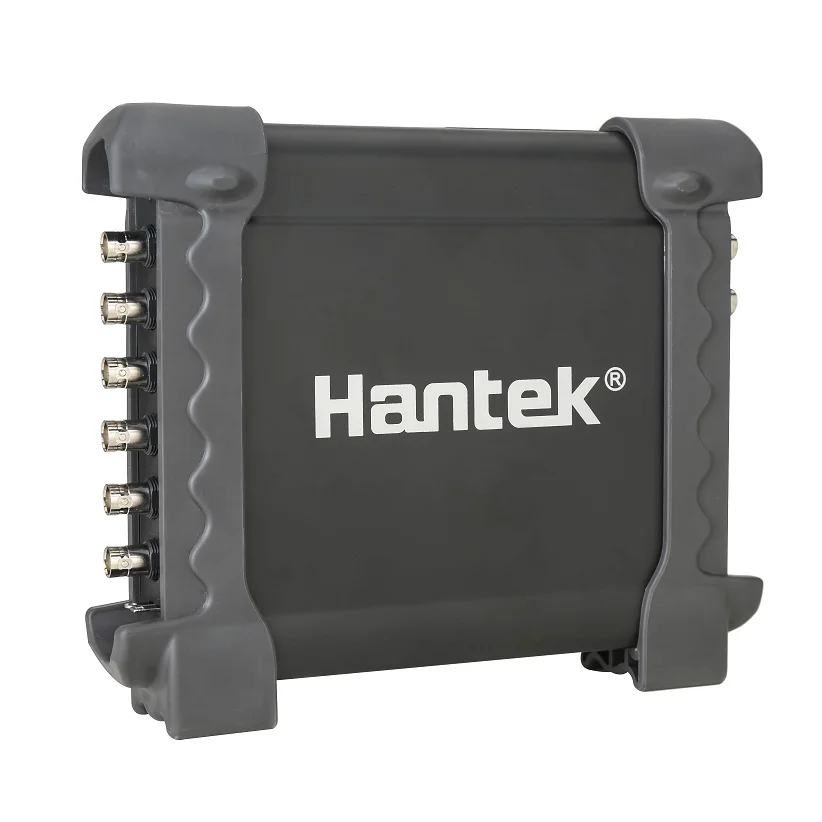

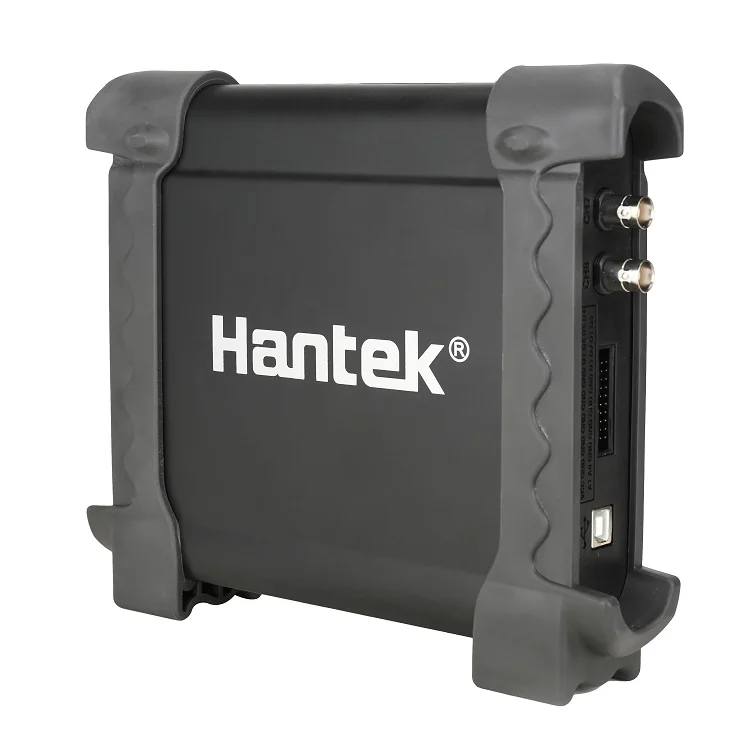

Hantek1008A 8 channel PC USB Virtual Oscilloscope / DAQ / 8CH Generator 2.4MSa/s
Hantek1008A
8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.). Video Help Function, provides the video help of diagnostic which can be watching online, The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data. Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal. Transmit signals through USB 2.0 interface plug and play, and no need extra power supply;
Features:
8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.).
Video Help Function, provides the video help of diagnostic which can be watching online,
The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data.
Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.
Transmit signals through USB 2.0 interface plug and play, and no need extra power supply;
| hicle Diagnosis | Vehicle Diagnostic Function | Ignition | Primary Ignition (Voltage) |
| Primary Ignition(current) | |||
| Primary Ignition(Voltage& Current) | |||
| Primary Ignition (Crankshaft Senser) | |||
| Primary Ignition&SecondaryIgnition | |||
| Secondary | Secondary Ignition Distributor Type (Plug Lead) | ||
| Secondary Ignition Distributor Type (King Lead) | |||
| Secondary DIS (Positive-fired) | |||
| Secondary DIS or CPC (Negative-fired)) | |||
| Secondary Coil Output Diagnosis | |||
| Secondary Ignition&Primary Ignition | |||
| Sensors | Air Flow Meter | Air Flow Meter (Hot Wire) | |
| Air Flow Meter (Air Vane) | |||
| Air FlowSensor (BOSCH Diesel) | |||
| Air Intake PressureSensor (BOSCH Diesel) | |||
| Camshaft | Camshaft (Inductive) | ||
| Camshaft (AC Excited) | |||
| Camshaft (Hall Effect) | |||
| Camshaft (BOSCH Common Rail Diesel) | |||
| Crankshaft | Crankshaft Inductive Running | ||
| Crankshaft Inductive Cranking | |||
| Crankshaft Hall Effect | |||
| Crankshaft Sensor &Primary Ignition | |||
| Distributor | Distributor Pick-up (Hall Effect) | ||
| Distributor Inductive Pick-up Cranking | |||
| Distributor Inductive Pick-up Running | |||
| Lambda Sensors | Lambda Sensor Titania | ||
| Lambda Sensor Zirconia | |||
| Lambda Sensor Zirconia Pre & Post cat | |||
| Throttle Position | Throttle Position Potentiometer | ||
| Throttle Position Switch | |||
| Throttle Pedal Switch (Bosch Diesel) | |||
| ABS Digital Speed Sensor | |||
| ABS Analog Speed Sensor | |||
| Coolant Temperature (5V) | |||
| Coolant Temperature (GM/Vauxhall Simtec | |||
| Crash Sensor | |||
| MAP Analog | |||
| MAP Digital | |||
| Hall Effect Road Speed Sensor | |||
| Accelerator Pedal (Bosch Diesel) | |||
| Bus Diagnosis | CAN Bus | CAN Bus Data View | |
| CAN Bus Signal Integrity | |||
| CAN Bus LH Long Capture | |||
| LIN Bus | LIN Bus | ||
| Engine | Petrol | Single-point Injector (Voltage) | |
| Single-point Injector (Current) | |||
| Multi-point Injector (Voltage) | |||
| Multi-point Injector (Current) | |||
| Injector Voltage & Current | |||
| Injector Current & Primary Ignition | |||
| Diesel | Common Rail Diesel (Current) | ||
| Injector Bosch CDi 3 (Current) | |||
| Injector Bosch Diesel (Idling) | |||
| Injector Bosch Diesel (Accelerating) | |||
| Diesel Glow Plugs | |||
| Electronic Fuel Pump | |||
| Carbon Canister Solenoid Valve | |||
| ERG Recirculation Solenoid Valve | |||
| Stepper Motor Example 1 | |||
| Stepper Motor Example 2 | |||
| Idle Speed Control Valve (Rotary) | |||
| Idle Speed Control Valve (Electromagmetic) | |||
| Throttle Servomotor (Idling) | |||
| Throttle Servomotor (Accelerating) | |||
| Bosch CDi3 Quantity Control Valve | |||
| Bosch CDi3 Pressure Regulator Valve | |||
| Variable-Speed Cooling Fan On | |||
| Variable-Speed Cooling Fan Off | |||
| Variable Camshaft Valve Timing |
