Machine Description

DH-5150 Factory price channel letter bending machine


Appliable materials: Flat aluminum, Aluminum profile, Aluminum coil, Aluminum Channelume
Application - bending aluminum letters and signs.
Aluminum channel letter, Trimless channel letter, Aluminum profile channel letter, Liquid acrylic channel letter (Super lettter), Aluminum epoxy channel letter

\t
Technical Parameter
\t
Model
\t
DH-5150
\t
Working principle
\t
Auto feeding, notching and bending
\t
Applicable material
\t
Flat aluminum, Aluminum profile, Aluminum coil, Aluminum Channelume
\t
Bending Radius
\t
≥6mm
\t
Material width
\t
≤150mm
\t
Material thickness
\t
Aluminum: 0.3mm-1.2mm
\t
Machine power
\t
≤1500W
\t
File format
\t
DXF,AI,PLT
\t
Supporting software
\t
Leetro software CBS4
\t
Machine size
\t
1350mm*750mm*1350mm
\t
Machine weight
\t
220Kgs
\t
Gas pressure
\t
0.6Mpa
\t
Voltage
\t
220V50HZ1P
\t
Machine Features:
\t
1. Automatic computer adjusting system, no need to adjust the slotting depth by hand.
\t
2. Fast bending speed, one time forming, big curve arc is flapped, small curve arc is squeezed.
\t
3. Material width is 30-150mm,thickness is 0.4-1.2mm.
\t
4. Low power consumption,the using power less than 1500W.
\t
5. Can read various vector files in DXF, AI, PLT format, matching with engraving files.
\t
6. Double side slotting,the bending angle of flat sheet is from -180° to 170°.
\t
7. Adopt high quality encoder,high reliability, long lifetime and strong anti-interference performance.
\t
8. Special parameter requirement can be customized.
\t
Machine Advantages
\t
1. Feeding System
The feeding part is clamped by rubber rollers and driven by gear belt. Fast speed can realize the continuous feeding.It is suitable for flat aluminum,aluminum profile and other materials.
\t
2. High Quality Encoder
The high quality encoder used in this machine has high reliability, long life and strong anti-interference performance. With the high-speed precision motor, its high-precision performance makes the feeding control more accurate.
\t
3. Imported Milling Cutter
The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.
\t
4. Depth Adjusting System
The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.
\t
5. Bending Tool
The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.
\t
6. Electrical Components and Software
1. Professional distribution box. All electricall components and techniccal parameters comply with standard design requirements.
2. The control card and software is original Leetro control system, easy to study and operate, ensure the machine calculating size with zero error. The control card running stable, with strong anti-interference ability.
3. Software has both English and Chinese language, It can real all kinds of vector files in PLT, AI and DXF formats, and match perfectly with engraving machine files.
4. Computer system can support Windows XP, Win 7 32bits and 64bits.
\t
7. Supporting Facility
Machine working needs air compressor to provide air pressure. Working pressure is 0.6Mpa.
Materials
Our Service

1. Free training at our factory.
2. Lifetime free online after-sales service.
3. English speaking engineer provides online after sales service and abroad installation and training.
4. Customization accepted.
5. One year warranty.

Factory View
Packing & Delivery

Export packing cases with PE film and bubble bag inside. Suitable for operation by forklift.
Supporting ocean transport, rail transport, air transport and road transport etc.

Certificate

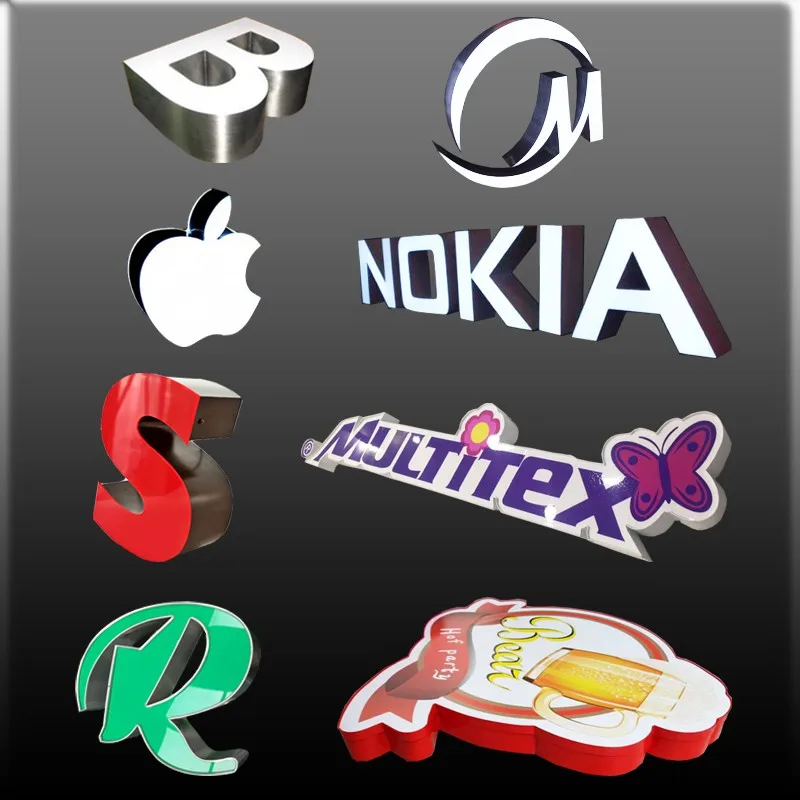

More Samples
