Product Description
The KR Series is the main accessories line of external wiegand readers for all our access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10cm in the E series case and up to 5cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor installation. Also they can be connected with our wiegend controllers.
Features:
Easy to install
125KHz Proximity/13.56MHz Mifare Card Reader
Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
26/34bit Wiegand (default)
Easy to install on Metal Door Frame or Mullion
External LED Control
External Buzzer Control
Indoor / Outdoor Operation
Solid Epoxy Injection
Waterproof IP65
Reverse Polarity Protection
Elegant and robust design
125KHz Proximity/13.56MHz Mifare Card Reader
Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
26/34bit Wiegand (default)
Easy to install on Metal Door Frame or Mullion
External LED Control
External Buzzer Control
Indoor / Outdoor Operation
Solid Epoxy Injection
Waterproof IP65
Reverse Polarity Protection
Elegant and robust design
Specification
Model | KR100E/M | KR101E/M | KR102E/M | KR200E/M | KR201E/M | KR202E/M | KR300 | ||||||
Read Rang | E Serious: Up To 10cm, M Serious: Up To 5cm | Up to 10cm | |||||||||||
Read Time | 300ms | ||||||||||||
Power | DC 6-14V/ Max 70mA | ||||||||||||
Input Port | 2ea (External LED Control, External Buzzer Control) | ||||||||||||
Output Format | 26 bit Wiegand (E); 34 bit Wiegand (M) | ||||||||||||
Output Pin | N | N | 8 bits | N | N | 8 bits | N | ||||||
LED indicator | 2 Color Led Indicators( Red And Green) | ||||||||||||
Beeper | Support | ||||||||||||
Operating Temperature | -20℃-+65℃ | ||||||||||||
Operating Humidity | 10%-90%(Relative Humidity non-considered) | ||||||||||||
Color | Black | Black | Black | Black | Black | Black | Black | ||||||
Material | ABS+PC with texture | ||||||||||||
Dimension:mm | 116*75*17.3 | 77.5*42.8*16.5 | 86*86*16.3 | 86*86*16.8 | 84.5*44*16.8 | 87*86*22.4 | 77.5*42.8*16.5 | ||||||
Weight | 120g | 50g | 120g | 110g | 55g | 126g | 50g | ||||||
index Of Protection | IP65 | IP65 | IP64 | IP65 | IP65 | IP64 | IP65 | ||||||

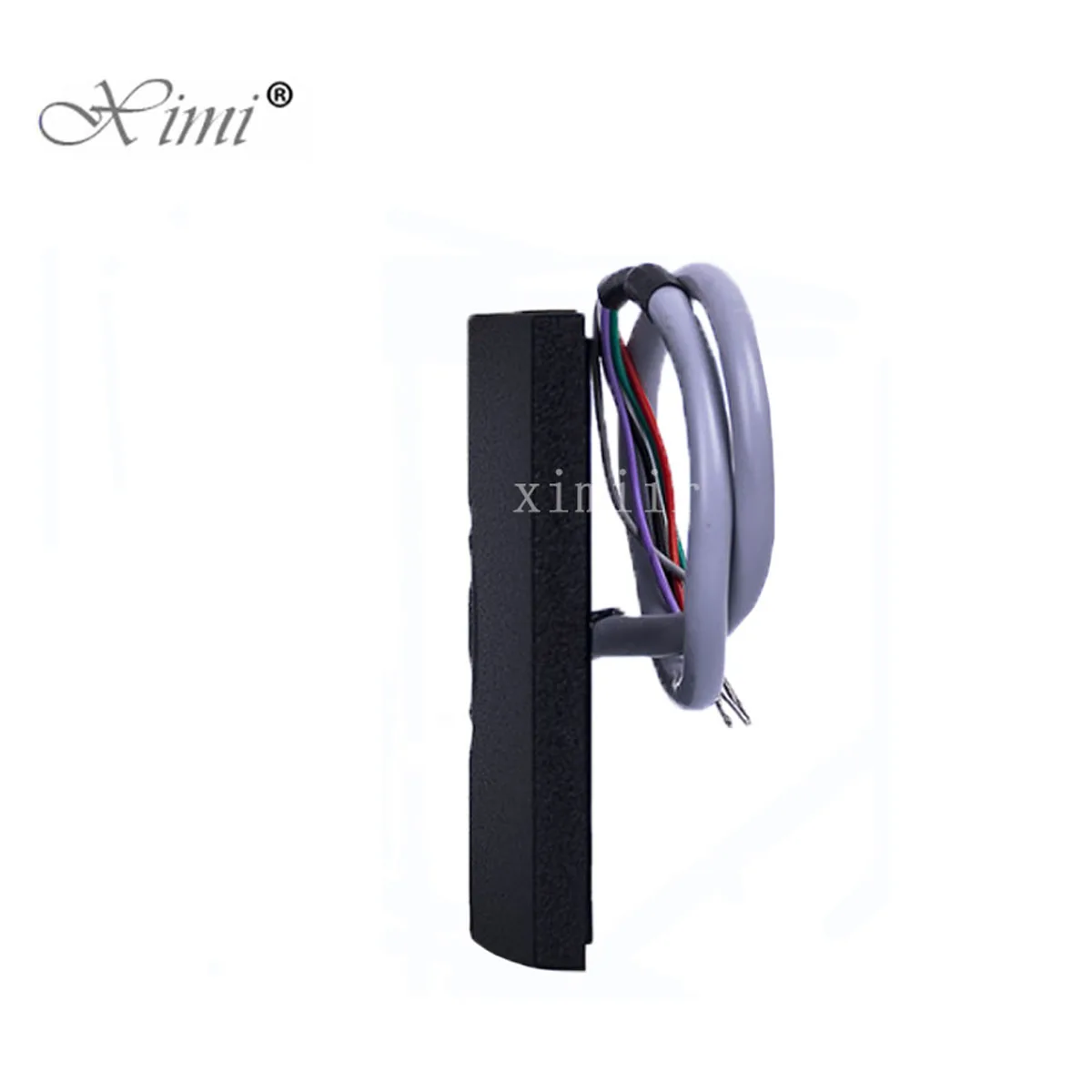

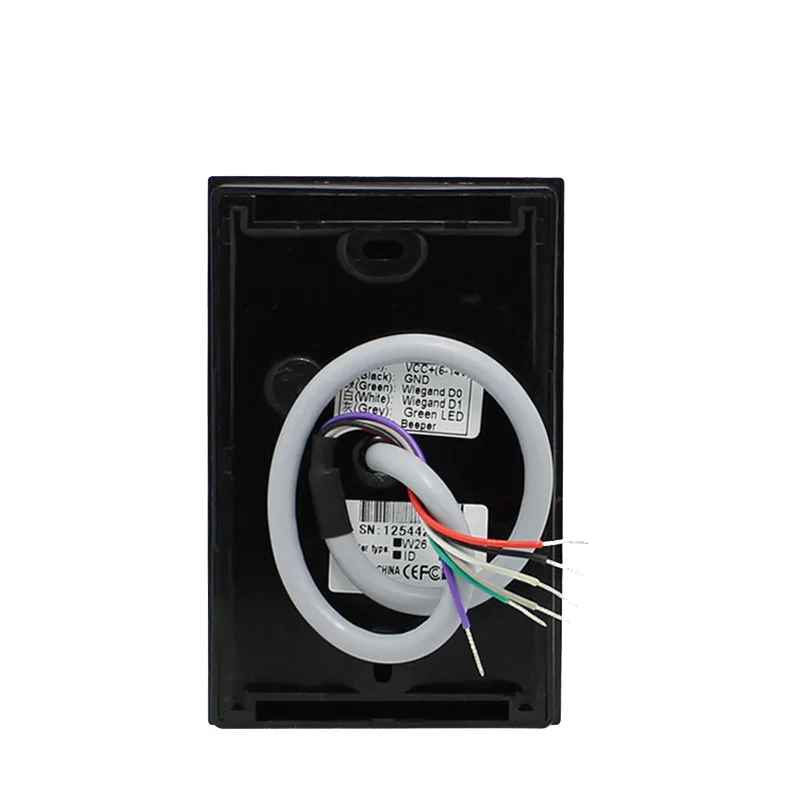

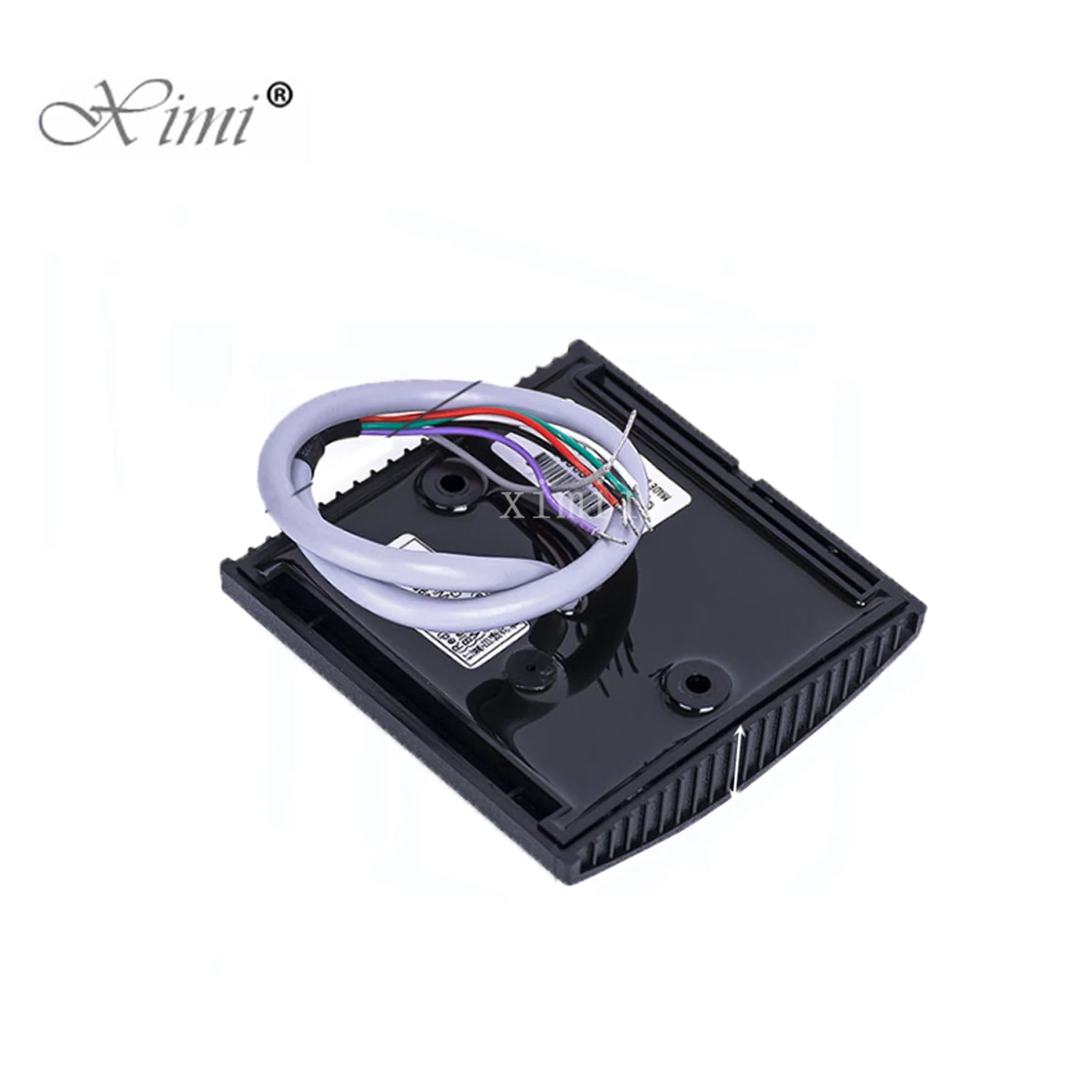

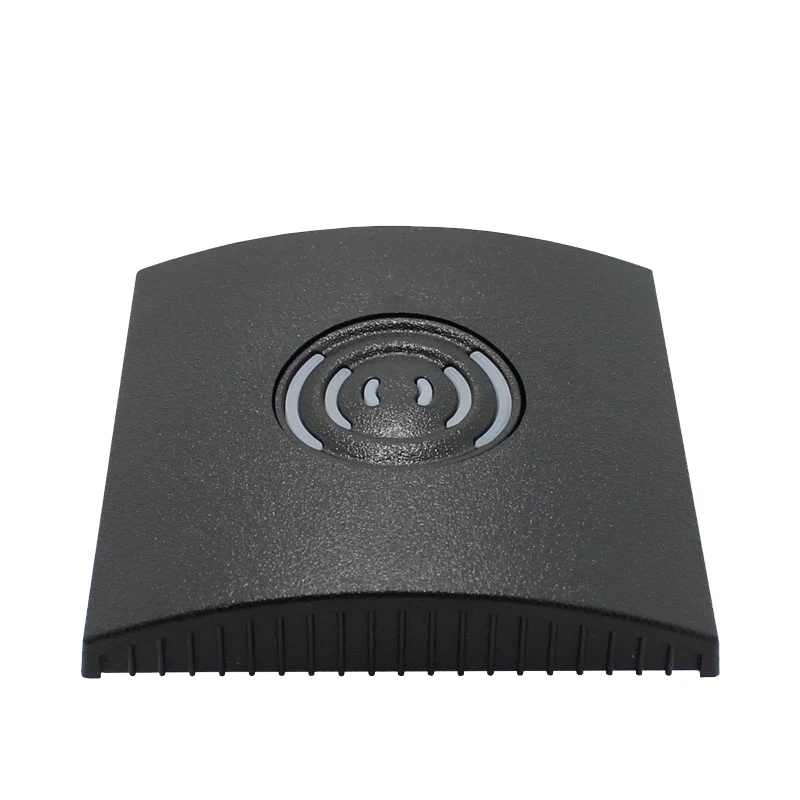

Details Images

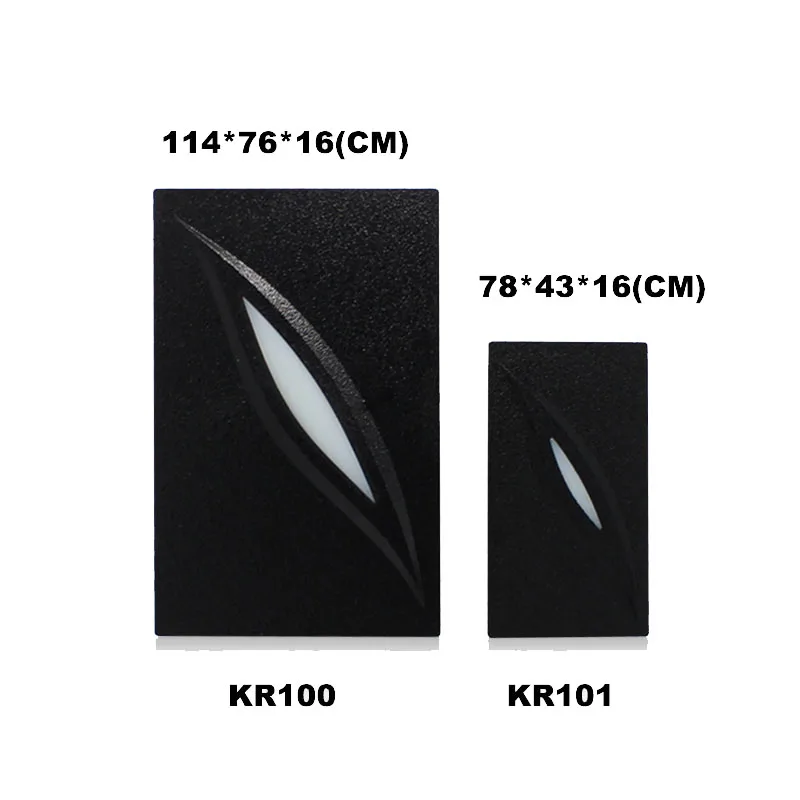

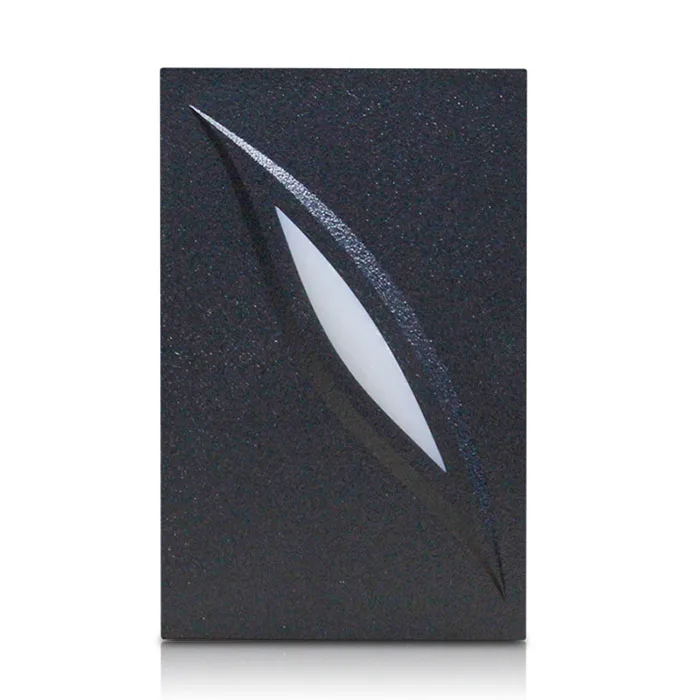

KR100

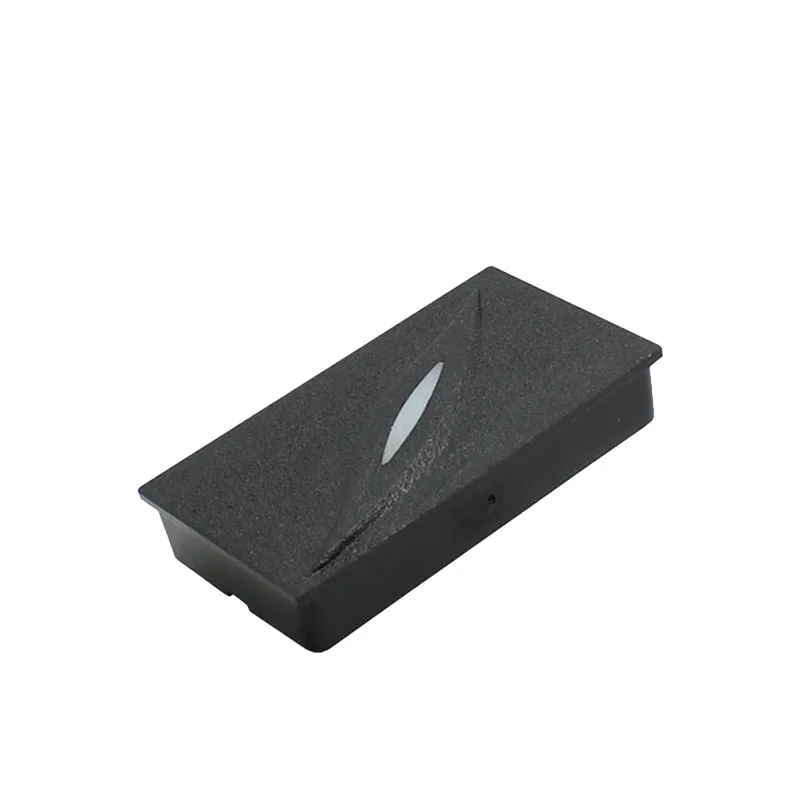

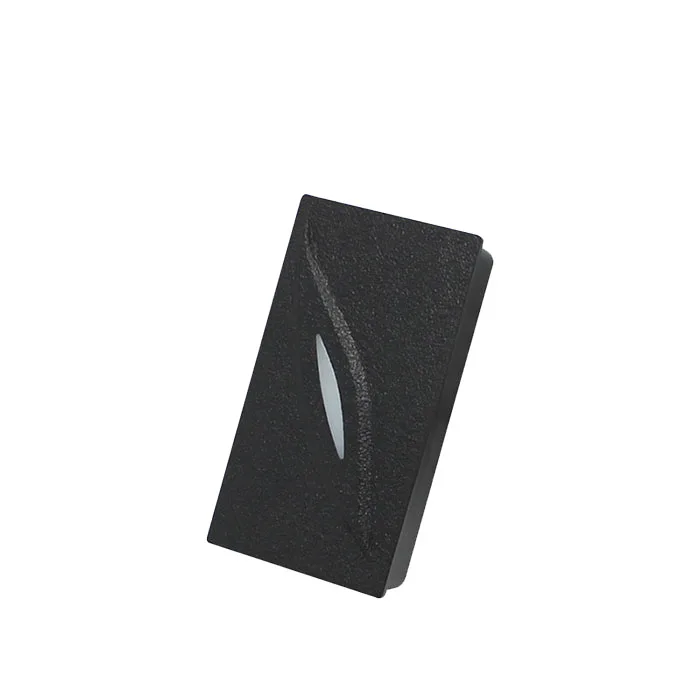

KR101

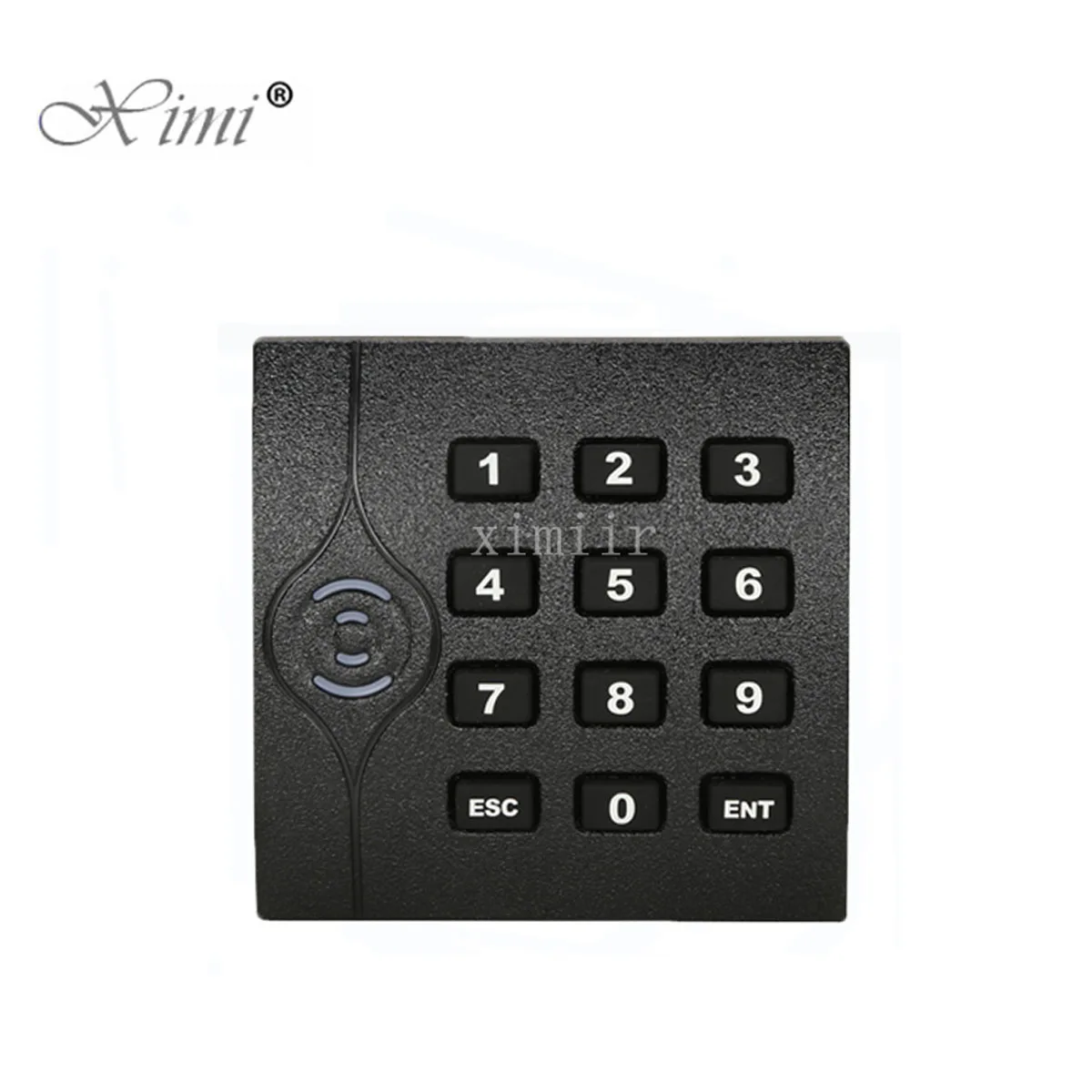

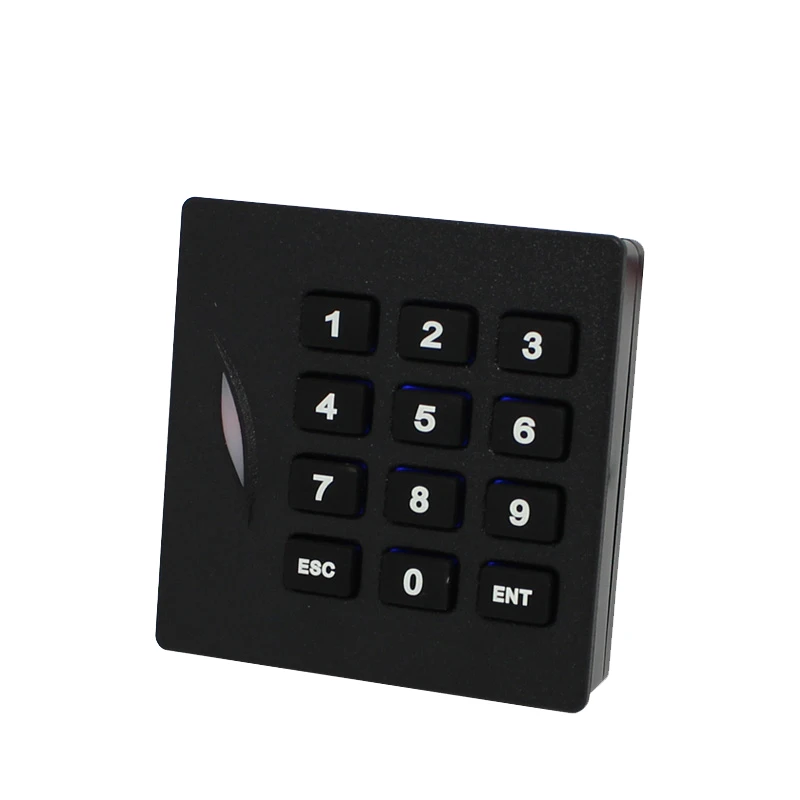

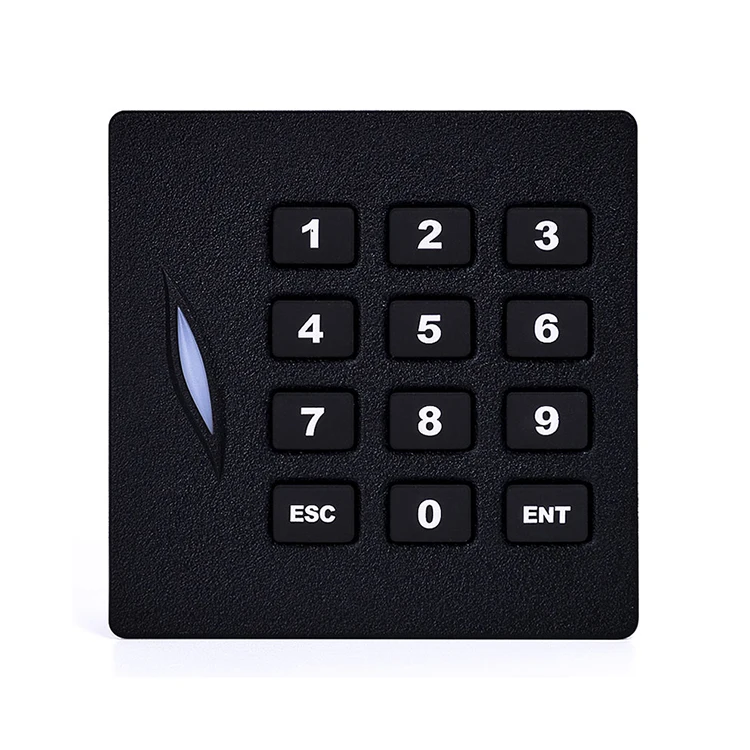

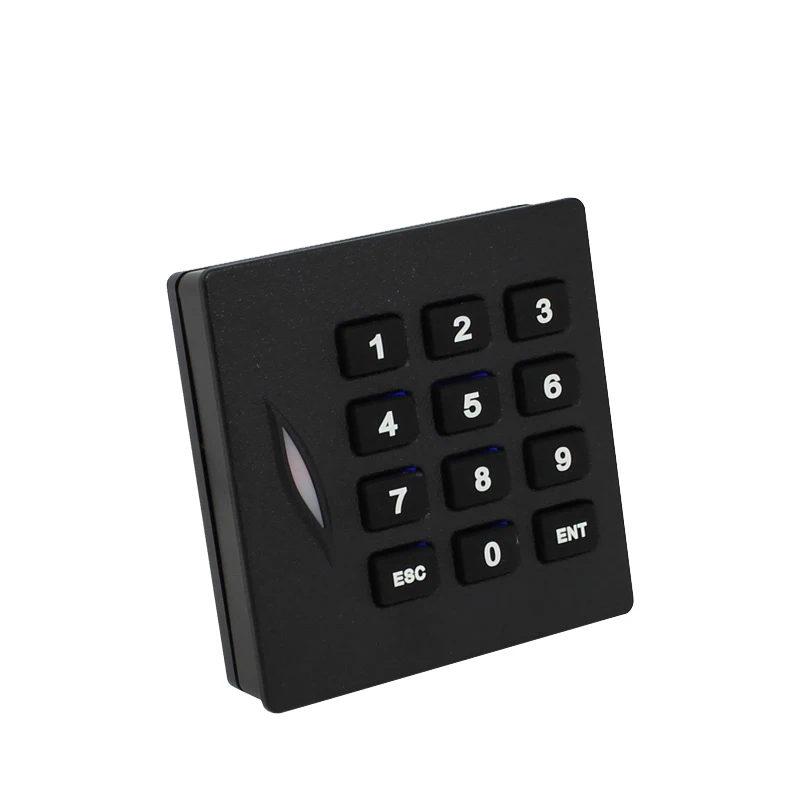

KR102

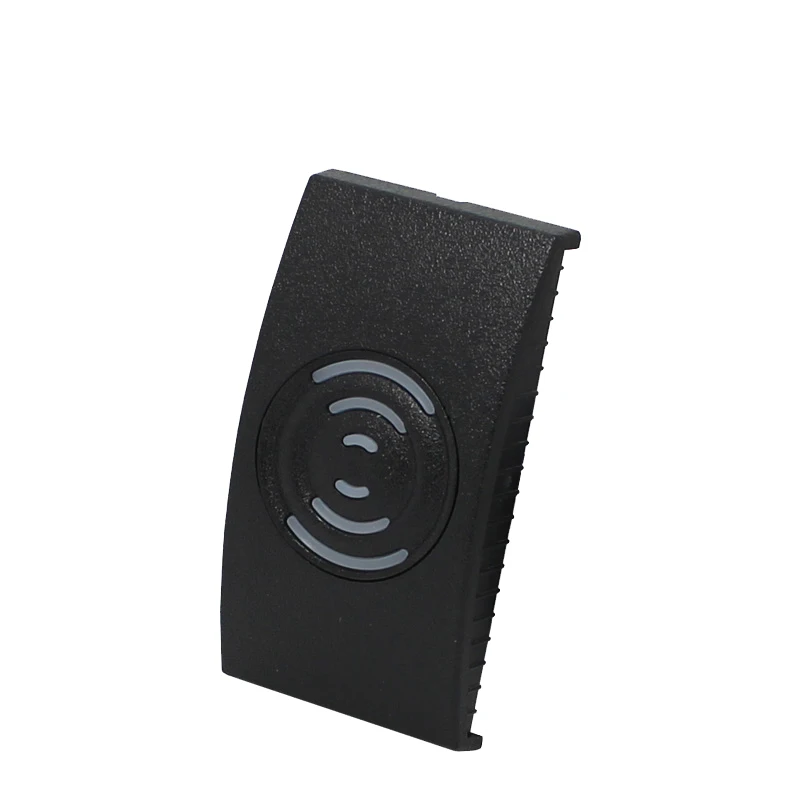

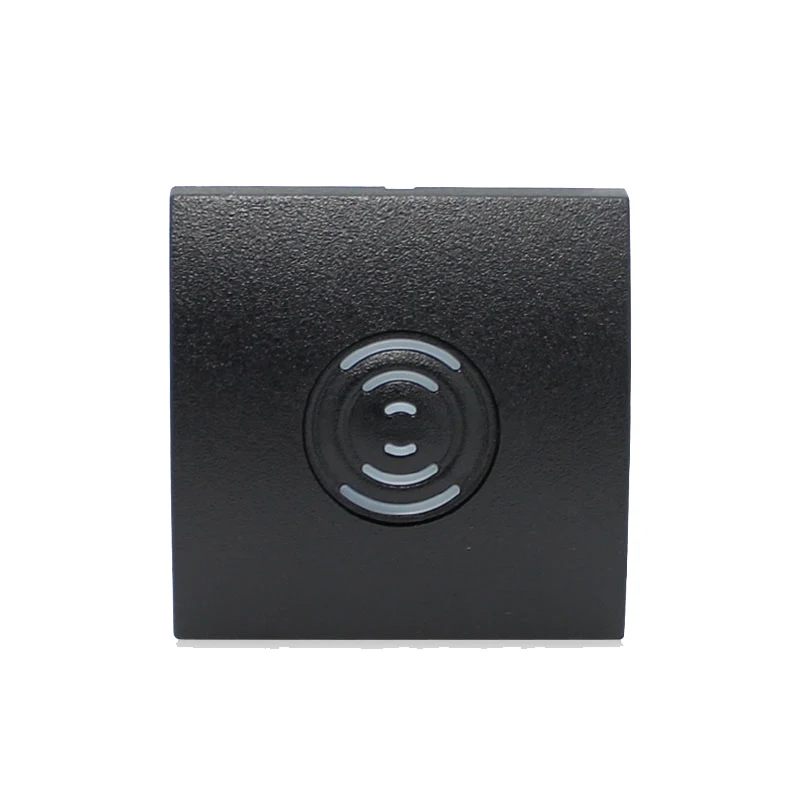

KR200

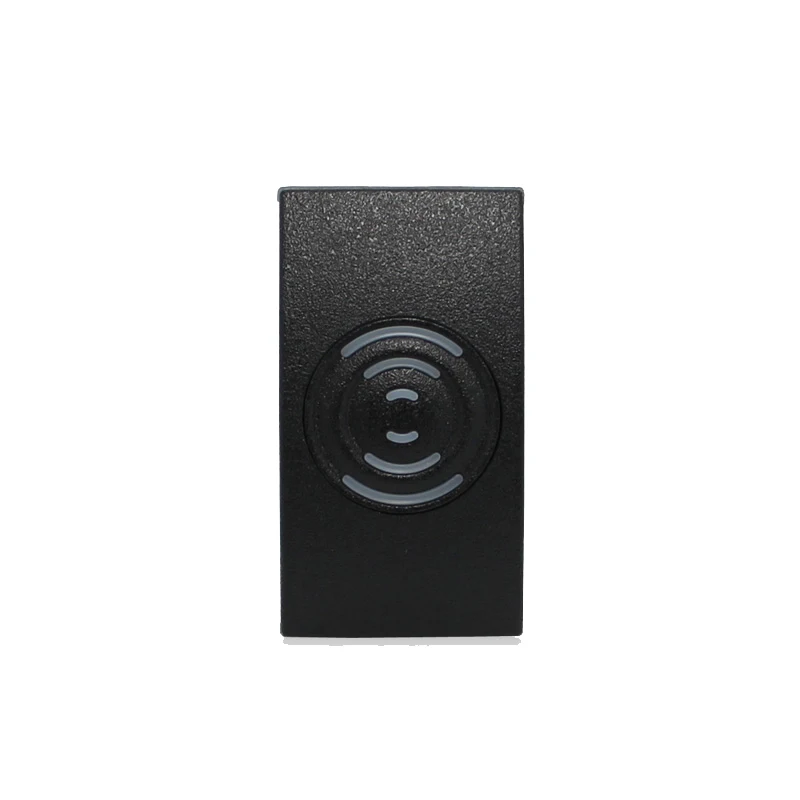

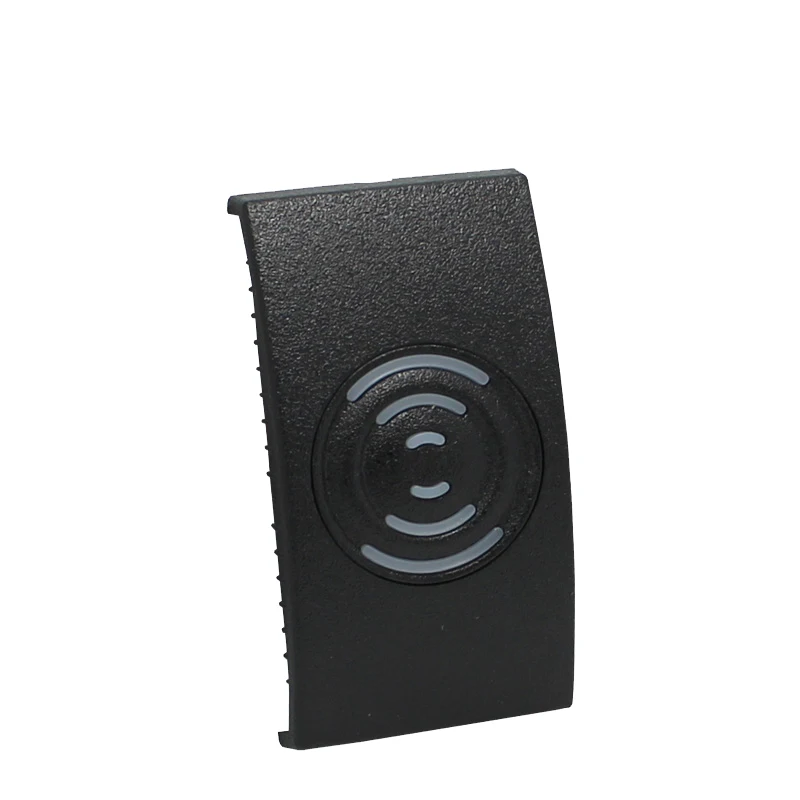

KR201

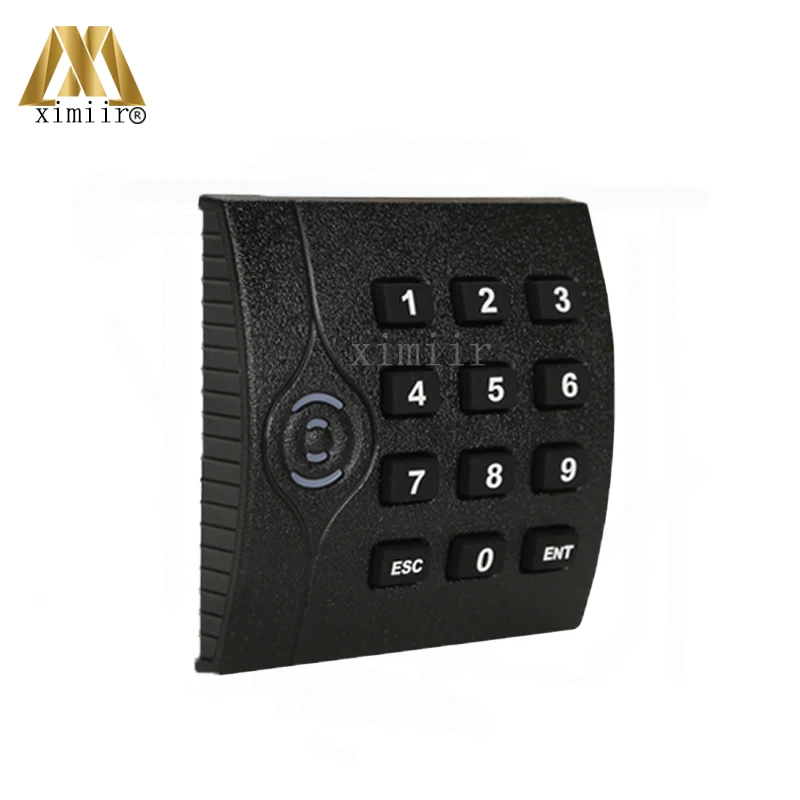

KR202

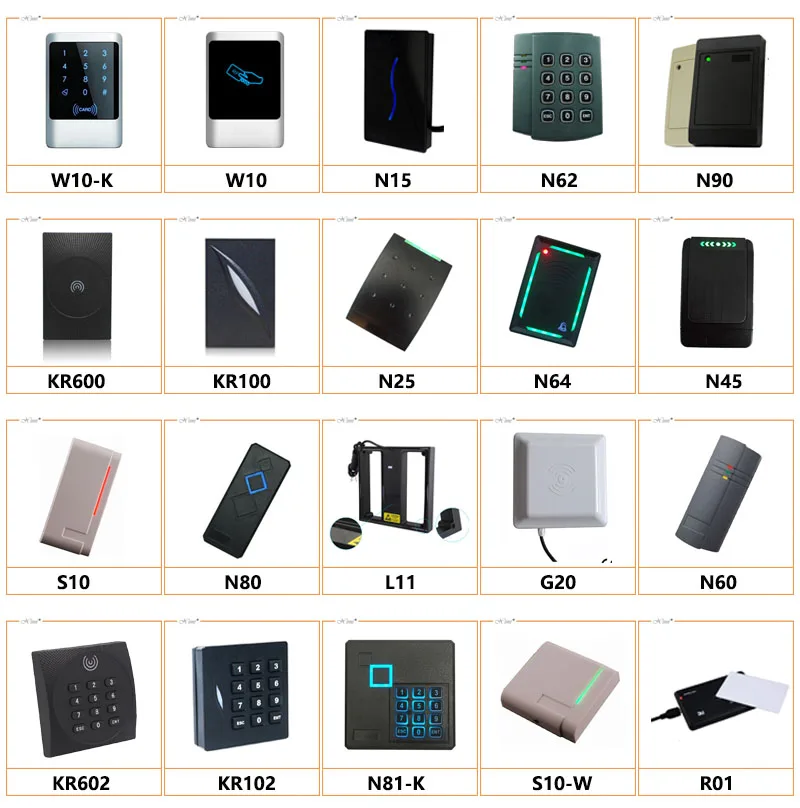

Similar Products
