От 2 до 5 тонн в час переработка отработанных шин Резина и стальная

Product Application

•Paving sport ground:Runway, school sporting field, garden path, bowling alley, pavement, recreation field, basketball field, etc.
•Automobile industry:Train's floor, disc silk ribbon for braking, soleplate of automobile and truck, shake sleeve, seal stripe, buffer, shock absorber, daily material for ocean shiping, tyres and inner unerlay of tyres, etc.
•Architecture and equipment: Adhensive/sealant, floors of hospital, company, insulated rubber material, carpet cushion, grass cushion for family animal, extruded products, module products, coating, bricks, thin slice, water-proof material, etc.

Tire wire drawing machine

The motor drives the hydraulic system and the cylinder, and the hook connects the cylinder rod. The movement of the oil pump and the cylinder causes the hook to reciprocate. Put the tire in the pull mouth, hook the hook to the inner ring of the tire and start the button. Due to the strong pulling force of the cylinder, the rubber of the sidewall is broken, and the whole steel wire is pulled out and separated smoothly.

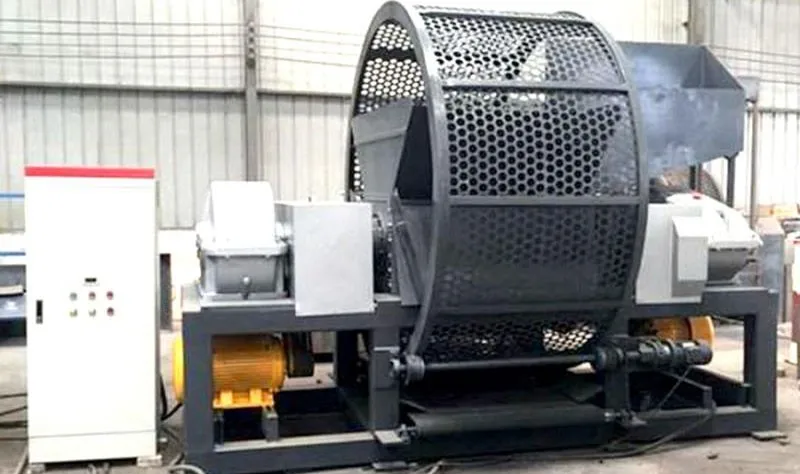

Double Shaft Tire Shredder

The truck tire shredder is double-shaft shear crusher that the tire is simultaneously cutting, shearing tearing in the horizontal and vertical directions to achieve shredding effect into small-sized. Shredder is driven by electric motor, made of special alloy steel, controlled by logic controller.
It can be automatically reversed when encountering hard objects. The discharge size can be designed according to user requirements

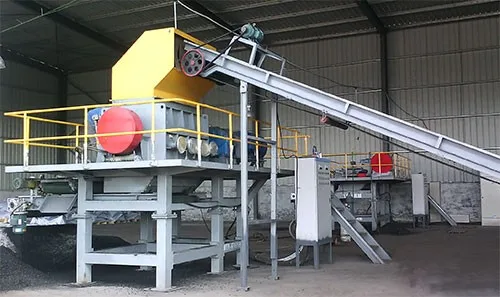

Rubber Granulator

The rubber block is important equipment for rubber wire separation. The head of the movable knife and the head of the fixed knife are rectangular. The head of the movable knife is welded to the movable knife with a high hardness of tungsten carbide, and the head of the fixed knife is welded to the fixed knife with a high hardness of tungsten carbide. High wear-resistant materials are used in the equipment, which greatly improves the wear resistance of the tool and prolongs its service life.

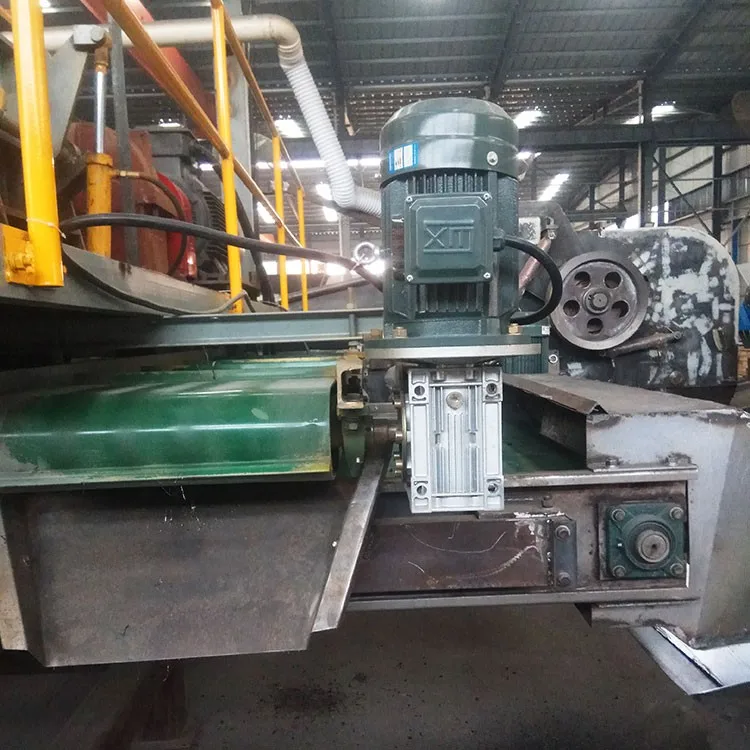

Magnetic Separator

The main separation of rubber and steel wire and powder, granules, and sheet materials can be transported in equipments such as crushers, mixers, extruders, storage bins, etc. The equipment is stable in operation, has a long service life, and depends on time and material level to control the operation and stop of the device.

Main Features

1) High Fineness of Discharging Size
