Жесткая анодированная 6 м Военная лебедка телескопическая

Описание и отзывы

Характеристики

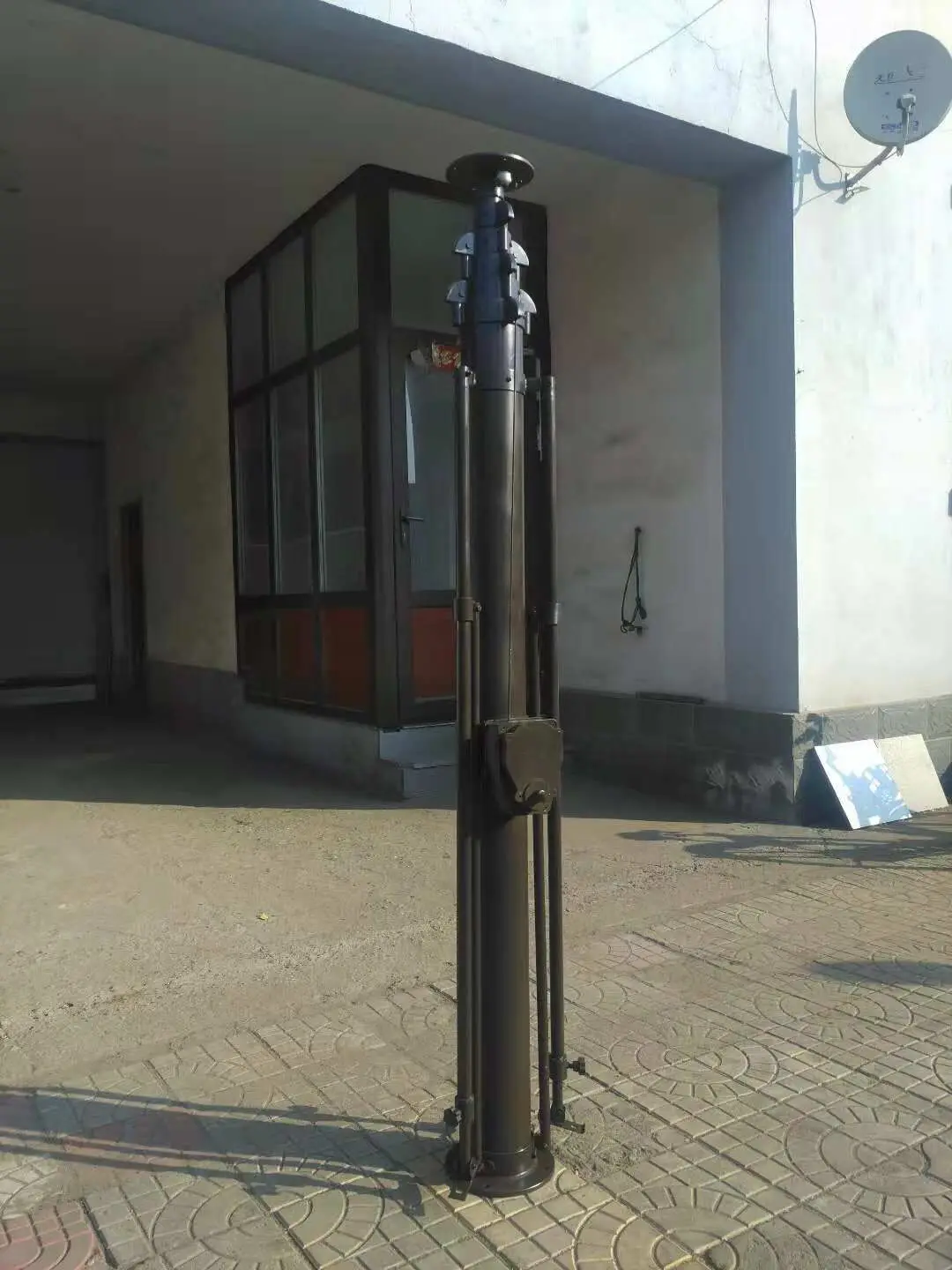

hard anodizing 6m mi telescopic mast





  (1) Main pole in 10 sections:

Section No.      OD         Thickness   Length

   1#:              50mm         5.0mm       1.7m

   2#:              68mm         4.0mm       1.7m

   3#:              87mm         4.0mm       1.7m

   4#:              106mm       4.0mm       1.7m

   5#:              130mm       5.0mm       1.7m





(2) Other parts of the mast body

  Top plate Thickness: 10mm     Diameter:130mm

  Bottom base(include bottom base): size:250*250mm



(3)Accessories

Pulling cord box with handle bars   --------           3 units

Ground anchor-----------------------------------------3 pieces

Handle lifting bar--------------------------------------1  piece

Tripod---------------- ------------------------- -------   1  pieces







Material:



Main Pole: aluminum alloy

Bottom base and accessories (except the ground anchor): iron steel

Ground anchor: galv stainless steel

Pulling cord: stainless steel wire(OD:2mm)



Color: the whole unit will be in white when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.



Color Technology: painting



Accessories

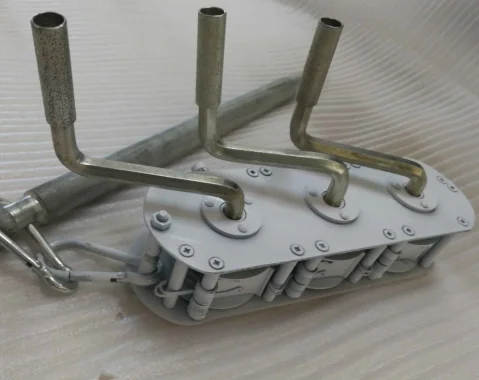

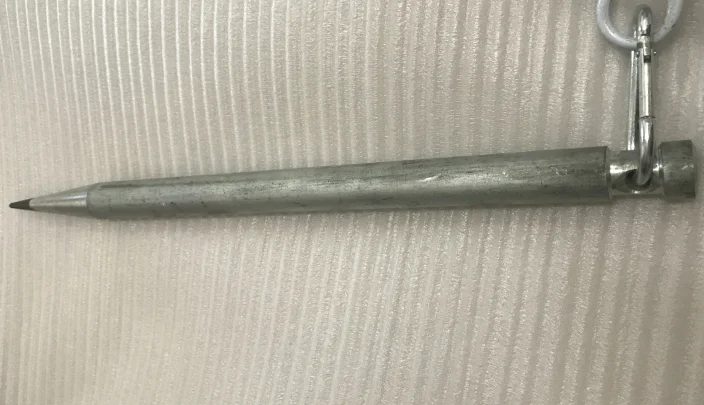

1 Pulling cord box with handle bars                                        2. Ground ancher

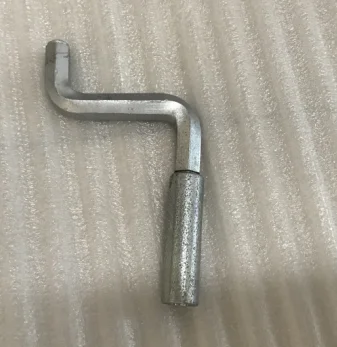

3.Handle lifting bar for lifting the mast                                           4.clamp and handle lifting bar

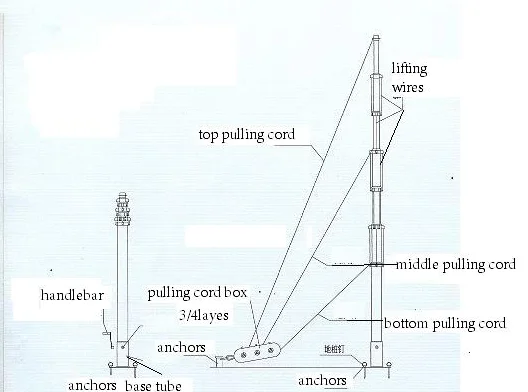

Installation Method







1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,

2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.

3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Mast Operation Precautions

l No overloading.

l Ensure the area in which the mast is deployed is free of obstructions and overhead power

lines.

l For motorized mast :The crank handle of mast must be disengaged when operated

electrically.

l For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the

mast quicker, this action removes control over the rate of decent.

l For motorized mast:When operated manually, the motorized telescopic antenna mast must

Be in a power off state.

l Any abnormal phenomena( such as inflexible or stuck) occurs when lifting, you should

stop it  immediately, identify the reasons, and lift it after cleaning troubles.

l Operating environment requirements:

l working temperature: pneumatic mast -15--+60℃. manual and motorized mast -50--+60℃.

l Wind load:  50-80km/(without Guy rope ), 100-120Km/h( with Guy rope)

l Note: if special request, please confirm with our technician.

Maintenance

l Waterproof and dust proof cover should be put into outdoor storage

l If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating

oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

l Regularly check the connection parts in normal condition.

l Change seals easily on regular time can make mast in good using conditions after

using 20thousand times.
