Китайское производство инструментов твердосплавная концевая фреза применение для стальных режущих квадратных концевых
- Категории: Milling Cutter >>>
- Поставщик: Guangdong,UNT,Cutting,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

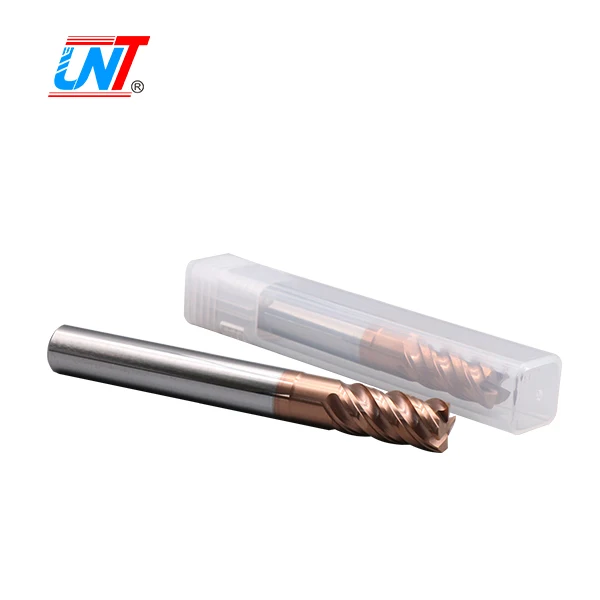

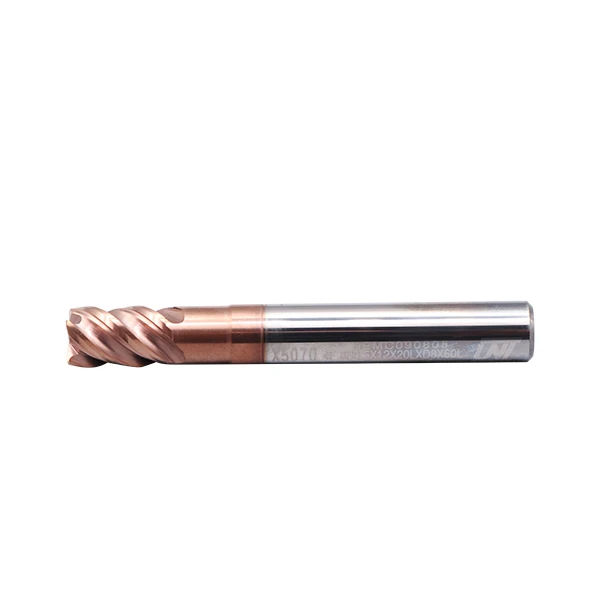

China tool Manufacturing solid carbide end mill application for steel cutting square end mills
@Advantage:
1. Good Surface coating.
2. High Precision processing.
3. Good Performance.
4. Certification:ISO9001:2008 , Supplier Assessment Certificate
>>> UNT EMC03 Product details
| Coating | AITiN /TiALN /TiSiN /NaCO /DLC /Diamond |
| Helix Angle | 35/36/37 |
| Material | IMC Carbide Rod |
| HRC | HRC60/70° |
| Shank | Cylindrical |
| Mill Dia Tolerance | 0-0.030 |
| Shank Dia Tolerance | H6 |

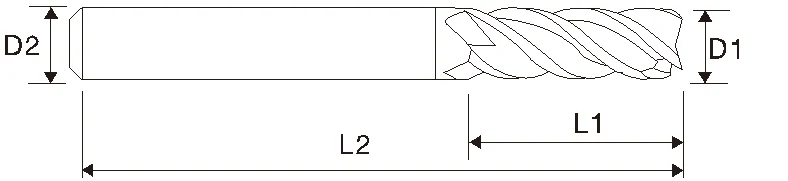

| EDP # | Mill Diameter | Shank Dia | Flute length | O.A.L | Flutes |
| D1 | D2 | L1 | L2 | ||
| EMC030104 | 1.0 | 4 | 3 | 50 | 4 |
| EMC030154 | 1.5 | 4 | 4 | 50 | 4 |
| EMC030204 | 2.0 | 4 | 6 | 50 | 4 |
| EMC030254 | 2.5 | 4 | 6 | 50 | 4 |
| EMC030304 | 3.0 | 4 | 8 | 50 | 4 |
| EMC030354 | 3.5 | 4 | 10 | 50 | 4 |
| EMC030404 | 4.0 | 4 | 11 | 50 | 4 |
| EMC030106 | 1.0 | 6 | 3 | 50 | 4 |
| EMC030156 | 1.5 | 6 | 4 | 50 | 4 |
| EMC030206 | 2.0 | 6 | 6 | 50 | 4 |
| EMC030256 | 2.5 | 6 | 6 | 50 | 4 |
| EMC030306 | 3.0 | 6 | 8 | 50 | 4 |
| EMC030356 | 3.5 | 6 | 10 | 50 | 4 |
| EMC030406 | 4.0 | 6 | 11 | 50 | 4 |
| EMC030450 | 4.5 | 6 | 13 | 50 | 4 |
| EMC030500 | 5.0 | 6 | 13 | 50 | 4 |
| EMC030550 | 5.5 | 6 | 16 | 50 | 4 |
| EMC030600 | 6.0 | 6 | 16 | 50 | 4 |
| EMC030650 | 6.5 | 8 | 20 | 60 | 4 |
| EMC030700 | 7.0 | 8 | 20 | 60 | 4 |
| EMC030750 | 7.5 | 8 | 20 | 60 | 4 |
| EMC030800 | 8.0 | 8 | 20 | 60 | 4 |
| EMC030850 | 8.5 | 10 | 25 | 75 | 4 |
| EMC030900 | 9.0 | 10 | 25 | 75 | 4 |
| EMC030950 | 9.5 | 10 | 25 | 75 | 4 |
| EMC031000 | 10.0 | 10 | 25 | 75 | 4 |
| EMC031100 | 11.0 | 12 | 30 | 75 | 4 |
| EMC031200 | 12.0 | 12 | 30 | 72 | 4 |
| EMC031400 | 14.0 | 14 | 40 | 100 | 4 |
| EMC031600 | 16.0 | 16 | 40 | 100 | 4 |
| EMC031800 | 18.0 | 18 | 40 | 100 | 4 |
| EMC032000 | 20.0 | 20 | 40 | 100 | 4 |
>>> Product feature
• Wide variation of two,three flute types and four flute lengths enable use in a wide variety of applications.
• Fine carbide substrate provides high traverse rupture strength and excellent thermal shock resistance improving reliability in wet cutting applications.
• Balzers Coating provides improved reliability and longer tool life.
• Large rake angle and unique flute design improve sharpness and chip evacuation.
• Corner edge with gash land improves cutting edge strength.
• Sharper edge S type and fracture resistant C type added to the 2D size series.
Product Description
Free to inquire to us : wechat: CNC_Endmills whatsapp:+86 136 6987 3956
