Модуль Hot-Swap 5 Bay 3

Описание и отзывы

Характеристики

Product Description



5 Bay SATA/SAS 6G Hot Swap Module
Steel material, RoHS compliance
Electromagnetism shield design
Support two redundant 4pin power connectors
Patent balance handle — No skew in/out
LED indicators
Support hot swap
Support all operating systems
Ball bearing fan with air duct
Supports RAID 0, 1, 5 functions (RAID card required)
Specifications

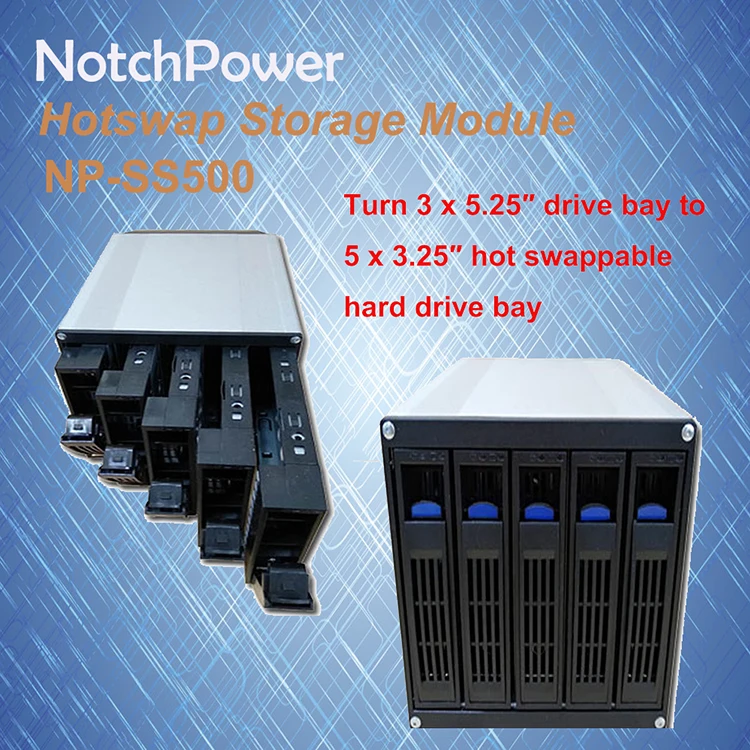

Drive Bay	Turn 3 x 5.25″ drive bay to 5 x 3.25″ hot swappable hard drive bay
Interface	SATA to SATA; SAS to SAS
Fan Sensor	Fan failure sensor
Alarm	Overheating alarm
Cooling System	One 80mm ball bearing fan with air duct provide excellent cooling air flow
RAID	Supports RAID 0, 1, 5 functions (RAID card required)
Power Connector	4 pin molex power connector x 2
Data Connector	SATA (I, II or III)/SAS 6G data port x 5

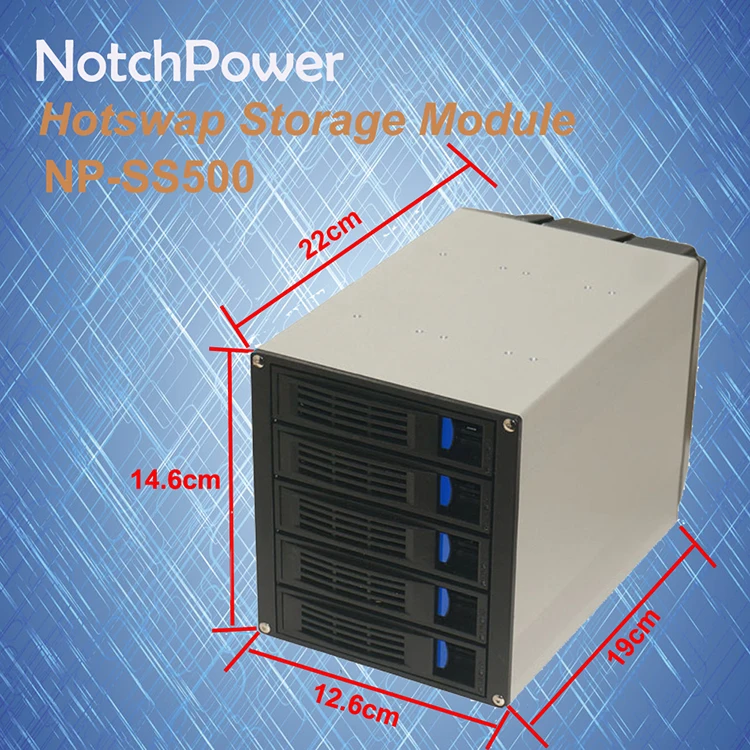

Dimensions(L x W x H)	220*146*126mm
Weight	2.3kg



Detailed Images
