Application:
You can sew any pattern you want (including straight lines, curves, rectangles, squares, circles, herringbone, embroidery, herringbone crosses, polygons, regular and irregular complex patterns) at a stable speed of 0.1mm-12.7mm with a maximum speed of 2700 RPM.You only need to input the design once to store the pattern permanently in the internal memory of the host or your own usb flash drive, which is convenient for you to carry and use in other brands of computer pattern machines.
The pneumatic external pressure frame can tightly press the material waiting for the car, subvert the manual feeding mode of ordinary sewing machine, and the internal pressure frame can move within the range of 4mm-10mm, which can help you with the thickest and highest 10mm material of the sewing machine.
Characteristics:
1. With automatic stop, automatic cut line, automatic slack line, automatic line, advanced functions such as automatic lifting presser foot,
2. Easy operation, suitable for all kinds of fabrics of the instep, trademarks, handbags, bags, jeans, sports equipment, zippers, strap, gifts, travel supplies, Velcro, belts, plastic, sporting goods, stationery, non-woven fabrics, garments and other sewing designs.

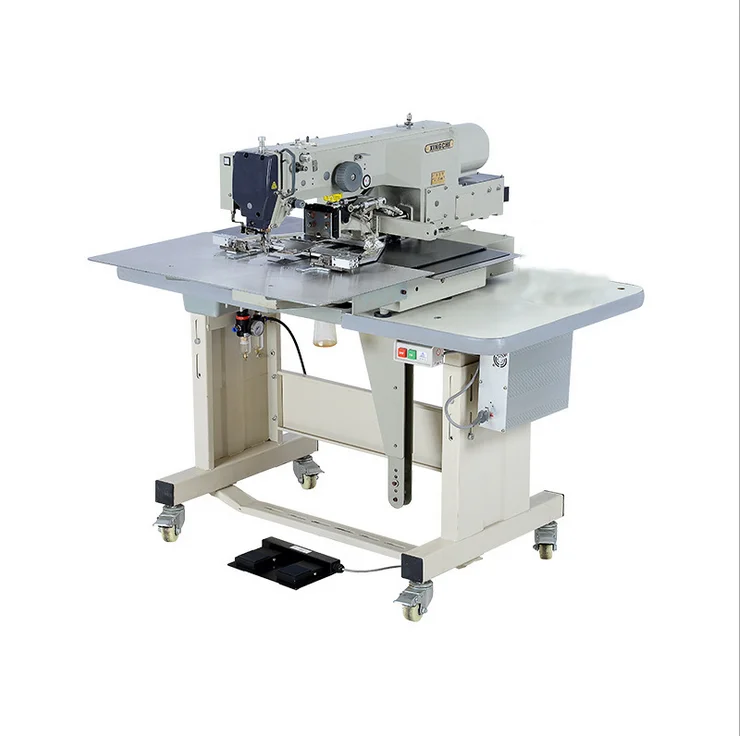

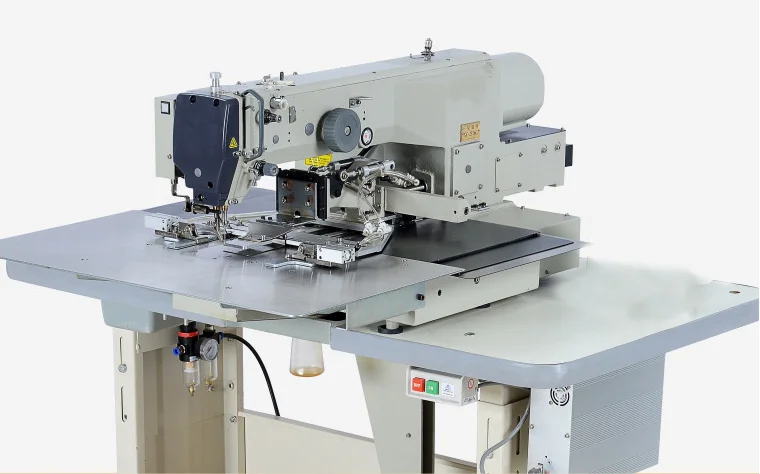

Parameter of machine:
Model | OC-G3020R |
300×200 | |
Stitch type | Single needle, lock stitch |
Max.speed | 2,700rpm |
Feeding system | Intermittent or Continuous
|
Stitch length | 0.1~12.7(minimum resolution 0.1) |
Needle | DP*17#9- #30 |
Hook | Double size rotary hook |
Max.patterns | 255 patterns(Internal memory)
|
Max.stitches | 8,000 stitches/pattern |
Work holder lift | 30mm |
Stepping foot lift | 18mm |
Stepping foot stroke | 4~10mm |
Presser foot system | Pneumatic |
Main driving motor | Limi-Servo X 750W |
Power | AC220~240V 1 or 3phase,0.7KVA(standard)
|
Company information:
Henan Ocean Machiery Equipment Co.,Ltd., an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales of Mechanical Equipment products such as Snack Food Processing Machine, Fruit and advantage Machine, Food & Packaging Machine, Water well drilling rig and Poultry Equivalents,ect.,which are widely sold worldwide and we have been recognize by our customers year after year.
Our workshop:
Packing & shipment:
After-sale servive:
1.Warranty
All the products have one year guarrantee.
2.Training
We provide training to make sure every customer can install and operate the machines.
3. Spare parts
We provide all spare parts for all machine in lifetime use.
4.Standby Servive
We are always ready to help. Just let us know whenever you have questions or problems.
FAQ:
Question 1: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 2: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements
Question 3: What shall we do if breakdown occurs?
Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements.
Wecome your inquiry sincerely
