Коммерческий аромадиффузор подключаемый к системе HVAC профессиональная диффузионная машина для ароматического масла с

Описание и отзывы

Характеристики

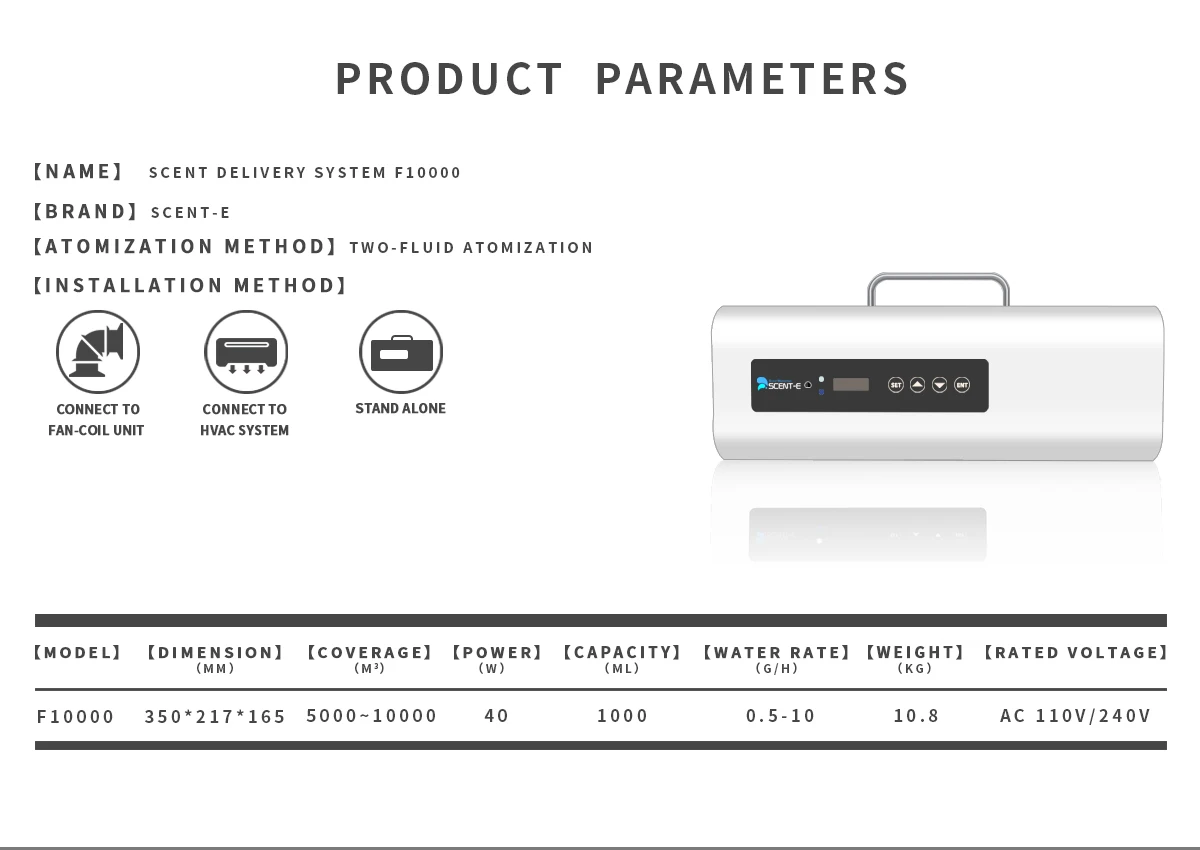

Product name

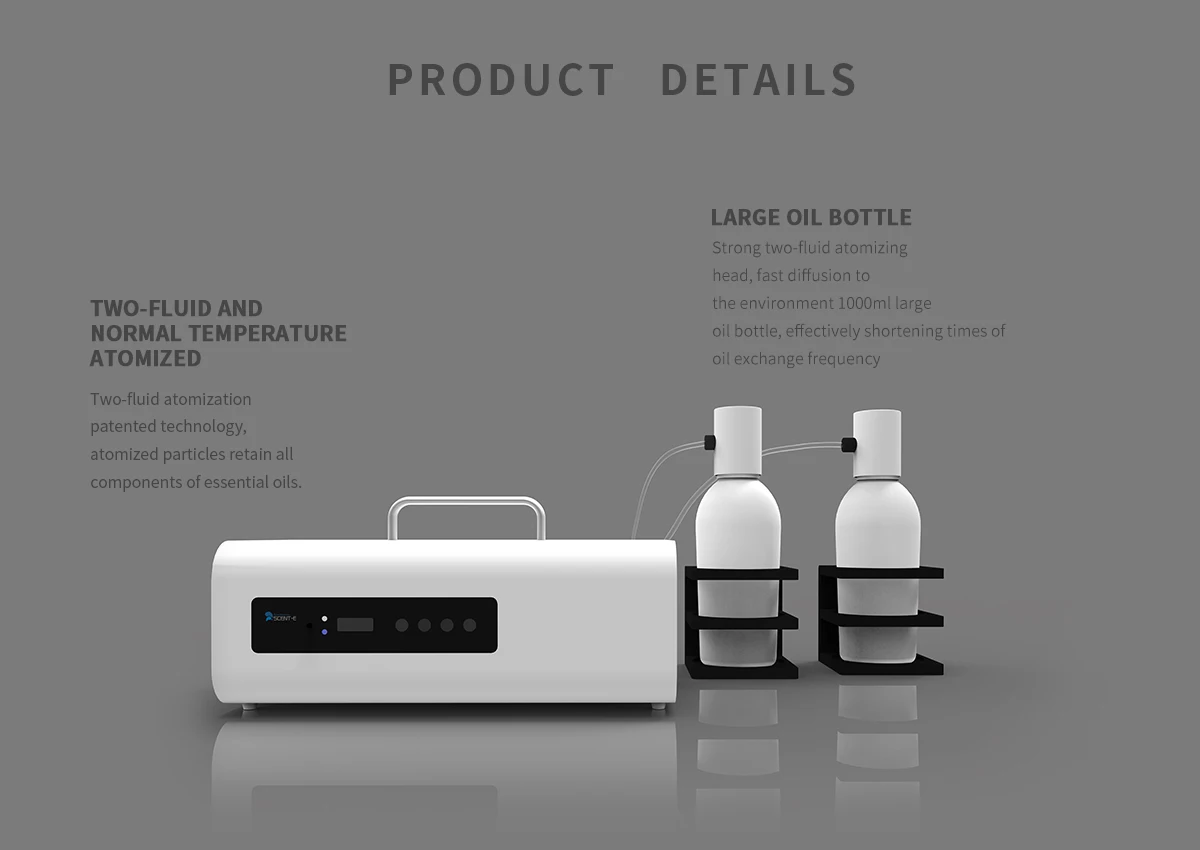

HVAC aroma diffuser machine

The model

F10000

Features	Simple to operate, with timing program and memory functions, do not need to repeatedly adjust
Application place	Hotel, Bar, Coffee shop, KTV, SPA, Senior Club, Meeting room, Wedding studio, Car 4S shop, Fashion shop, Office building etc.

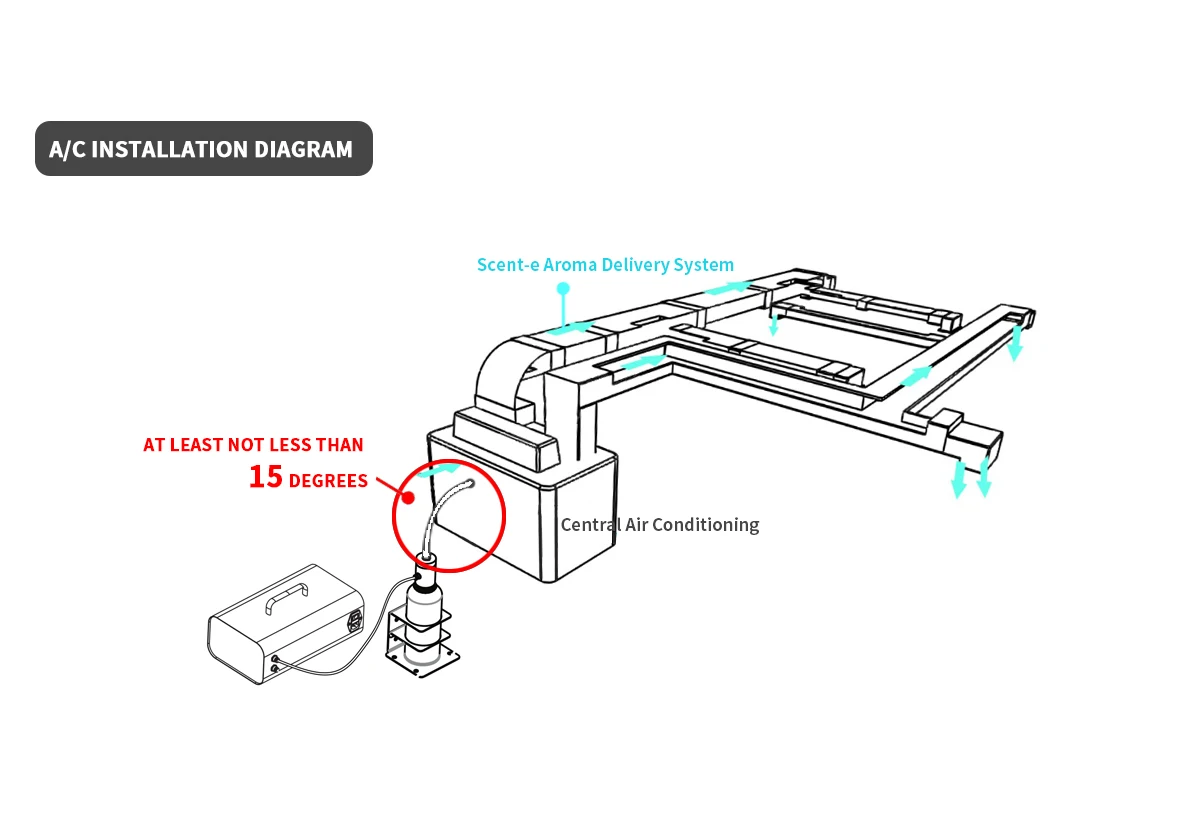

Installation	stand alone, connect to HVAC
Function	clearning air, fill the air with fragrance



Package Information

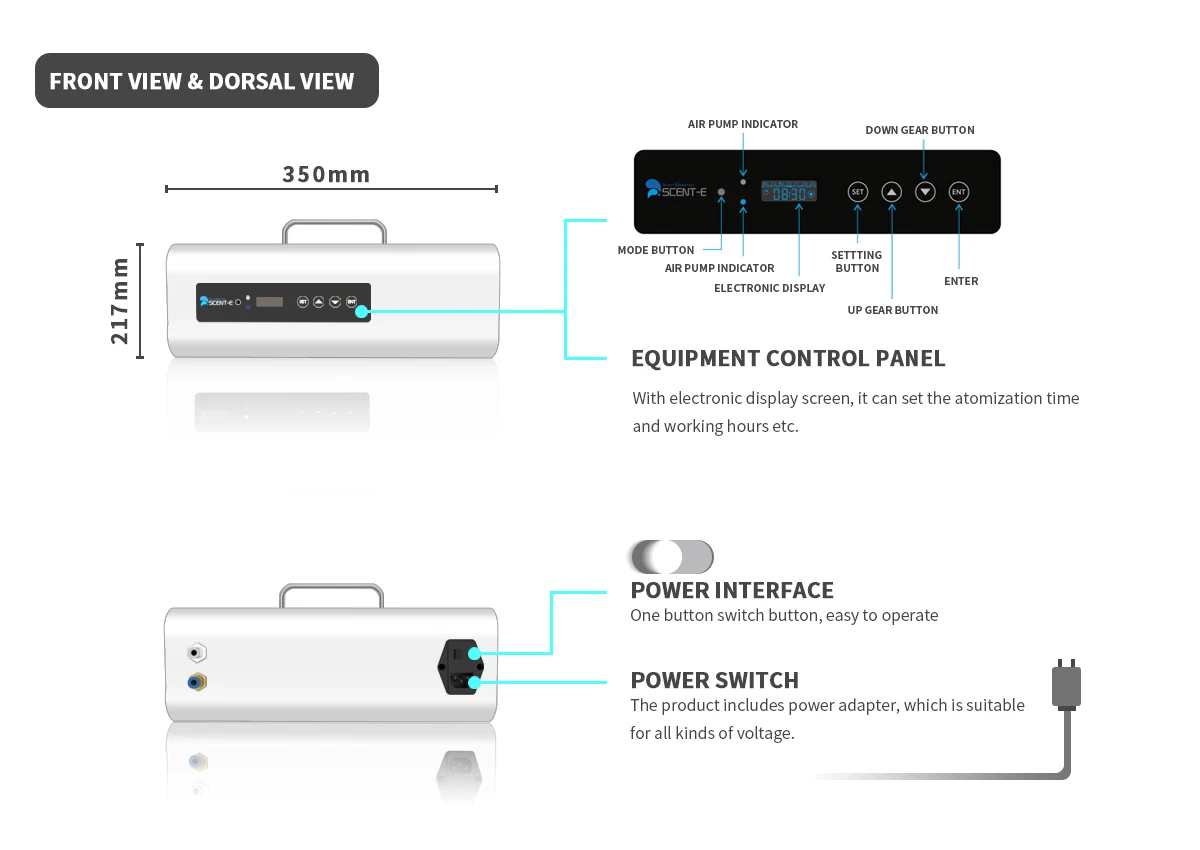

Size of products	350*217*165mm
Package of diffuser size	470*470*290mm
Gross weight of package	10.8kg

The volume of package

0.065m³

One carton contains 2sets

The delivery carton size

620*510*510mm

Gross weight of delivery carton	23.2kg
Net weight of delivery carton	21.6kg

The volume of delivery carton	0.161m³
The volume weight of delivery carton	32.3kg



The essential oil consumption

Gear	Atomization Amount (g/1h)	Atomization gear time ratio unit (Sceond)
1	0.5	10-200
2	1	20-190
3	1.5	30-180
4	2	40-170
5	2.5	50-160
6	3	60-150
7	3.5	70-140
8	4	80-130
9	4.5	90-120

10	5	100-110
11	5.5	110-100
12	6	120-90
13	6.5	130-80
14	7	140-70
15	7.5	150-60
16	8	160-50
17	8.5	170-40
18	9	180-30
19	9.5	190-20

20

10

200-10

  ♥Plese noted, this essential oil consumption testing based on SCENT-E pure essential oil, if used other brand essential oils testing, maybe the result is different.

• The aroma diffuser cleaning

When the essential oil needs to be replaced or the amount of atomization is reduced after the equipment has been running for a while, the equipment needs to be cleaned.

•  Cleaning steps:

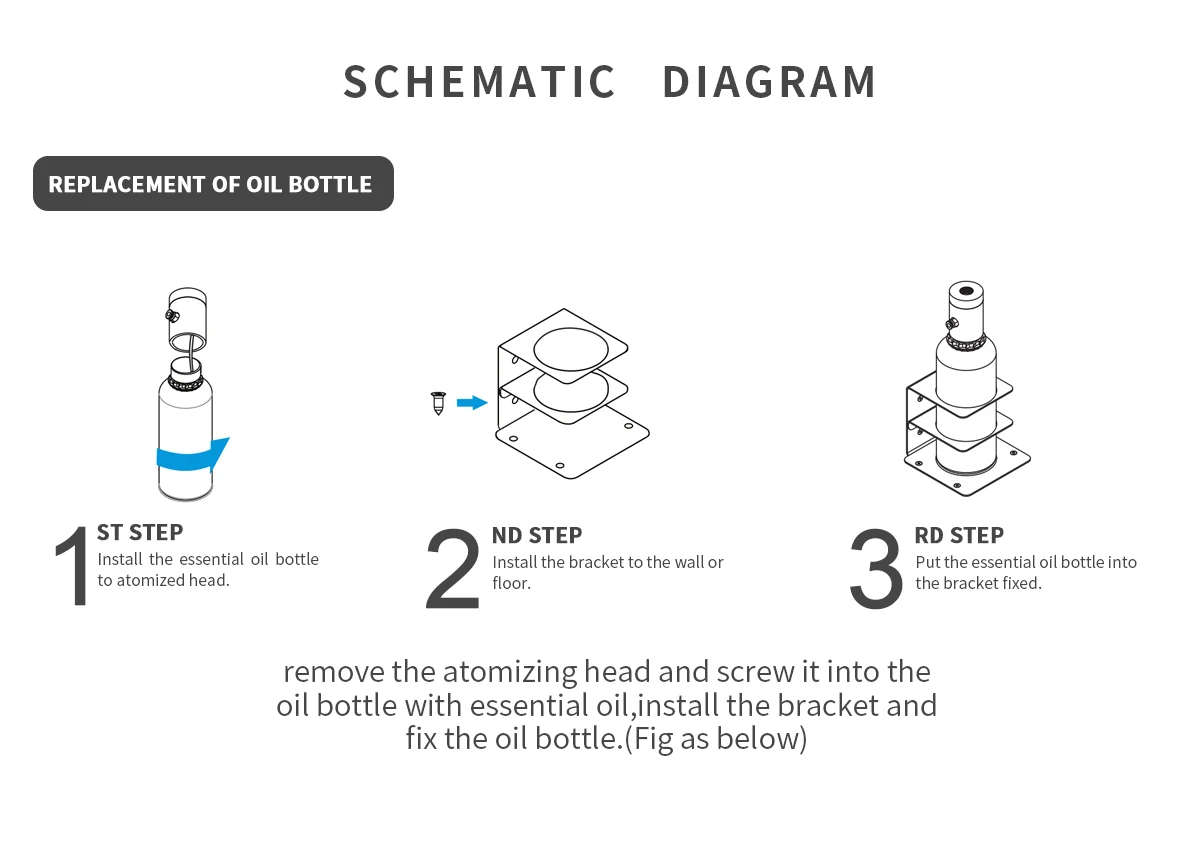

1. Carefully open the aroma diffuser and take out the essential oil bottle, which the essential oil has been run out.

2.  Add a small amount of alcohol to the essential oil bottle, then install it on the aroma diffuser device and turn on the device for 5-10 minutes.

3.  After cleaning, turn off the aroma diffuser.

4.  Take out the essential oil bottle and add the essential oil you need to replace. Carefully install the essential oil bottle onto the device and continue working.



• The trouble shooting

Symptom	Remedy
No diffusion	Check if it has run out of oil Check if it working at the working period Check if the nebulizer is well locked
Small spary	Check if the oil is enough Check if it is working at the lowest intensity level Check if the nebulizer is well locked
No power	Check if the power socket is working well Check if the power adapter is well in connection Check if the power switch in at ON condition

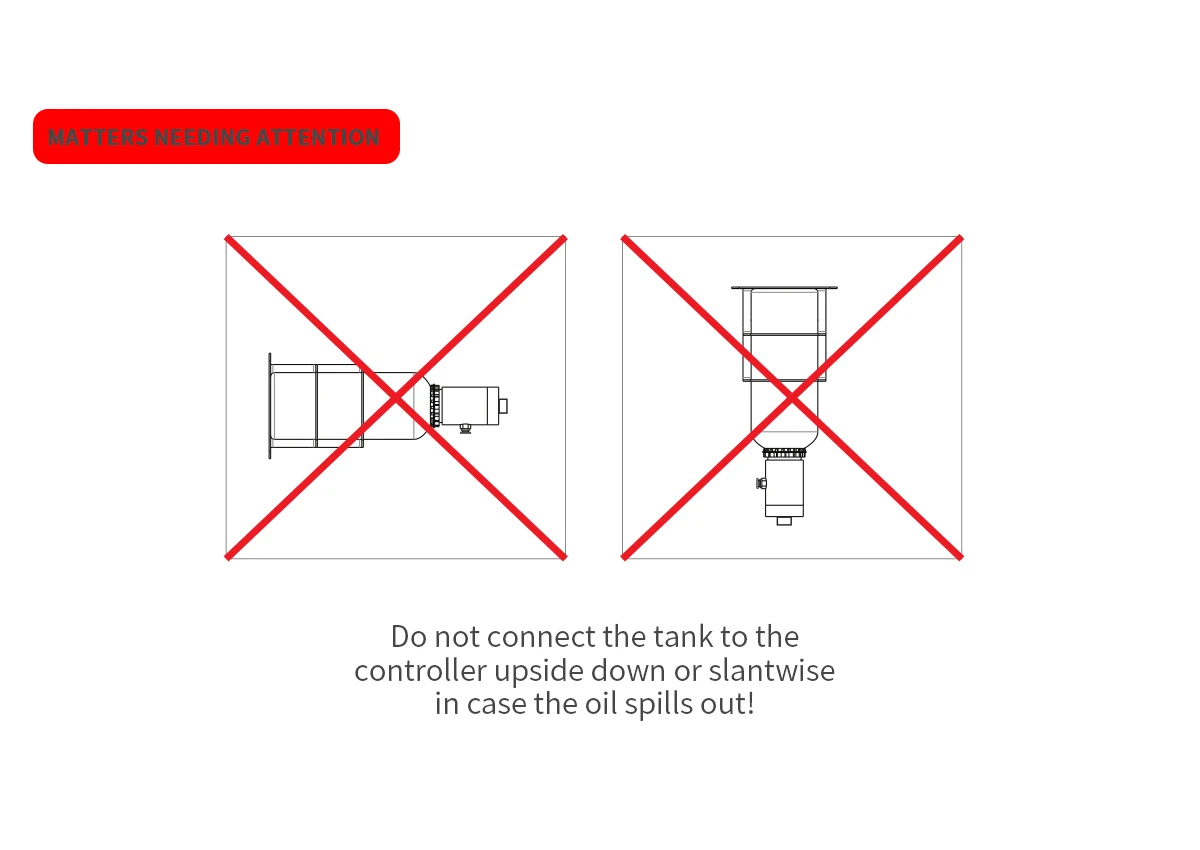

Oil spill	Check if the machine is in the right installation, see the installation guide Check if the bottle is well fixed Check if the gasket is well installed or damaged
Abnormal sound	Check if the machine is in the right installation, see the installation guide
Screen no working	Check if the power is on Check if the socket or plug is damaged



If you want to know more details about our commercial aroma diffuser and our factory, pls contact me, thanks.
