5 оси ЧПУ автоматический hydraumatic из нержавеющей стали или железа 3D 2d гибки проволоки формируя

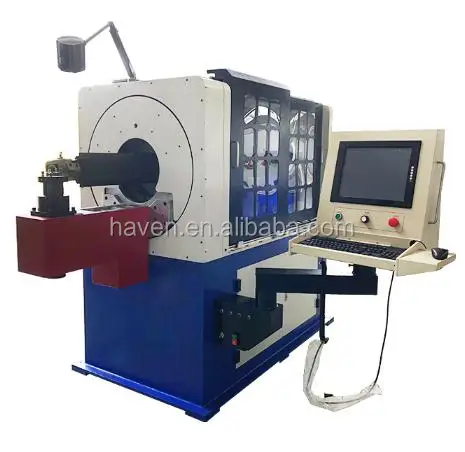

 Our Machine

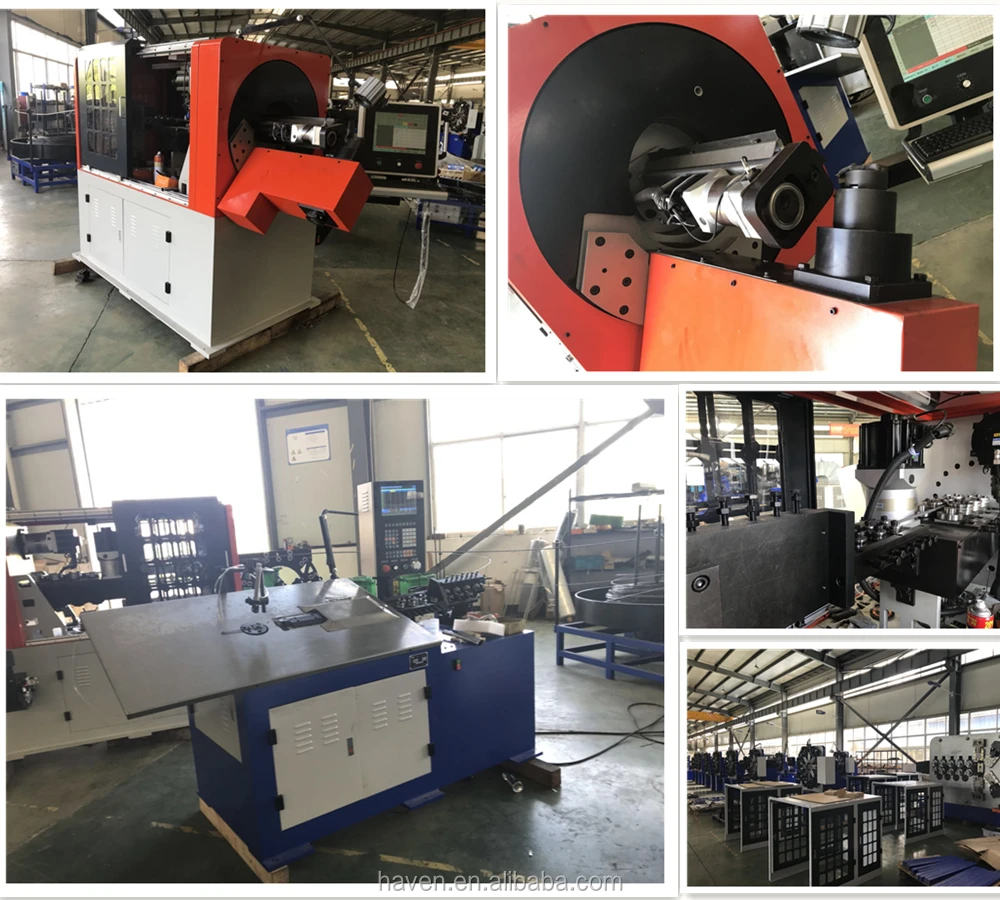

Our Workshop

Main principle:

1. Drive the reels to rotate by the precision servo motor, use the computer system of the professional instrument panel skeleton wire forming machine to control each driver to execute each step molding, and can arbitrarily modify the servo motor ramp-up and slow-down curve and the servo motor speed as required to eliminate the mechanical The impact of the transmission ensures that the length of the actual transfer wire is consistent with the theoretical calculation length;

2.  When designing the budget, the length of each MM has been divided into 10 pulses, which further ensures the accuracy of the set length can be controlled at 300 ± 10 wire;

3.  Adjustable servo shear cut, can ensure the circular cut incision, cutting time and retracting time can be directly modified on the text display;

       4. The design has a manual slow feed, slow feed back function, easy operation, reduce material loss.

Main Applications

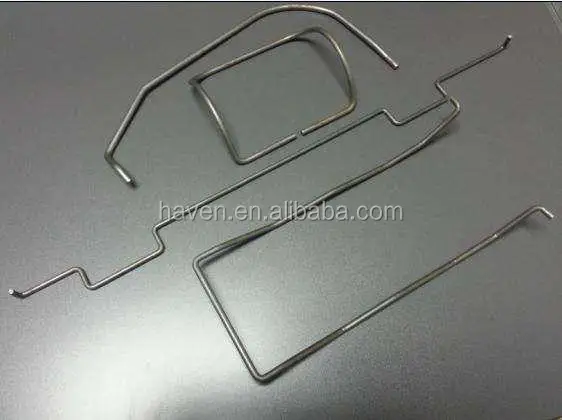

Dashboard skeleton wire forming machine BL-3D-5700 is mainly used in auto parts industry, including car seat wire, car seat parts molding; pet cage accessories; health kitchen hardware accessories; garden tools accessories, electronic product molding, toys Parts forming, electrical parts molding, sports equipment parts molding, stationery parts molding, instrument parts molding, instrument parts molding, hair accessories molding, kitchen hanging accessories molding, handicraft molding, supermarket shelf parts molding and other various types of high precision required Metal wire forming accessories.

Machine advantages

1. The instrument panel skeleton wire forming machine is based on the principle that it does not turn the head of the rotor, the head structure is light, the head rotation does not turn, and the production operation is fast and stable.

2, computer boot, shutdown speed, simple and convenient operation. The computer interface can change the program while producing the speed control.

3, the configuration using high-speed motor imported from Japan, Germany imported reducer, the production speed is higher than the domestic counterparts more than 25% of similar products.

4. The feeding line and arm can be separated and matched. When turning the head, the line can not be realized and the smaller outside diameter arc and the multi-circle can be formed.

5. The production can achieve no change in the angle at the slowest jog angle and better production stability.

6. Bearings, gears and other important parts are imported from Taiwan. The warranty is 8,760 hours and the equipment is durable and reliable.

7, high precision, can be made in the 2.0-14 mm wire diameter range of wire molding products, the error dropped to 0.1 mm

8. The use of steel wire docking machine allows the machine to change the line more convenient.

9, can be connected to the Internet, through mobile phones or computers connected to WIFI remote control, after-sales service more convenient.

Features description

1. The fluctuation of power supply current and voltage for more than one second should be guaranteed within ±5%, and the equipment can operate normally.

2. The distance between the automatic feeding rack and the host is more than 2000mm.

3, the device is equipped with a USB interface for data reading.

4, the computer operating system can access the Internet, to achieve remote control and operation. Production efficiency and output are displayed on the man-machine interface. After reaching the specified output, the equipment can be automatically shut down.

5. After the equipment is used, the gear box and guide rail slider should be regularly greased, and the cycle should be 60 working days.

Maintenance details

1, correct installation

After the machine is placed in the workshop, it needs to be grounded to the full ground. During the transportation process, the manufacturer has the bottom of the wood board, and the board needs to be removed and the rubber pad is placed on it. The purpose of this is to prevent the production process of the skeleton wire forming machine of the instrument panel. In the meantime, there will be no shock caused by the operation of the machine.

2, regular oil and butter

The location of refueling is mainly curling, delivery line boxes, and transmission gears, etc. The lubrication of organic oil at the running-in portion of the wire forming machine is maintained for a long period of time. Generally, the butter is checked once a week;

3, keep the machine clean

Every day before work, employees need to wipe the surface of the instrument panel skeleton wire forming machine clean. If it is not clean for a long time, the accumulation of oil will have the possibility of changing the circuit parameters, and the long-term erosion of the dust, so that the surface of the machine table is aging, affecting the appearance. ;

 4, normal operation use

Special attention should be paid to not producing products that exceed the wire diameter range as much as possible to avoid reducing the accuracy of the equipment. The machine table needs to be placed in a ventilated and dry place to prevent moisture from rusting or damaging the circuit.

The timely maintenance of the machine platform can not only maintain the precision and stability of the instrument frame skeleton wire machine, extend the service life, but also reduce the repair rate of the machine platform.

The machine will be customized the machine for you accroding to drawings or the samples,please feel free to contact with us.
