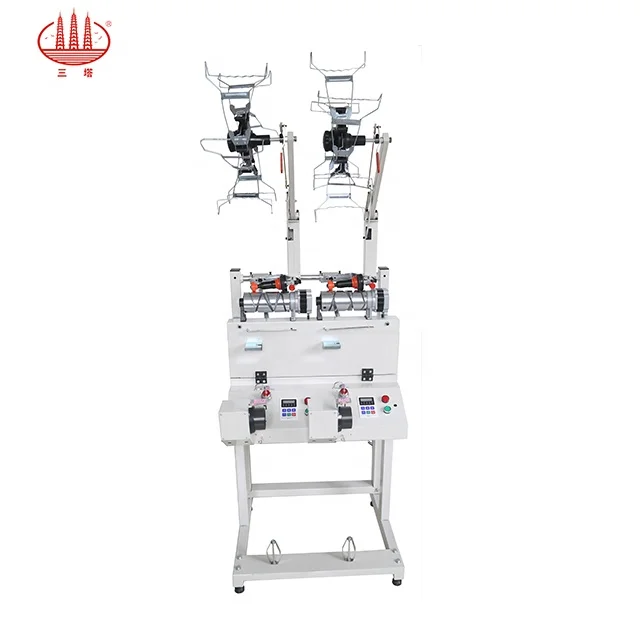

SGD155 аппарат для перемотки

Описание и отзывы

Характеристики

groove drum:0/d82mm,pitch2.5, symmetrical 0°

take up: 3°30',4°20', 5°57'

automatic length fixing: electronic winding length setting based on finished(optional)

electric waxing device: square hold wax piece and weight piece can be added, 1 set/head, it can wax evenly

configuration: 12 spindles/ section

composition: max 9 section/set.

max speed: 1100/min

traverse standard 147mm

yarn detector: with optional sensor

max. package: 250mm

start/stop: by film switch, general control for single side by lcd.

radial anti patterning system: 1100w motor power of cleaner

absorbed power: 100w/ spindle (max. speed, excluding the motor power of cleaner.

power: 3 phase 400v  50/60 hz

size: 2250mm * 1100mm * 1550mm(12 spindles)

weight: 450 kgs(12 spindles)
