2pt Steel Tooth Rules / Wave Rules Wholesale For Die Making

Our YT brand flat bed cutting rule has the excellent properties of a soft steel, with the long service life of an extra hard cutting edge and can , therefore be universally used.

A. Quality test contents:

cutters hardness, wear-resistance, metal extensibility, edges straightness, flatness, cleanness of blade, accurate height…

We use the current most advanced LASER automatic measurement instruments to do these jobs.

B. Products Properties:

1. Medium hard body and a soft, ductile outer skin.

2. A perfectly shaved bevel as standard or precision ground edge on request.

3. Extra hard cutting edge.

4. Excellent bend-ability

5. Uniform straightness.

6. Uniform height and width

size	meter lengths packing	volume and weight
2pt 2 point 0.71*23.80*1000mm	100pcs/box100m/coil	36*470*500mm 15kgs
3pt 3 point 1.07*23.80*1000mm	70pcs/box 70m/boil	36*470*500mm 15kgs
4pt 4 point 1.42*23.80*1000mm	50pcs/box 50m/boil	36*470*500mm 15kgs



C. Types available:



1. 2pt thickness height is from 23mm-23.8mm



2. 3pt thickness height is from 23mm-23.8mm



3. Perforating rule, wave rule and cutting rule available.



4. Special high blade like 30mm 50mm 80mm and so on



5. Special zip rule available



6. Long center bevel and center bevel

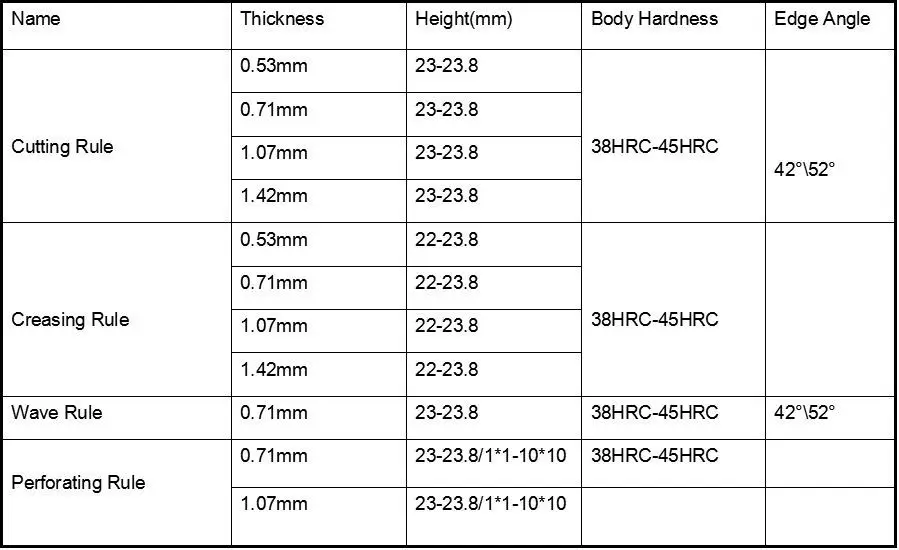

D. Specifications:



E. Application:

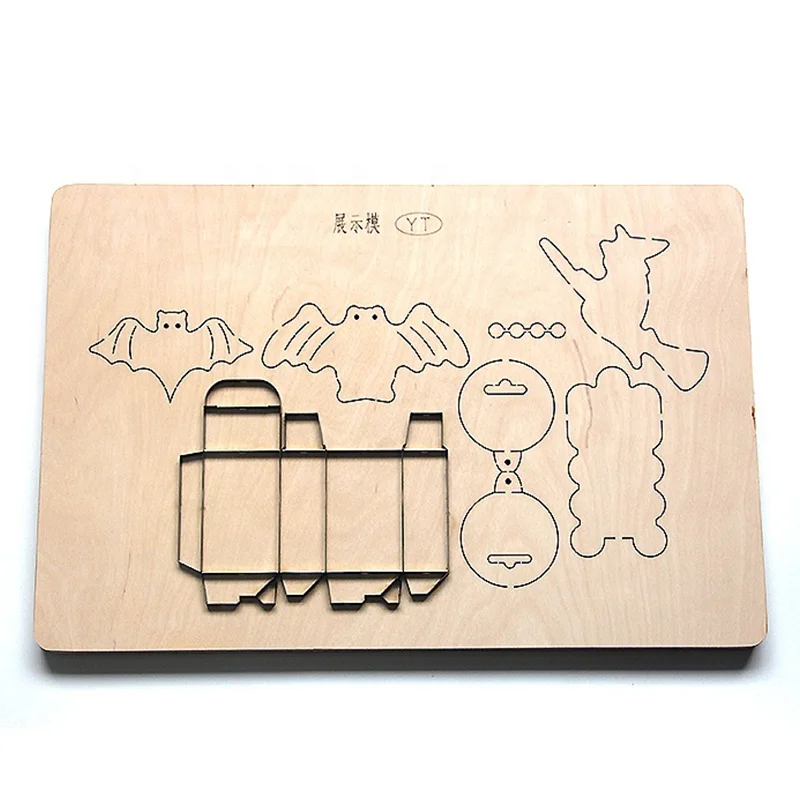

It can be used for die-making, and used to cutting paper, cardboard corrugated board, labels, post card, business card, jigsaw puzzle, PET, PVC, Rubber, Foam, EVA and so on.

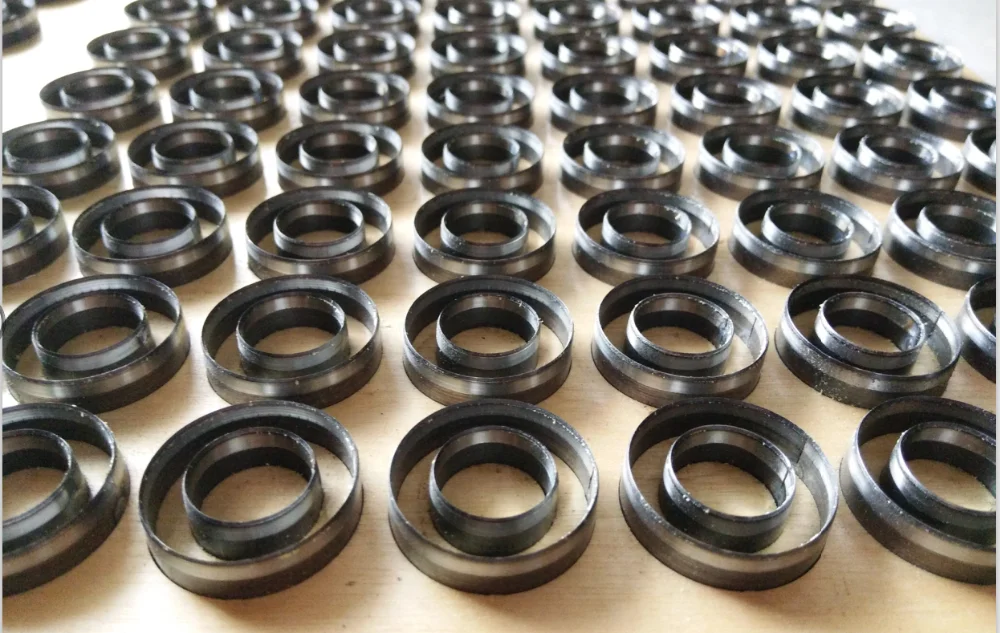

F. Bended Shape samples:



H. Our Services:



1. QC System:100% inspection before shipment.



2. Drawing format: CAD / PDF/ DWG/ IGS/ STEP



3. Packaging: Standard package / Pallet or container / As per customized specifications



4. Payment Terms: 30 -50%T/T in advance,



   70-50% balance before delivery; L/C, PayPal or Western Union is acceptable.



I. Shipment Terms:



DHL, UPS, EMS, TNT, Fedex, sea transportation are available



J. Trade terms:



EXW, FOB, CIF preferred
