Product Description
Product Application

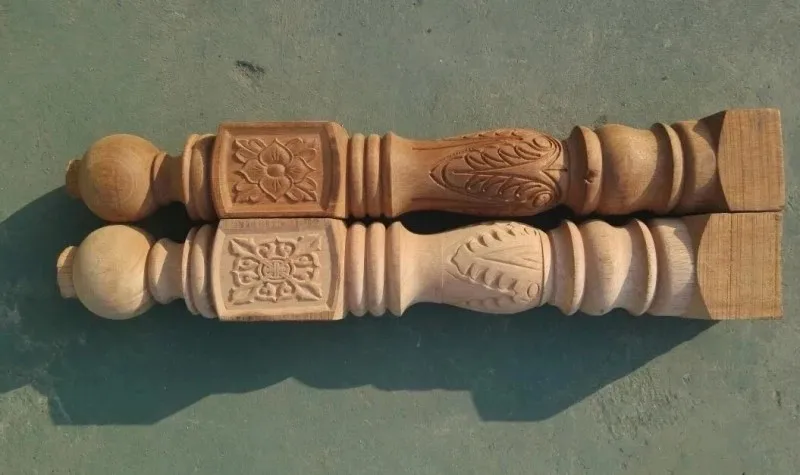

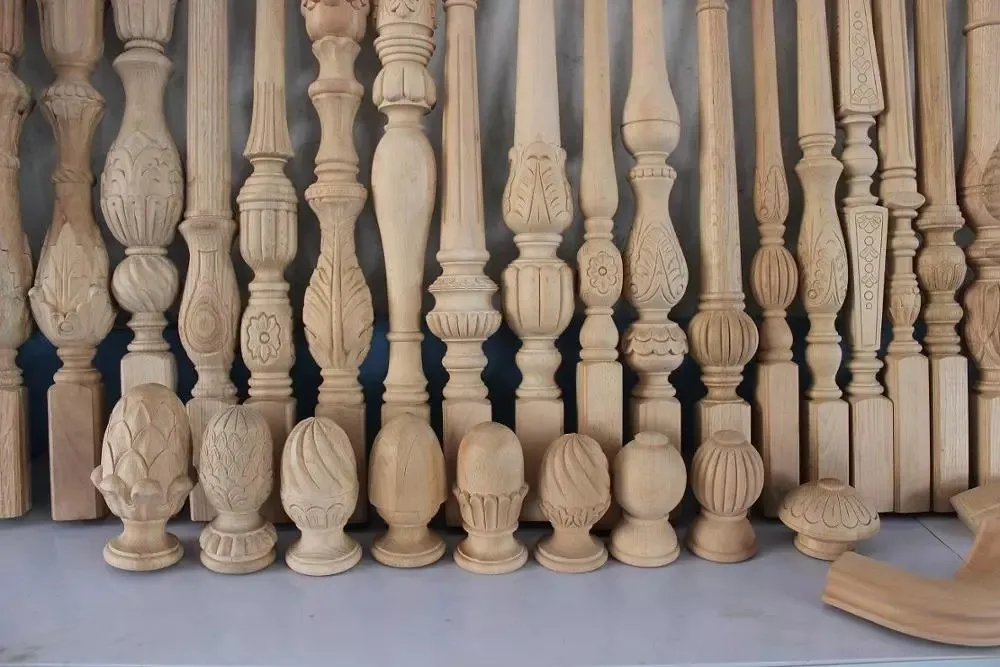

Wooden handles;baseball bats;staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts and so on.

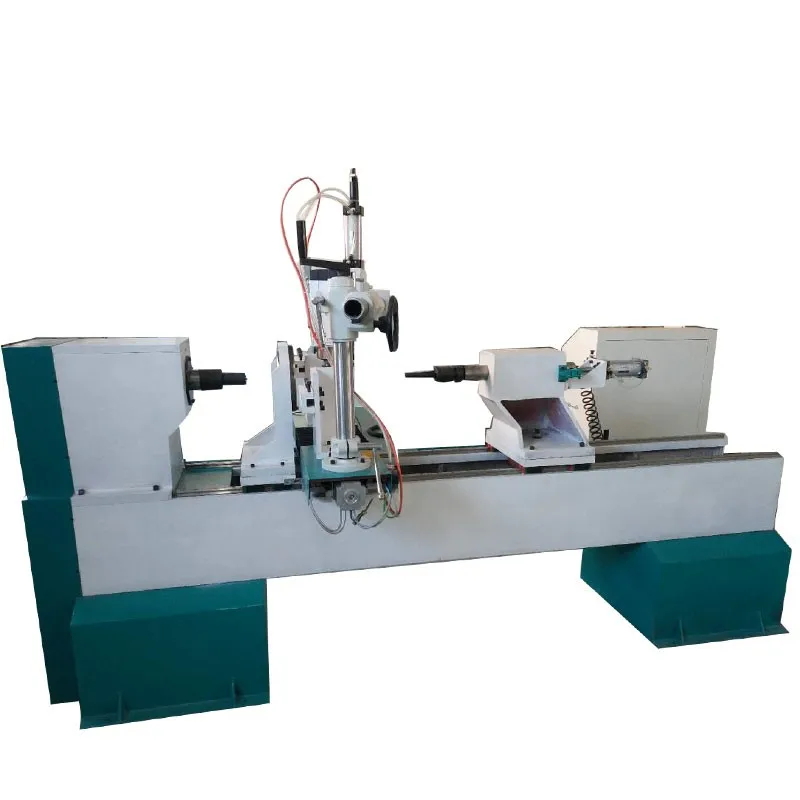

SPECIFICATIONS FOR Hot sale wood cnc lathe for stair railing table leg | ||||||
Modle | MP-1530 | |||||
Max turning length | 1000-3000mm or option | |||||
Max turning diameter | 300mm | |||||
Number of axis | 2axis 2blade/1axis 2blade | |||||
Spindle motor power | 4.0KW | |||||
Power supply | AC380V/50HZ or 220V/50HZ or option | |||||
Weight | 1600kg | |||||
Main Features
1.Whole machine is welded with seamless steel structure,which is high temperature annealing and vibrating stress relief,so the lathe body is stabilized and will not be deformed forever.
2.Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our lathe can completely work offine and do not take any computer resources.
3.Operating system has friendly simple operation interface,english suggestion and simple setting method.
4.Our cnc wood lathe adopting domestic famous brand stepper motor,to ensure the precision.
5.Transmission System: Hiwin square rail and ball screw to control the linear error effectively .
6.Spindle System:Divided into the single axial and biaxial.
7.Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
8.One time tool setting to finish the whole work piece.
If you have any special requirements, we can custom make according to your request.
Certifications
Detailed Images

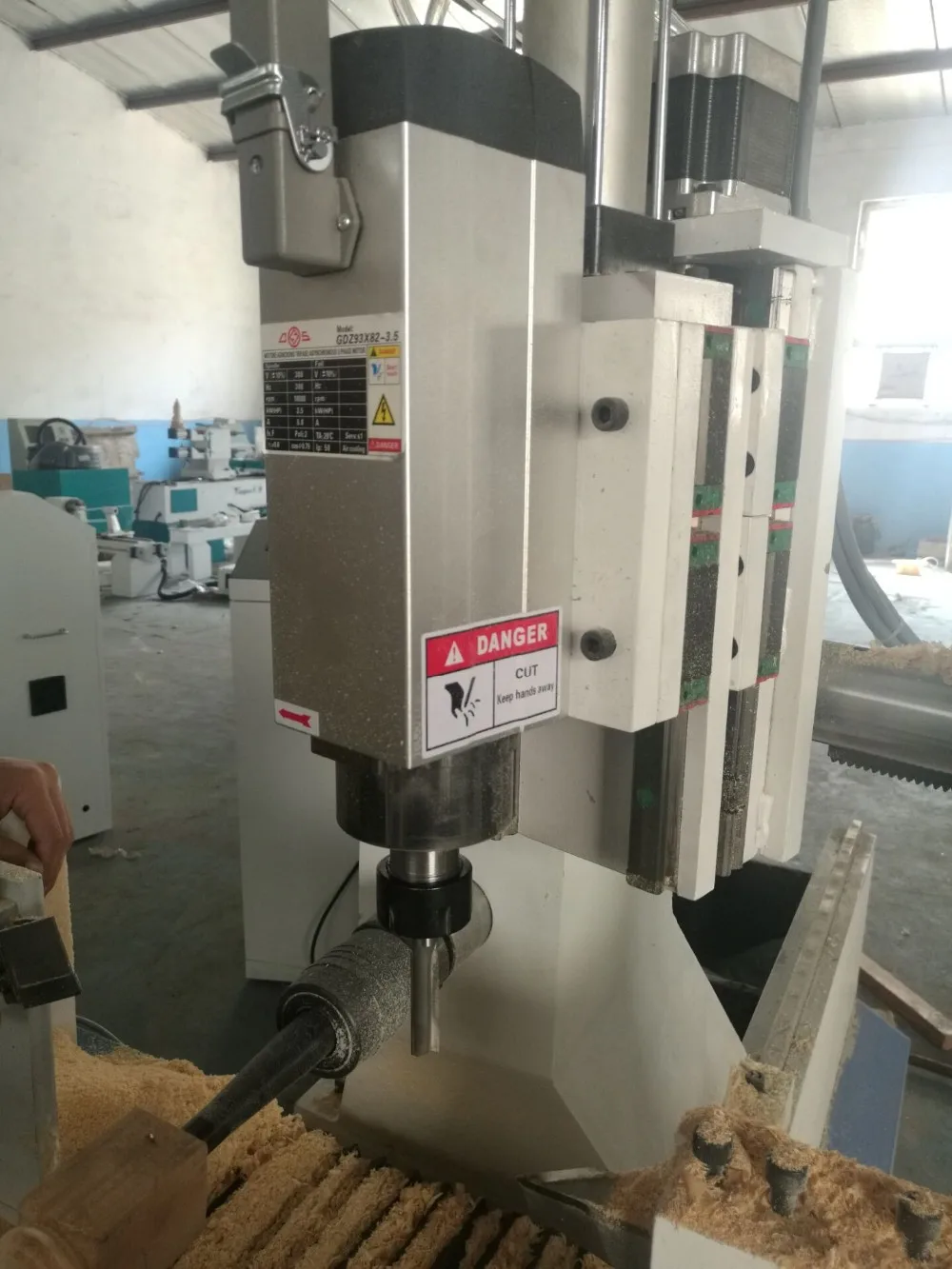

High speed sinple
except turning,cylinder and plane can be carved
More comprehensive than normal machines

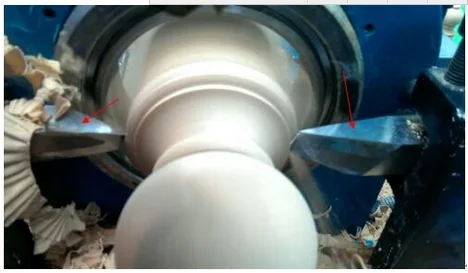

One head two tools
Fast speed, high finish with less than one per minute
Lubrication system
Connect track slider, oil regularly, convenient maintenance and long service life
DSP control system
3Axis or 4axis can be chosen,handiness and high stability
Our Service
Pre-Sales Service
* 24hours online consulting with pictur and vidios
* Sample testing support.* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
* View our Factory.
After-Sales Service
* Careful packing and logistics delivery
* Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.
* Return visit once a month
* Free replacement parts within the warranty period
Packing & Delivery
Packaging | ||
Size | 2850 (L) * 1100 (W) * 1450 (D)mm | |
Weight | 1.5 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
