3 оси ЧПУ комплект 8.5N. М немв 34 шагового драйвер и
- Категории: Шаговый электродвигатель >>>
- Поставщик: Changzhou,Jinsanshi,Mechatronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

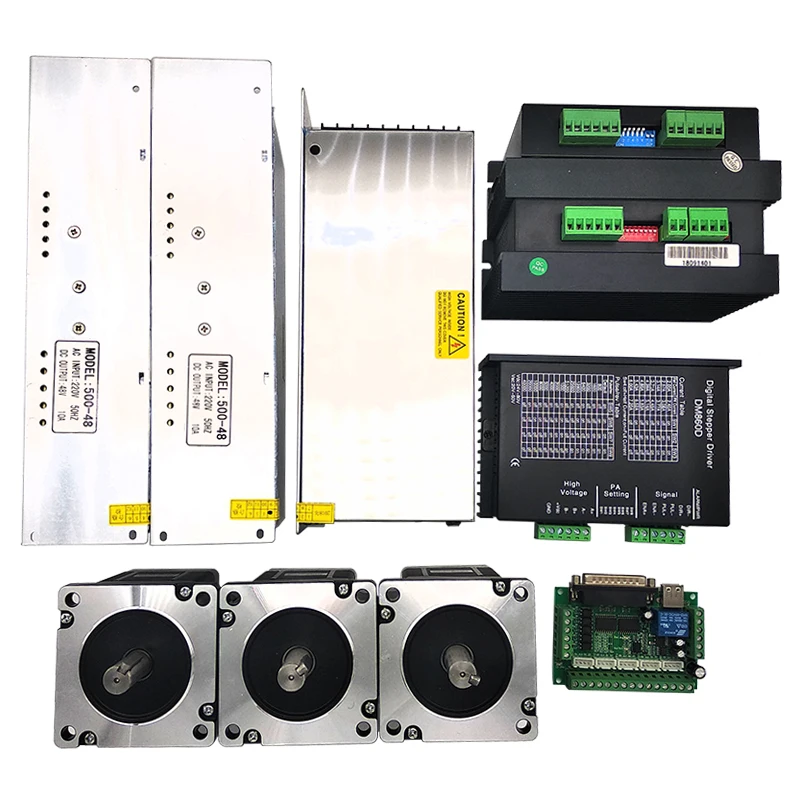

3 axis cnc kit stepper motor, stepper driver, power supply, controller board:
86HS nema 34 series stepper moter :
| Model No | Step Angle (°) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
| 86HS65-4004 | 1.8 | 4 | 0.7 | 3.9 | 32 | 68 | 4 | 1.7 |
| 86HS78-4204 | 1.8 | 4.2 | 0.45 | 4 | 45 | 78 | 4 | 2.3 |
| 86HS78-6008 | 1.8 | 6 | 0.5 | 4 | 45 | 78 | 8 | 2.3 |
| 86HS82-4504 | 1.8 | 4.5 | 0.32 | 2.8 | 45 | 82 | 4 | 2.5 |
| 86HS82-5608 | 1.8 | 5.6 | 0.35 | 3 | 50 | 82 | 8 | 2.5 |
| 86HS100-5004 | 1.8 | 5 | 0.5 | 4 | 68 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 5 | 0.5 | 4 | 65 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 6 | 0.6 | 6 | 85 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 5.6 | 0.6 | 6 | 85 | 118 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 5.5 | 0.7 | 9 | 120 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 6.2 | 0.75 | 9 | 122 | 156 | 4 | 5.5 |
| 86HS156-5608 | 1.8 | 5.6 | 0.65 | 9 | 120 | 156 | 8 | 5.5 |

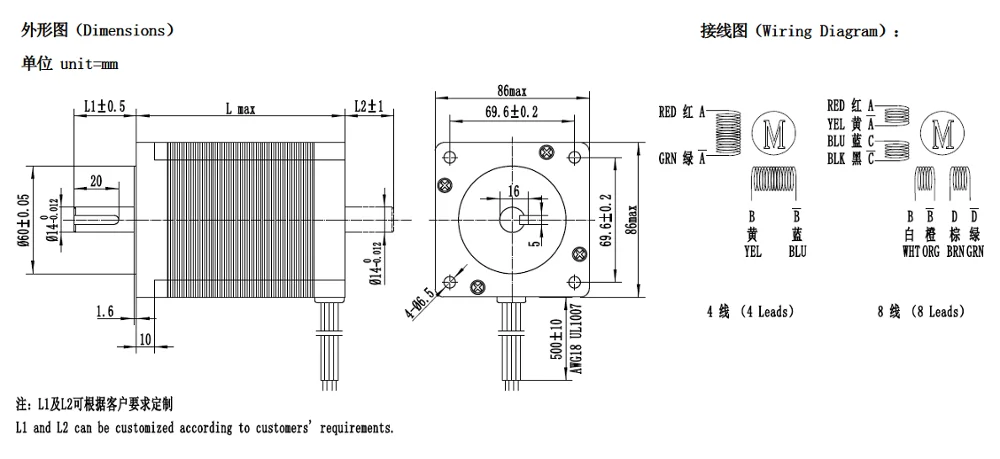

Wiring Diagram And Dimensions:
Stepper Driver for Nema 34 Stepper Motor
DM860D and DM860A Digital stepper driver:
1. over current, over voltage, under voltage, over heating, autmatic semi-flow prection fuctions, low noise.
2.dimensions: 150mm × 98mm × 51mm
3. Current 2.4A-7.2A, 24-80VDC/24-80VAC
Company Information
Our main products include stepper drivers for all stepper motor, stepper motor from size NEMA 8 to NEMA 42 series hybrid stepper motor, easy servo stepper motor and driver, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we always research and develop new products.
