Высокоскоростной высокоэффективный лучший вращающийся токарный станок с


Поделиться:

Цена:4 999,00 $ - 5 300,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


High speed high efficiency best wood revolve lathe cnc machine





double axis wood lathe









Description





(1)Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
(2)Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. wood cnc turning lathe
(3)LCD screen, operated with the computer, more intuitive,convenient operation,simulation is available
(4)Adopt Germany ball screw and Taiwan square guide rail with high transmitting precision and longevity.
(5)Compatible with several CAD/CAM design software, e.g. type3, coreldraw,artcam, etc.
(6)Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.

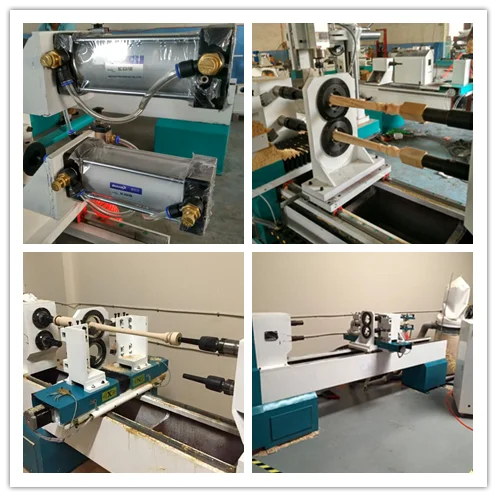

double axis double cutters processinglathe box











Parameters





















































































Certificate



CE



Machine material



Cast iron



Max diameter



300mm(Custom model 400mm specifications)



Max length



1500mm(Custom model 2000mm specifications)



Rotary spindle motor speed



0-3000r/min



Drive system



stepper motors 450C/450B and Yako 2811 drives



Guide rail



Taiwan HIWIN linear square guide rail 25mm



Transmission



Rack and pinion, Taiwan TBI rolling ball screw



Air pressure



0.6-0.8Mpa



Control system



DSP system



Software compatiliby



Type3/Artcam/Artcut/Ucancam/JDpaint etc.



Command language



G-code



Computer interface



USB



Working voltage



380V, 50/60HZ



Maintainance



Oil lubricating system



Environment temperature



0-45 centigrade



Relative humidity



30%-75%



Machine size



2000*1300*1350mm



Machine Weight



1600kgs












Application





 For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.





The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.





wood lathe samplelathe-122











FAQ


Q1:How long is the delivery time of Cnc Lathe Machine ?
For standard machines, it would be 7-15 working days after receiving deposit;
For non-standard machines and customized machines according to client's specific requirements,it would be 15 to 30 days.



Q2: What mode of payment for  Cnc Lathe Machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.


Now trade assurance is also very popular.



Q3: If some problems happened to mini cnc wood turning twisting fluting Lathe during warranty period, what should i do?
We will supply free parts in machine warranty period if mini cnc wood turning twisting fluting Lathe machine have some problem(man-made ones not included). While we also supply free after-service forever,so any doubts, just let us know,we will give you solutions in 30 minutes.





Q4: Is your machine operation teaching for free?


We have free English install instruction book.  And we can teach how to operate wood lathe machine for free.





Q5: If  it is the first time I buy machine in other countries, could you send the machines directly to my home or office?


Yes, we can contact the relates company to handle these things. But  you should pay the charges.














Packaging & Shipping

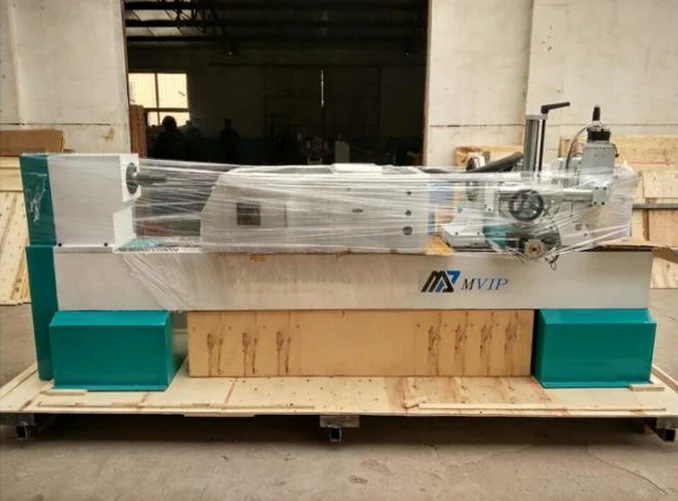

1.The Cnc Lathe Machine and accessories are first covered by plastic sheet, water-proof and dampproof.


2.All the things are packed by plywood case used for export.


3.The mini cnc wood turning twisting fluting Lathe can be delivered by sea, by train, or by plane according to your designated place.

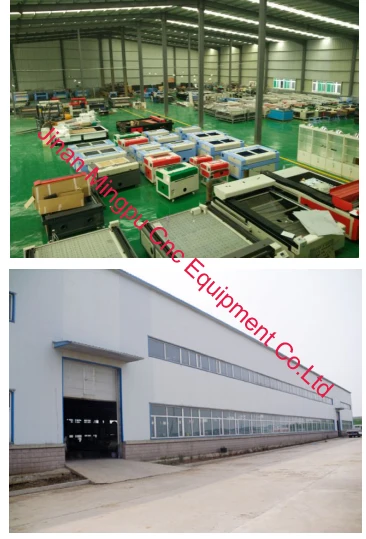

Company Information
