SRCC Certified Heat Pipe Solar Collector for Triple Selective Layer Absorber Coating Tube
JHC-5818-15

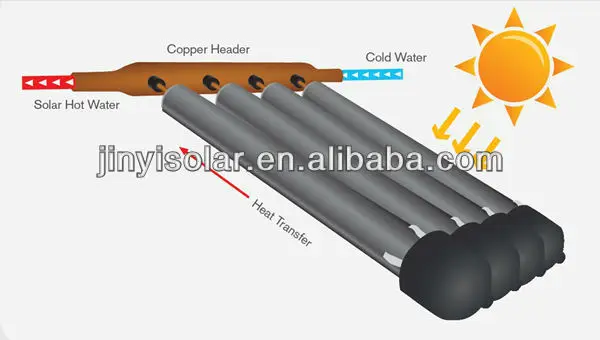

Solar thermal collectors working principle:
The heat pipe solar collector is always connected with existing heating supply device. The selective coating on the inner cover of the vacuum tubes converts solar energy into thermal energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapor which rises to the condenser. The heat then passes through the heat exchanger and the vapor becomes liquid, returning to the base of the heat pipe. The heat conducts to the heat transfer liquid via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

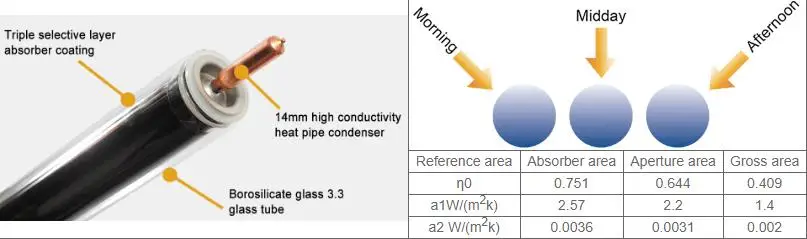

QQ20130610152907solar collector

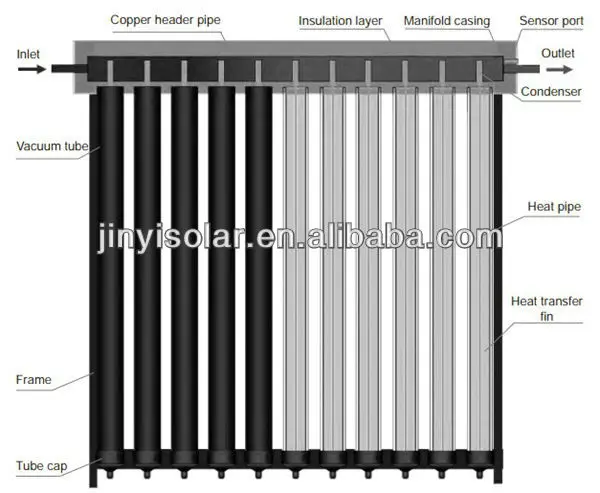

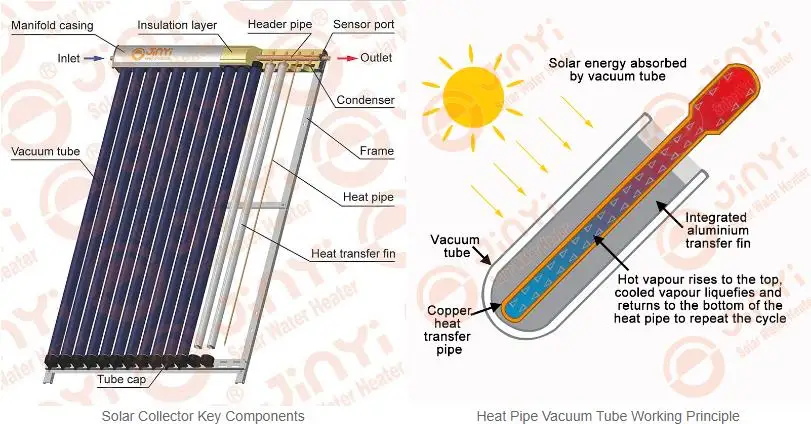

Solar Collector Key Components:
JHC-Key Components.jpg

The characteristic of Heat Pipe Solar Collectors:
1) Reliable, efficient, twin-glass evacuated tubes.
2) Red copper(TU1) heat pipes, The water is heated by the heat pipe rapidly.
3) There is no water in the vacuum tube,so the tube will not break in the winter.
4) It can be combined with the architecture perfectly, standard frame suitable for pitched roof or flat roof .
5) It can be combined with existing pipeline.
6) Significant advantages over flat plate.
7) Can be used all year round in the cold climate.
8) Improves the environment and save your fuel cost.
1) Light-weight, easy delivery.
2) Attractive design, standard frame suitable for pitched roof or flat roof.
3) Easy plug-in installation.
4) Can be connected with the existing heating device.
5) Humanized design, no water directly flowing in the tubes, enabling the system still workable in case of occasional tube breakage.

Product Applications
1) Domestic, industrial and commercial heating use
2) Suitable for open or closed Loop (glycol-water)
3) Space heating
4) Caravan Parks, Hotels, Schools, Public Showers/Kitchens , Restaurants
5) For large scale water heating


ModeCollecting AreaVacuum tube Qty(pcs)L/W/H(mm)Gross wet(kg)Loading Qty (set)
20'/40'/40'HQ
JHC-5818-101.26101960×875×13033.8153/320/336
JHC-5818-121.52121960×1025×13039.6145/300/342
JHC-5818-151.91151960×1250×13048.3135/270/310
JHC-5818-182.30181960×1475×13057.1110/225/251
JHC-5818-202.56201960×1625×13062.9104/210/236
JHC-5818-243.08241960×1925×13076.990/180/200
JHC-5818-303.85301960×2375×13094.367/148/175

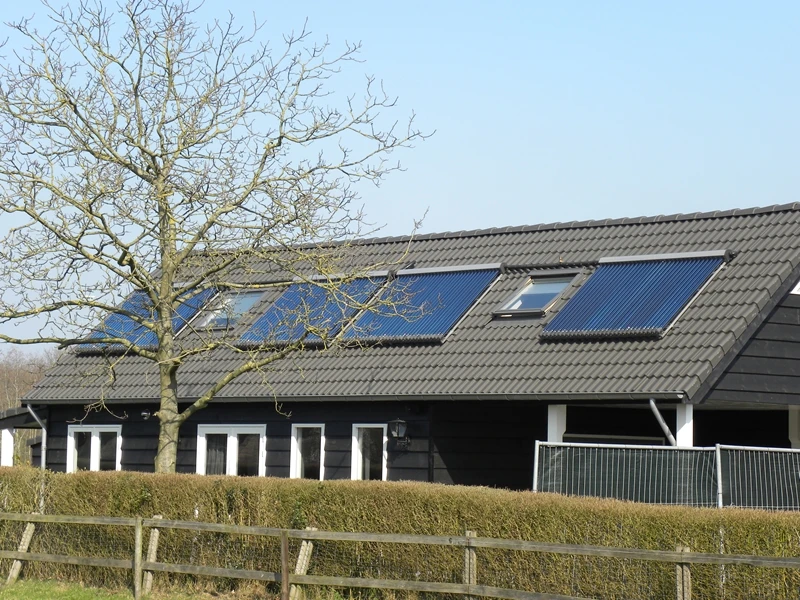

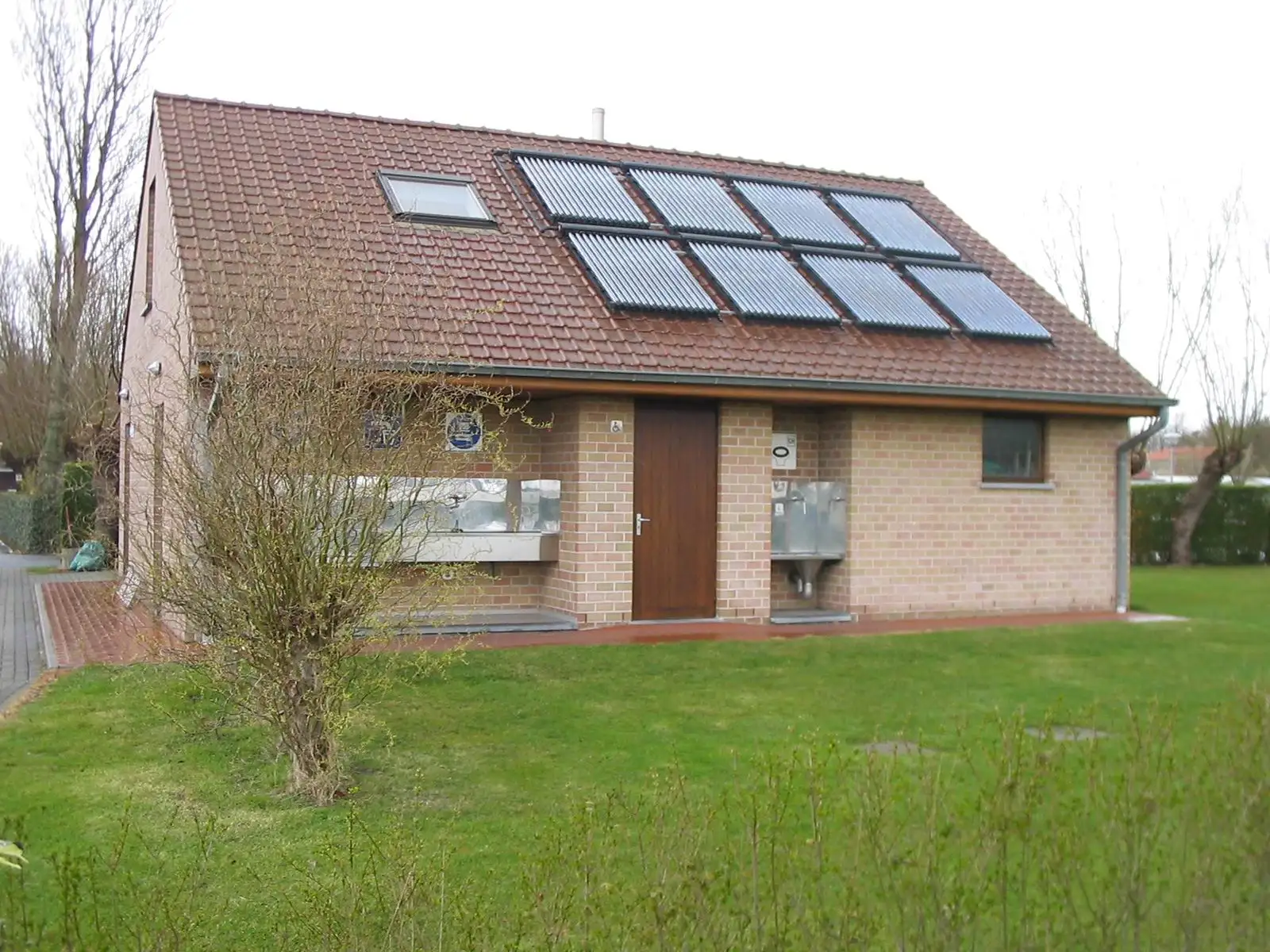

Galery:
solar collector 5.jpgsolarcollector1.jpg
Packaging & Shipping






Company Information



1. We have 12 year history/experience in manufacture solar water heater products;



2. We are a directly manufacturer, have our own factory, we manufacture: Pressure water tank, heat pipe/U-type solar collector, split pressure/heat pipe pressure/nonpressure solar water heater.etc;



3. We are near Shanghai city for 25minutes by train, it’s convenience for you to visit us, welcome!



4. Our factory is 12000 square meter big, our showroom is 100 square meter big;



5. We 100% test each tank with 10Bar/1.0MPa pressure to avoid leakage problem;



6. We produce each order strictly with the Auto CAD drawing paper.



7. We attend fair: 1) Intersolar Fair in Munich, Germany; 2) Canton fair in Guangzhou, China;



8. Our production capacity is 3000 units/month;



paste-pic-dp_uuid_4fv0w

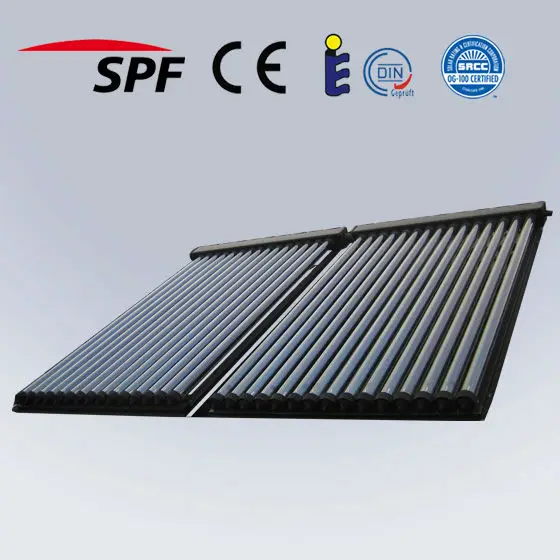

Certification:
