Products Description

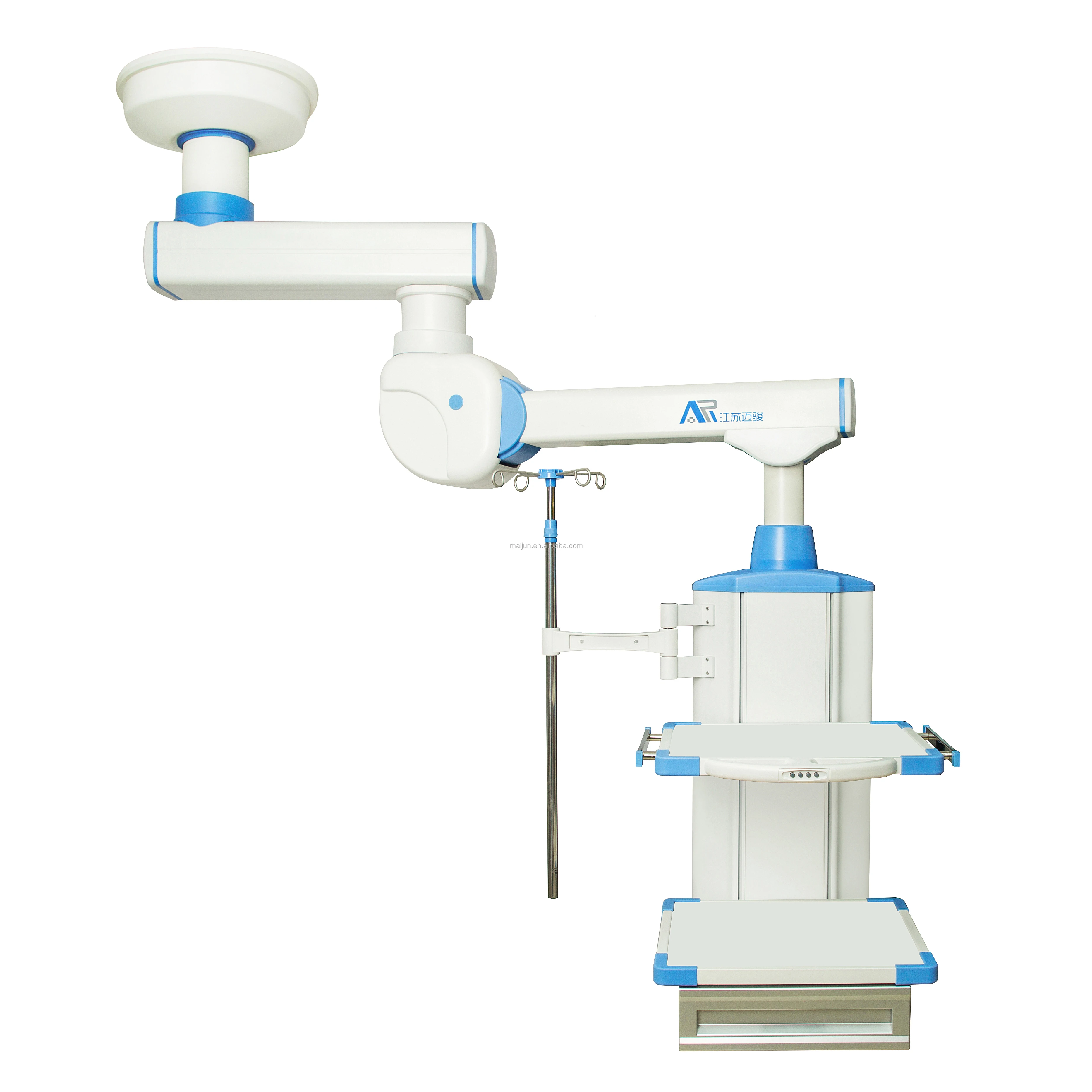

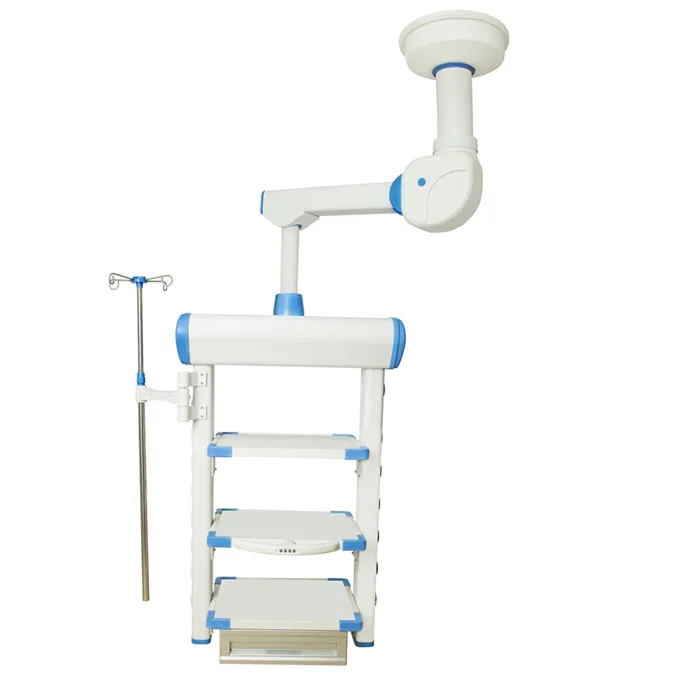

The ICU pendant Bridge has a simple and compact structure and is easy to use. It is an ideal medical gas power supply, network output terminal and instrument carrying workstation for the operating room; the installation adopts the ceiling suspension mode, and the swing arm can rotate within 340 degrees. It is equipped with mechanical brakes to prevent drift, and the height of the equipment makes it easy for medical personnel to lift their hands. It is an indispensable medical auxiliary equipment in the operating room of small and medium-sized hospitals.
Product Paramenters
Arm length | 500-1000 mm |
Console height | 600-1200mm |
Power socket | 16pcs sockets |
Equipotential | 2pcs |
Network socket | 1pc |
Gas terminal | Oxygens/4nos,air/4nos,Vac/4nos |
Gas tube | Import gas pipeline |
Platform | 5pcs , size 550*420mm |
Drawer | 2pcs |
Working power | 220V 50HZ 10A |
Infusion support | Stainless steel infusion rack 2sets |
Product Detail
Ceiling Arm
●console height from 600mm-1200mm (can be customized according to customers requirements), rotation 340 degrees, gas-electric
separation design.
●trays size:550*420mm, easy to clean and disinfect. Round Angle anti-collision design, height adjustable, with 2 standard side
rails 10*25.
● Drawer , engineering plastic molding,automatic reset device.
separation design.
●trays size:550*420mm, easy to clean and disinfect. Round Angle anti-collision design, height adjustable, with 2 standard side
rails 10*25.
● Drawer , engineering plastic molding,automatic reset device.
Gas Outlet
Oxygens,air,Vac,different shapes to avoid improper insertion, the number of inserts is greater than or equal to20,000 times.
Support various standard gas terminals, German, American, British, French
working power 220V 50HZ 10A
Equipotential
Equipotential
Network socket
Support various standard socket terminals, German, American, British, French.
adjust height is not less than 800mm
