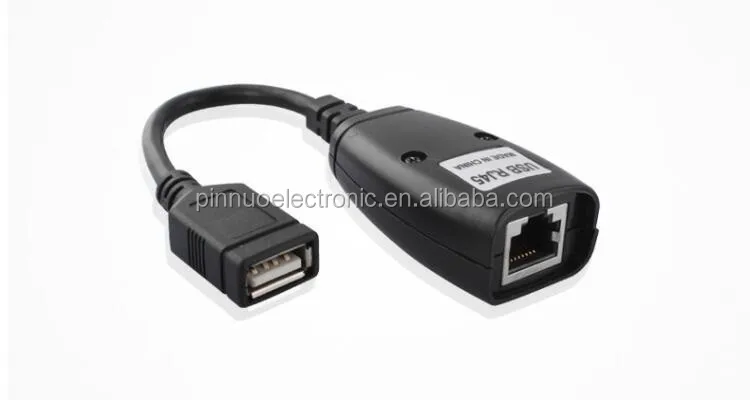

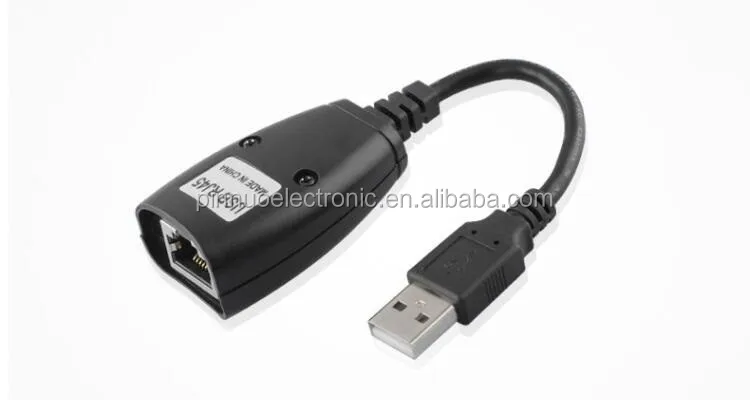

USB к RJ45 Lan удлинитель кабеля адаптера через Ethernet адаптер Cat5 Cat5E

[Product Introduction]
USB signal lengthener can break through the length limit of USB cable of computer host. Users can use this product to connect any Usb 2.0 device with RJ45 and transmit data over a long distance through a single network cable. It can achieve a maximum of 150FT long-distance data transmission without additional power supply. With IC chip, the performance is more stable. The product can be widely used in computer collar. Domain and education (such as digital cameras, printers, mice, Bluetooth and some other low-power USB devices) do not need to be placed next to the computer to support re-expansion.

[Product characteristics]
1. Adopting the latest international USB transmission technology, it is more stable and more adaptable to the industrial environment.
2. Support USB1.1 USB2.0 USB3.0 interface, almost compatible with all USB devices
3. Extend the computer USB interface to 50 meters according to the actual demand, and the low-speed equipment can reach up to 100 meters at most.
4. Use single wire, no external power supply, easy to use and install.
5. No driver, easy to operate
6. Hot pluggable USB devices
7. Low energy consumption, low heating, no need for additional power supply
8. The equipment is compact and easy to install.

[Scope of application]

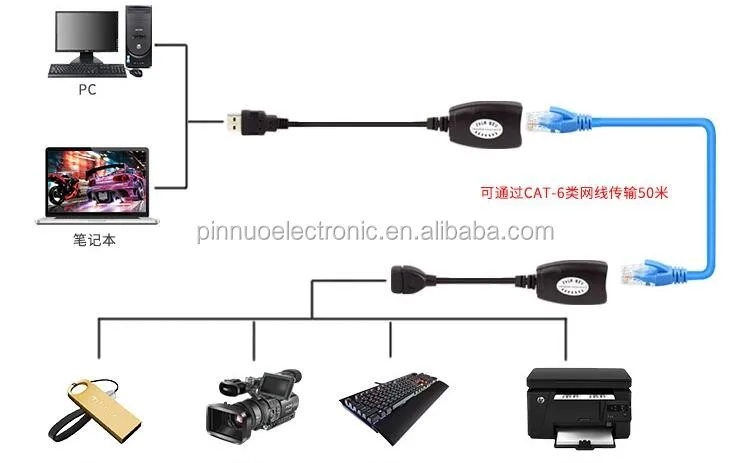

1. With VGA audio twisted-pair transmission, the control terminal and USB peripheral can be extended.
2. USB industrial control equipment is extended to allow staff to operate remote monitoring computers.
3. Use USB keyboard and mouse to control remote computer to make projection briefing in conference room.
4. Extending USB video camera/projector is a low-cost closed-circuit video surveillance scheme.
5. Apply to Internet cafes and leisure places, extend the USB image head of instant chat for a long distance.
6. Computer centralized management, the screen keyboard and mouse through the USB signal will be extended around the computer.

Attention: Please use eight-core network connection method (same as home RJ45 network connection method), do not use cross connection. Four of the eight-core network lines are grounded (GND), two are connected to 5V and two are D+D-. They do not support network card and wireless network card. The principle is that amplified signal can not amplify power supply.

Specification: The interface of this product is 1.1 speed. If you buy a 2.0 device for watching movies and TV, the speed will slow down. (For example, the resolution of the camera image will decline.) Please read the instructions carefully when you buy it.

This product is powered by USB. USB only provides 5V 5OOMA current. In ultra-long distance transmission, external devices need self-sufficient power supply to achieve 30-50M. If you are a card collector, it may be due to power supply problems and will be unstable. Please read carefully when purchasing. If you don't use it, you can choose 7 days without reason to refund and take the initiative to bear the postage!
