WK-3542L-24 HD H264 цифровой кодировщик 24 канала IP видео SPTS/MPTS выходного сигнала несмотря на то что
- Категории: TV Receivers & Accessories >>>
- Поставщик: SHENZHEN,WOLCK,NETWORK,PRODUCT,CO.,LIMITED
Поделиться:
Описание и отзывы
Характеристики
Product Description
WK-3542L HD H264 digital encoder 24 channel IP video encoder SPTS/MPTS output though data1/data2
Product Detail

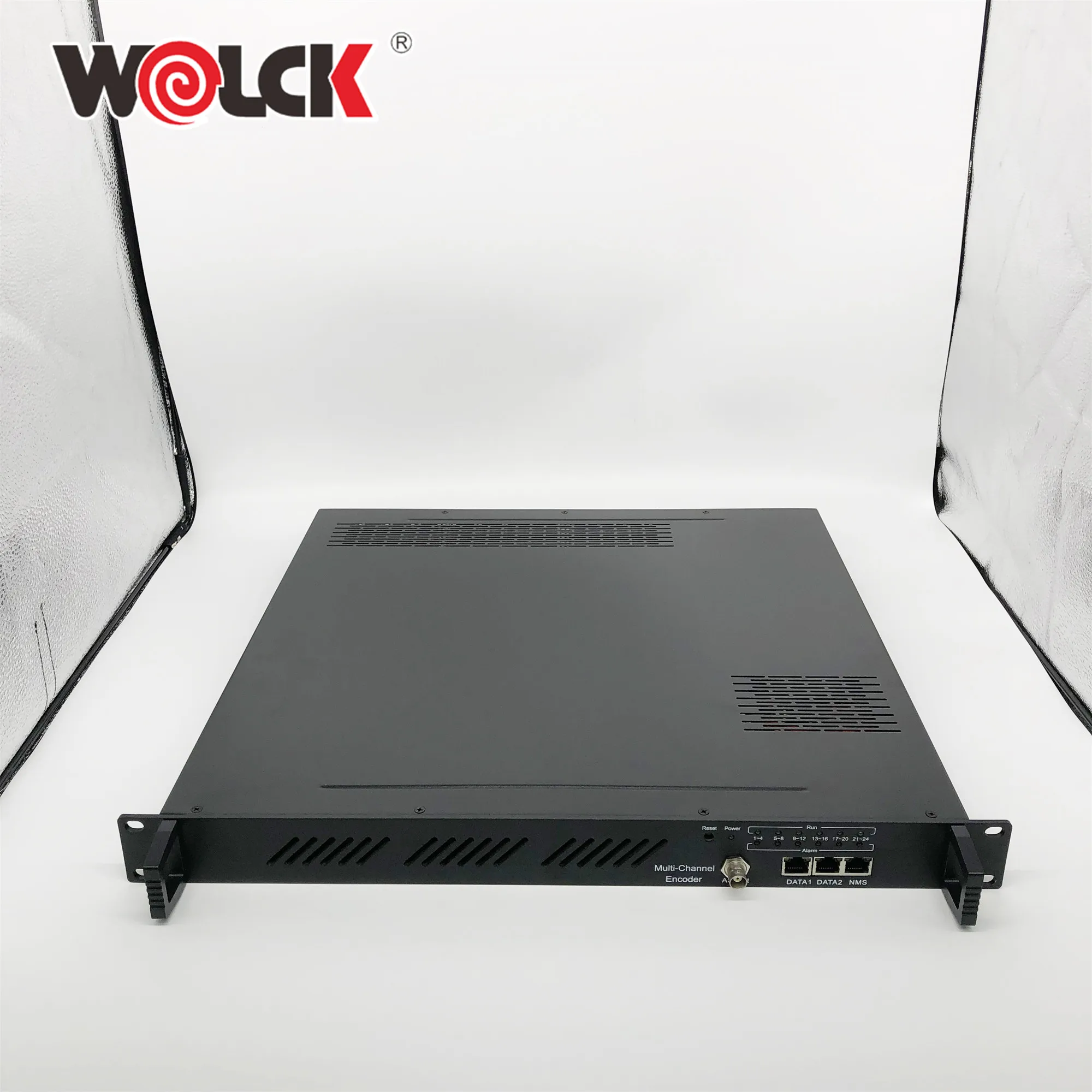

WK-3542L Multi-Channel encoder is a professional HD audio & video encoding and multiplexing device. It has 8/12/16/20/24 HDMI video input interfaces, and supports MPEG-4 AVC/H.264 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 8/12/16/20/24 channels HD audio & video; moreover, the IP output can support 1MPTS and 8/12SPTS (8/12 HDMI inputs) IP output from Data1 or Data2, and support 1 MPTS or 16/20/24 SPTS (16/20/24 HDMI inputs). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV
digital head-end, digital TV broadcasting etc.

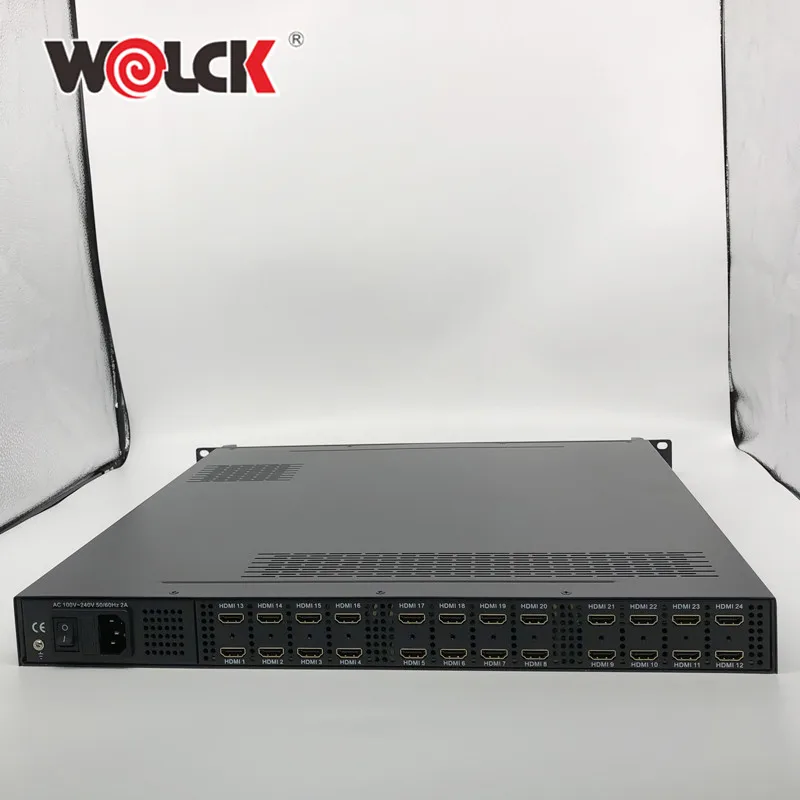

Input | 8/12/16/20/24 HDMI inputs | |||
|
|
| 1920×1080_60P, 1920×1080_60i, | |
|
| input | 1920×1080_50P, 1920×1080_50i, | |
|
|
| 1280×720_60P, 1280×720_50P, | |
|
|
| 1920×1080_30P, 1920×1080_25P, | |
| Resolution | Output | 1280×720_30P, 1280×720_25P, | |
|
|
| -- for 16/20/24 HDMI input version | |
Video |
| Output (New) | 160×124≤Output resolution≤input resolution halve frame rate --for 8/12 HDMI input version | |
| Encoding | MPEG-4 AVC/H.264 | ||
| Bit-rate | 1~13Mbps each channel | ||
| Rate Control | CBR/VBR | ||
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||
Audio | Encoding | MPEG-1 Layer 2 | ||
| Sampling rate | 48KHz | ||
Resolution | 24-bit | |||
Audio Gain | 0-255 Adjustable | |||
Bit-rate | 64/128/192/224/256/320/384Kbps | |||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
Stream output | ASI output(optional) as copy of MPTS IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol (8/12 HDMI inputs with 8/12 SPTS and 1MPTS output 16/20/24 HDMI inputs with 16/20/24 SPTS or 1MPTS output ) | |||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension(W×L×H) | 482mm×410mm×44mm | ||
Environment | 0~45℃(work);-20~80℃(Storage) | |||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |||
